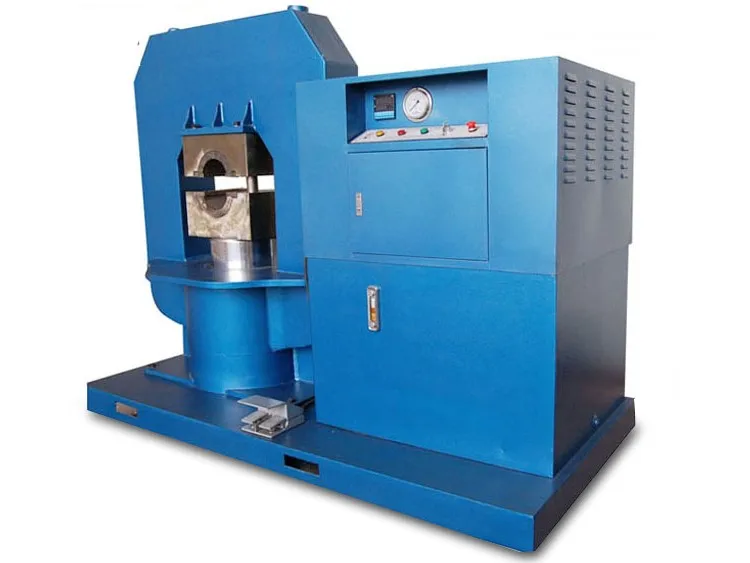

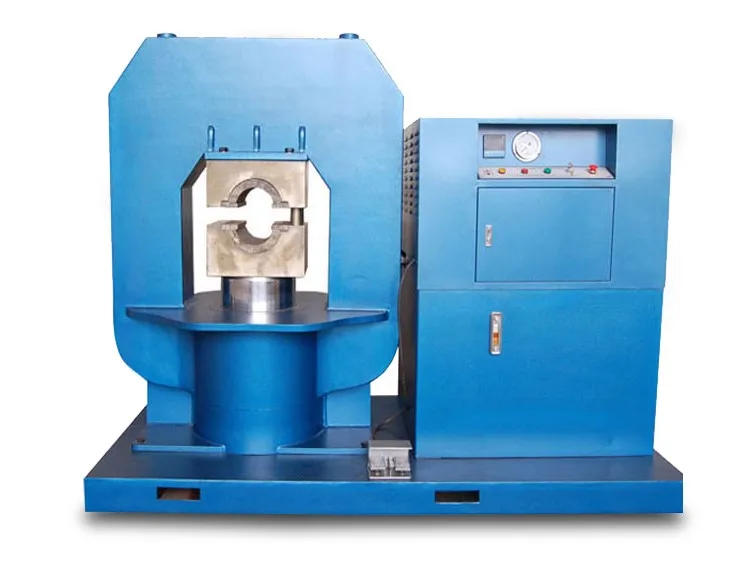

1000T hydraulic press for steel wire rope
- Category: >>>
- Supplier: Jiangsu Xingtai Hydraulic Manufacture Co. Ltd.
Share on (62373456780):
Product Overview
Description
hydraulic press for steel wire rope

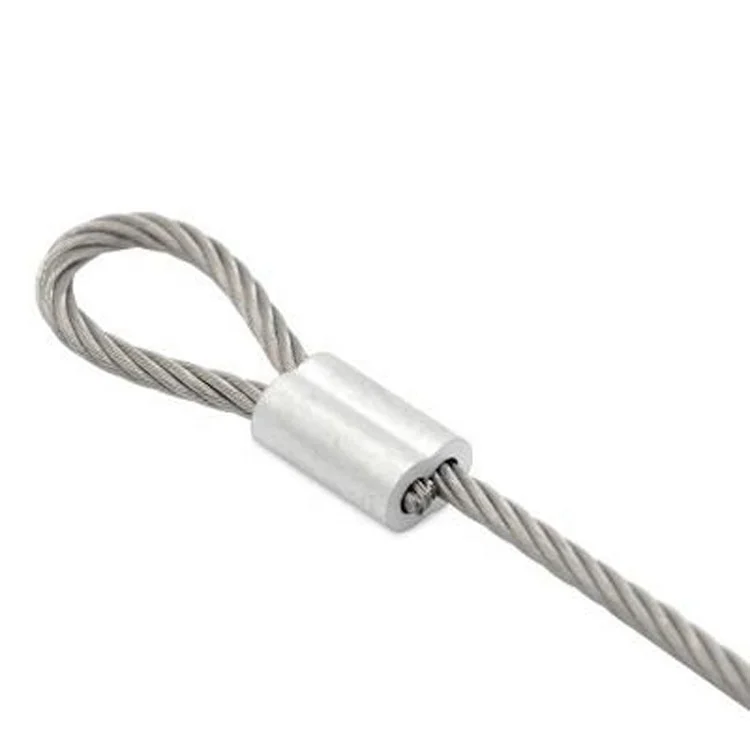

Xingtai hydraulic press for steel wire rope are used to make pressed wire rope sling.
The body of swagers are manufactured from one single block construction that ensure strength, long service life and a minimum of maintenance. All swagers are thoroughly test run and are supplied with a full tank of oil.
1. It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.
2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
3. Electric control parts of the low-voltage control, an increase of operating system security.
4. Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.
5. Xingtai wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.
Technical data of hydraulic press for steel wire rope
Mode No. | GT-100T | GT-200T | GT-350T | GT-500T | GT-650T | GT-1000T |
Max press power (KN) | 1000 | 2000 | 3500 | 5000 | 6500 | 10000 |
Max wire rope diameter in one pressing (mm) | Φ13 | Φ20 | Φ28 | Φ32 | Φ38 | Φ44 |
Max wire rope diameter in multi-pressing (mm) | Φ15 | Φ22 | Φ34 | Φ42 | Φ48 | Φ56 |
Power (KW) | 1.5 | 2.2 | 3.7 | 4 | 5.5 | 11 |
Max working pressure (Mpa) | 56Mpa | 56Mpa | 56Mpa | 56Mpa | 56Mpa | 56Mpa |
Max piston movement (mm) | 78 | 80 | 80 | 100 | 160 | 200 |
The up speed of piston (mm/sec) | 8 | 8 | 4.5 | 4.5 | 4.5 | 4.8 |
The down speed of piston (mm/sec) | 10 | 10 | 4.5 | 8 | 8 | 10 |
Total length (mm) | 1100 | 1100 | 1200 | 1500 | 1650 | 2550 |
Total width (mm) | 550 | 600 | 600 | 610 | 650 | 1100 |
Total height (mm) | 1250 | 1400 | 1400 | 1600 | 1600 | 2100 |
Net weight (kg) | 600 | 900 | 1000 | 2000 | 3000 | 5500 |

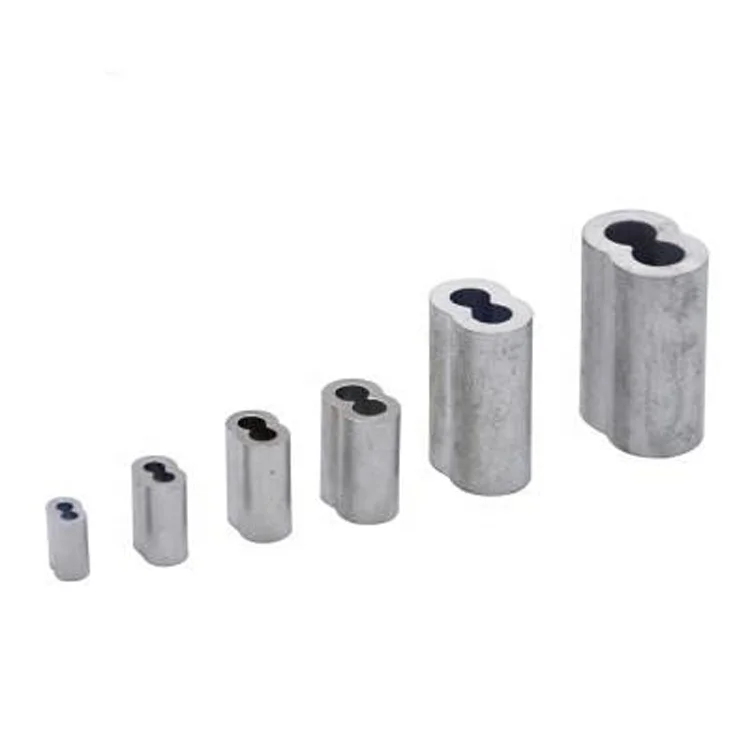

Jiangsu Xingtai Hydraulic Manufacture Co.,Ltd was founded 20 years ago, and located in Taizhou City, Jiangsu Province, China. Xingtai hydraulic engages in hydraulic wire rope press machine, wire rope annealing and tapering machine,aluminium sleeve,and lifting clamp. Xingtai hydraulic owns advanced producing equipment, tremendous technique capacity, authoritative test facility, prefect quality management system.Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.
Xingtai hydraulic regards the concept of high quality, competitive price, eternal promise as service policy, We shall meet customers'need and offer customer best service. We will try our best to provide service to our old and new clients as before and build our nice future together. More
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services?
A: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: We will delivery machine with use manual.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
