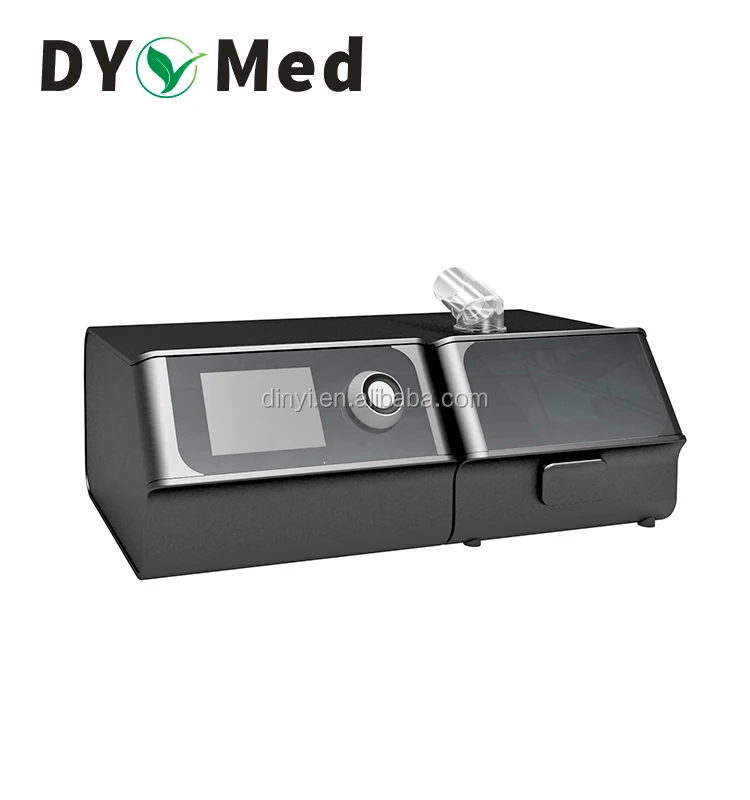

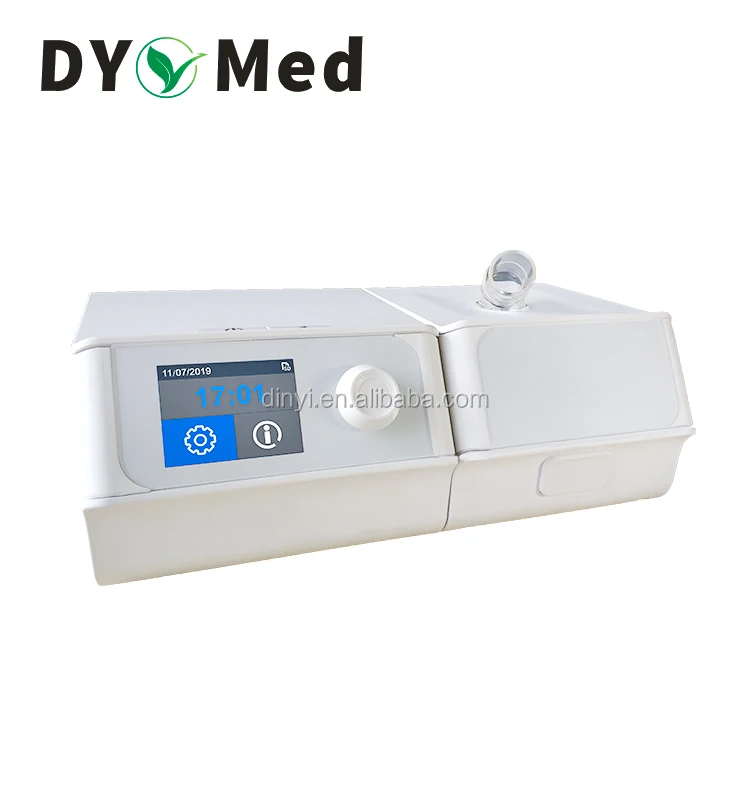

Best Selling Cheap cpap bipap With Humidifier Sd Card Face Mask

Device Size

140 mm × 156mm × 94 mm (without Humidifier)

262 mm × 156mm × 94mm (with Humidifier)

Environment

conditions

Normal operation

Transport and storage

Temperature:5℃ ~ 35℃

-20℃ ~ +60℃

Humidity:10% ~ 93%,Non-condensing

10% ~ 93%,Non-condensing

Atmospheric Pressure:760 ~ 1060 hPa

760 ~ 1060 hPa

Note: The pressure value is given by 100 pa [hPa], 1 centimeter water column [cmH2O] = 0.98 hPa.

Production date

 It can be acquired on the device label.

Operating life

The device can be used for five years if the users operate, maintain, and clean it according to the user manual. The operating life can be extended if the critical components are replaced.

Working mode

Continuous mode, the continuous work time is no less than 8 hours.

SD Card

The capacity is no less than 8G,it can record the users` treatment date.

Power supply requirement

Alternating voltage:100 ~ 240 V;

Frequency: 50 Hz / 60 Hz;

Input power:≤2 A

Security type

Class II ,Type BF Applied Part

Waterproof level

IP22 –Drip proof equipment

Pressure range

4 ~ 25 hPa(±0.5 hPa).

Pressure display accuracy

±0.5 hPa

Pressure adjustable range

See section 3.4

Operating mode

See section 3.4

Ramp time

The range of adjustment is 0 ~ 60 minutes

Noise

When the output pressure of the device is 10 hPa, its noise (A level of weighted sound pressure level) is not greater than 30 dB.

The user connector specification

φ22 mm cone joint

Filter specification

The most penetrating particle size is 10μm

The highest pressure about the patient connector

Single level normal state,20 hPa; Single fault state, not more than 30 hP

Bi-Level normal state,25 hPa; Single fault state, not more than 40 hP

Ventilatory capacity

The average flow rate of the user connection should be greater than the corresponding flow value in the following table when the working pressure is set as the values listed in the table below

Humidifier

a) Temperature range of the humidifier:Adjustable from

 0 to 5.

b)The gas temperature of the user connection should be ≤43℃.

Capacity for Humidifier water tank

≥240ml

Tube

Length  1.8 m,Error:±0.18 m,Ø22mm.

Weight

Without humidifier: <1 kg;Humidifier included:<1.6  kg

Dynamic pressure stability
