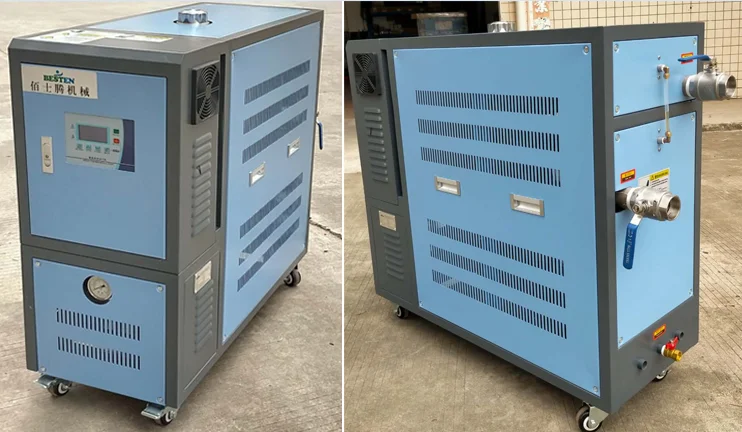

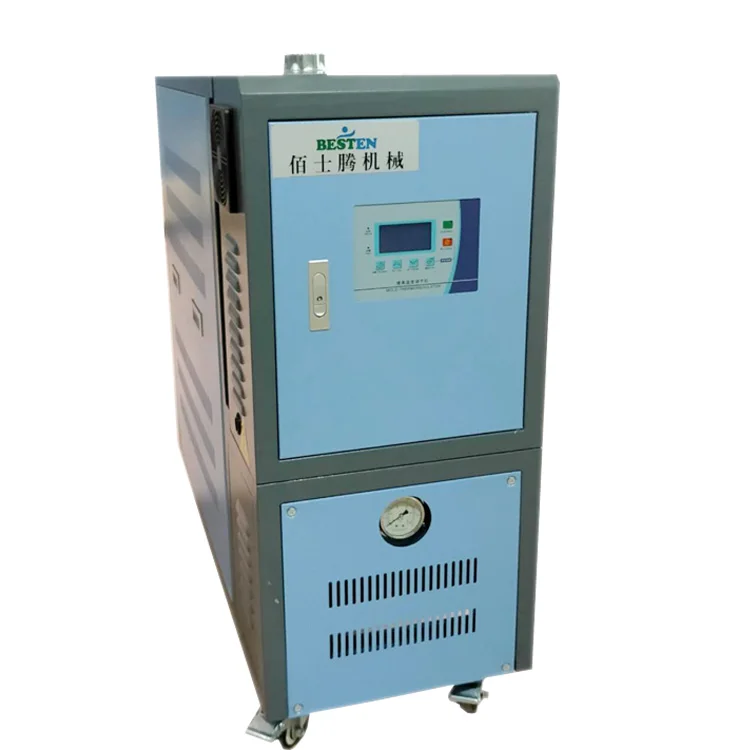

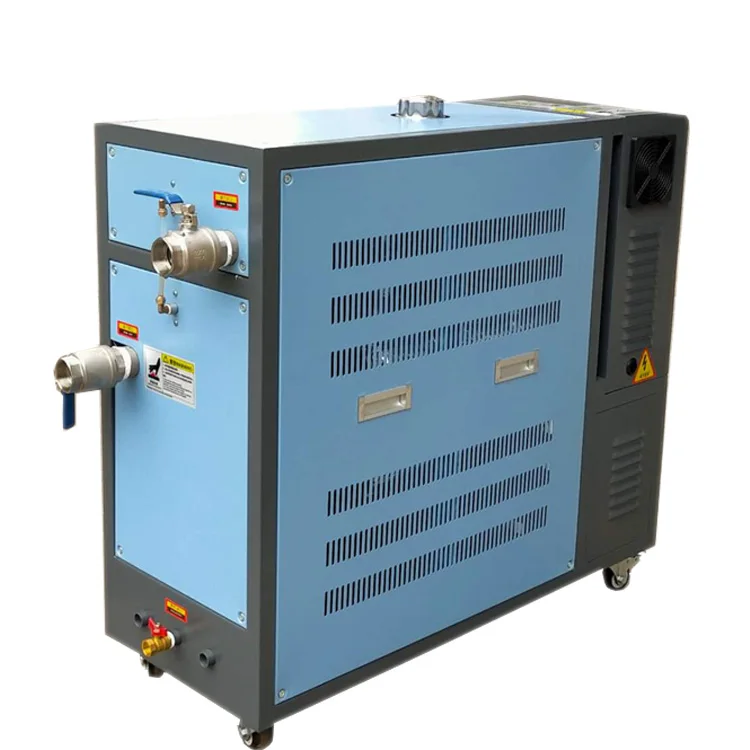

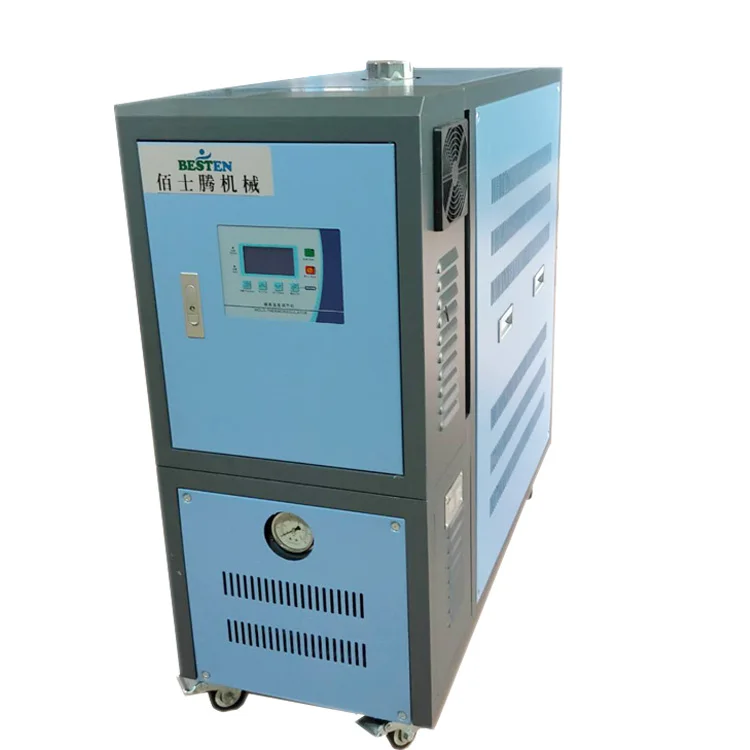

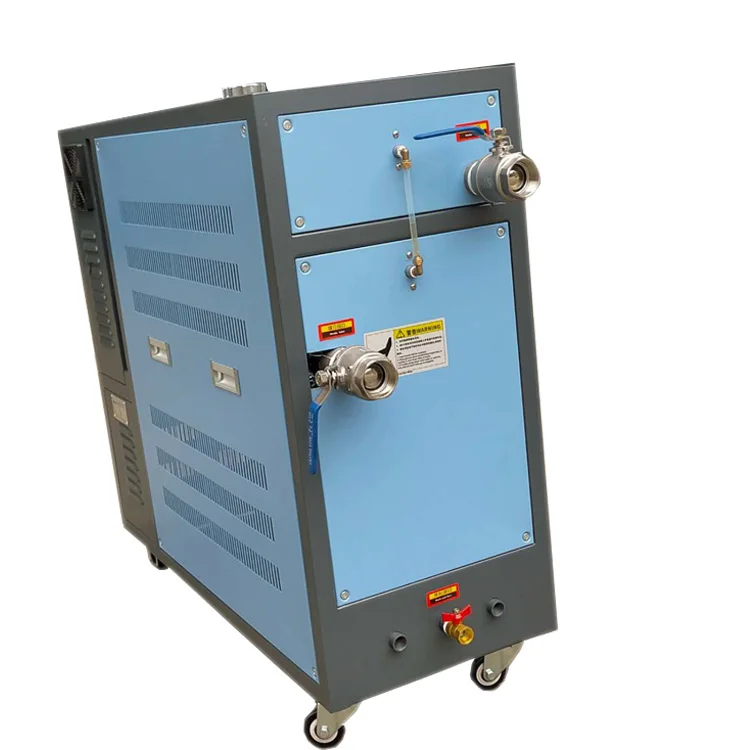

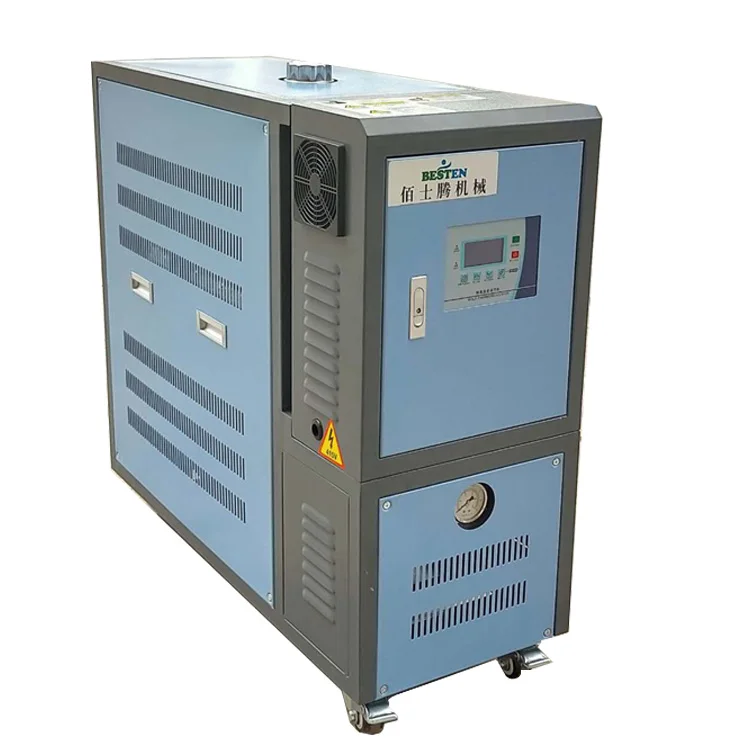

oil heating mold industry mold preheating machine mould temperature controller

       Mould temperature machine is also called mold temperature control machine, initially applied in the injection mold temperature control industry. Later with the development of machinery industry application is more and more widely, die temperature machine now general water temperature machine, the oil temperature machine, the temperature control precision can be plus or minus 0.1 ℃.

•      Mould temperature machine is widely used in plastic molding, die casting, rubber tire, roller, chemical reaction kettle, adhesion, milking and other industries.
•
• Operation principle of oil - operated mold temperature machine
•     The mould temperature machine consists of water tank, heating cooling system, power transmission system, liquid level control system, temperature sensor and injection port.In general, the pump in the power transmission system makes the hot fluid reach the mold from the tank containing the built-in heater and the cooler, and then from the mold to the water tank;The temperature sensor measures the temperature of the hot fluid and transfers the data to the controller in the control part;The controller regulates the temperature of the hot fluid, thereby indirectly adjusting the temperature of the mold.If in production mold temperature machine, mould temperature more than set value of the controller, the controller will open the solenoid valve connected to feed line, until the temperature of the heat transfer fluid, namely the temperature of the mold back to the set value.If the mold temperature is below the set value, the controller will turn on the heater.
• Product Parameter

      Mold maintenance

       1. Purchased a new mold temperature machine, please check whether the cooling water is in circulation before use, and prevent damage to the mold temperature machine due to insufficient cooling water.We should keep the working environment of the mould temperature machine clean and avoid dust, which can greatly prolong the service life of the electric components of the mould temperature machine.

        2. New mould temperature machine, we should make different maintenance measures according to the heat conduction medium used.For the medium to be water, we need to keep the water clean, so that it is not easy to scale, and can prevent the pipeline blockage.For medium is oil, we should according to the using temperature, change regularly, for more than 200 ℃, a month or two we will regularly change time, and under 200 ℃, we may need to be replaced once a quarter or so, so it is good to avoid the temperature with no problems.

        3. In terms of piping, we want to according to the relationship of pumping and pressure, judge whether the pipeline jam phenomenon, if the pressure is too small, we can remove the heat pipes and tools clean, especially the entrance to the filter net system, had better be cleaned once a month.

        4. Regularly check whether the pump and oil pump are leaking oil. If necessary, the pump shaft seal can be replaced regularly.

        5. On the electrical components, we can replace them timely according to the service life of the components, and test them regularly to ensure the safety.
