Siemens fanuc GSK control flat bed cnc horizontal metal turning lathe machine CAK6140 manufacturer
Product Description
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Product main technical specifications:
Specifications | Units | CAK6140 CAK6140B CAK6140C | CAK6150 CAK6150B CAK6150C | CAK6161 CAK6161B CAK6161C | CAK6166 CAK6166B CAK6166C | CAK6180 CAK6180B CAK6180C | ||
Max.swing over bed | mm | 400 | 500 | 610 | 660 | 800 | ||
Max.processing length | mm | 750/1000/1500/2000/3000 | ||||||
Spindle taper |
| MT6(Ø90 1:20 for B)[Ø113 1:20 for C] | ||||||

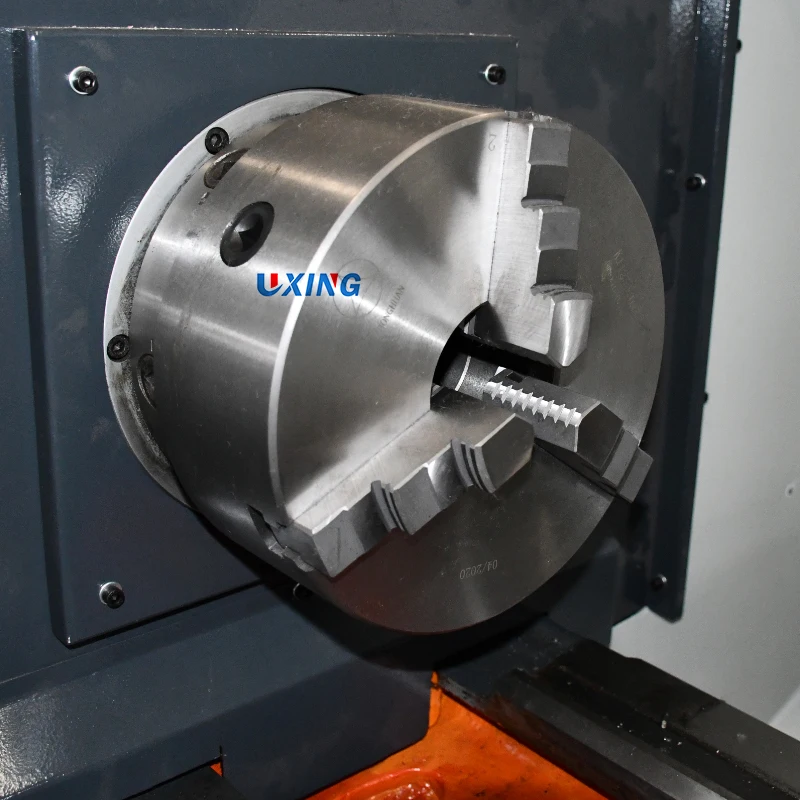

Chuck size | mm | C6(D8)[D8] | ||||||
Spindle bore | mm | 52(80 for B)[105 for C] | ||||||
Spindle speed 3 steps (auto change gear) | rpm | Independent spindle:100-1600 21-1500(162-1500,66-500,21-150) | ||||||

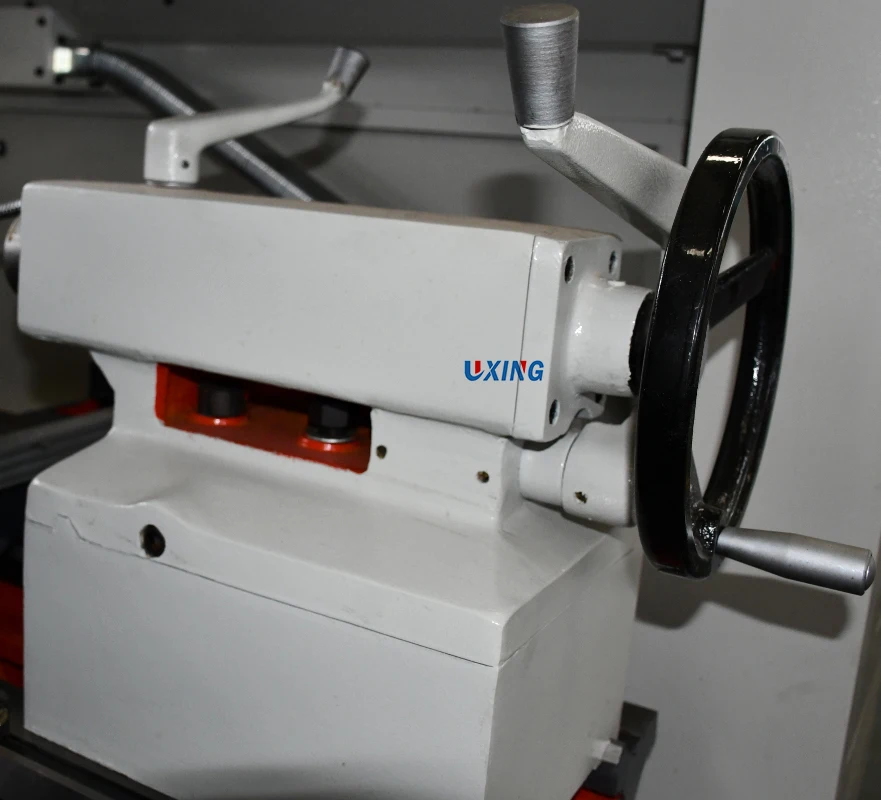

Tailstock sleeve travel | mm | 150 | ||||||
Tailstock sleeve taper |
| MT5 | ||||||
Position accuracy | mm | ±0.015 | ||||||
Repositioning accuracy | mm | ±0.006 | ||||||
X/Z axis rapid traverse | m/min | 4/6 | ||||||
Spindle motor | kw | 7.5 | 11 | |||||
Machine dimension for 750 | mm | 2550x1550x1700 | 2550x1550x1900 | |||||
Machine dimension for 1000 | mm | 2750x1550x1700 | 2750x1550x1900 | |||||
Machine dimension for 1500 | mm | 3250x1550x1700 | 3250x1550x1900 | |||||
Machine dimension for 2000 | mm | 3700x1550x1700 | 3700x1550x1900 | |||||
Machine dimension for 3000 | mm | 4710x1550x1700 | 4710x1550x1900 | |||||
Machine weight for 750 | kg | 2100/2800 | 2120/2900 | 2250/2850 | 2300/2900 | 2400/3000 | ||
Machine weight for 1000 | kg | 2200/2900 | 2240/3000 | 2400/3000 | 2450/3050 | 2550/3150 | ||
Machine weight for 1500 | kg | 2300/3150 | 2350/3200 | 2600/3200 | 2650/3250 | 2750/3350 | ||
Machine weight for 2000 | kg | 2700/3350 | 2740/3400 | 2830/3400 | 2880/3450 | 2980/3550 | ||
Machine weight for 3000 | kg | 3500/4100 | 3600/4200 | 3650/4250 | 3700/4300 | 3800/4400 | ||
Details:
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
