Product Overview
Description
High power diode laser stacks
Model no.: JC-D31B-C2000
Array Output Peak Power to 2000W & 808nm

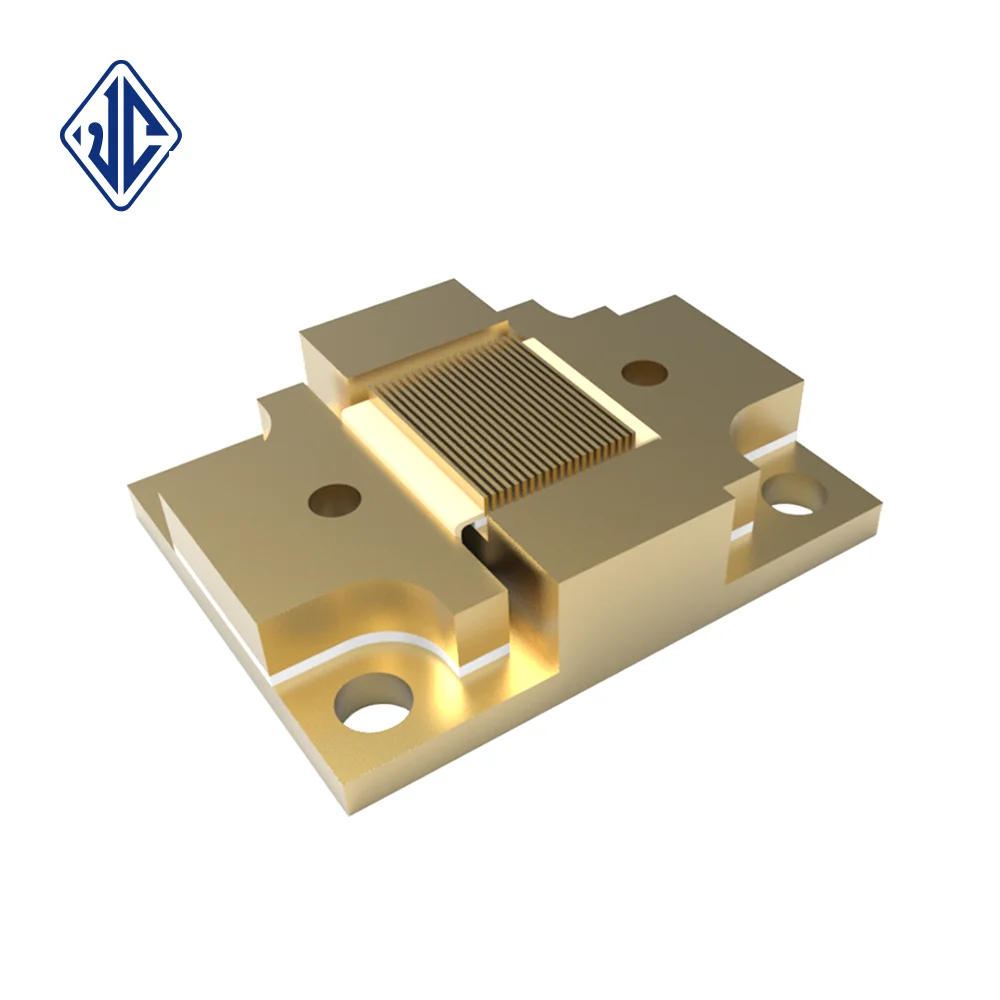

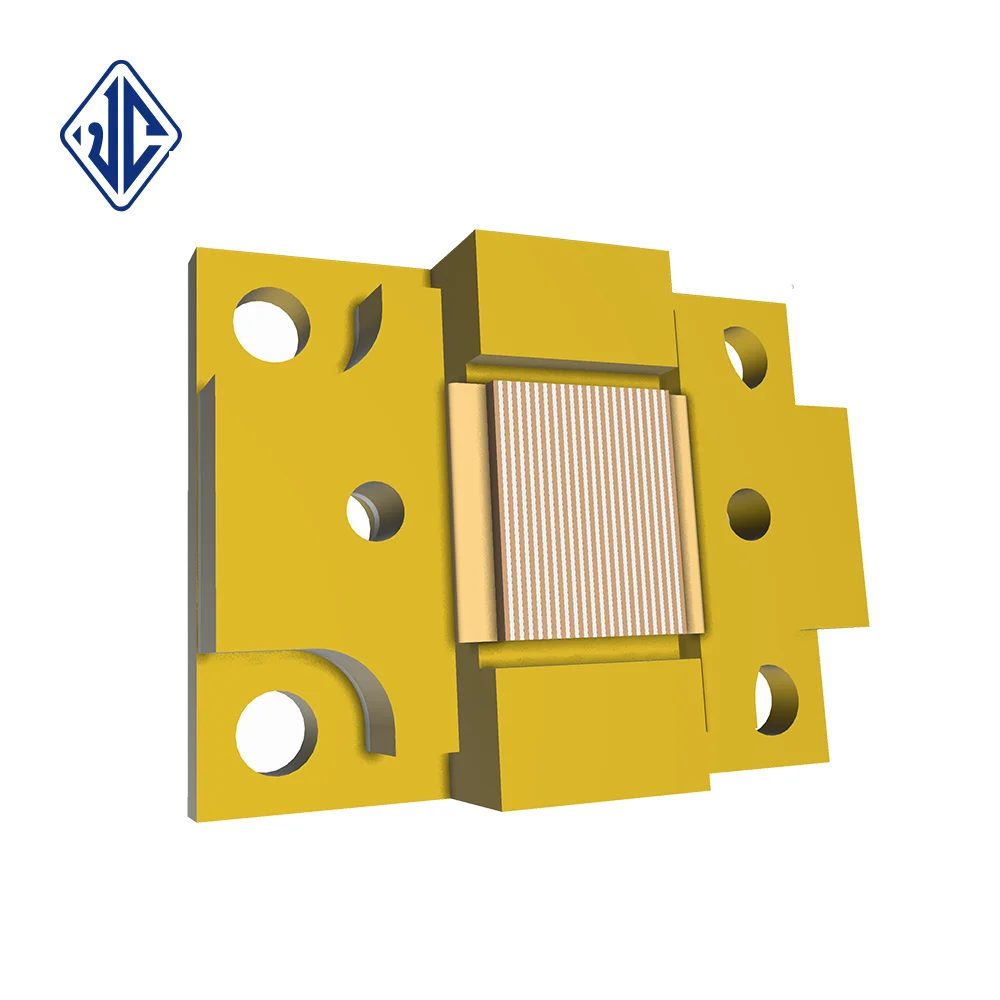

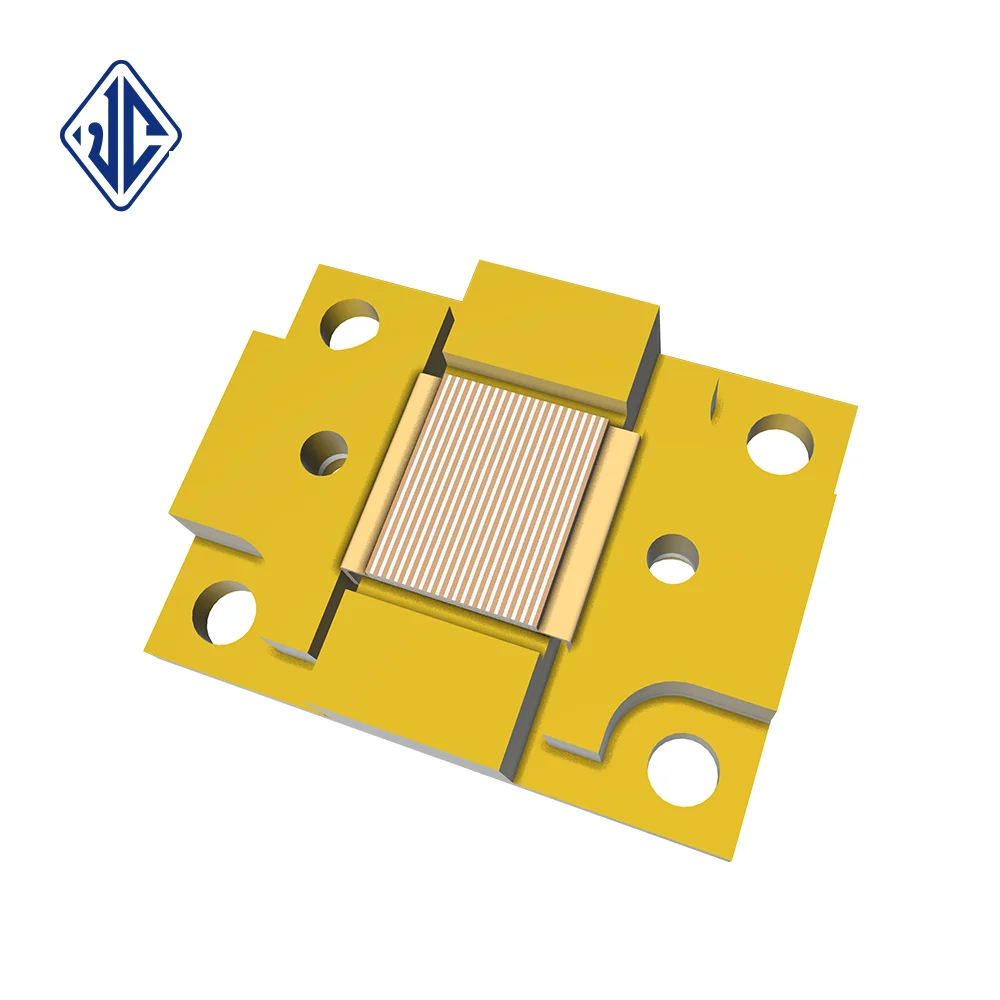

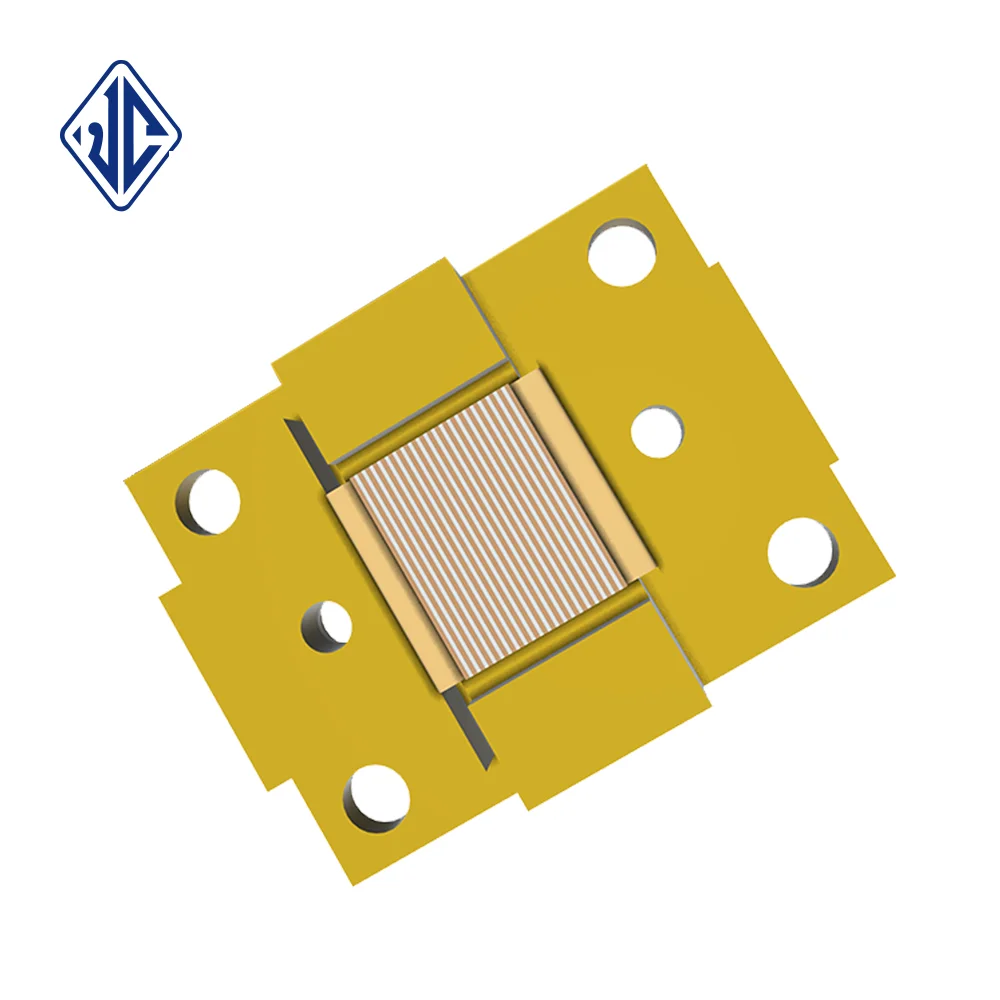

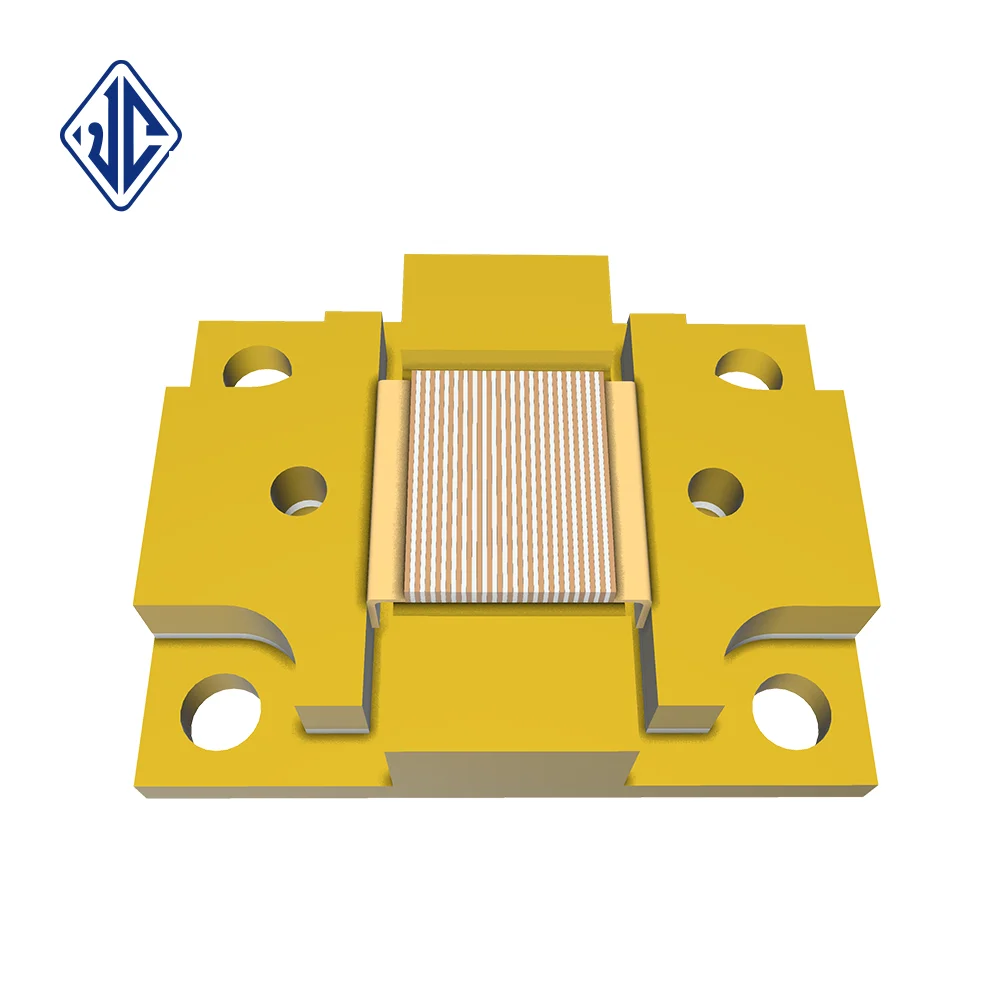

Product Display
Features
- AuSn hard-solder package, higher stability
- Higher power conversion efficiency
- Macro channel package, sealed house
- Higher reliability, longer life time
Application
*Lidar
*Measurement
Specification
Module Type (T=25℃) | Typical Value | Unit |
Output Peak Power | 2000 | W |
Operation Mode | QCW |
|
Pulse Width | ≤200 | us |
Frequency | 100 | Hz |
Duty Cycle | ≤2 | % |
Optical Parameters | ||
Central Wavelength | 808 | nm |
Central Wavelength Tolerance | ±3 | nm |
Peak Output Power per Bar | 200 | W |
Number of Bars | 10 |
|
Pitch Between Bars | 0.4 | mm |
Emission Size | 3.6*10 | mm |
Fast-Axis Divergence (FWHM) | 35-38 | º |
Slow-Axis Divergence (FWHM) | 10-12 | º |
Electrical Parameters |
|
|
Operating Current | 200 | A |
Threshold Current | 25 | A |
Operating Voltage | 20 | V |
Power Conversion Efficiency | ≥50 | % |
Slope Efficiency | ≥1.1 | W/A |
Thermal Parameters |
|
|
Operating Temperature Range | 0-55 | ℃ |
Storage Temperature Range | 0-55 | ℃ |
Wavelength Coefficient | 0.3 | nm/℃ |
Attentions
1.Avoid eyes or skin exposure to direct or scattered radiation in case of laser working
2.Anti-static measures must be taken when transporting, storing and using
3.Use constant current power supply to avoid surge when working
4.Used under rated current and rated power, otherwise reduce lifetime
5.Maintain good thermal dissipation during laser operation
