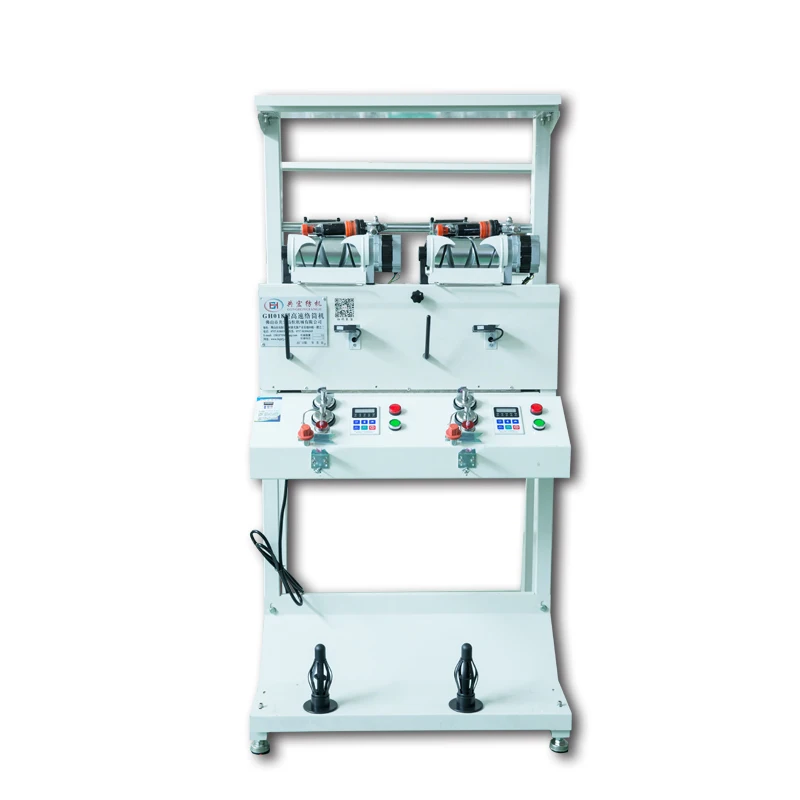

GH018 B High speed yarn cone to cone rewinding machine
GH018 B High speed yarn winder machine,used in chemical fiber, cotton yarn, yarn, low stretch yarn, winding into a cone or a cylinder, for the next process, good forming, without the phenomenon of edge collapse. GH018 B type to alleviate the labor intensity of the process,adaptation high speed production. (For the major manufacturers: lace factory, knitting factory, circular knitting machine, hosiery machine etc..)
GH018-B High speed cone to cone winding machine Technical Parameters
Technical characteristics
Technical Parameters
Grooved drum
O/D 82mm,pitch 2.5,symmetrical 0°
Take-up package
0°Cylindrical tubes, or conical 3°30′,4 °20′
Automatic length fixing
Electronic winding length setting based on finished product, max. : 999999m
( Selection )Slow start
For smooth start and better winding quality
Yarn brake with weights
It avoids the fluttering of the feeding yarn, provide suitable winding tension
Electric waxing device
Adjusting the clearing gap, makes yarn smooth and fabric soft
Configuration
6 spindles/section
Composition
Max. : 18 sections/ set(108 spindles)
Motorization
1 coaxial 3phased DC motor per spindle, controlled by 1 inverter in each line of 54 spindles
Max. speed
1100m/min
Traverse
Standard:147mm
Balancer
The winding pressure can be controlled by balance of spring
Yarn detector
With optical sensor
Max. package
250mm
Start / stop
By film switch, general control for single side by LCD
Radial anti patterning system
The anti patterning parameter is controlled by computer
(Selection)Blowing and suction cleaner
1100W motor power of cleaner
Absorbed power
100W per spindle at max. speed, excluding the motor power of cleaner
1. Can be customized 2 spindles, 4 spindles, 8 spindles of a set, according to your requirements, which can better meet your production needs.
2. Make the suitable clip for you based on your cone.
3. Installation of Air splicer. 4. If you have more ideas, welcome to talk to us.

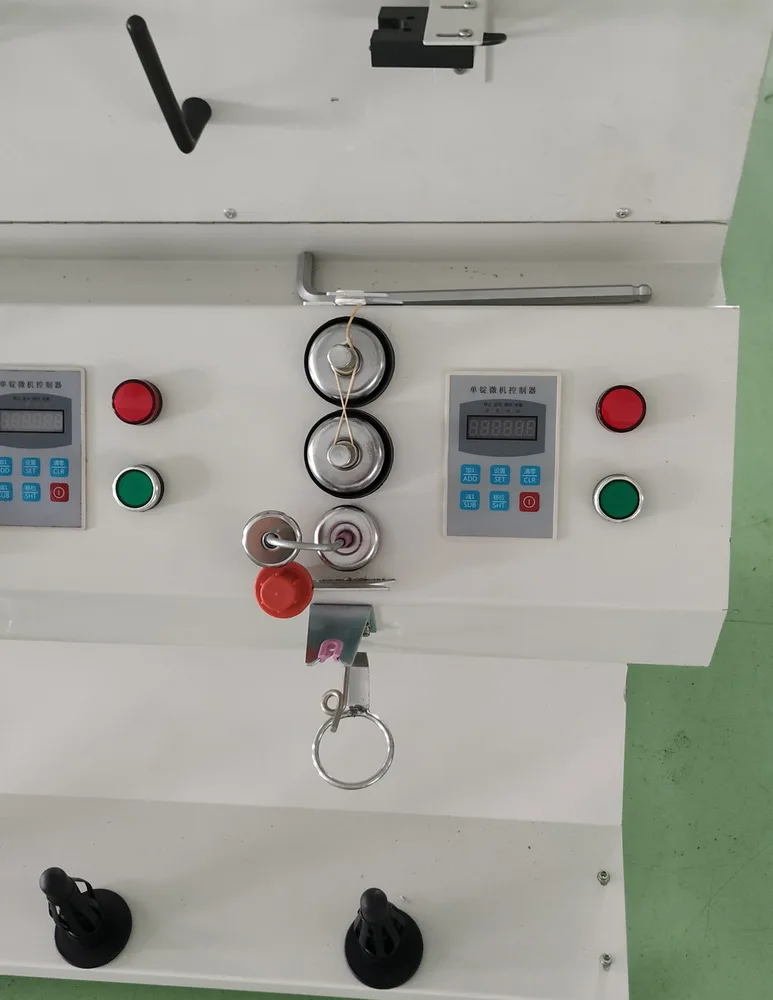

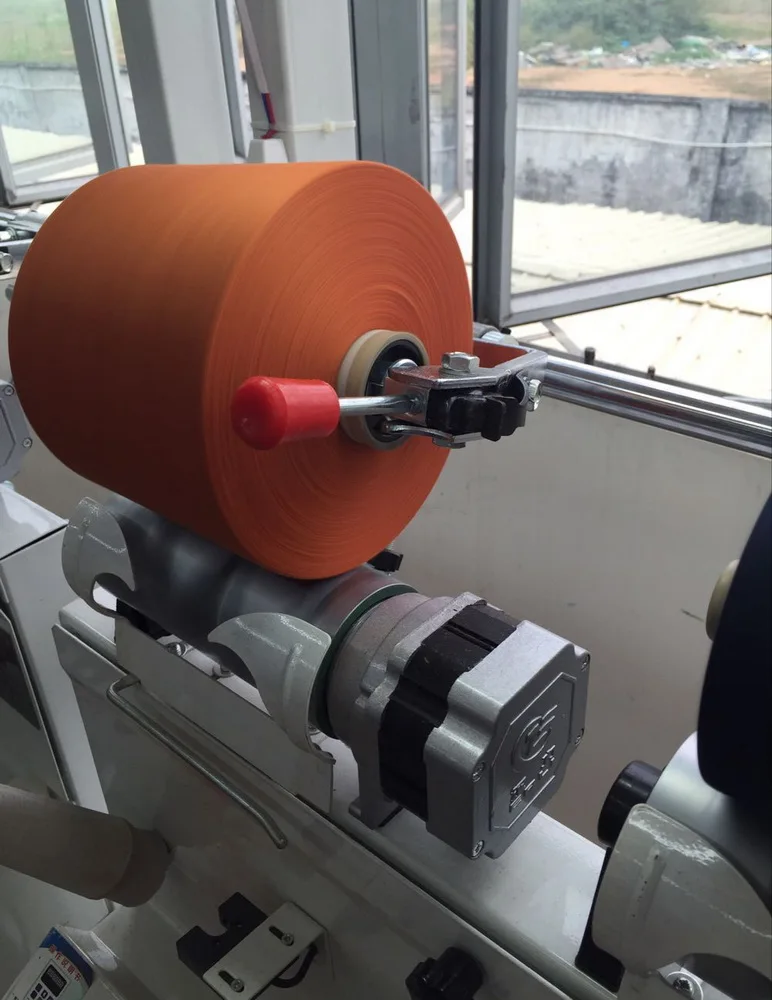

Detailed Images
Size Information
Size Chart of This Design
Specification
6 spindles Single-side
12 spindles Double-side
Length(mm)
1950
1950
Width(mm)
750
1250
Height(mm)
1550
1550
Weight(KG)
200
350
Related Products

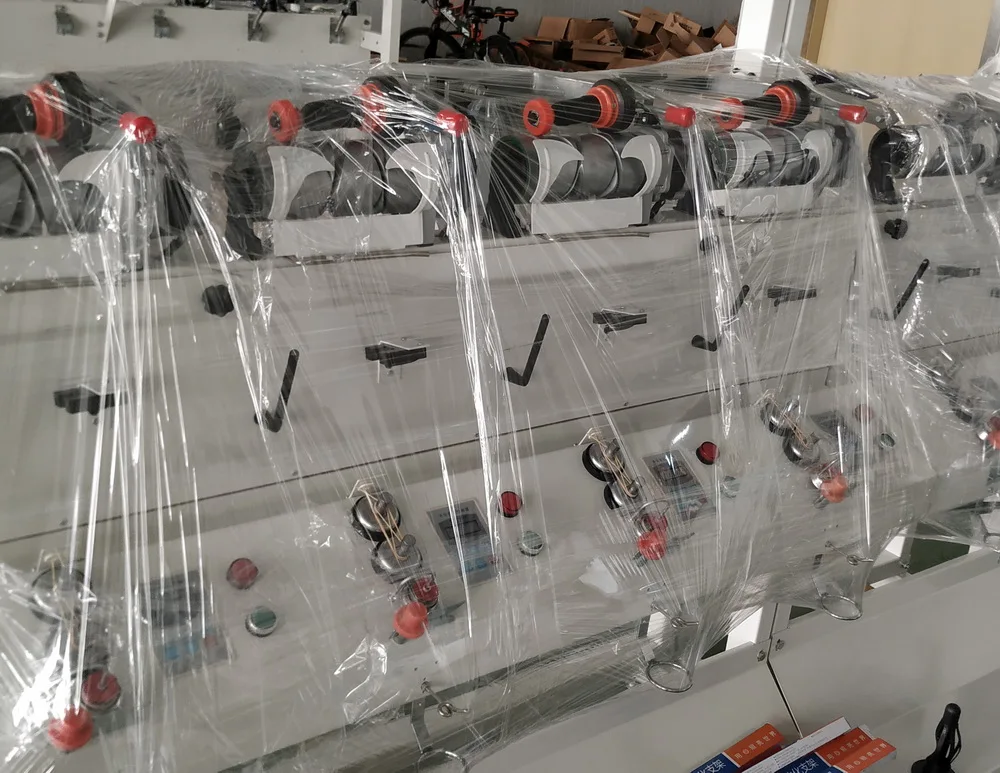

Packing&Shipping
After Sales Service
- One year warranty
- Spare parts - Online support - Video technical support - Field maintenance and repair service
