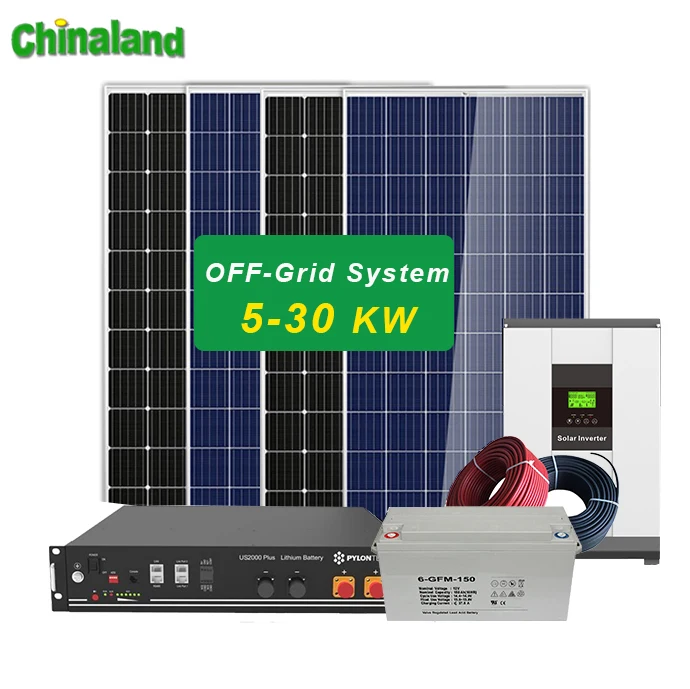

Home Solar Power System 3KW 5KW 10KW 20KW 30KW Complete Solar System Price Off Grid Solar Energy System
- Category: >>>
- Supplier: Anhui Chinaland Solar Technology Co. Ltd.
Share on (62373972644):
Product Overview
Description
Equipment and Details
Product Paramenters
off grid solar system Equipment list | ||||||||||||
Model No | Solar Panels | Controller | Inverter | Battery | Combiner box | Mounting Bracket | ||||||
1KW -Off | 320w mono&poly *3pcs | 24V 40A | 1KW | 12V 150AH*2pcs | 3 input 1 output | One sets for 3pcs solar panels | ||||||
2KW-Off | 320w mono&poly *6pcs | 48V 50A | 2KW | 12V 150AH*4pcs | 3 input 1 output | One sets for 6pcs solar panels | ||||||
3.2KW-Off | 320w mono&poly *10pcs | 48V 60A | 3KW | 12V 250AH*4pcs | 5 input 1 output | One sets for 10pcs solar panels | ||||||
4KW-Off | 320w mono&poly *12pcs | 96V 50A | 4KW | 12V 200AH*8pcs | 3 input 1 output | One sets for 12pcs solar panels | ||||||
5.12KW-Off | 320w mono&poly *16pcs | 96V 100A | 5KW | 12V 250AH*8pcs | 4 input 1 output | One sets for 16pcs solar panels | ||||||
6.4KW-Off | 320w mono&poly *20pcs | 96V 100A | 6KW | 12V 150AH*16pcs | 5 input 1 output | One sets for 20pcs solar panels | ||||||
7KW-Off | 320w mono&poly *20pcs | 96V 100A | 7KW | 12V 150AH*16pcs | 5 input 1 output | One sets for 20pcs solar panels | ||||||
8KW-Off | 320w mono&poly *24pcs | 96V 100A | 8KW | 12V 200AH*16pcs | 6 input 1 output | One sets for 24pcs solar panels | ||||||
10.24KW-Off | 320w mono&poly *32pcs | 96V 150A | 10KW | 12V 250AH*16pcs | 8 input 1 output | One sets for 32pcs solar panels | ||||||
15.36KW-Off | 320w mono&poly *48pcs | 192V 150A | 15KW | 12V 200AH*32pcs | 6 input 1 output | One sets for 48pcs solar panels | ||||||
20.48KW-Off | 320w mono&poly *64pcs | 192V 150A | 20KW | 12V 250AH*32pcs | 8 input 1 output | One sets for 64pcs solar panels | ||||||
25.6KW-Off | 320w mono&poly *80pcs | 192V 150A | 25KW | 12V 200AH*48pcs | 10 input 1 output | One sets for 80pcs solar panels | ||||||
32KW-Off | 320w mono&poly *100pcs | 240V 150A | 30KW | 12V 200AH*60pcs | 10 input 1 output | One sets for 100pcs solar panels | ||||||
Detailed Image

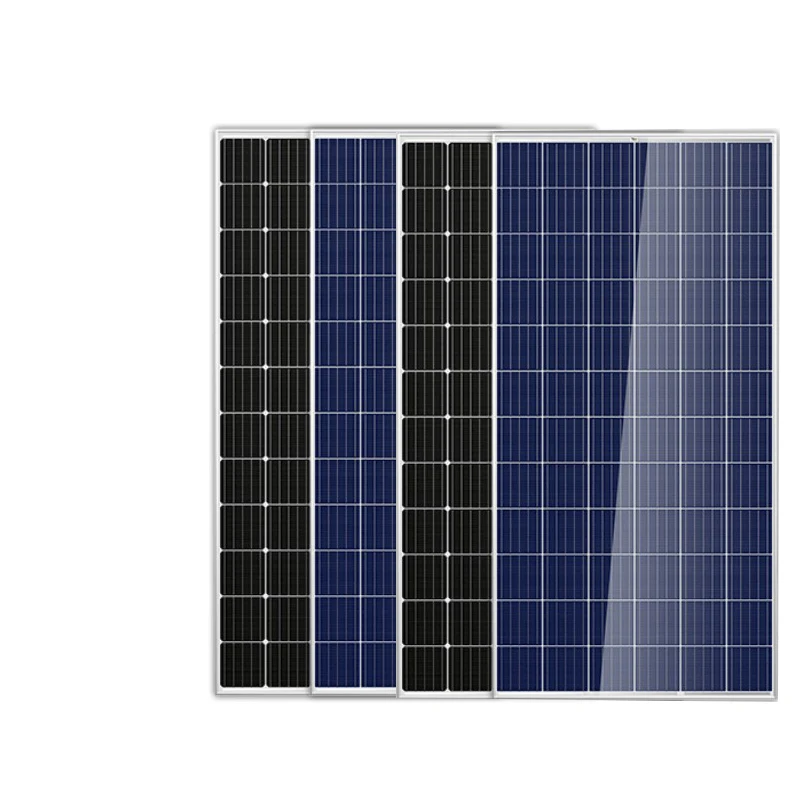

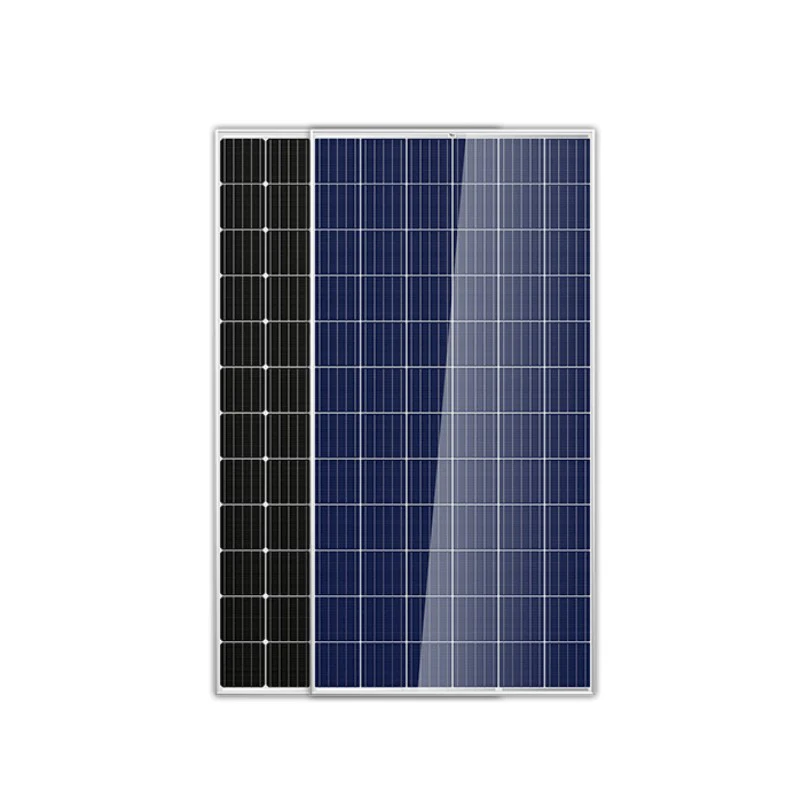

Solar Panels
> 25 years Warranty
> Highest conversion efficiency of 20%
> Anti-reflective and anti-soiling surface power
>loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
> Highest conversion efficiency of 20%
> Anti-reflective and anti-soiling surface power
>loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

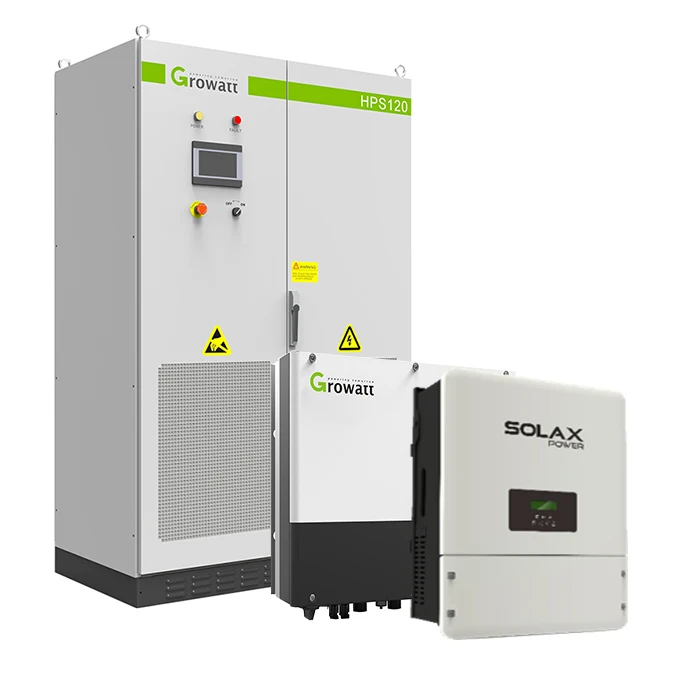

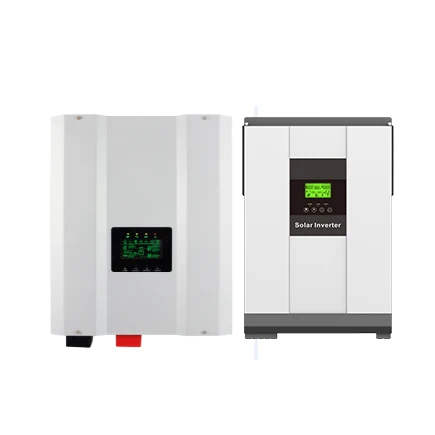

Off Grid Solar Inverter
> 5-10 years warranty
> Max.Efficiency 99.6%
> Integrated DC switch for added safety protection
> Power factor continuously
adjustable
adjustable
> Transformer-less design and high power density
> Flexible communication connection,support RF WIFI

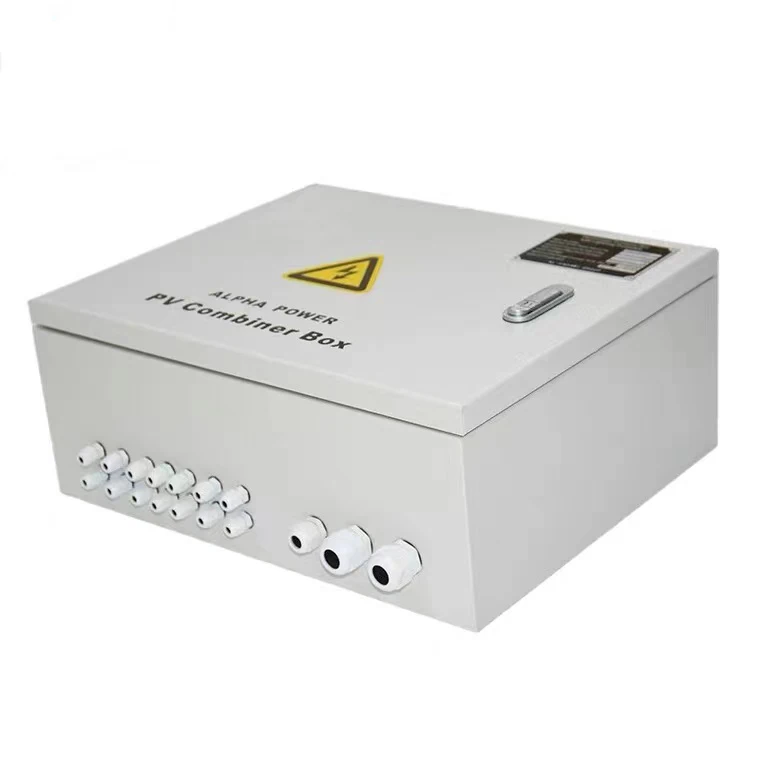

PV Combiner Box
>PV cable 4mm2/6mm2/10mm2,etc
>AC cable
>DC/AC switches
>DC/AC breakers
>MC4 connector
>AC/DC Combiner box
>AC distribution box
>DC/AC breakers
>MC4 connector
>AC/DC Combiner box
>AC distribution box

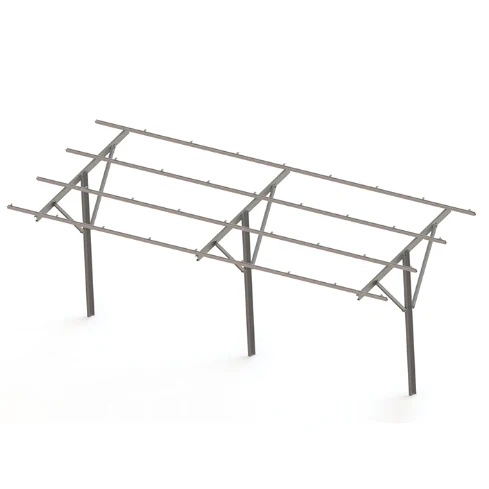

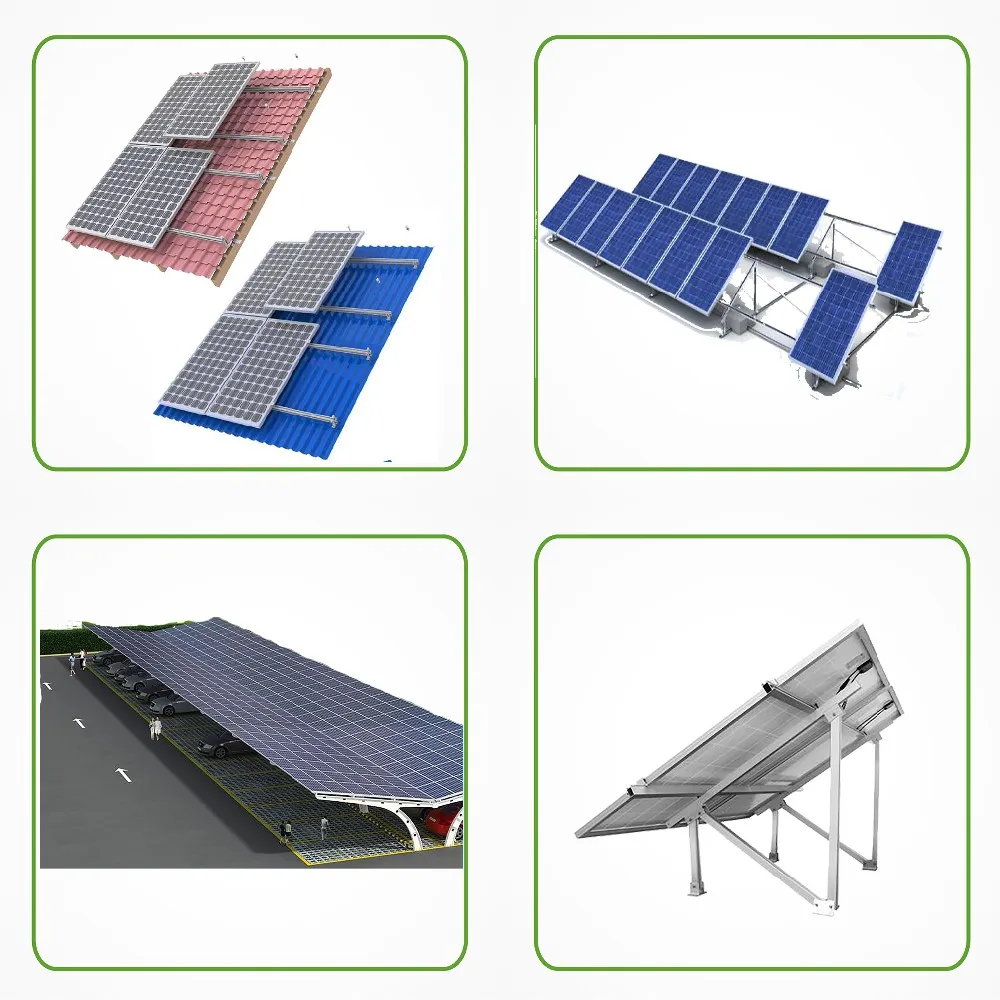

Mounting Structure
>Residential roof(Tilt roof)
>Commercial roof(Flat roof&workshop roof) >Ground solar mounting system
>Vertical wall solar mounting system
>All aluminum structure solar mounting
system
>Car parking solar mounting system
>Vertical wall solar mounting system
>All aluminum structure solar mounting
system
>Car parking solar mounting system

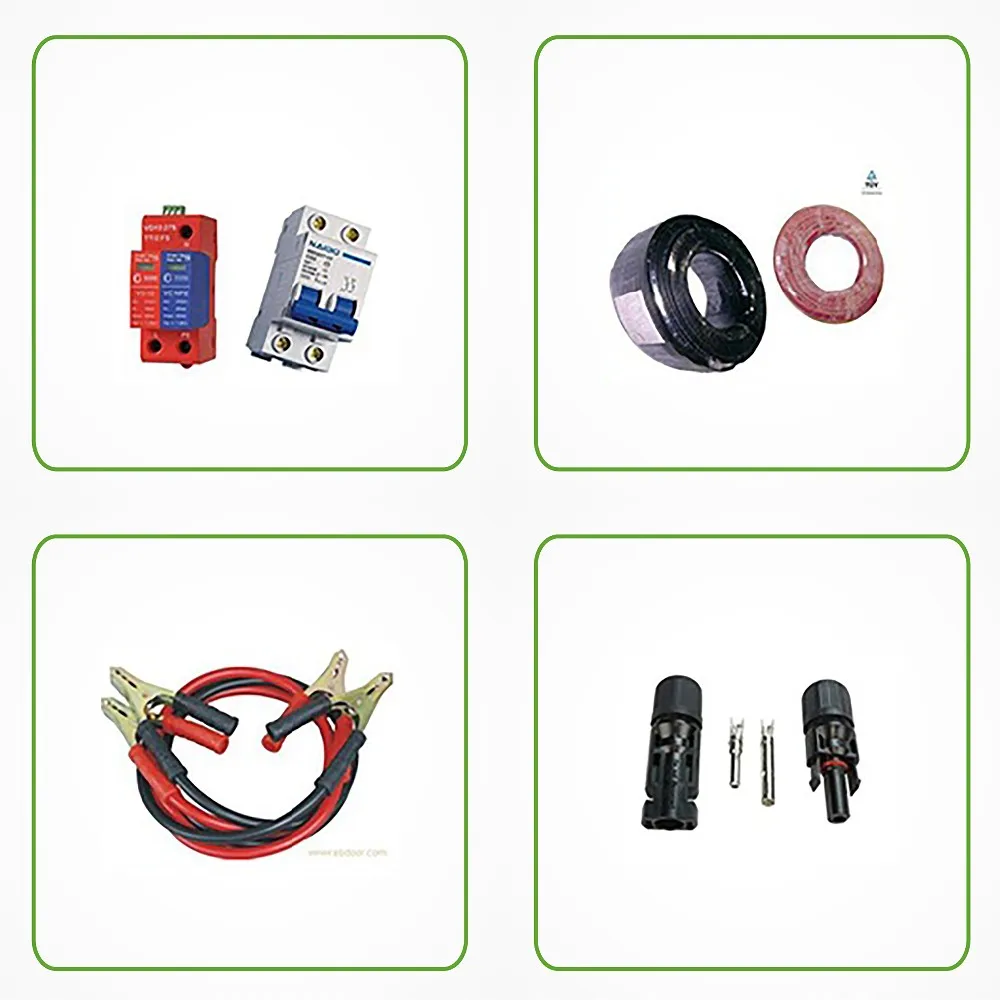

Accessories

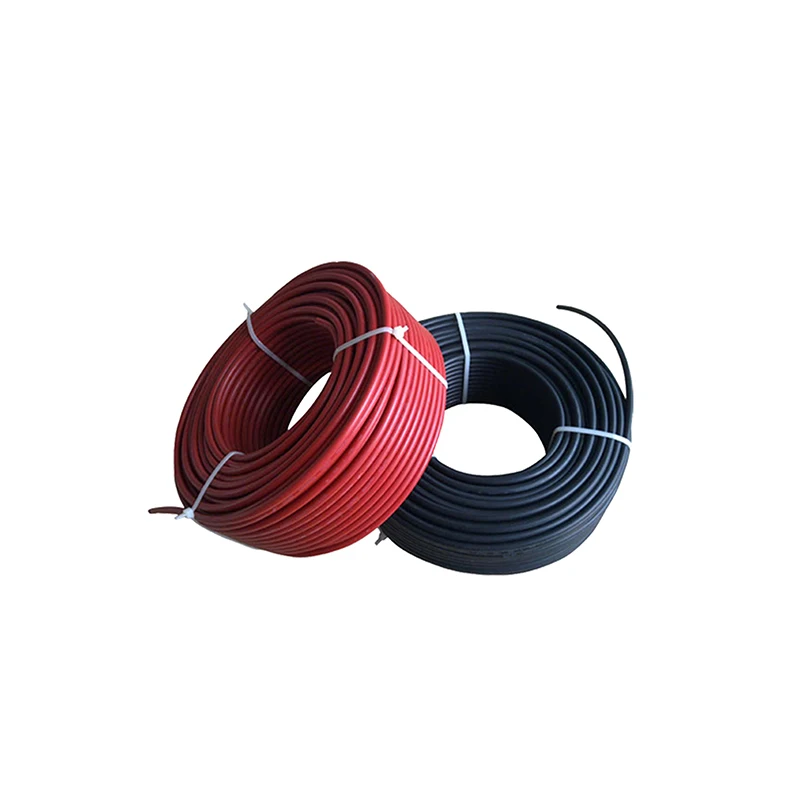

>PV cable 4mm2/6mm2/10mm2,etc
>AC cable
>DC/AC switches
>DC/AC breakers
>MC4 connector
>AC/DC Combiner box
>AC distribution box
>DC/AC breakers
>MC4 connector
>AC/DC Combiner box
>AC distribution box

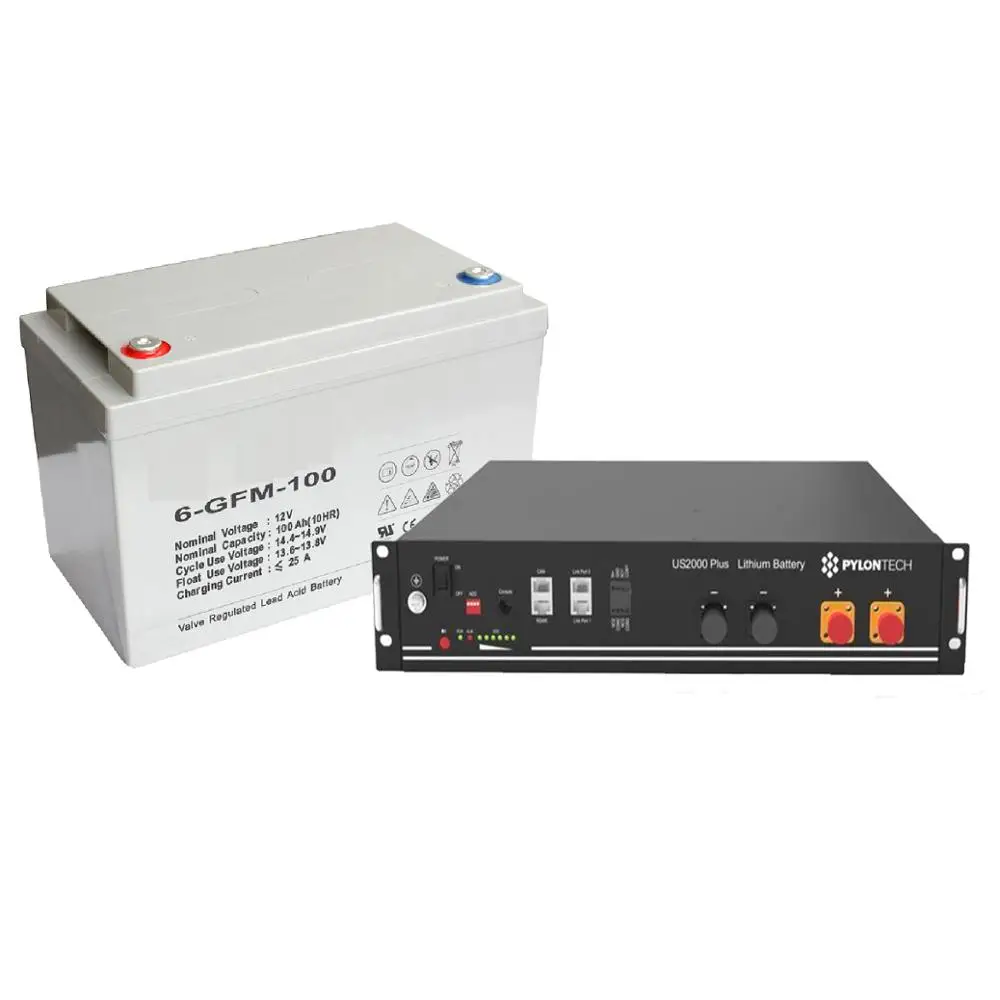

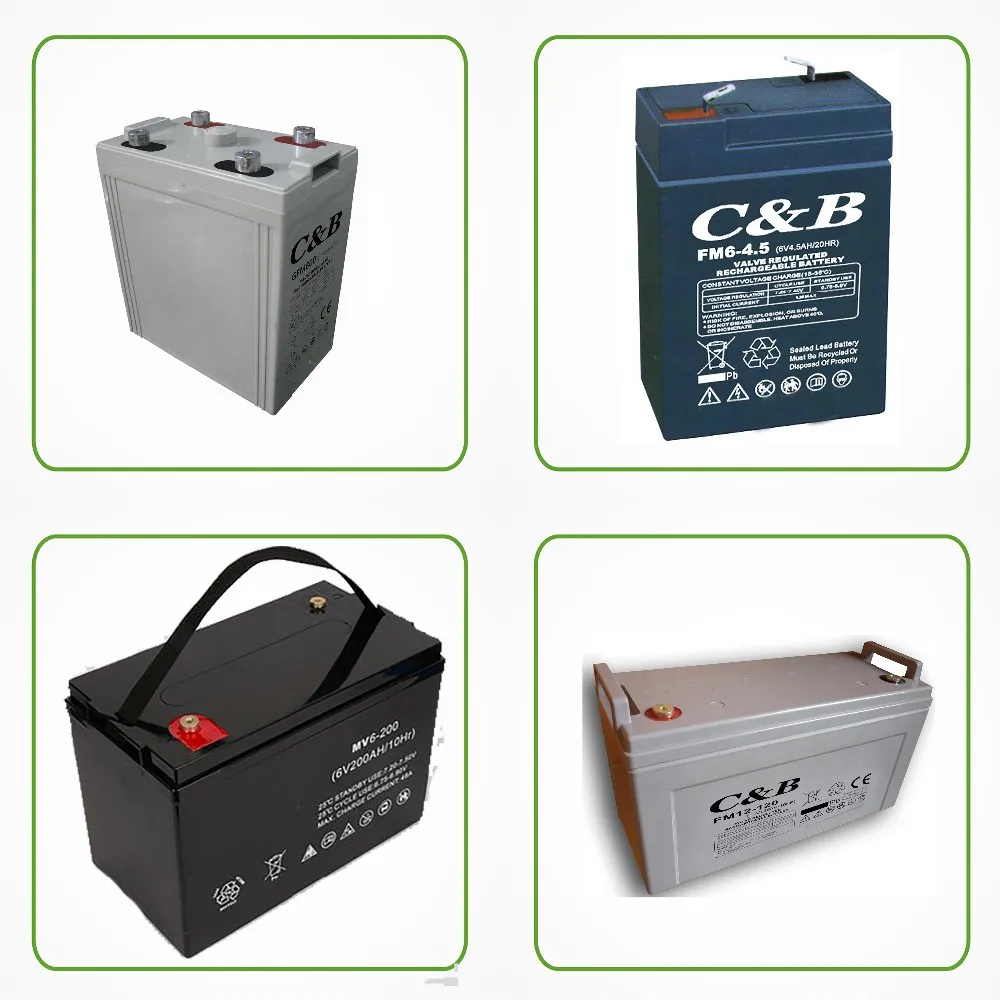

Battery
> Lead-acid batteries
> Lithium battery
> 2V,12V 48V
> 2V,12V 48V
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired
together
together
Our Factory
Chinaland Solar Technology Co., Ltd
Founded in October 31, 2008.
Business Scope: Solar Mono Silicon Ingot, Silicon Solar Modules,Solar PV system, SolarController, Solar Interver, Intelligent Furniature Series, Intelligent Electrical Products Development and Reserch, Manufacture , Sales , and Construction etc.
More than 30 patented technologies and inventions .
Exports to 70 countries and regions around the world.
Certifications
Project
300KW On Grid Project
Location: Sweden
Year: 2016
Year: 2016
30KW Off Grid Project
Location: Sudan
Year: 2014
Year: 2014
500KW Hybrid Project
Location: Canada
Year: 2018
Year: 2018
20KW On Grid Project
Location: Maldives
Year: 2015
Year: 2015
Packaging &Delivery
FAQ
Q1. What's the payment term?
A. 30 T/T in advance, paid the balance before shipment.
Q2. How's the delivery time?
A.It will take about 7 days for production，The shipping time depends on the production quantity and destination country as well as the mode of shipping used, please consult
us if you want to obtain the exact time.
us if you want to obtain the exact time.
Q3. Would you accept to use our logo?.
A. Welcome to do OEM.
Q4. Are you tier 1?
We are not tier1, we are a factory that do OEM for Tier1 brand, like Jinko, Trina, and Canadian solar so on. The quality is equal to Tier1 solar panel.
