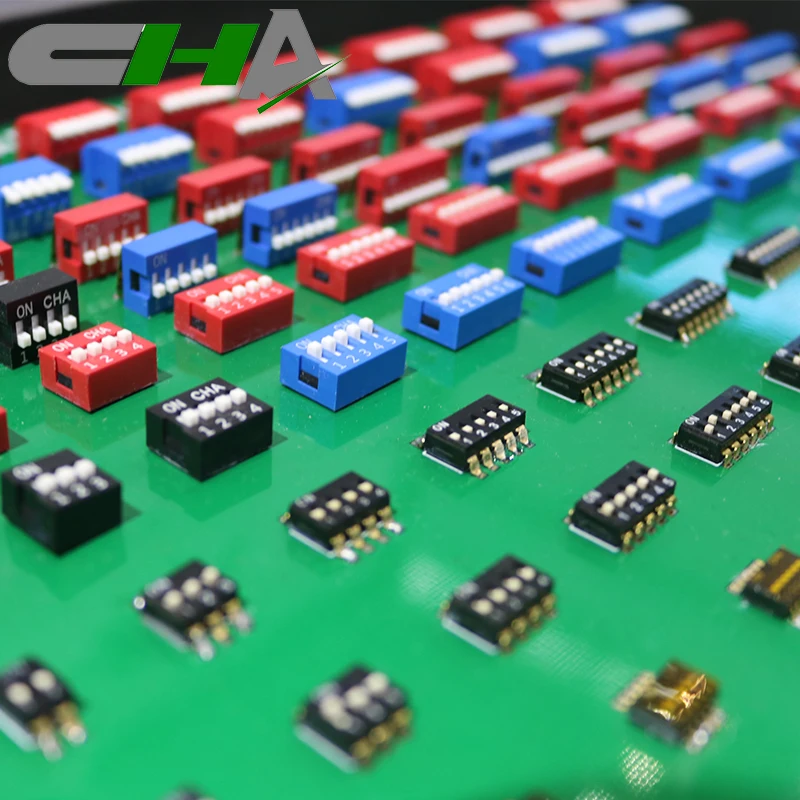

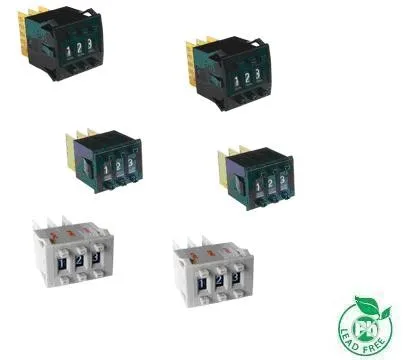

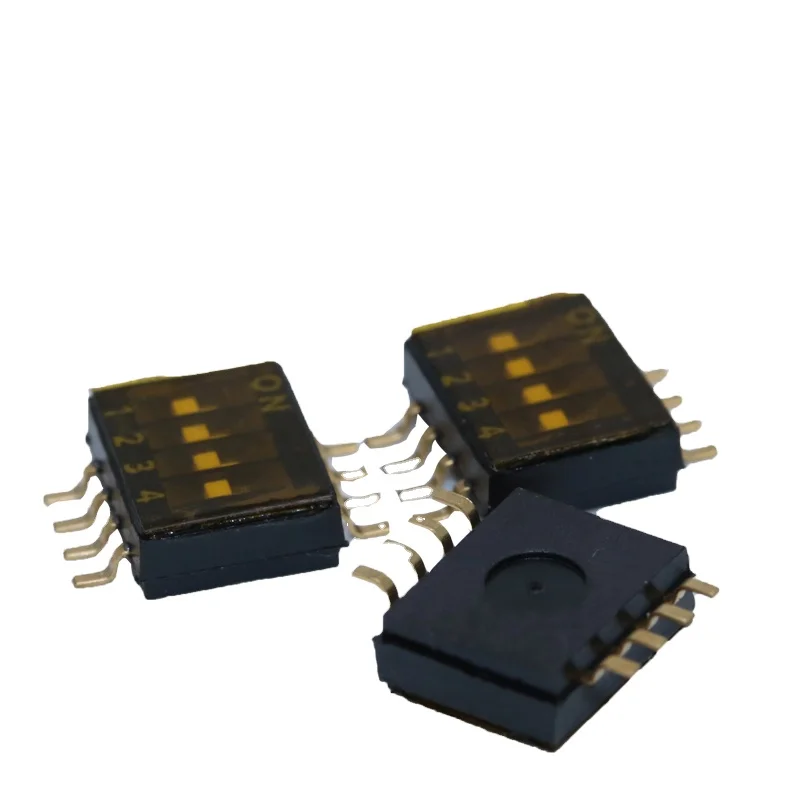

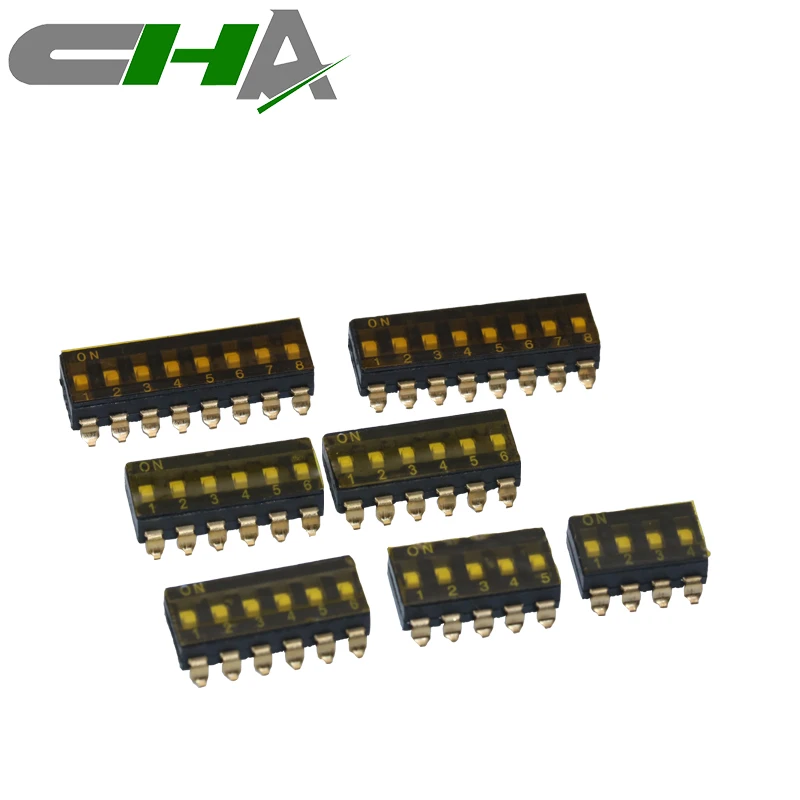

6 x6 mini programmable timer slide digit code dip switch carte 12V single poles smd digital DIP code pcb rotary switches

Product Overview

Description

CHA mini programmable timer slide digit code dip switch carte 12V single poles smd digital DIP code rotary switches

Electrical Life:	2000 operations min
Contact Resistance:	50mΩ Max
Insulation Resistance:	100MΩ min
Operating Temperature:	-20℃ to +85℃
Operating force:	1000 gf max
Stroke:	1.0 mm
Contact Rating:	25 mA @ 24 VDC(switching) 100 mA @ 50 VDC(non-switching)



Contact Rating:	25 mA @ 24 VDC(switching) 100 mA @ 50 VDC(non-switching)
Initial:	50mΩ Max
After Life:	100mΩ max.
Insulation Resistance:	100mΩ max.Min at 100 VDC
Dielectric strength:	300 VAC for 60 seconds
Switch Capactiance	5pF Max at 1MHz
Operating Temperature:	-30℃ to +85℃
Storage Temperature:	-40℃ to +85℃
Operating force:	500gf Max
Mechanical Life:	2000 cycles operations



Contact Rating:	25 mA @ 24 VDC(switching) 100 mA @ 50 VDC(non-switching)
Initial:	50mΩ Max
After Life:	100mΩ max.
Insulation Resistance:	100mΩ max.Min at 100 VDC
Dielectric strength:	300 VAC for 60 seconds
Switch Capactiance	5pF Max at 1MHz
Operating Temperature:	-30℃ to +85℃
Storage Temperature:	-40℃ to +85℃
Mechanical & Processing
Operating force:	500gf Max
Mechanical Life:	1000 cycles Operations
Resistance to Soldering	270℃ ±5 ℃ for 10 second

 1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(46.00%),North America(11.00%),Eastern Asia(10.00%),South Asia(9.00%),Western Europe(6.00%),Northern Europe(5.00%),Southern Europe(5.00%),Eastern Europe(3.00%),Southeast Asia(2.00%),South America(1.00%),Africa(1.00%),Oceania(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

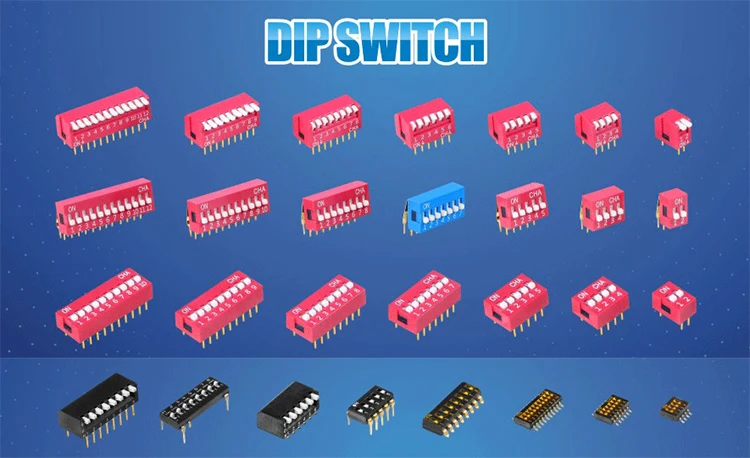

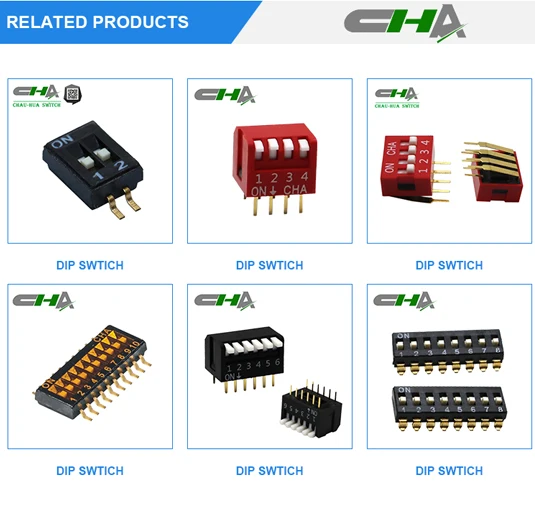

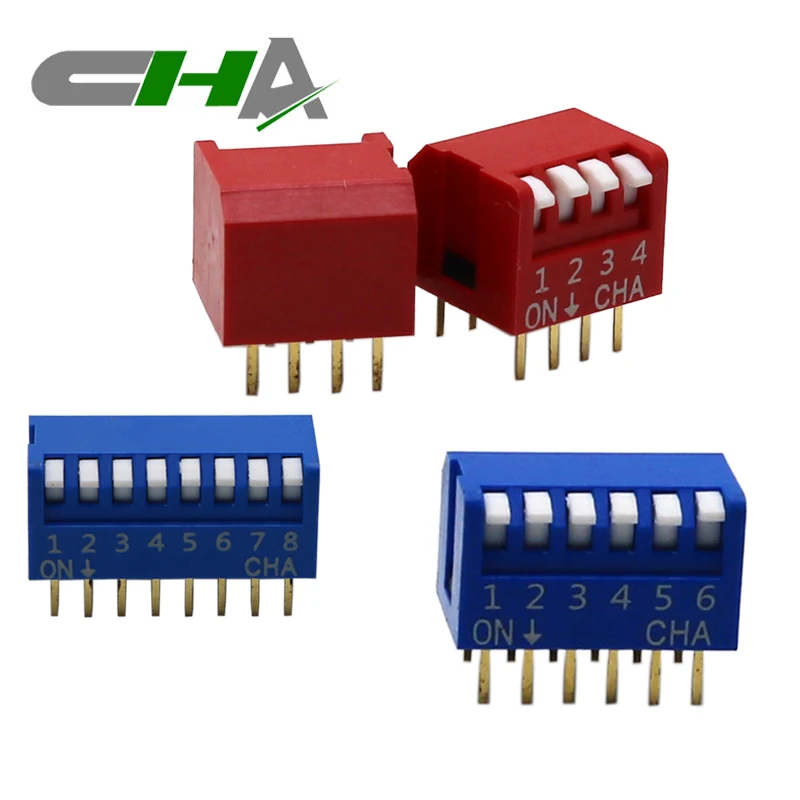

LED Tact Switch,LED Push Button Switch,DIP Switch,Rotary Switch,Tact Switch

4. why should you buy from us not from other suppliers?
We adhere to the sincere cooperation honesty as the objective, with the needs of the customers, and provide the best quality products and the best service for our clients, to provide multilayer choice, so this criteria! With reasonable price and quick del

5. what services can we provide?
Accepted Delivery Terms: FOB,DDP,DDU;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Korean
