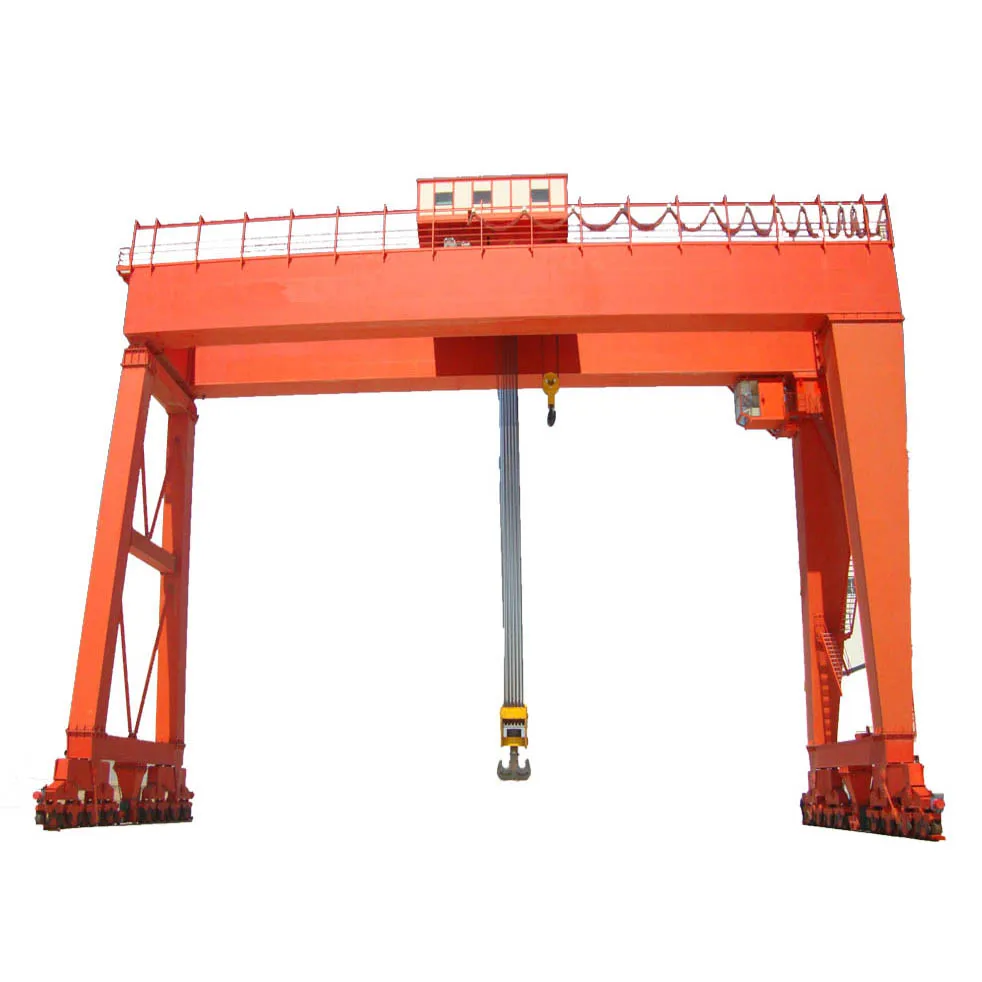

110t workshop Double Girder Gantry

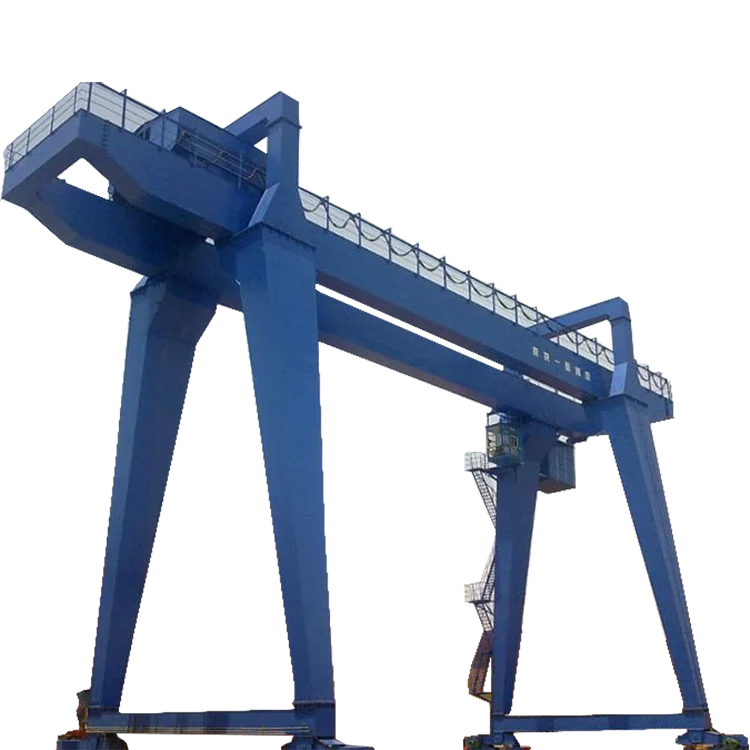

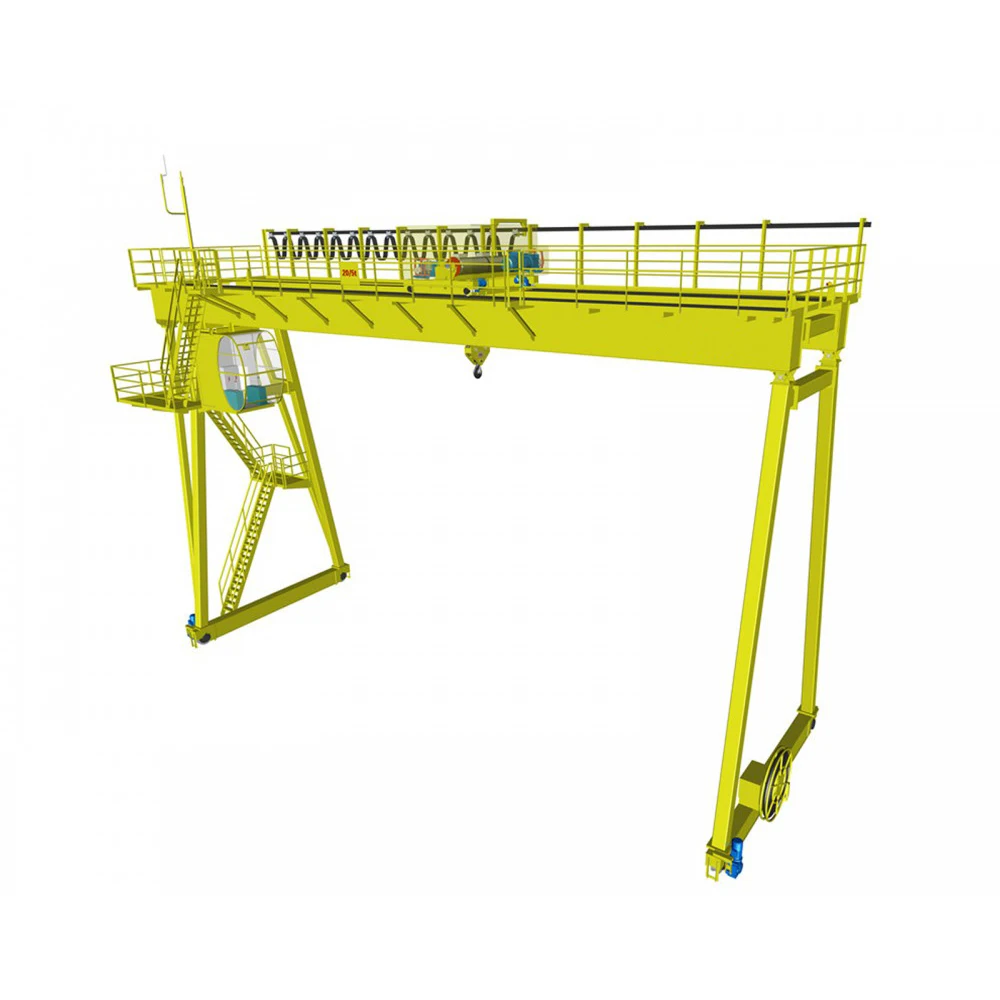

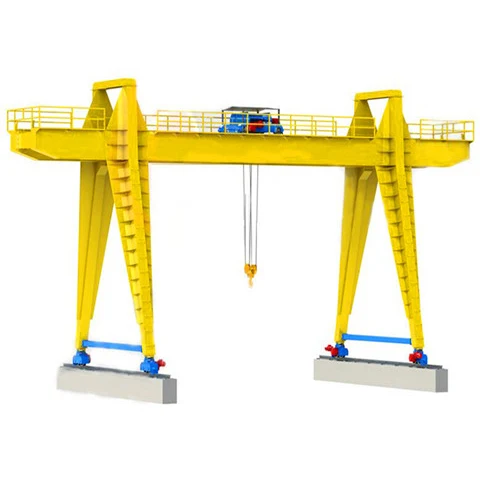

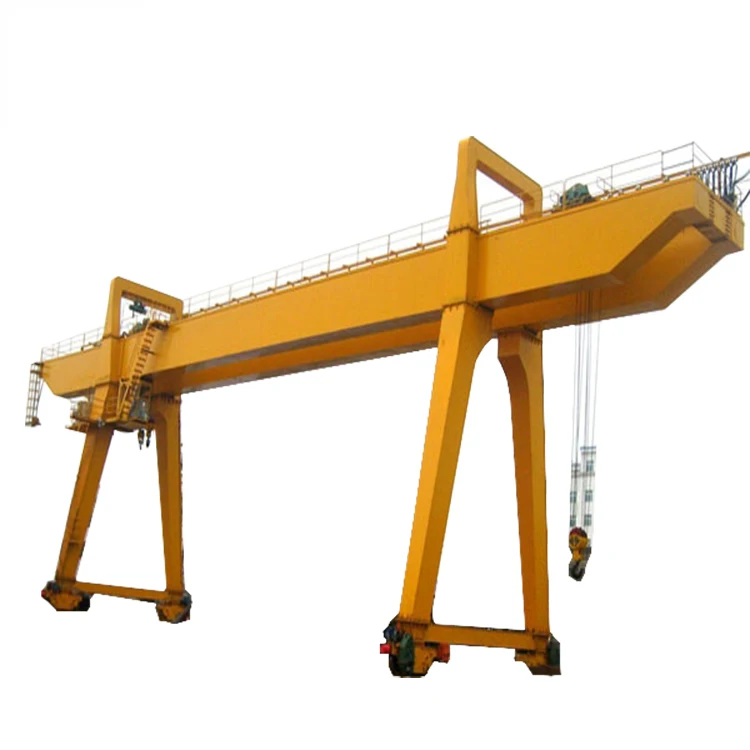

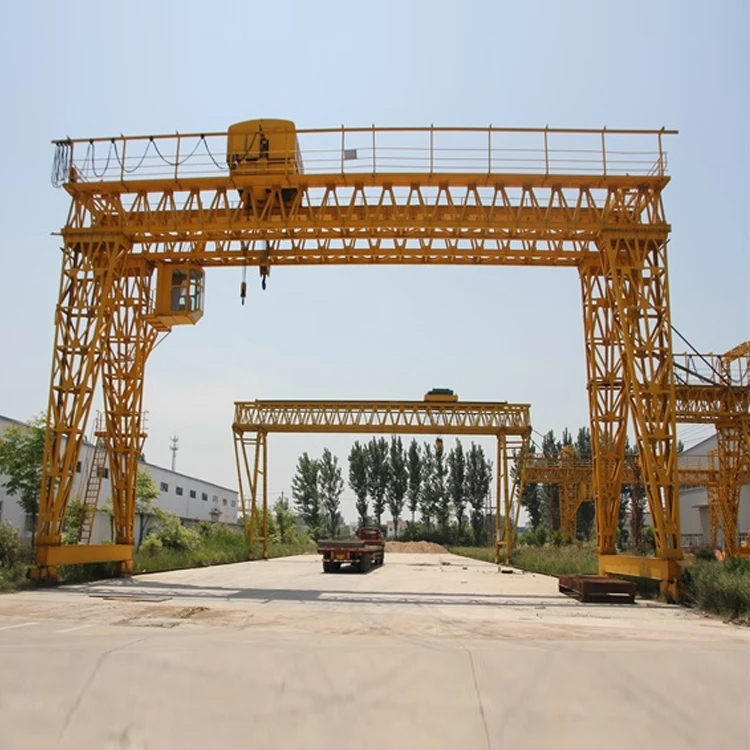

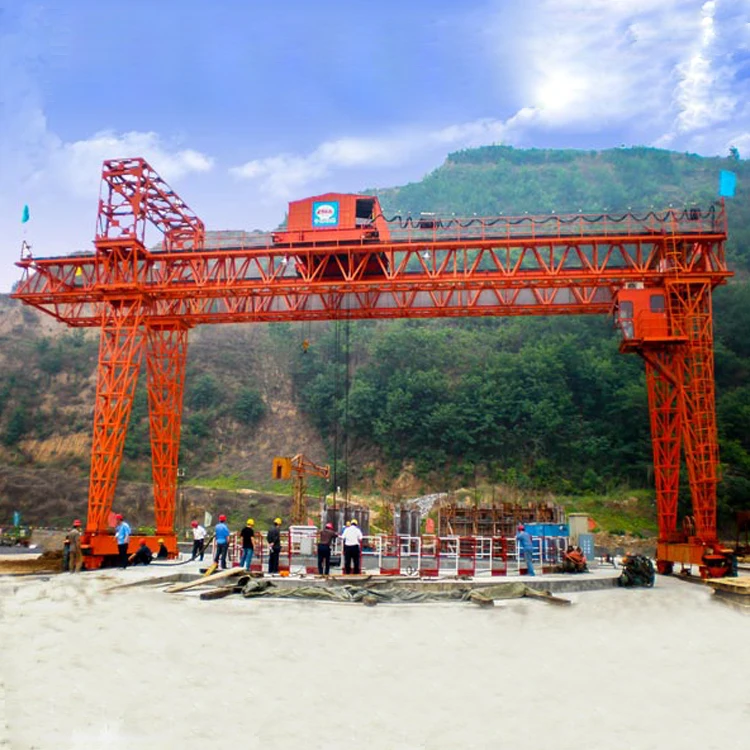

MG double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork. They are also suited to indoor applications where existing building structures are not suitable to take overhead cranes, Hengyuan can be constructed with a cantilever to allow handling outside the rail centers.

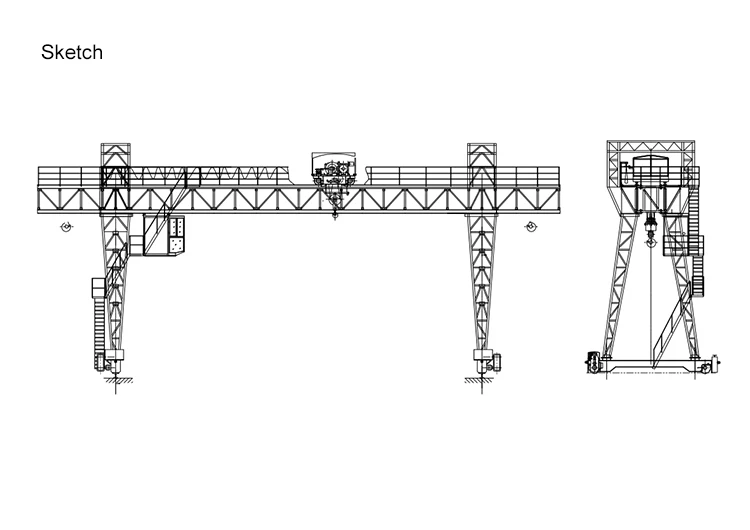

Specification:

1. Lifting capacity up to 100on

2. Span is 18m to 35m

3. Lifting height up to 13m

4. Working-class: ISOA5-A7/FEM2M-4M

5. crane traveling mechanisms are operated in the driver cabin or remote control

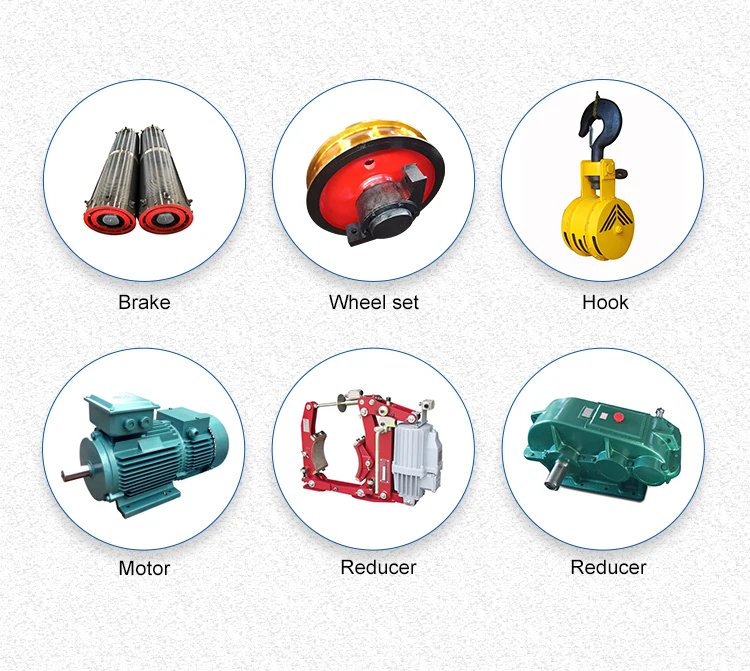

Mechanical:

1. Double box beam with steel legs moving through the ground beam as a crane traveling system

2. The camber of the main beam will be designed as Span*1-1.4/1000.

3. Steel Material: Q235 or Q345

4. Shot-blasting Sa2.5 for the main girder and supporting beam

5. Epoxy zinc rich high-quality painting.

6. Electrification and outfitting

7. Brand: CHINT SIEMENS Schneider

8. Conductor power supply: Cable Reel or busbar.

9. Frequency conversion, double speed, single-speed, and All hoist and crane movements are independent and can be run simultaneously different design duo to meet crane applications

10. The whole layout provides good protection against the special working environment. Such as gas workshop















Lifting capacity(t)

10

16

Span(m)

10/12/16/20

10/12/18/24/30

Lifting height(m)

6

6

Traveling mechanism

Traveling speed

Ground(m/min)

20

20

Controlling room

20        30

20       30

Motor

Ground

ZDY(D)122-4/1.5*2

ZDY131S-4/2.2*2

ZDY(D)122-4/2.2*2

ZDY131S-4/2.2*2

Controlling room

ZDR100-4/1.5*2

ZDR112L-4/2.1*2

ZOG100-4/2.2*2

ZDR112L-4/2.1*2

Reducer

LDA1  LDAC1

LDH   LDHC

LDA1  LDAC1

LDH   LDHC

Wheel diametermm

270

400

270

400

Electric hoist

Type

CD1    MD1

CD1    MD1

Lifting speedm/min

7      7/0.7

7      7/0.7

Traveling speed

20   (30)

20   (30)

Motor

Lifting

ZD151-4/13 ZDS11.5/13

ZD151-4/13 ZDS11.5/13

Traveling

ZDY121-4/0.8*2

ZDY121-4/0.8*2

Working system

A3

A3

Steel track recommended

P38

P38

Power source

380V  50HZ

380V  50HZ

The crane weight

Ground(kg)

6600

7500

8350

10650

6600

7500

8350

Controlling room(kg)

7400

8300

9150

11450

7400

8300

9150





Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials
you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type of work in a hazardous environment?
A: Sure! We can customize for you, acid proof or explosion-proof,
no problem with that.
Q. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab,
magnet or other specials as your requirement!
Q. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
