Промышленный высококачественный цифровой расходомер MFL3100 для жидкой турбины DN15 до DN40, резьба 4 20 мА, расходомер для воды, охладитель

Share on (62374068762):


Price:

Quantity:


Product Overview

Description



Product Show

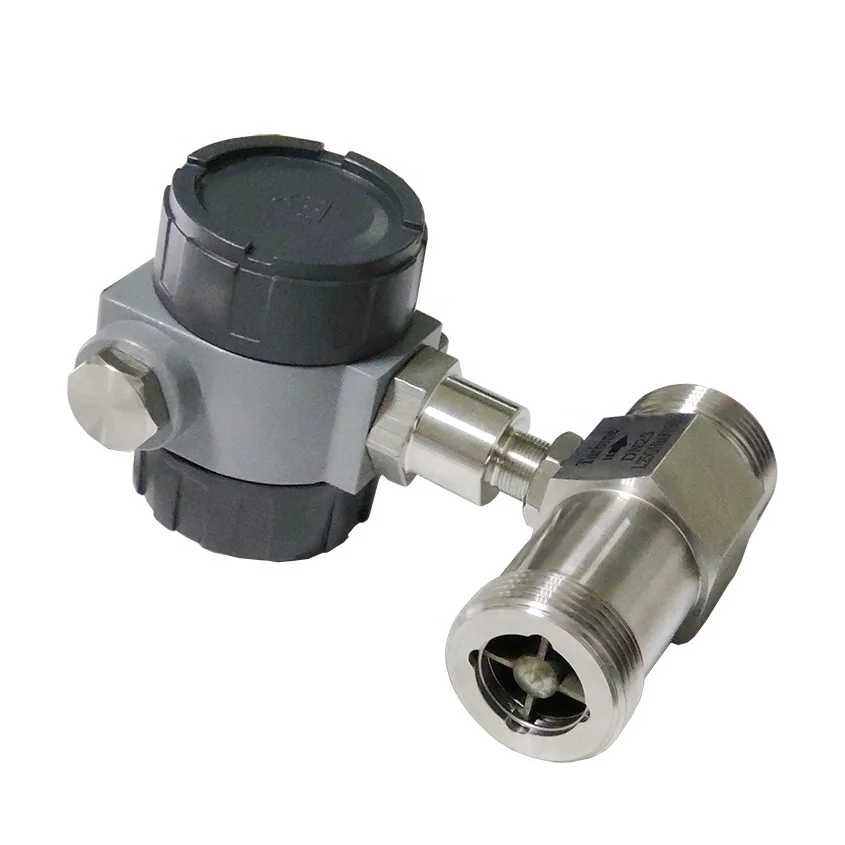

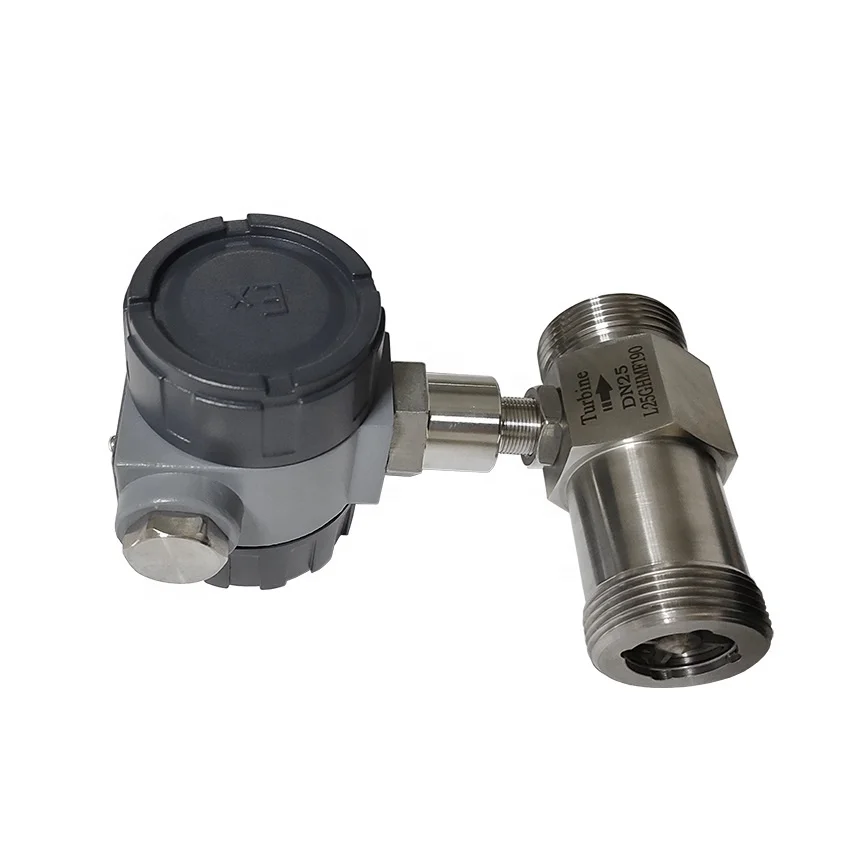

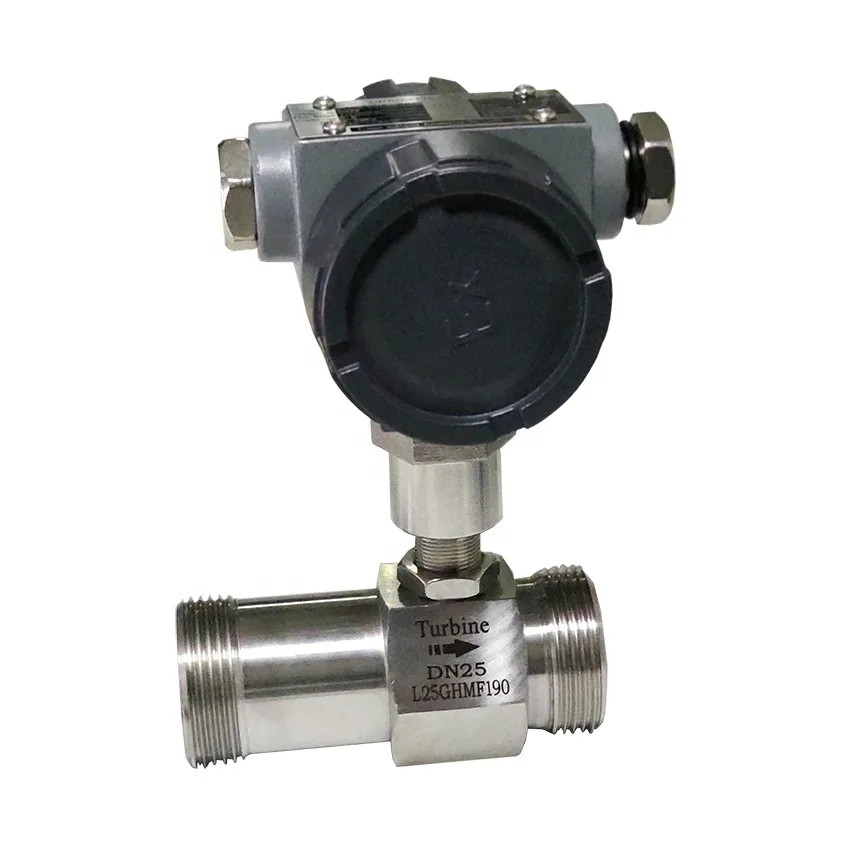

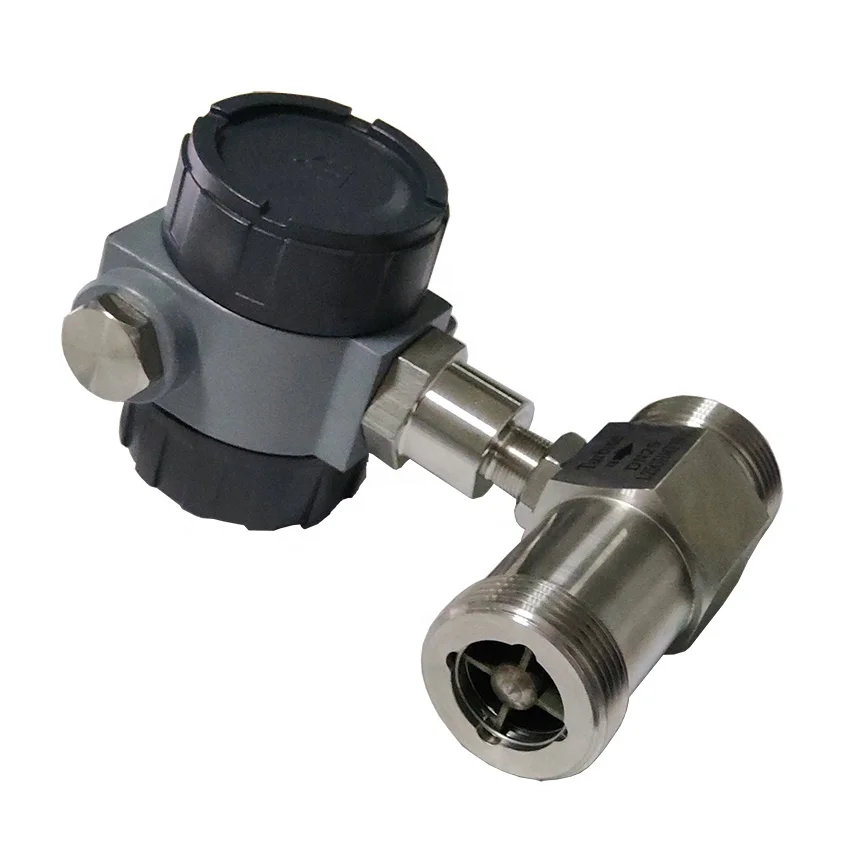

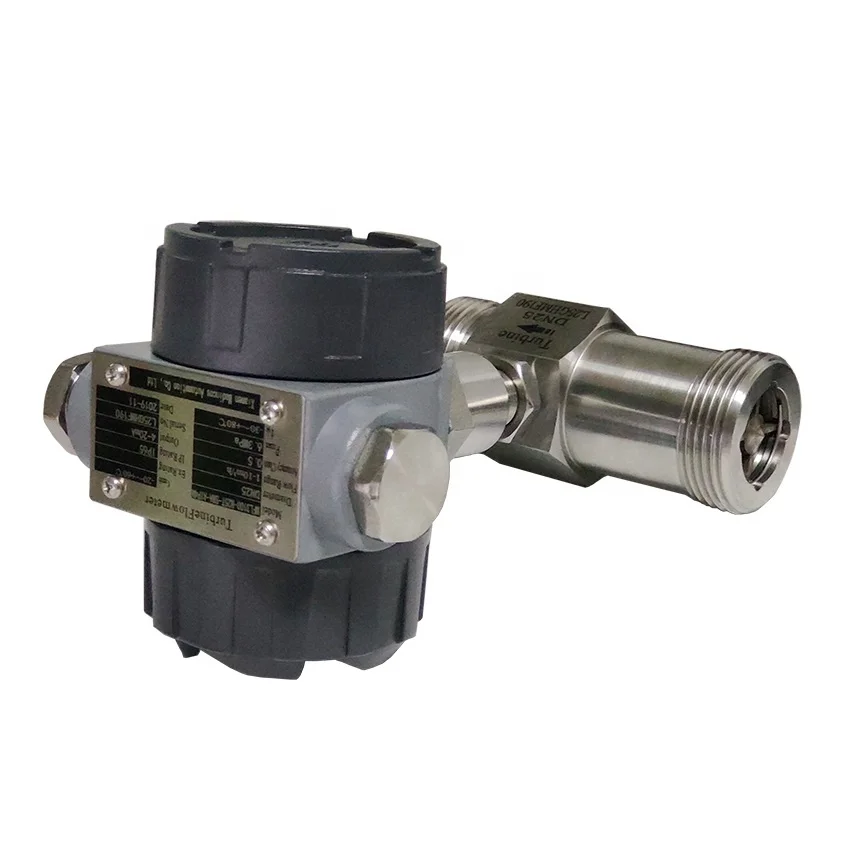

Smart DN15 to DN40 Thread Type 4-20ma Liquid Turbine Flowmeter in Water Cool for Chiller                                                                                                                       MFL3100

Application: liquid, vairour area water measurement: pure, non-corrosive Liquid, without purity  water, pure water, diesel, methanol



High Accuracy and Stability, Digital Sensor and SMT Technology
Accuracy
Standard:±1%R, ±0.5%R;
Customzied :0.2%R
Repeatability
0.05% to 0.2% in short time
Process Temperture
-20℃ to 80℃, -20 ℃to 120℃
Range
0.04m3/h to 800m3/h
Range Ratio
1:10, 1:15:1:20


Specification for Temperature Humidity Measurement
Process Connection
Thread : DN4 to DN10; DN15 to DN40
Flange: DN15 to DN200
Material
304SS,316SS
Pressure Range:
4Mpa, 6.3Mpa, 10Mpa, 16Mpa, 25Mpa
Output
4-20ma,; RS485 output, Pulse,Hart optional
Housing Material
aluminum alloy
Protection Class
IP65
Working Ambient
T:-20 to 60℃
Storage Temperature
-40 to 125℃
Power Supply
+24VDC+-15%, ripple: less than 0.5%
3.0v10AH lithium battery, battery voltage:2.0V to 3.0V


Package &Shipment


Package &Shipment
Size
depending on  process connection size
G.W.
same as size



Package &Shipment
Package: The normal package is paper box.

PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great.

Delivery: by DHL, TNT, UPS, FEDEX;
by air, by sea
