4X1HDMI Quad Multi viewer with Seamless Switcher IR remote RS 232
- Category: >>>
- Supplier: Wanying Kaifeng Electronic Co. Ltd.
Share on (62374070688):
Product Overview
Description
Product Description
1080P@60Hz YUV 4:4:4 LPCM 2/5.1/7.1CH IR remote RS-232 control 4x1 HDMI switcher Quad Multi-Viewer
1. Introduction
The high performance 4x1 quad multi-viewer supports four high definition input contents be displayed on one screen simultaneously, and five multi-viewer display modes can be selected. The product can be controlled via the front panel button, remote control and RS-232.
2. Features
1)HDMI 1.4b, HDCP 1.4 and DVI compliant
2)Video resolutions up to 1080P@60Hz
3)Audio supports LPCM 2/5.1/7.1CH, Dolby 5.1CH, Dolby True HD, DTS-HD
4)Quad multi-viewer with five display modes supported
5)Audio output can be selected come from any one of input sources
6)Button, IR remote, RS-232 control

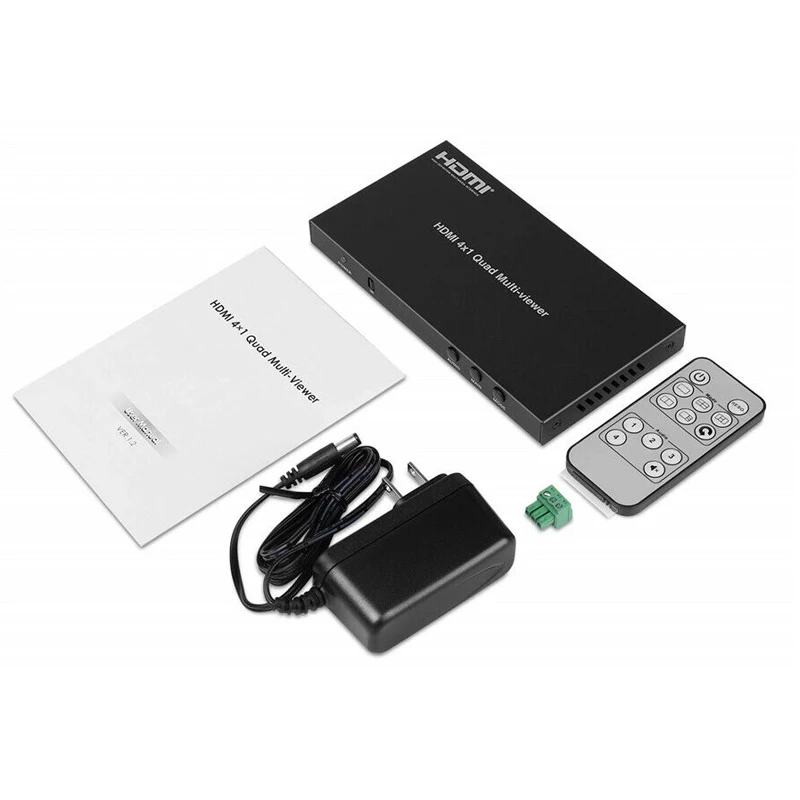

3. Package Contents
1 x HDMI 4x1 Quad Multi-Viewer
1 x 5V/2A DC Power Adaptor
1 x Remote Controller
1 x User Manual
4. Specifications
Technical | |
HDMI Compliance | HDMI 1.4b, compliant with DVI 1.0 |
HDCP Compliance | HDCP 1.4 |
Video Bandwidth | 6.75Gbps |
Video Resolutions | 1080P@60Hz, 720p@60Hz, 480P@60Hz |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
Color Depth | 10-bit, 12-bit |
HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
Connections | |
Inputs | 4x HDMI Type A [19-pin female] |
Output | 1x HDMI Type A [19-pin female] 1x RS-232 [3.81mm Phoenix connector] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |

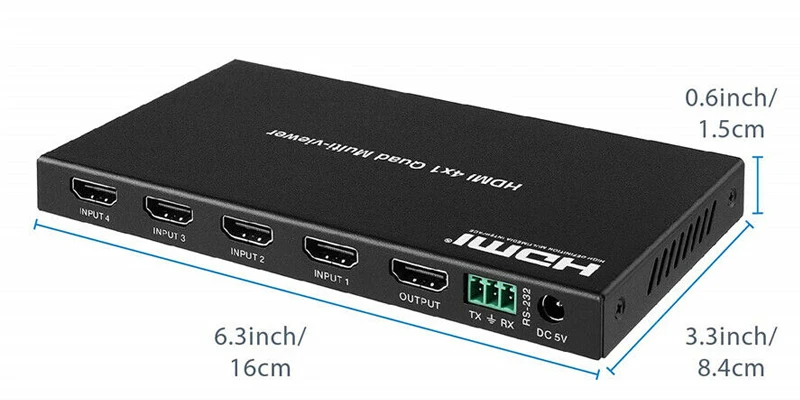

Dimensions | 160.2mm [W] x 84mm [D] x 15.5mm [H] |
Weight | 337g |
Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 6W(Max) |
Operation Temperature | 32 - 104°F / 0 - 40°C |
Storage temperature | -4 - 140°F / -20 - 60°C |
Relative Humidity | 20 - 90% RH (no condensation) |
5. Operation Controls and Functions

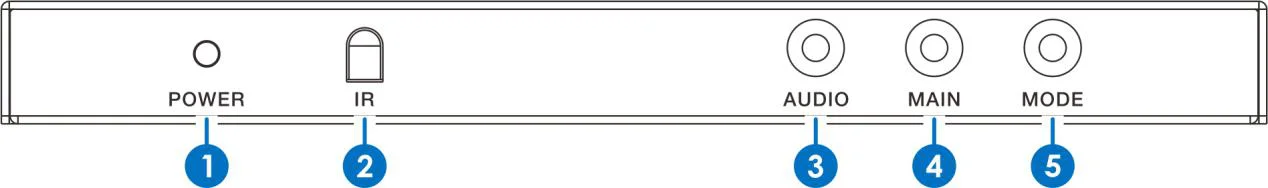

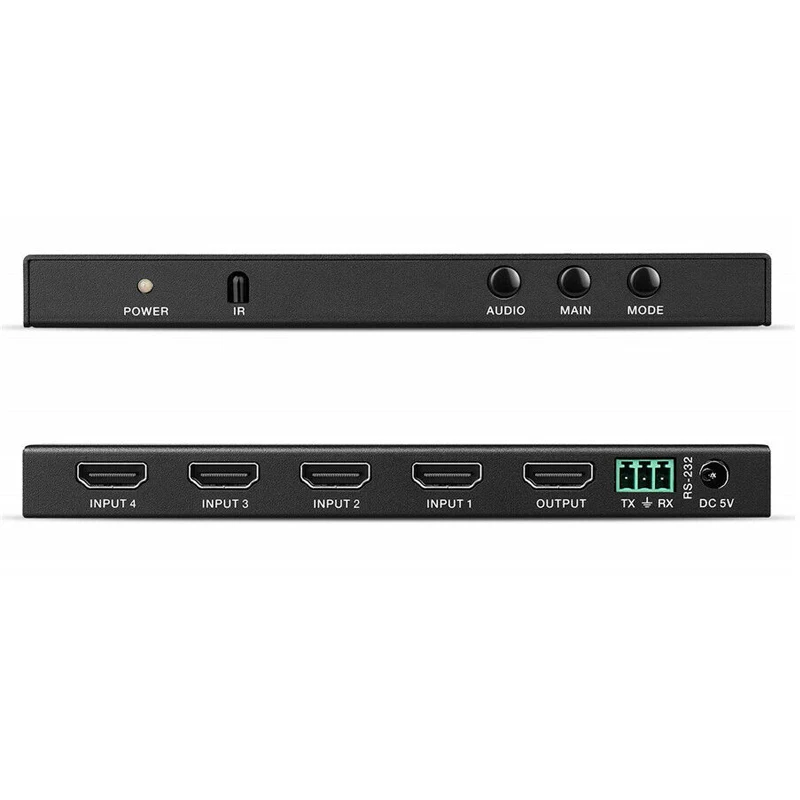

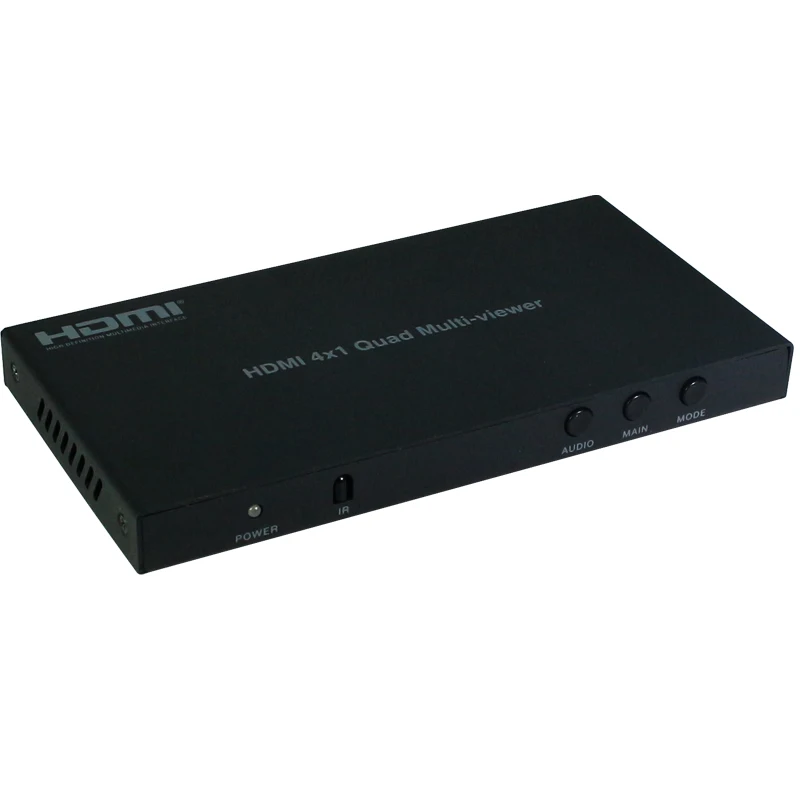

5.1 Front Panel
1.POWER: System power indicator.
2.IR: Remote control receiver window.
3.AUDIO: Output audio selection or turn off the audio.
4.MAIN: Input source selection.

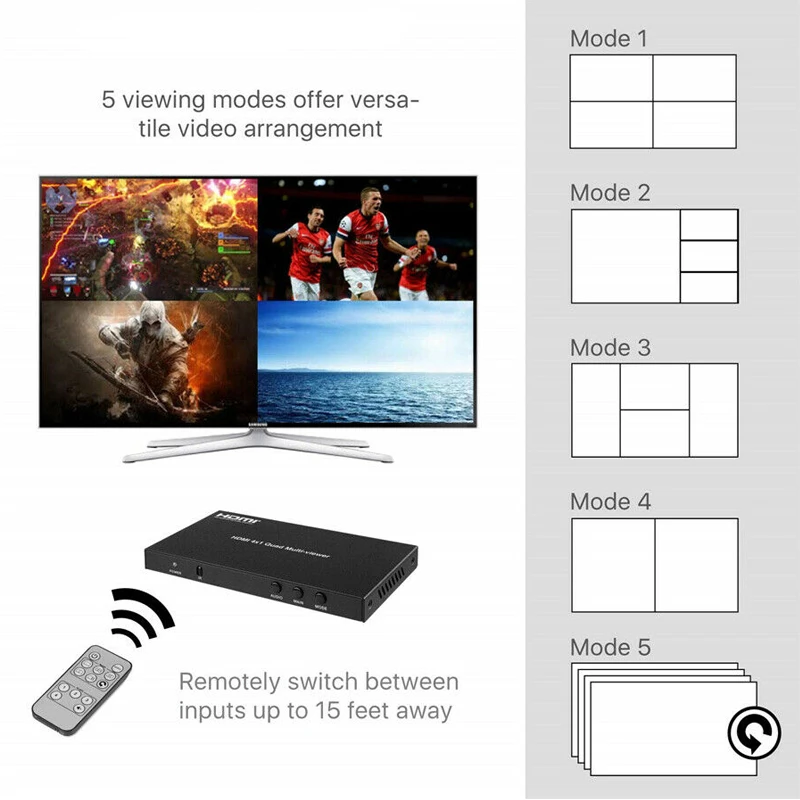

5.MODE: Select multi-viewer display modes. Please see the below detail description.

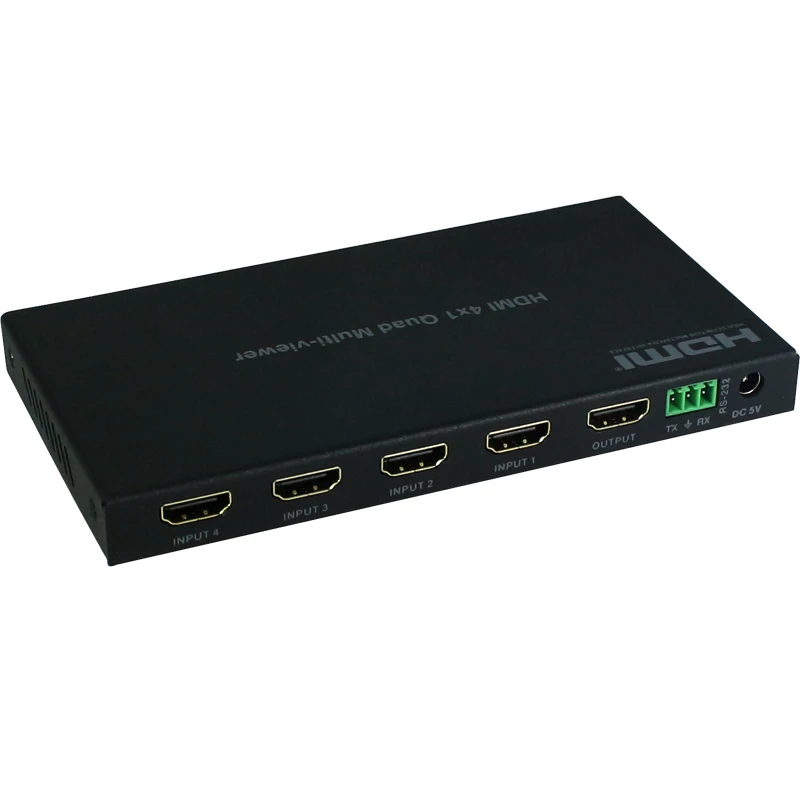

5.2 Rear panel

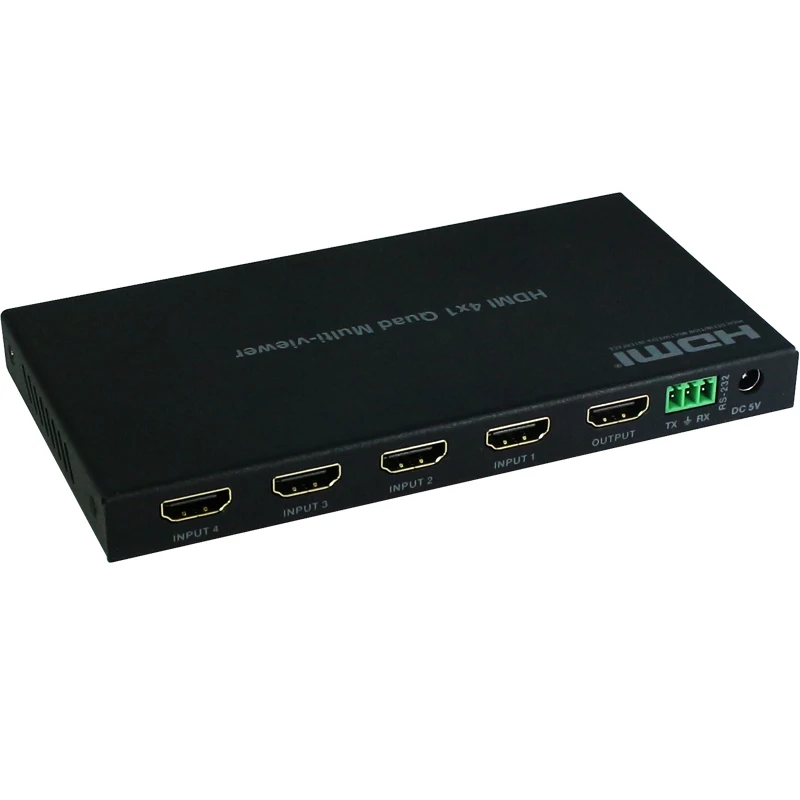

1.INPUT 1/2/3/4: Connect to HDMI source devices such as DVD Player.
2.OUTPUT: Connect to HDMI display device such as TV/Projector.
3.RS-232: Connect the RS-232 port to your control system.
4.DC 5V: Connect 5V/2A adaptor to AC wall outlet for power supply.
6. Connection Diagram
