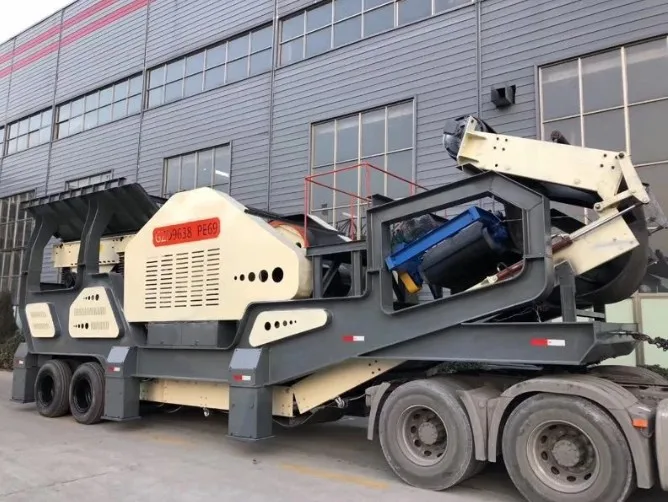

Mobile Crushing Plant/ City wash Crushing Plant
- Category: >>>
- Supplier: Henan Dajia Mining Machinery Co. Ltd.
Share on (62374205535):
Product Overview
Description

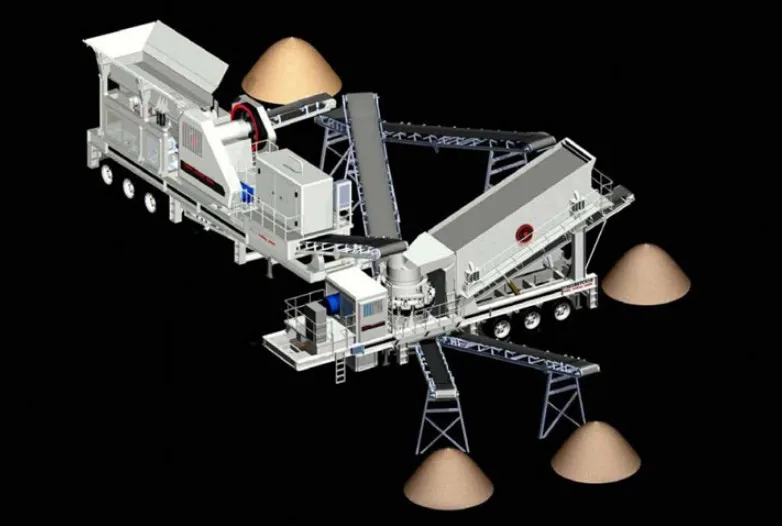

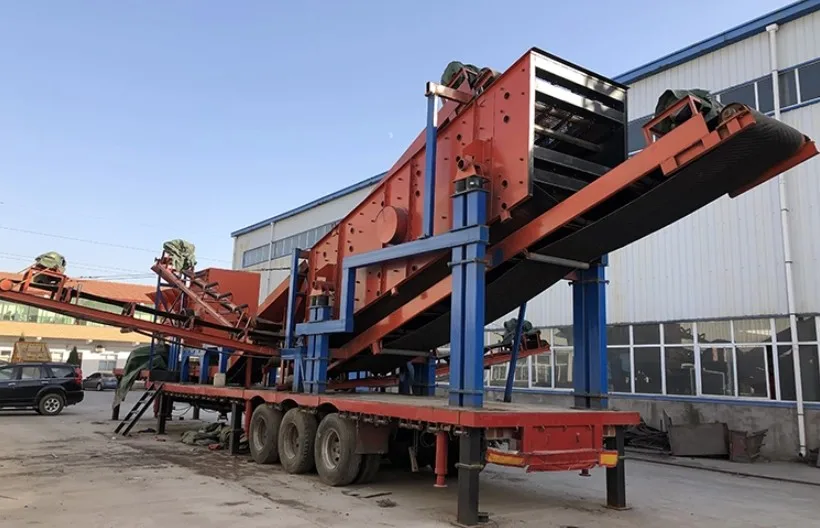

The jaw crusher plant (mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing station.
Technical details:
PP Jaw portable crusher | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300 | |
Shipping Size | length (mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
width (mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 | |
height (mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 | |
Weight (kg) | 15240 | 22000 | 32270 | 57880 | 98000 | 25220 | |
Axle load (kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 | |
Tractor weight (kg) | 5119 | 7500 | 10890 | 19450 | 34000 | 10490 | |
Jaw Crusher | Type | PE400×600 | PE500×750 | PE600×900 | PE750×1060 | PE900×1200 | PEX300×1300 |
Material inlet (mm) | 400×600 | 500×750 | 600×900 | 750×1060 | 900×1200 | 300×1300 | |
Adjusting range of charging hole (mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 | |
Capacity (m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-65 | |
Vibrating feeder | Type | GZD8030 | GZD8030 | GZD9638 | GZD1149 | GZD1352 | GZD8030 |
Capacity of material cabin (m3) | 3 | 4 | 7 | 10 | 10 | 3 | |
width of material cabin (mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 | |
Type of belt conveyor | B650×6 | B800×7 | B1000×8 | B1000×11 | B1200×13 | B1000×7 | |
