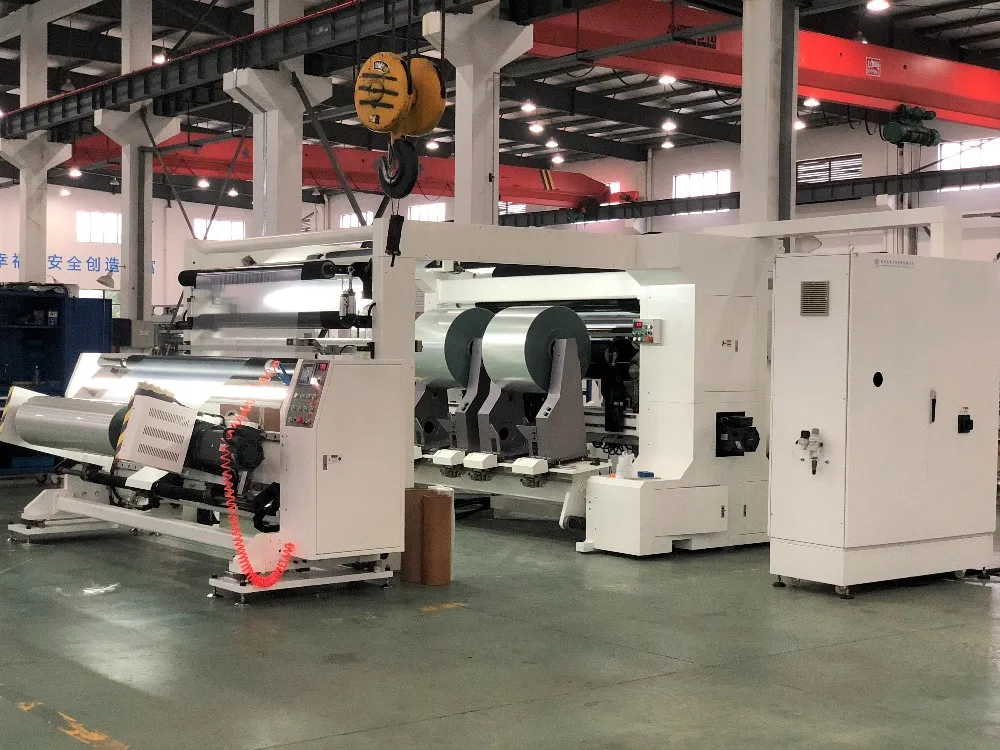

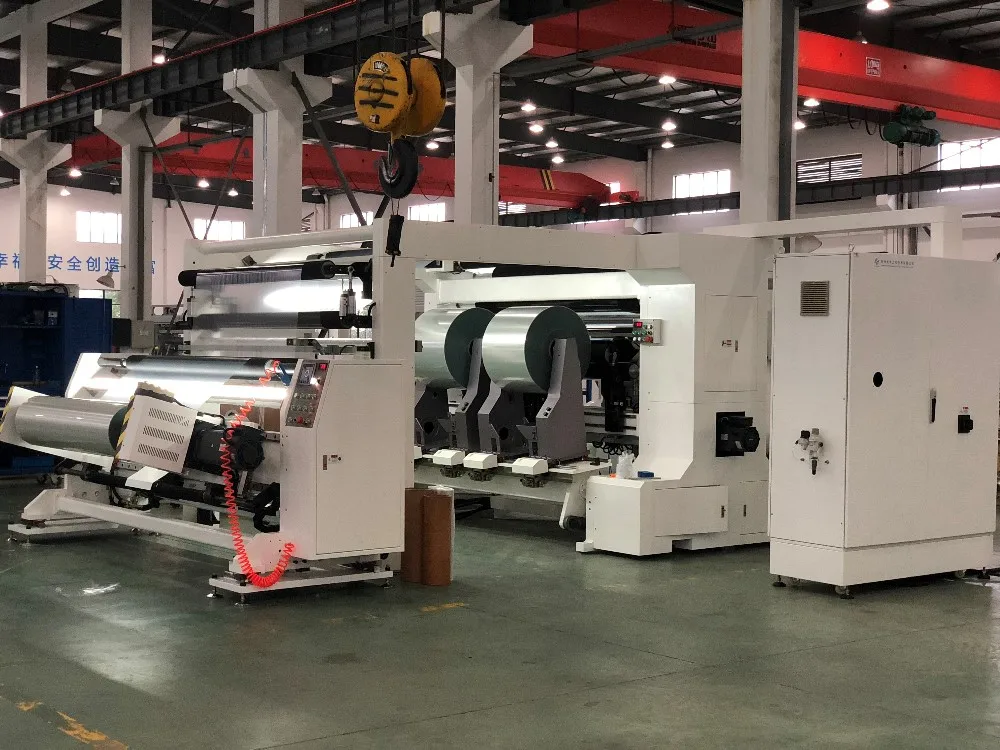

Dahua slitter 1.0 version CPP packaging film slitter rewinder machine
- Category: >>>
- Supplier: Hangzhou Dahua Industry Control Technology Co. Ltd.
Share on (62374250622):
Product Overview
Description
Product Description
Product Brief Introduction
The Individual station type slitting machine could meet the customer needs for the primiary slitter which should work with CPP production line.
The machine web width can be designed from 4000mm to 5000mm.
Also, it uses the global advanced SIEMENS servo system bus control technology, applying high-precision and high-sensitivity adaptive tension control system.
The full range of equipment control systems has been upgraded with expert features to reduce customer concerns about usage,maintenance and process parameter settings, greatly, reducing reliance on people.
The equipment design concept is advanced, stable and reliable, and can meet the multi-material and multi-process requirements of customers.
It is a comprehensive high-performance slitting machine.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS | ||
Slitting Material | CPP | |
Material Thickness | 20-100μm | |
Material Tension | 30-80N/m | |
Machanical Speed | 600m/min | |
Slitting Way | Razor groove cut +Razor air cut | |
Unwinding Way | Fixed unwinding arm with steel core | |
Unwinding Width | 4250mm | |
Unwinding Diameter | Max.1000mm | |
Unwinding Core Size | Steel Core | |
Edge guide Way | EPC with oscillation device (range：±75mm） | |
Rewinding Way | Central shafeless rewinding | |
Rewinding Width | 500mm-2500mm（Two outside stations Min350mm） | |
Rewinding Diameter | 800mm | |
Rewinding Core Size | 3″Paper core, 6″ Paper core | |
Rewinding Station quality(if any) | 6 (Alternative) | |
Unloading Way | Unloading trolley | |
Edge Trim Way | Two edge trim rewinder | |
Equipment Power | Around 60KW | |
Equipment Size | Around Length 6100mm×Width 6100 mm×Height 2300mm | |
Control System | Germany Siemens | |

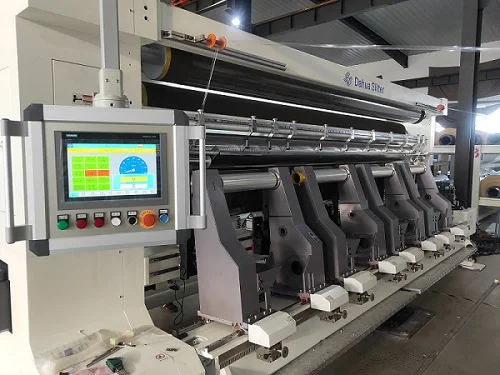

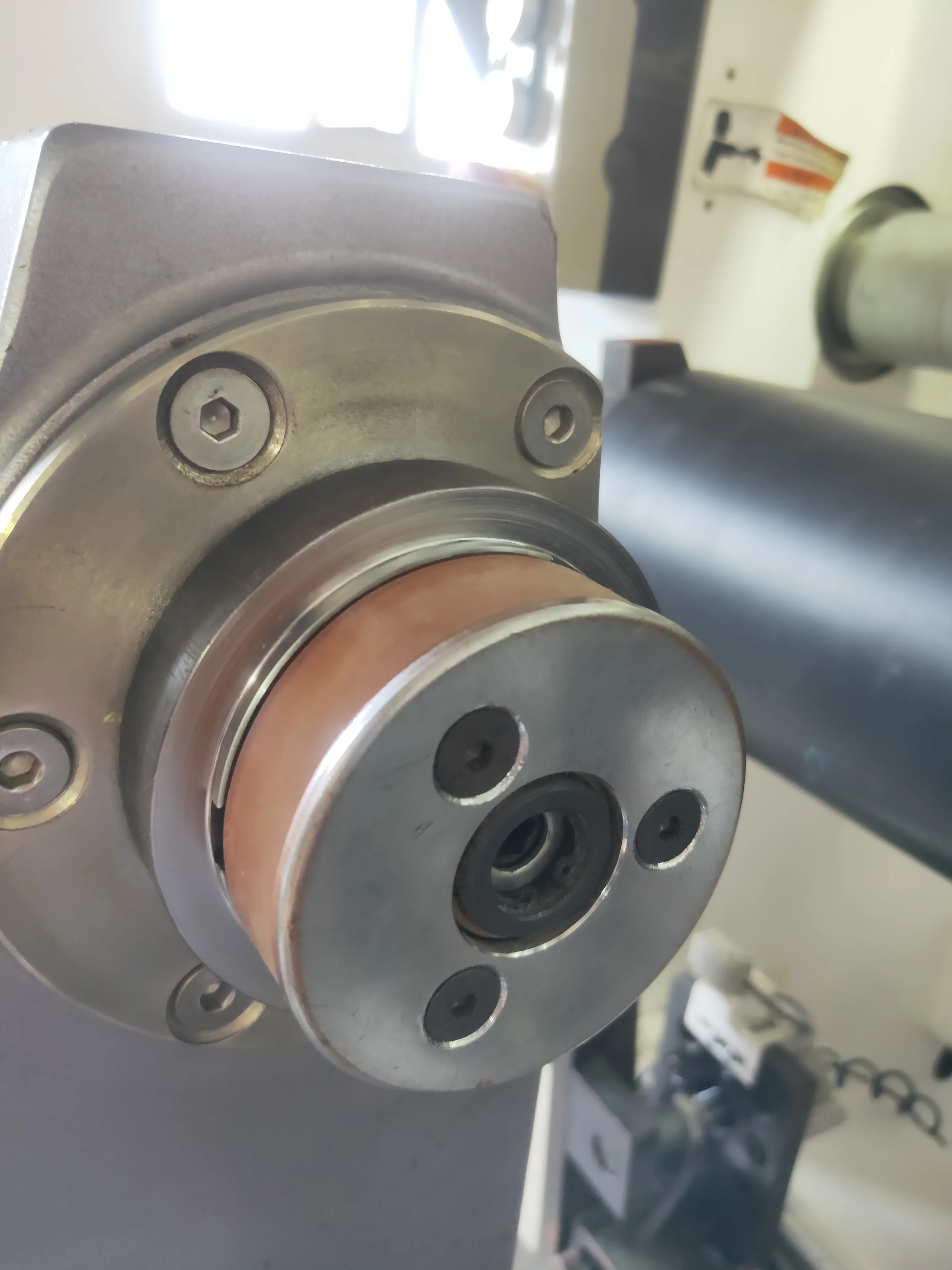

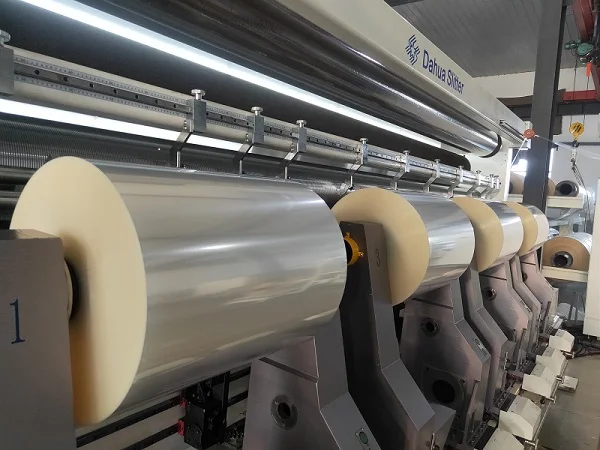

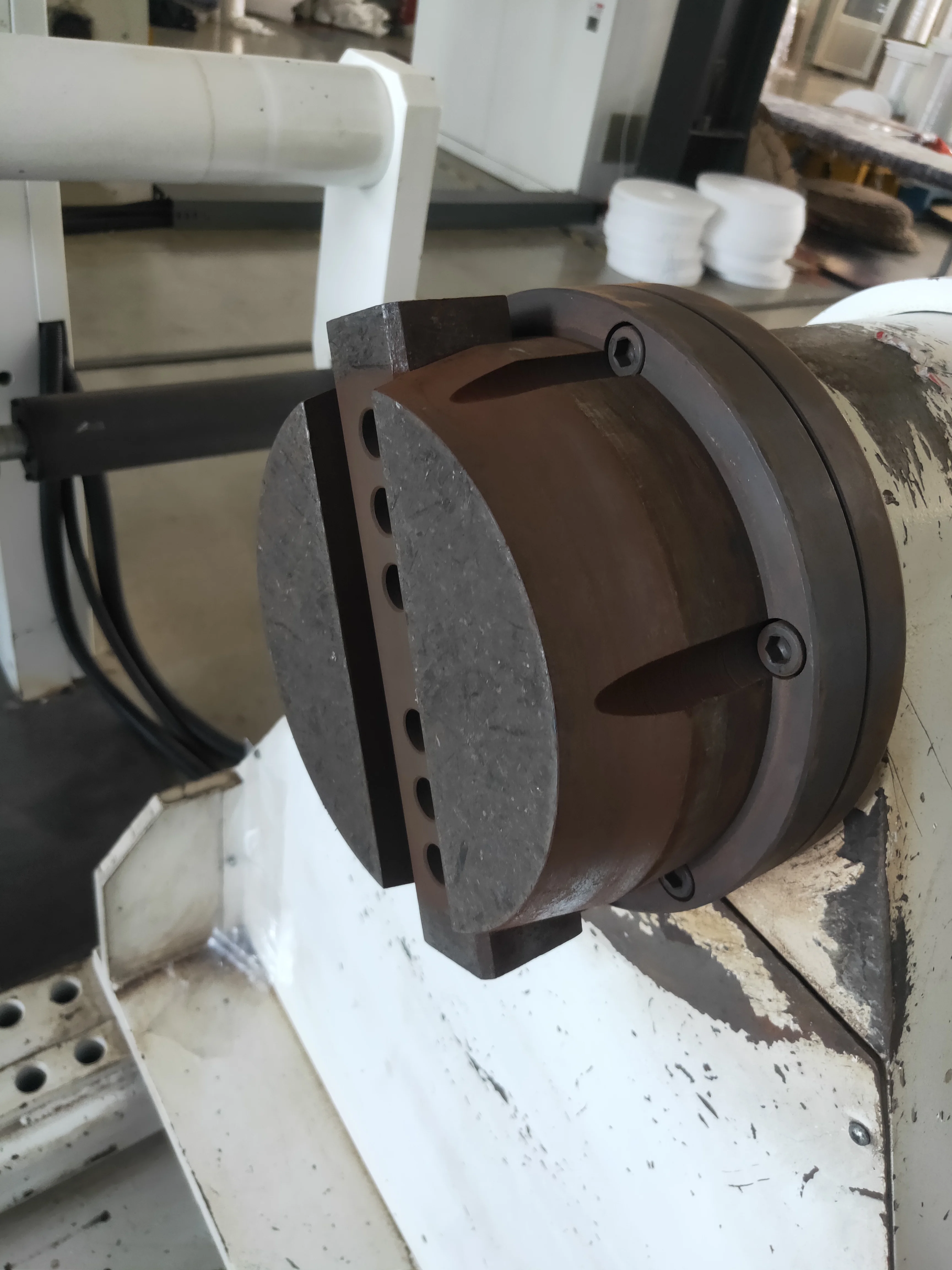

Detail Images
Equipment Main Feature
1. Intelligent control mode, easy operation and maintenance. |
2. Advanced mechancial & electrical design. High precision of parts processing and assembly. |
3. Double dancing roll tension control to achieve machine stable running performance. |
4. Energy-saving, common DC bus power supply of siemens system. |
Acceptance index
1、Edge devitation: ±0.5mm |
2、Finish roll hardness can achieve 85 shore C with even tension. |
3、Falt roll surface without wrinkle, no scratch, no star makes. |
Special instructions of Equipment
Related products
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample material testing support.
* View our factory.
* Visit customer factory if required
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Spare parts supports
* 24 Hours * 7 days service hot line
