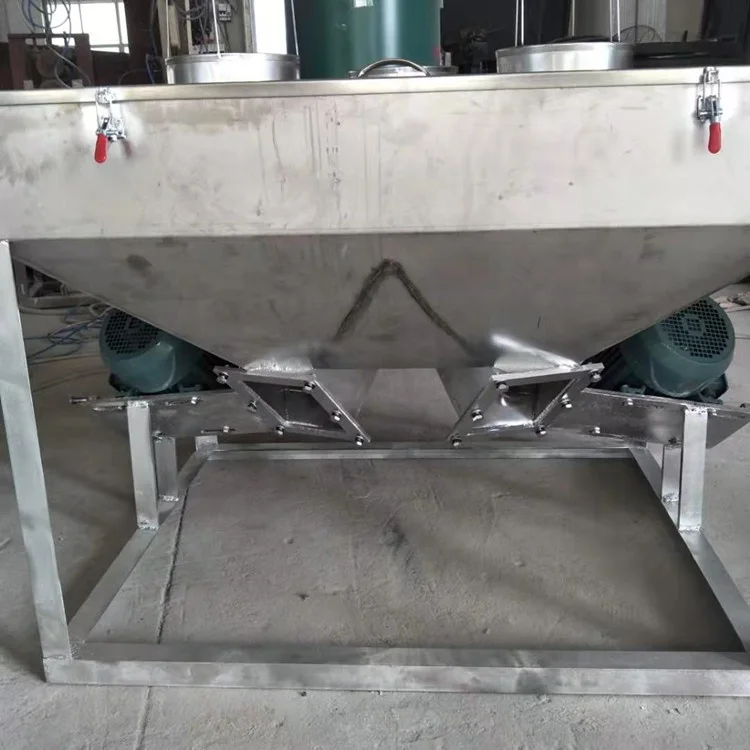

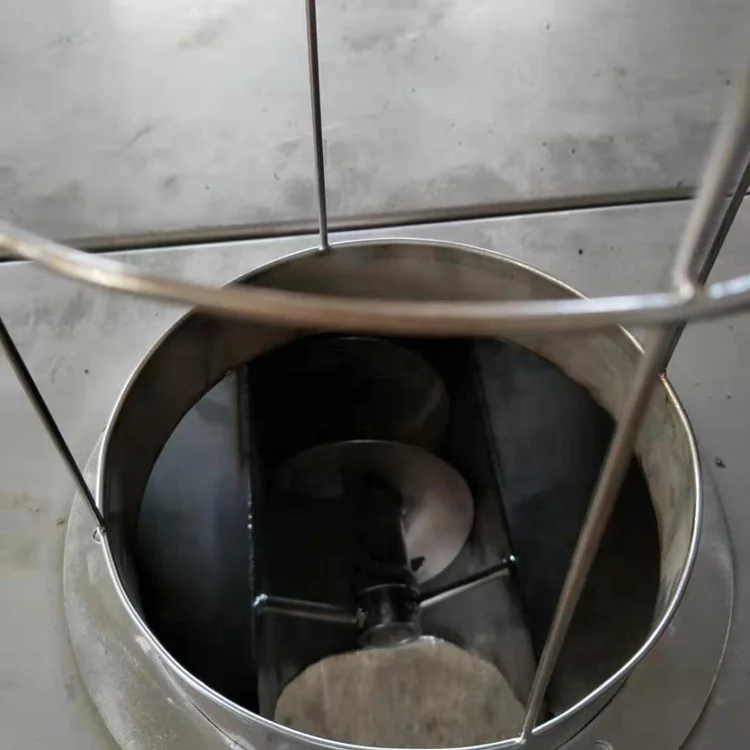

PVC powder automatic loader
- Category: Plastic Loader >>>
- Supplier: Zhangjiagang Ruiteyou Plastic Machinery Co. Ltd.
Share on (62374288813):
Product Overview
Description
Product description and features：
What is screw conveyor?
Screw conveyor is a kind of conveying equipment that widely applied in the chemical industry, construction industry, and grain
industry for transporting powder, granular and small block materials. Its optimal operating environment temperature is 20~50℃, and
the conveying length is generally less than 40m, the longest is not more than 70m, suitable for short-distance materials
conveying. Compared with other conveying equipment, it has the advantages of simple structure, small cross-section size, good
sealing performance, safe operation, and low cost. Besides, the screw conveyor can receive materials from one or more points and
discharge materials to multiple points, while its conveying capacity is relatively low and the machine parts are easy to wear. In
the cement industry, the screw conveyor is the indispensable cement plant equipment. The conveyor produced by AGICO has good
rigidity and running steady, the coaxiality of the helical blade and the helical shaft is high.
industry for transporting powder, granular and small block materials. Its optimal operating environment temperature is 20~50℃, and
the conveying length is generally less than 40m, the longest is not more than 70m, suitable for short-distance materials
conveying. Compared with other conveying equipment, it has the advantages of simple structure, small cross-section size, good
sealing performance, safe operation, and low cost. Besides, the screw conveyor can receive materials from one or more points and
discharge materials to multiple points, while its conveying capacity is relatively low and the machine parts are easy to wear. In
the cement industry, the screw conveyor is the indispensable cement plant equipment. The conveyor produced by AGICO has good
rigidity and running steady, the coaxiality of the helical blade and the helical shaft is high.

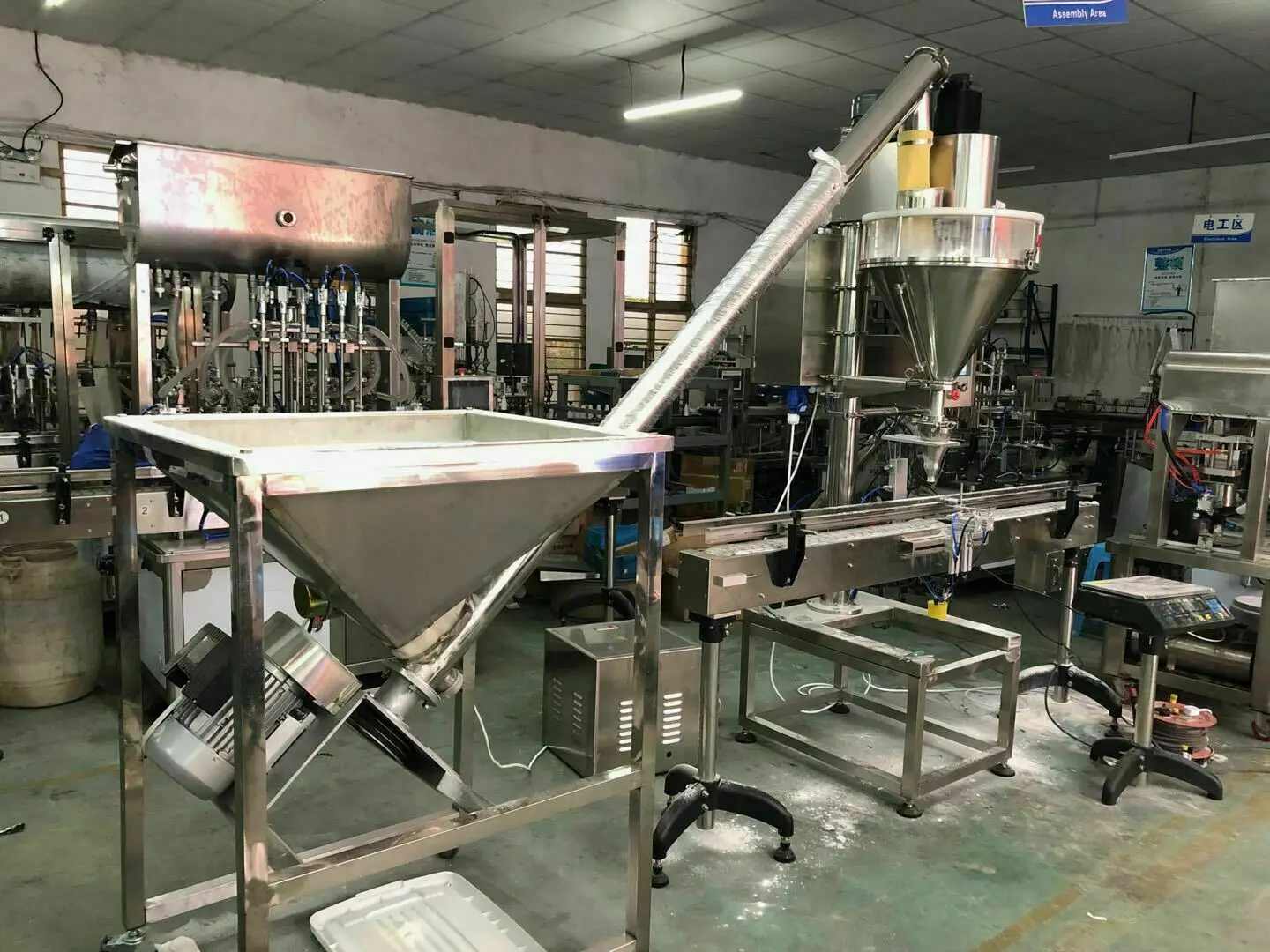

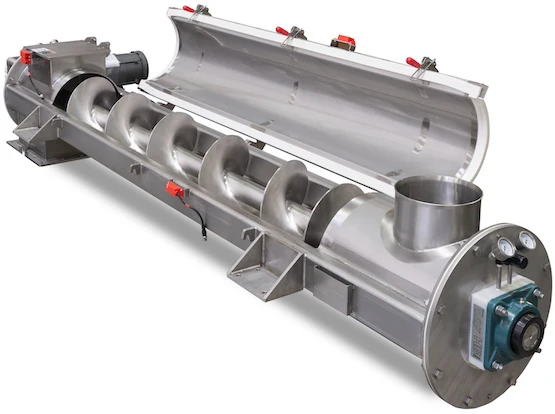

Screw Conveyor
Model:LS, WL, WD
Material:powder, granular, small block Capacity:1.4t/h – 94t/h
Material:powder, granular, small block Capacity:1.4t/h – 94t/h

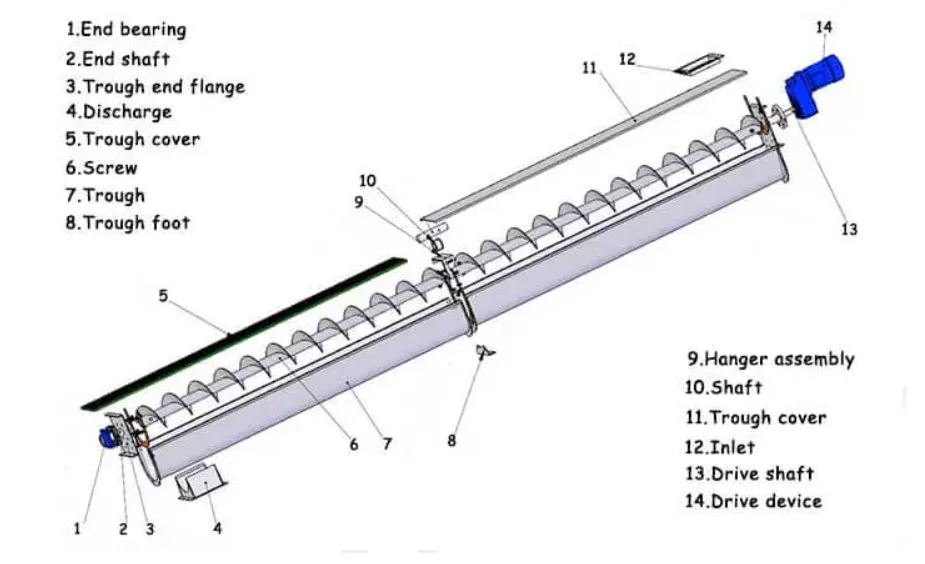

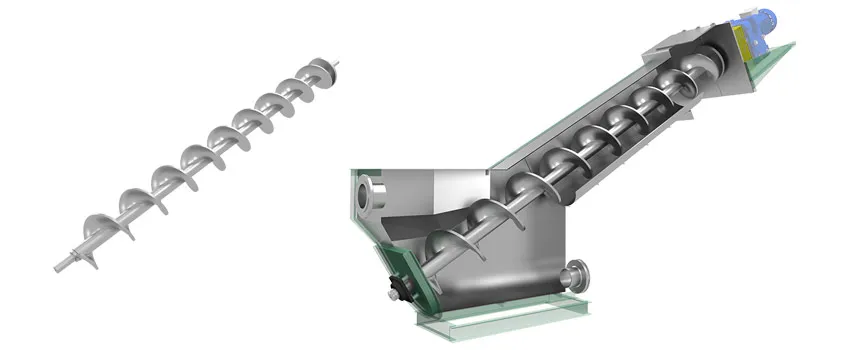

Screw Conveyor Design

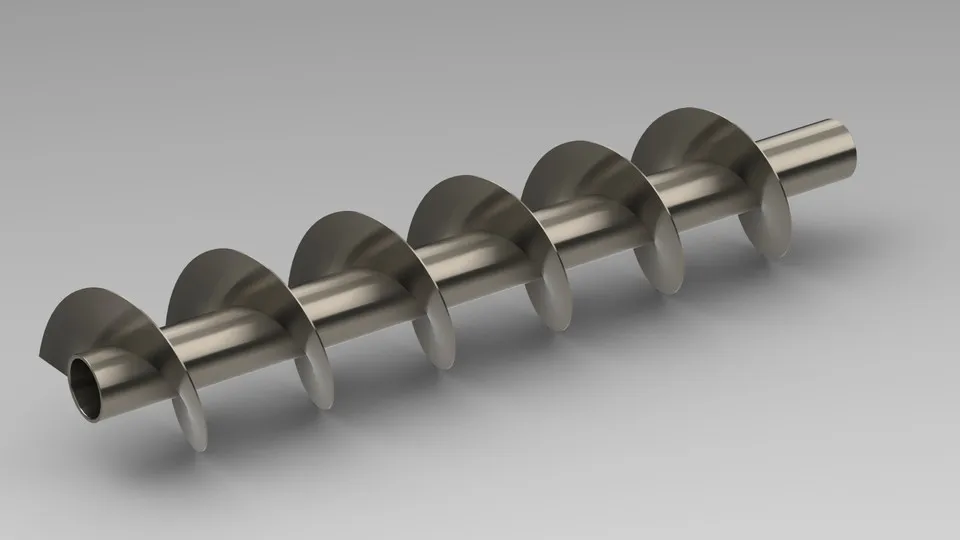

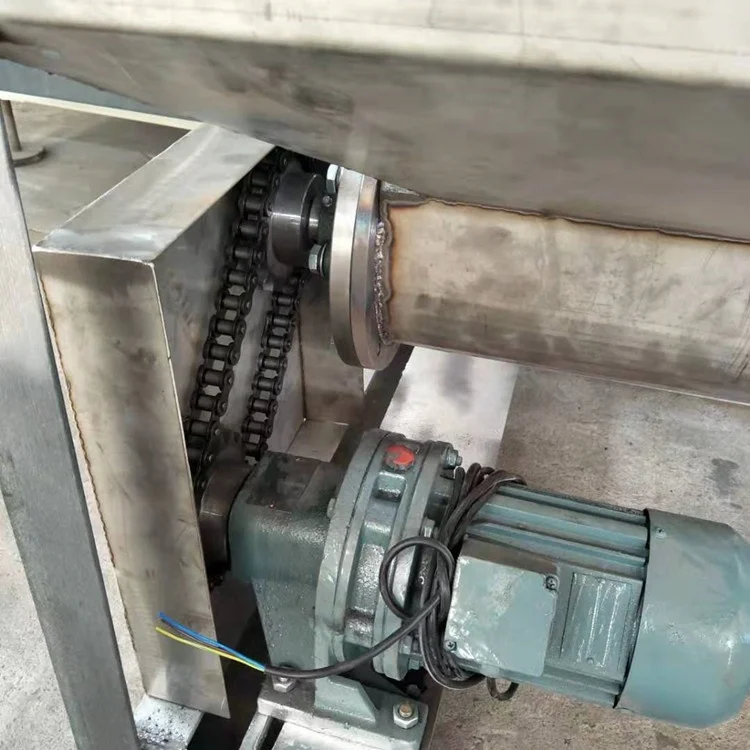

The screw conveyor is mainly composed of head bearing, end bearing, hanger bearing, feeding port, discharge port, screw, trough,
trough cover, drive device, etc.
trough cover, drive device, etc.
Screw Conveyor Features
Large capacity, high speed, and long service life. High speed means high productivity, which reduces production costs. ◇ Low
energy consumption. Most energy of the screw conveyor is consumed in friction loss. ◇ Environmental protection design. Our screw
conveyor adopts the sealed body to eliminate dust pollution.
energy consumption. Most energy of the screw conveyor is consumed in friction loss. ◇ Environmental protection design. Our screw
conveyor adopts the sealed body to eliminate dust pollution.
Screw Conveyor Working Principle
When the screw shaft rotates, the material moves forward along the trough bottom of the conveyor under the push of the screw
blade. The reason why the material does not rotate with the blade is that it is subject to its weight and the friction resistance
generated by the trough wall. Therefore, the transport of materials in the conveyor is completely a slip movement. In order to
make the screw shaft in a more favorable tension state, we usually place the drive device and the discharge port at the same end
of the conveyor, and the feed port at another end. Besides, the spiral shaft is equipped with the thrust bearing at the end of the
material movement direction, and when the machine body is long, we will add a hanger bearing on the equipment.
blade. The reason why the material does not rotate with the blade is that it is subject to its weight and the friction resistance
generated by the trough wall. Therefore, the transport of materials in the conveyor is completely a slip movement. In order to
make the screw shaft in a more favorable tension state, we usually place the drive device and the discharge port at the same end
of the conveyor, and the feed port at another end. Besides, the spiral shaft is equipped with the thrust bearing at the end of the
material movement direction, and when the machine body is long, we will add a hanger bearing on the equipment.
