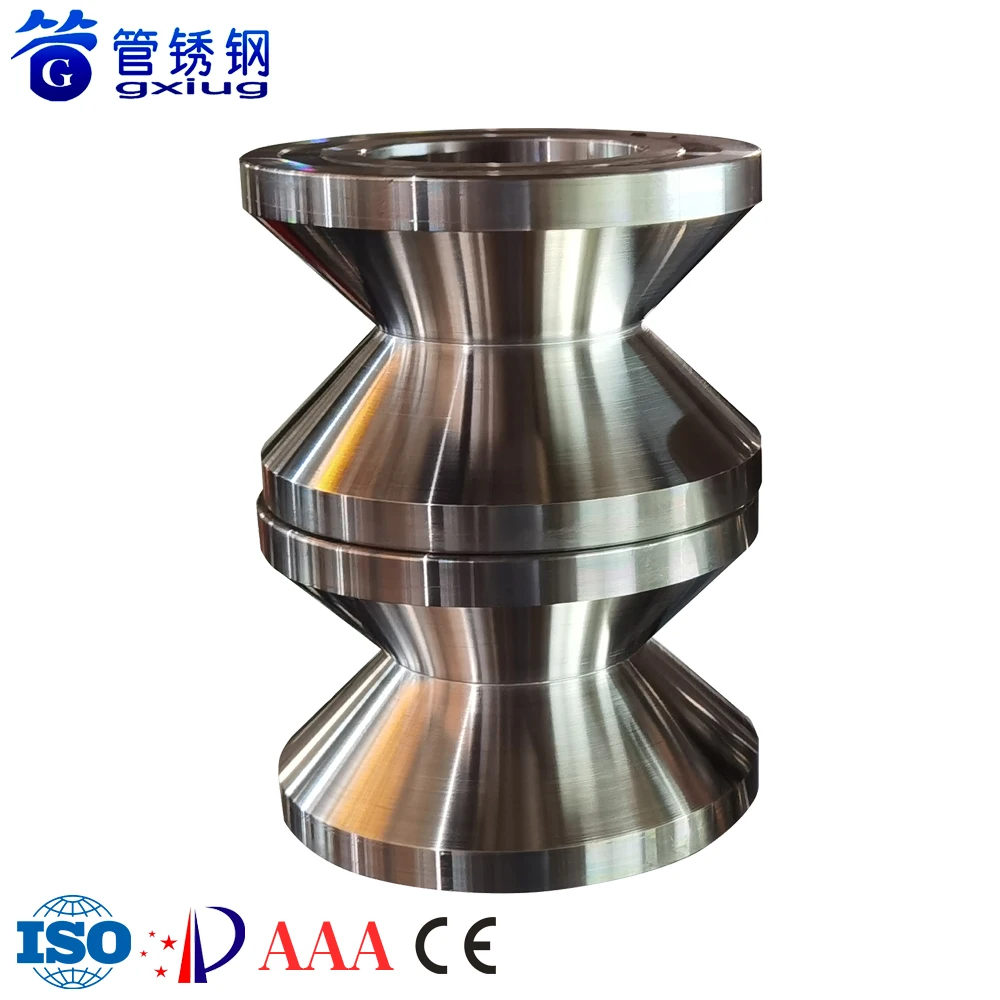

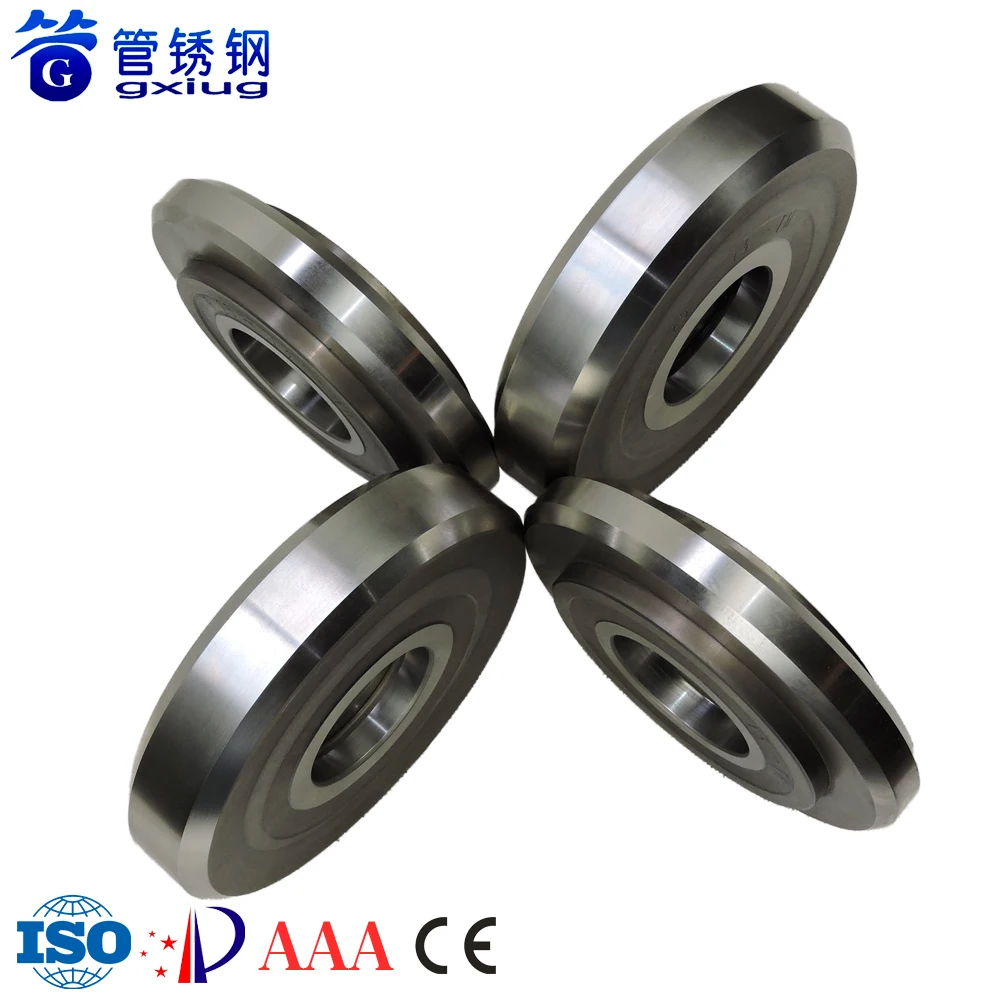

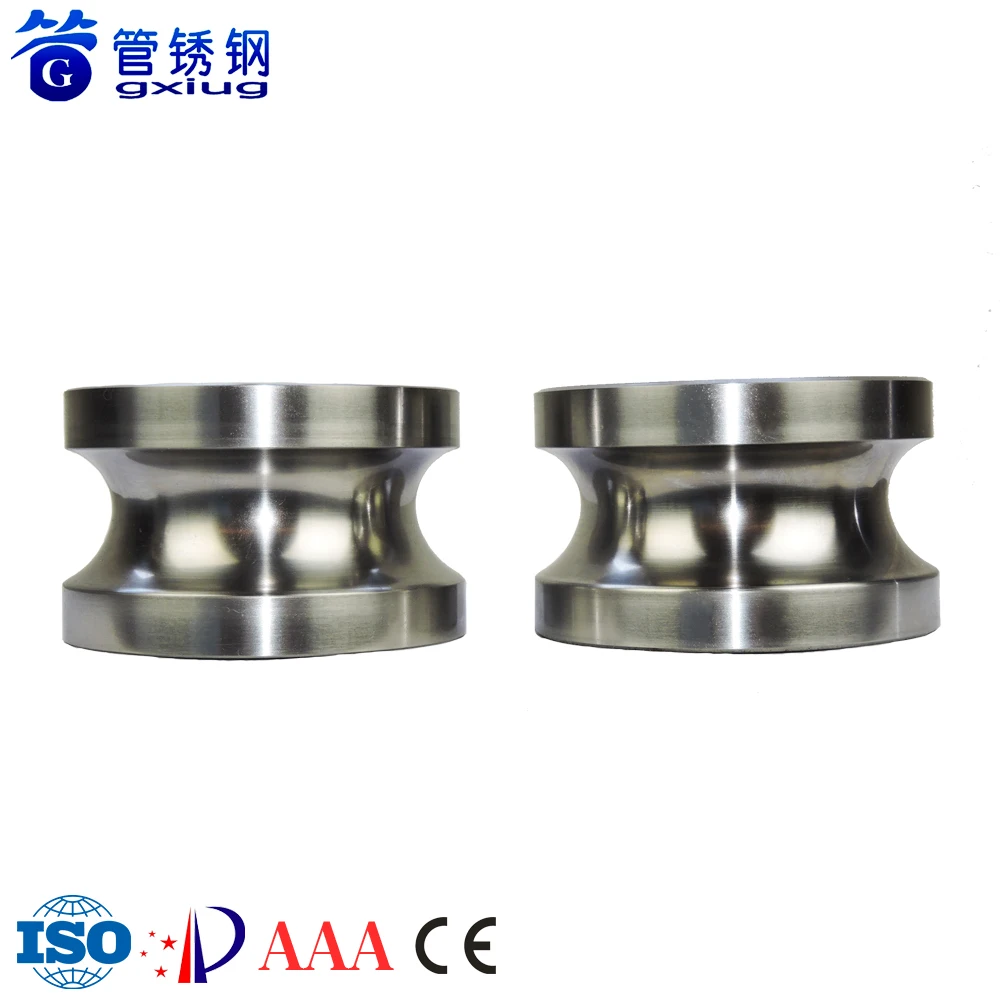

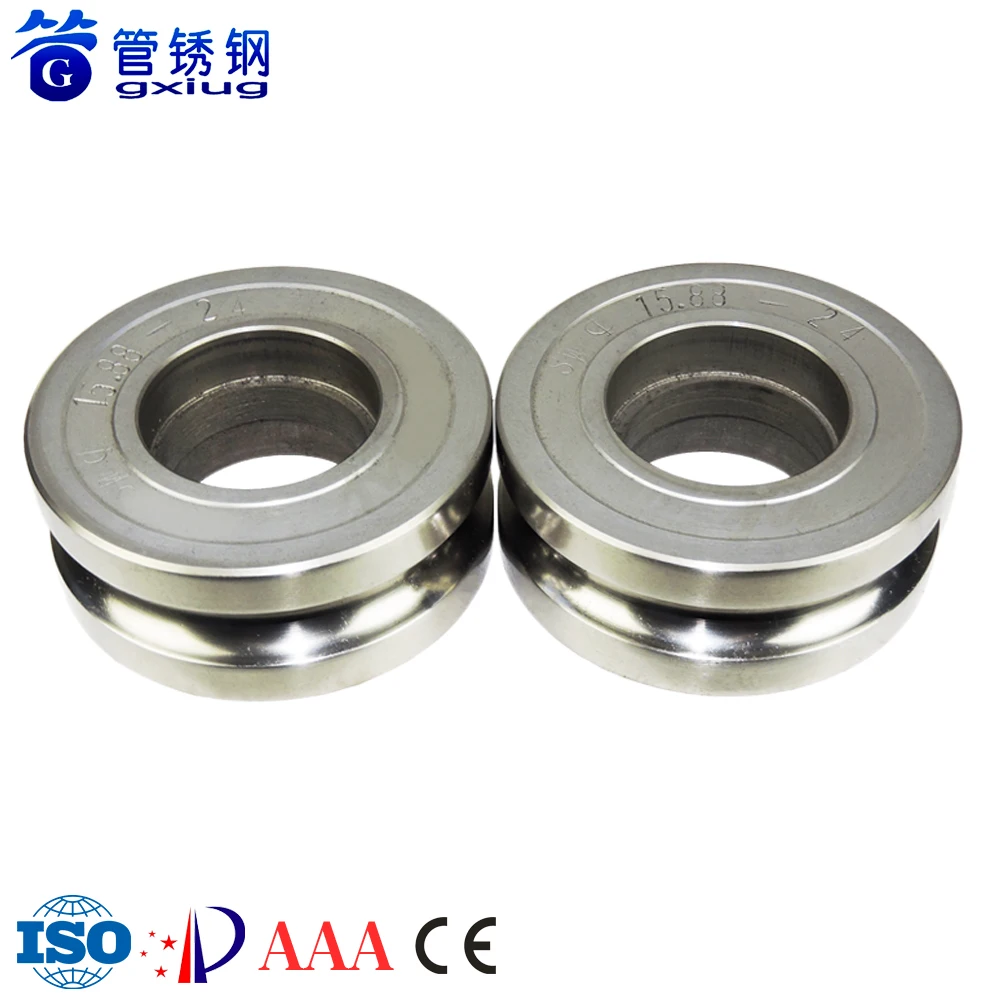

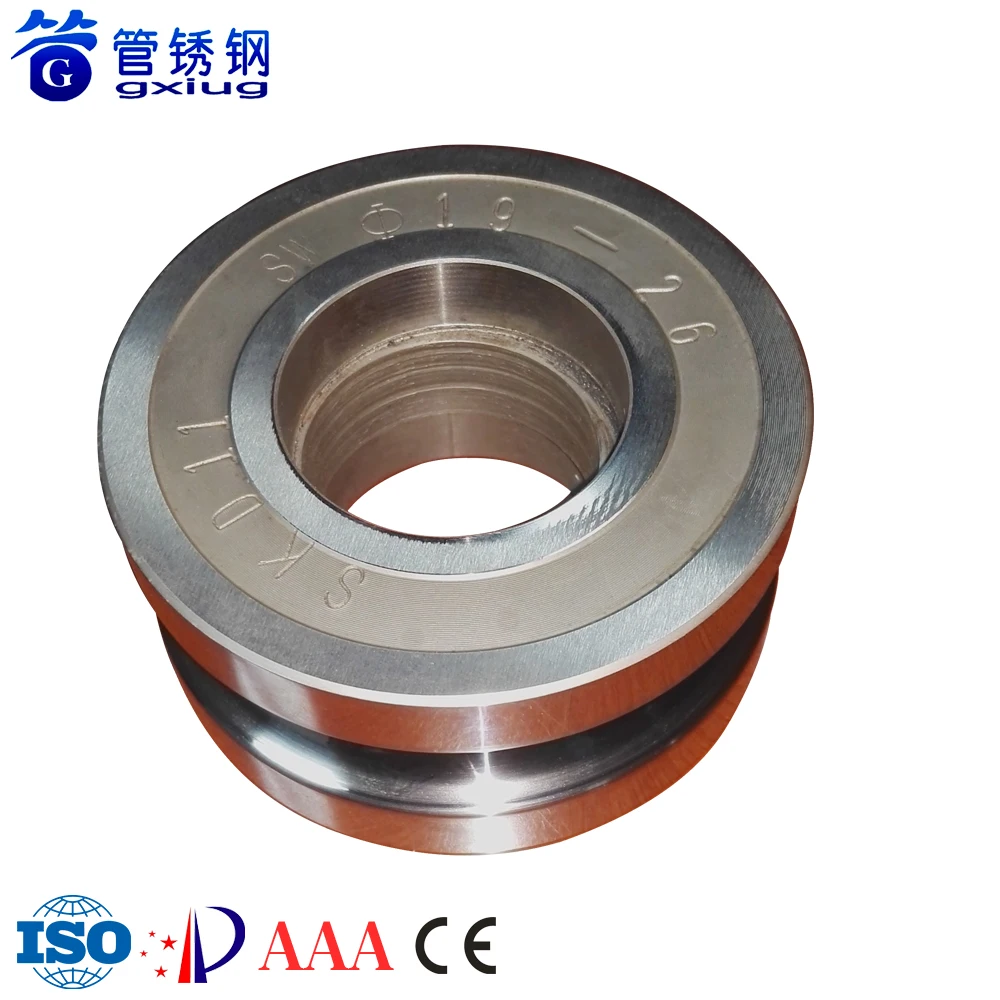

GXG Technology Carbon Steel Iron Pipe Die Galvanized Tube Mold Roller

Product Overview

Description

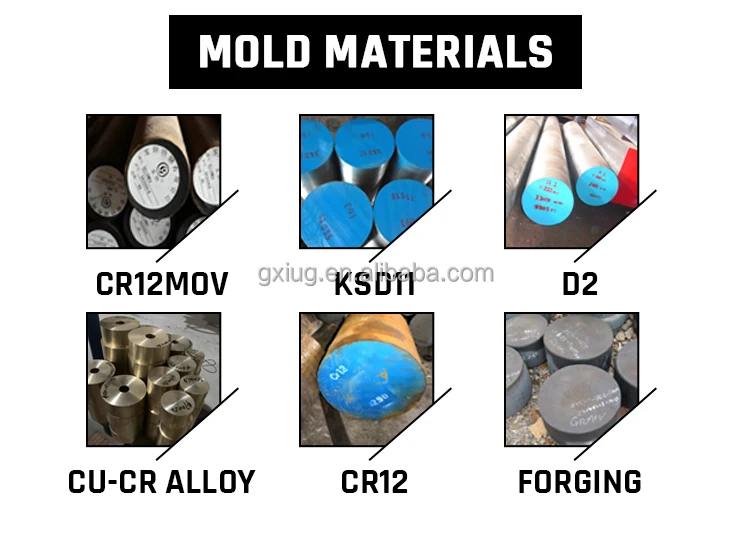

MOULD ROLLER MATERIAL:Cr12MoV / SKD11 / D2 / Cu-Cr Alloy / Cr12 Etc

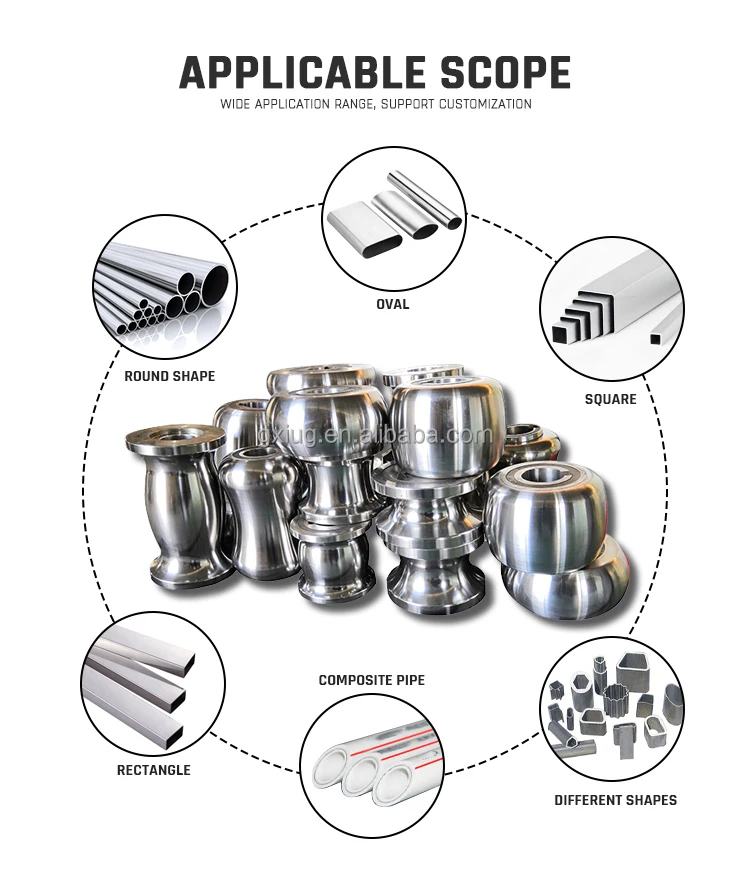

PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc

HARDNESS:HRC 58—63

Features: Standard tube shape, No Scratch, Long service life

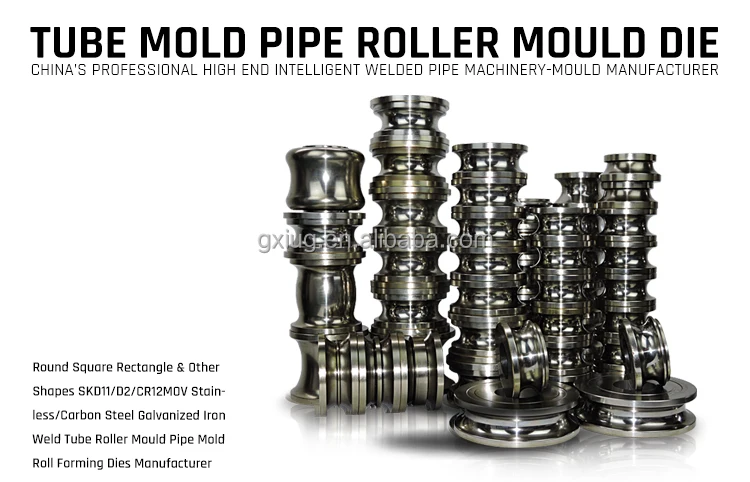

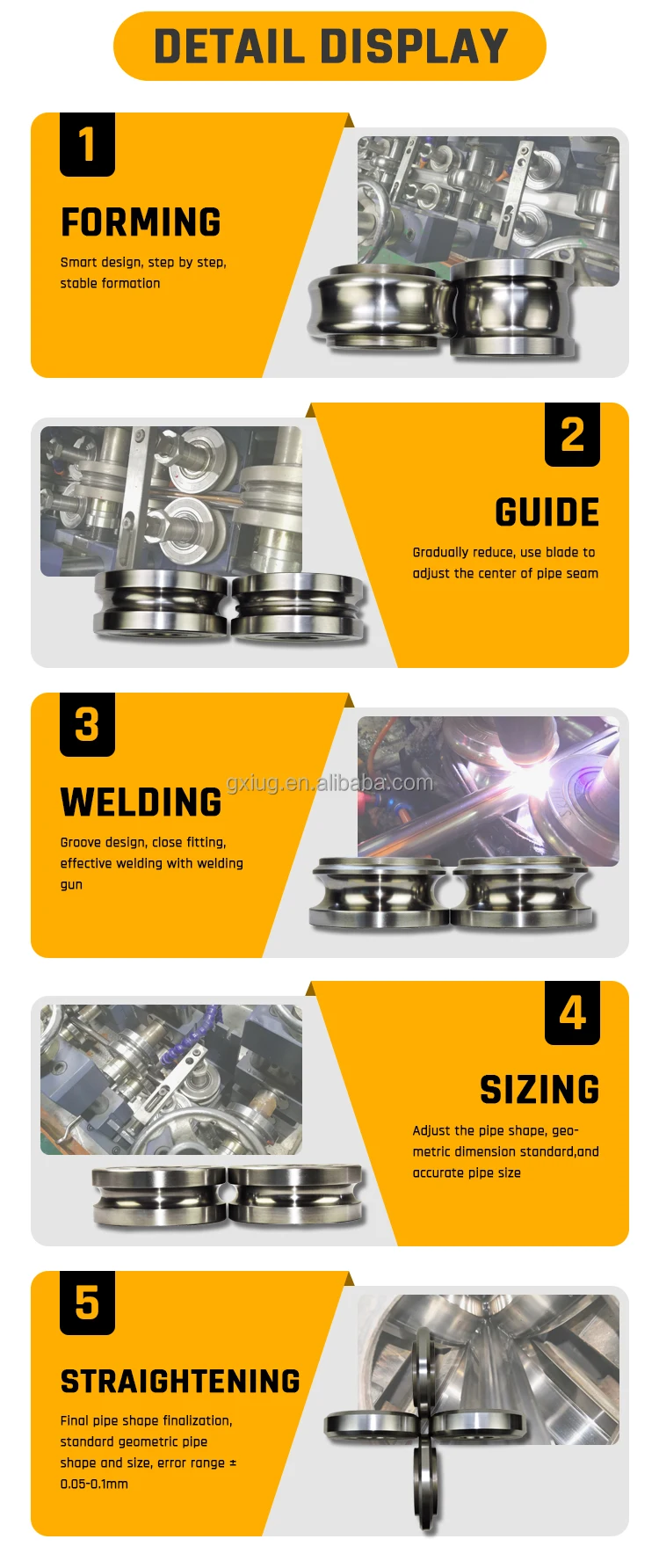

Welded pipe mould tube roller die is a necessary hardware accessory for manufacturing metal straight seam welded pipe. Under the action of the external force of the welded pipe mould, the steel coil is gradually forced to be cold rolled and curled in the arc of the tube roller, and then welded to obtain the closed welded pipe. The mold can be designed according to the customer's needs, such as round, elliptical, square, rectangular, special-shaped pipes, etc. the welded pipe mold is widely used in the production of decorative pipes, industrial pipes, ERW welded pipes and other pipes.

Tube shape	Caliber range(mm)	Wall thickness(mm)	Hardness	Heat treatment	Material
Round	Ø5—325	0.2—10	HRC 58—63	Vacuum / Nitriding / Cryogenic Etc	Cr12MoV SKD11 D2 Cu-Cr Alloy Cr12 Etc
Square	5*5—250*250	0.3—8
Rectangle	5*10—200*300	0.3—8
