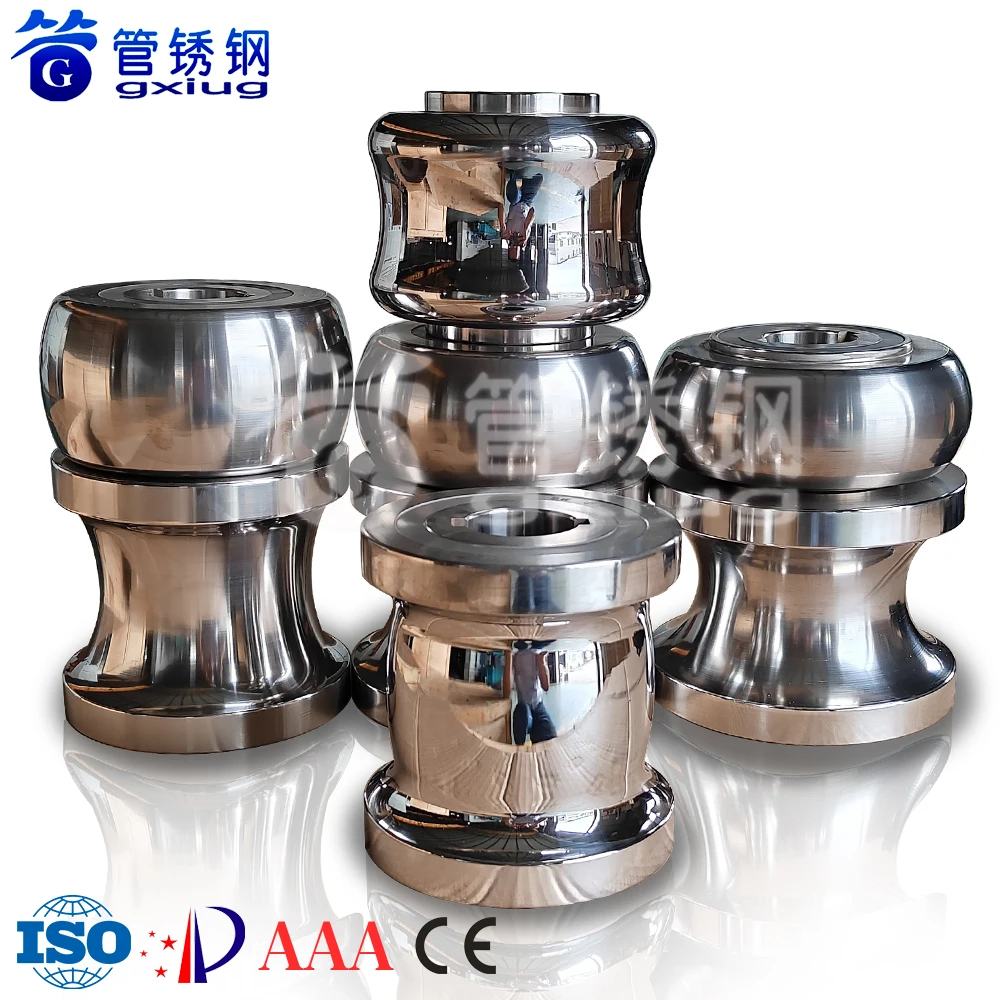

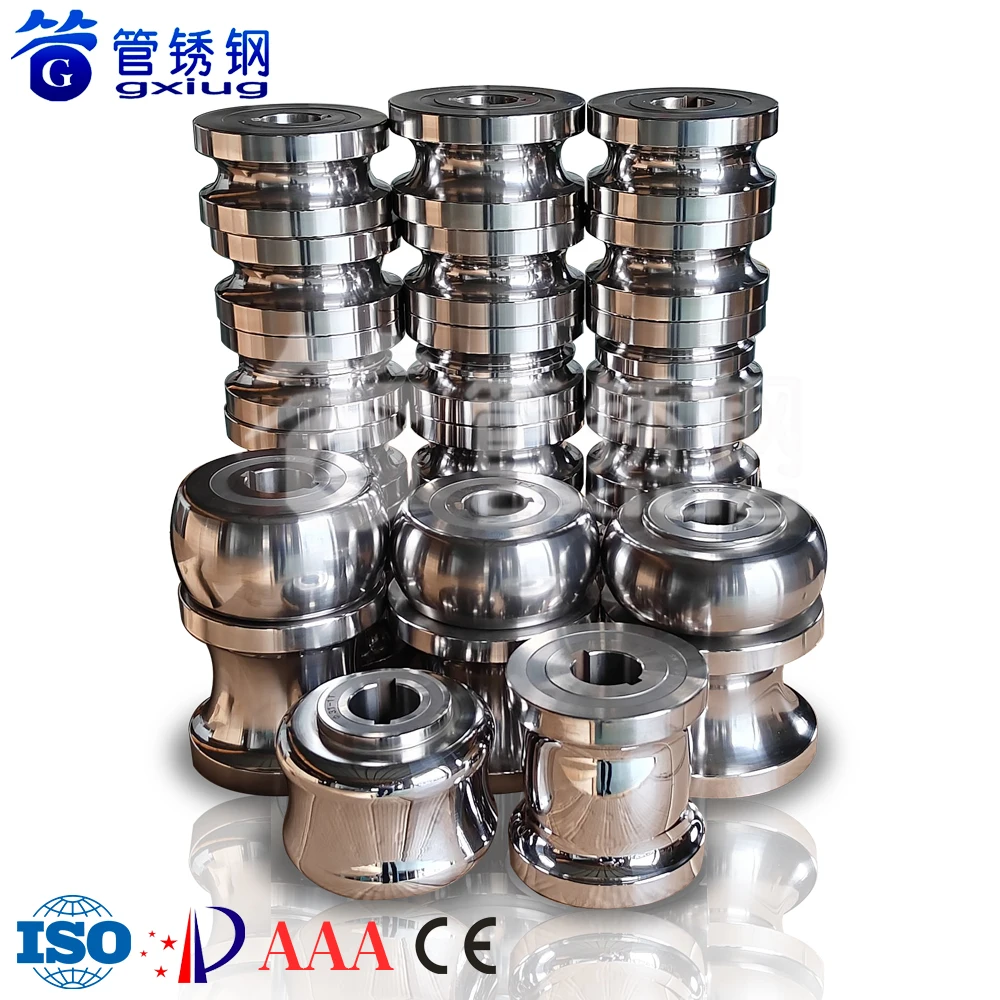

GXG Technology Cr12 Cold Rolled Welded Pipe Die Tube Mold
- Category: >>>
- Supplier: FOSHAN GXG TECHNOLOGY CO. LTD
Share on (62374301224):
Product Overview
Description
Product Introduction

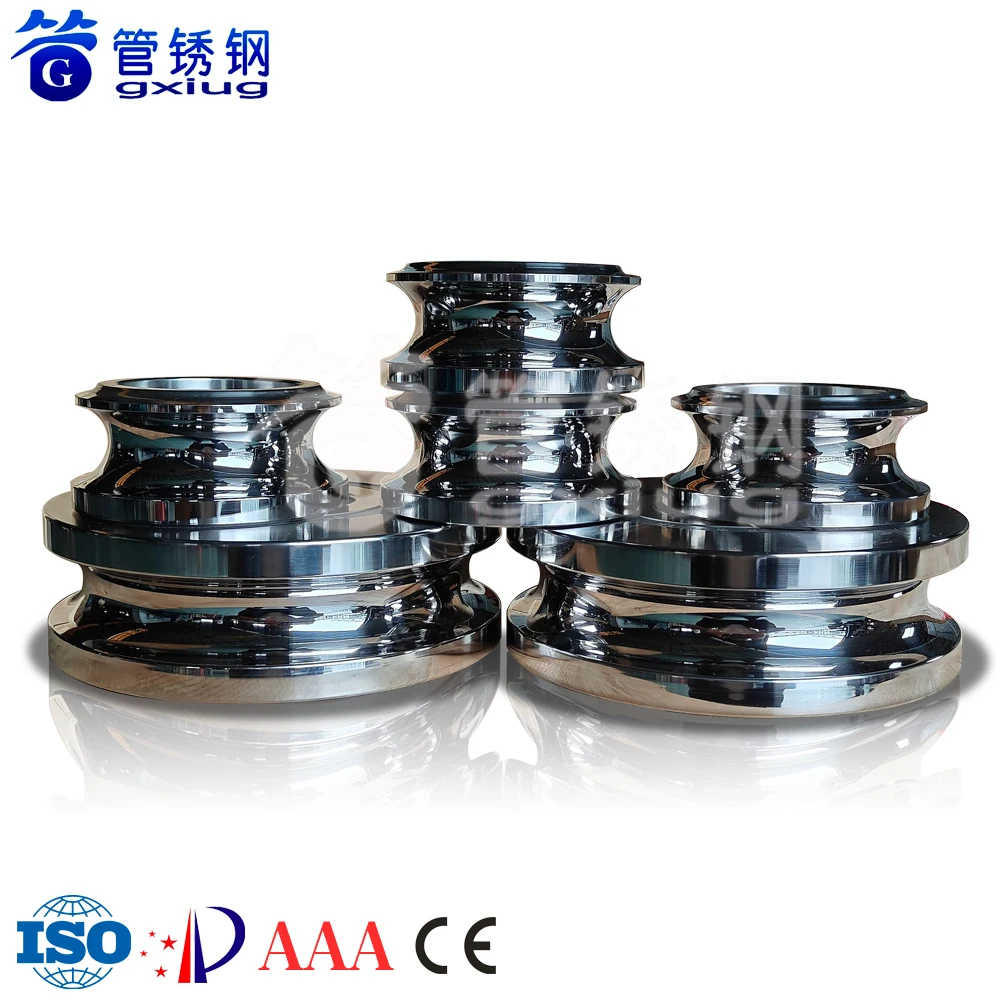

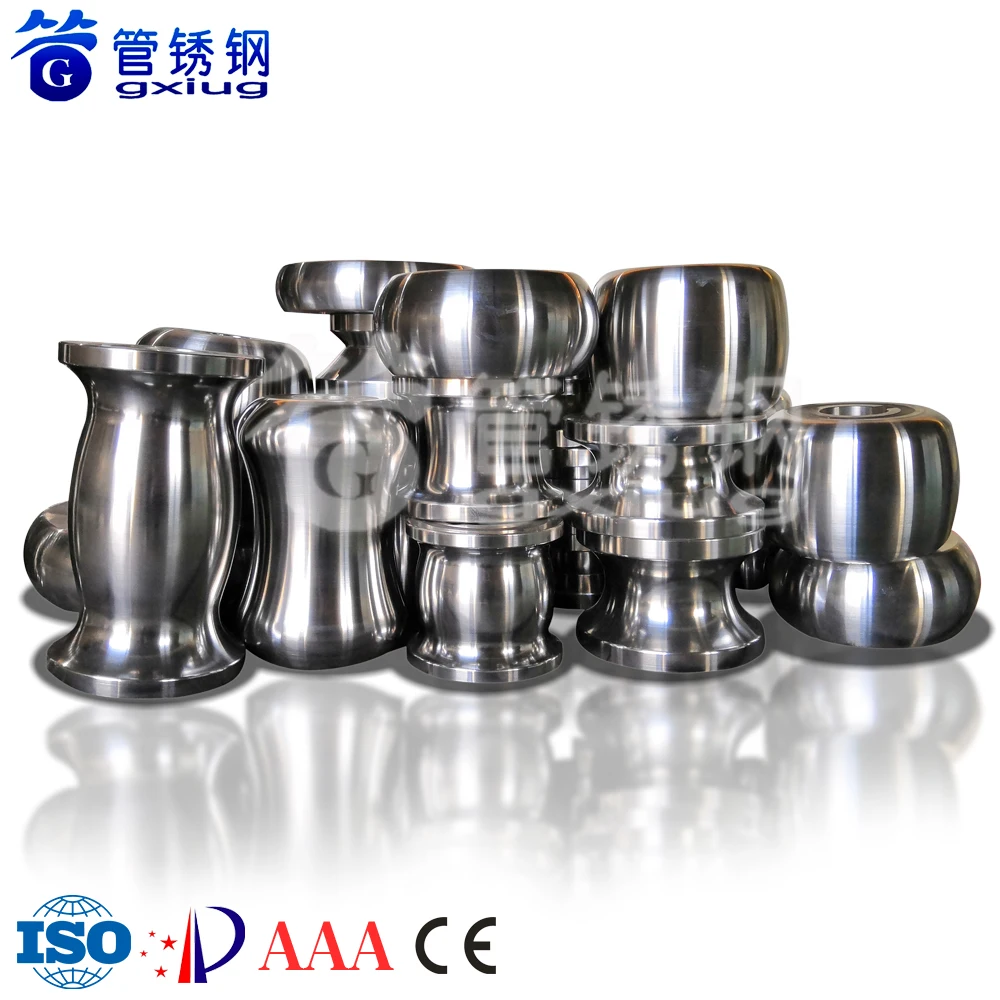

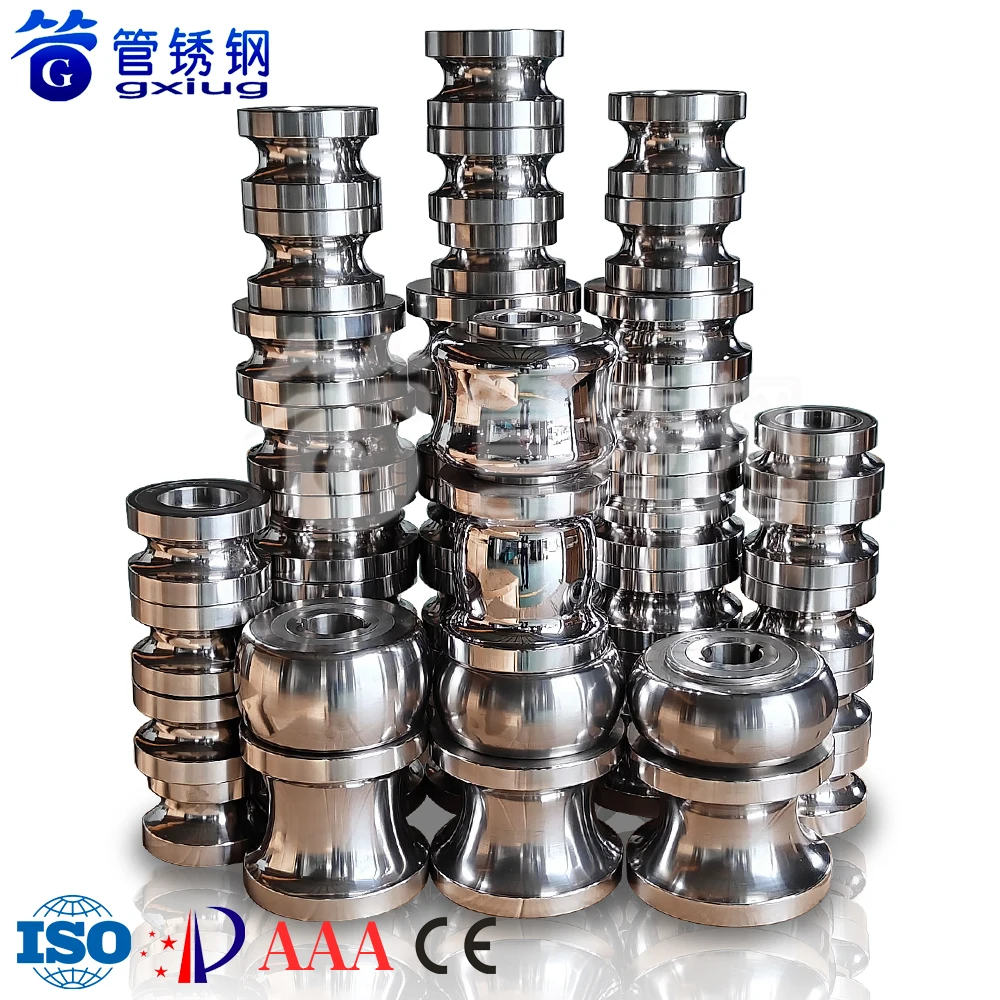

GXG Technology Cr12 Cold Rolled Welded Pipe Die Tube Mold
MOULD ROLLER MATERIAL:Cr12MoV / SKD11 / D2 / Cu-Cr Alloy / Cr12 Etc

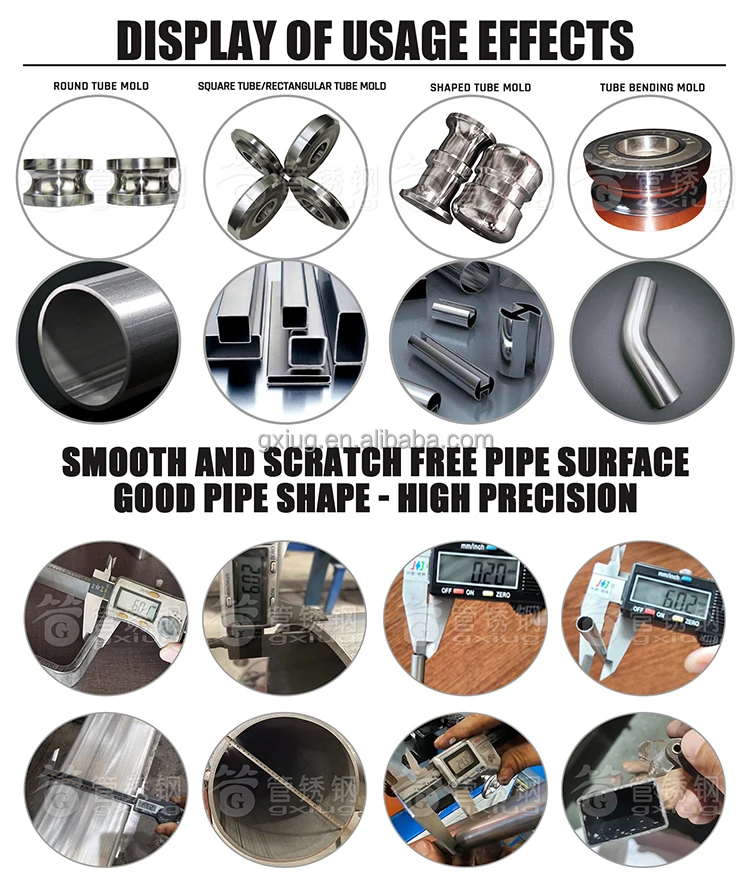

PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc
HARDNESS:HRC 58—63
Features: Standard tube shape, No Scratch, Long service life

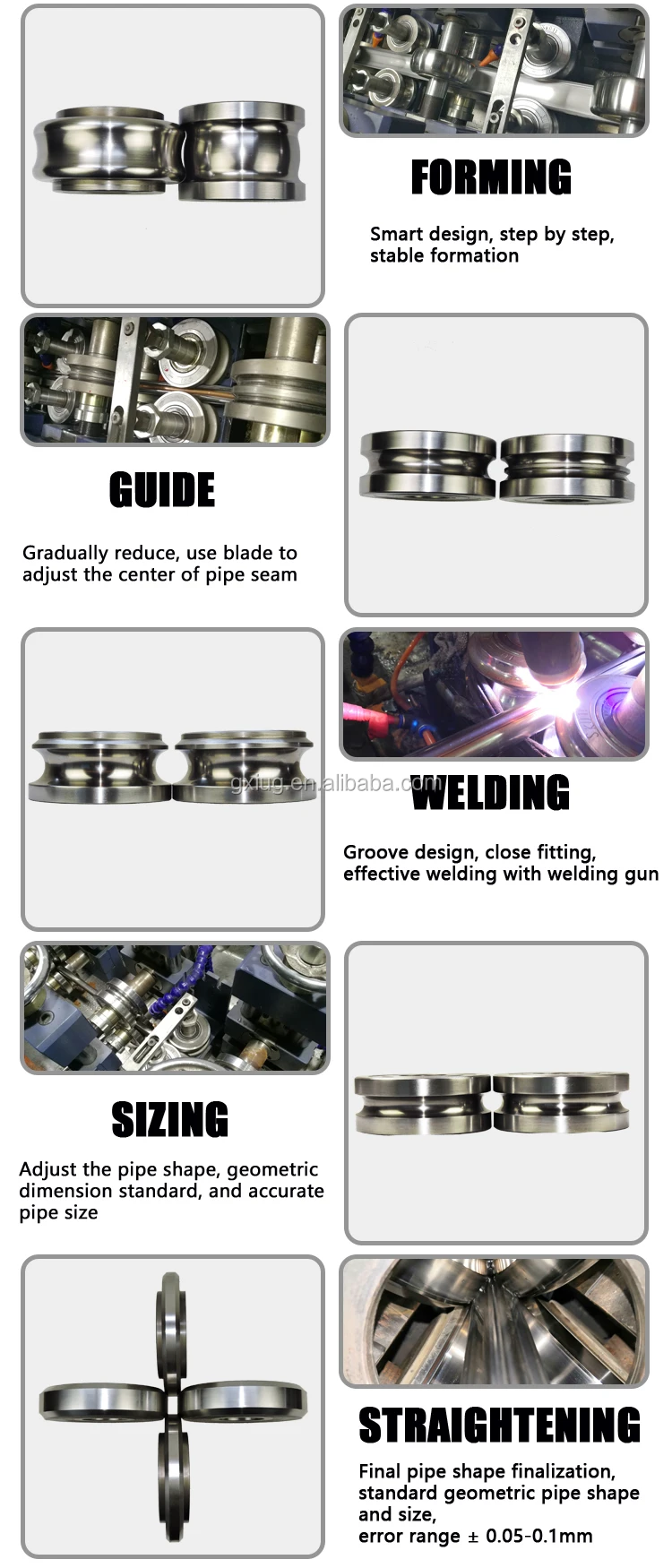

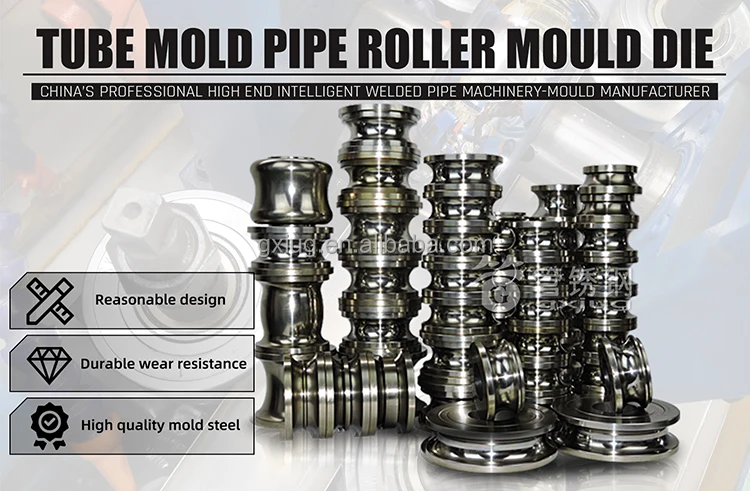

Cr12 Cold Rolled Welded Pipe Die Tube Mold Welded pipe mould tube roller die is a necessary hardware accessory for manufacturing metal straight seam welded pipe. Under the action of the external force of the welded pipe mould, the steel coil is gradually forced to be cold rolled and curled in the arc of the tube roller, and then welded to obtain the closed welded pipe. The mold can be designed according to the customer's needs, such as round, elliptical, square, rectangular, special-shaped pipes, etc. the welded pipe mold is widely used in the production of decorative pipes, industrial pipes, ERW welded pipes and other pipes.
Product Description
GXG Technology Cr12 Cold Rolled Welded Pipe Die Tube Mold
Product Model Parame
GXG Technology Cr12 Cold Rolled Welded Pipe Die Tube Mold
| Tube shape | Caliber range(mm) | Wall thickness(mm) | Hardness | Heat treatment | Material |
| Round | Ø5—325 | 0.2—10 | HRC 58—63 | Vacuum / Nitriding / Cryogenic Etc | Cr12MoV SKD11 D2 Cu-Cr Alloy Cr12 Etc |
| Square | 5*5—250*250 | 0.3—8 | |||
| Rectangle | 5*10—200*300 | 0.3—8 |
