Hot product 8 colors high speed paper roll film roll Nonwoven roll CI flexo printing machine central drum flexo printing press

Share on (62374351320):


Price:

Quantity:


Product Overview

Description


MASS_APP4_1618_BEGIN
















MASS_APP4_1618_END

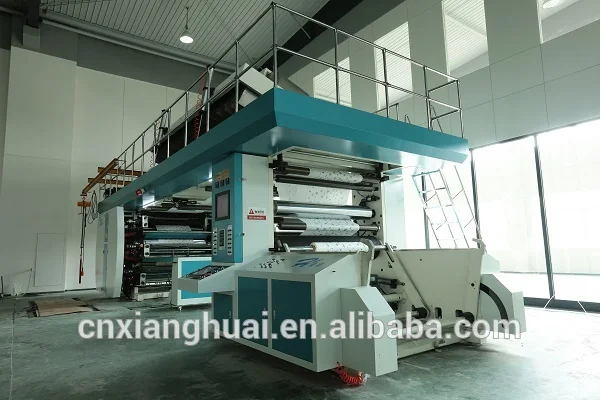

High Speed Central Drum 8 Colour CI Flexo Printing Machine

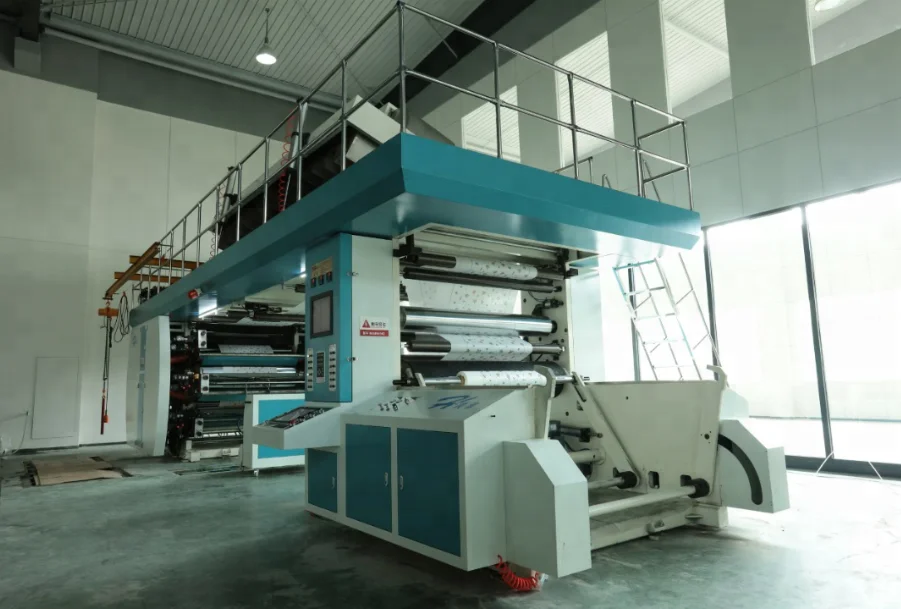

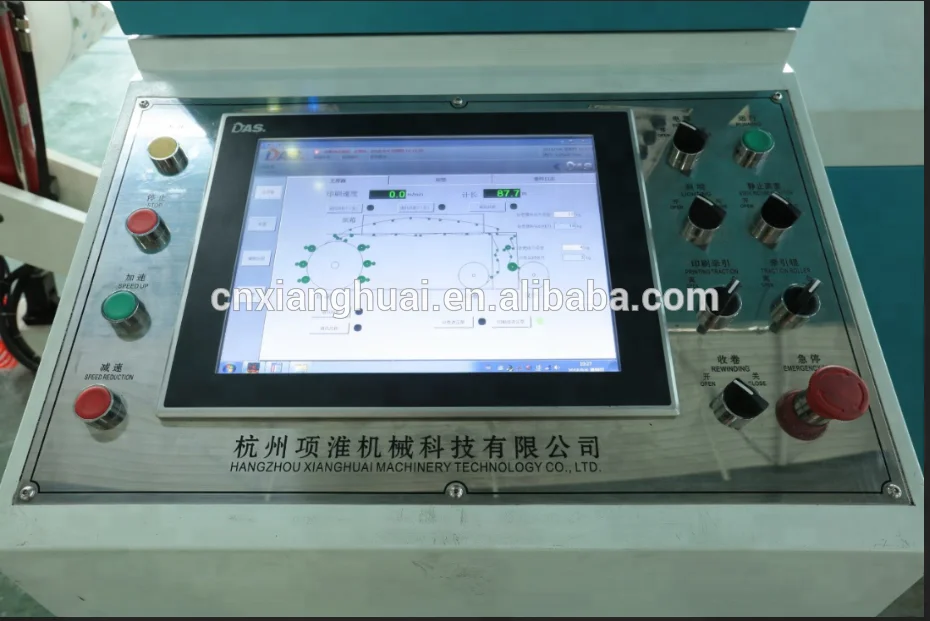

 ci flexo press6 color CI flexo press.pngCI flexo printing machine






Product Description


 I.Suitable material


Kraft paper: 40 ~ 350g/m2, single-sided coated paper: 30 ~ 350g/m2, copy paper: 15 ~ 350g/m2, firecrackers and paper: 40 ~ 350g/m2, paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m2, coated paper: 30 ~ 350g/m2, dust-free paper: 25 ~ 350g/m2, release paper: 40 ~ 350g/m2composite paper, 30 ~ 350g/m2


Non woven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm




II. Main technical specification


















































































































Print color



4~8 colors



Web width



600-2000mm



Print width



560-1960mm



Machine speed


50~220m/min

Printing speed



50~200m/min(depends on different materials)



Print length



320-900mm



Anilox roller



Ceramic anilox roller



Register precision



±0.15mm( by hand)



Unwind diameter



1000 mm



Rewind diameter



1000 mm



Tension range



3~30kg



Tension precision



±0.2Kg



Rewind/unwind paper core dia



76mm(inner diameter)



Wind roller



air shaft



Air resource



0.6Mp



Graining roller



φ133mm



Doctor blade



chamber doctor blade(enclosed doctor blade)



Ink



1. Water ink; 2. Water base ink; 3.alcohol ink; 4. UV ink.



Ink transport



Automatic ink recycle system



Dryer pattern



1. Electrical heating; 2. UV dryer.



Large fan



1.5-1.75KW: 2pcs



Small fan



0.3KW: 6 pcs



Main motor power



3.7-5.5KW



Total power



26-40KW



Error correct system



1. Photocell corrector system; 2.hydraulic corrector system.



General bearing



NSK, Japan



Unilateral bearing



ASNU, Germany




Packaging & Shipping

 shipping and packaging





Company show


Company show


Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our companys main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.


The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
