1064nm Laser diode module for metal welding and cutting

Product Overview

Description

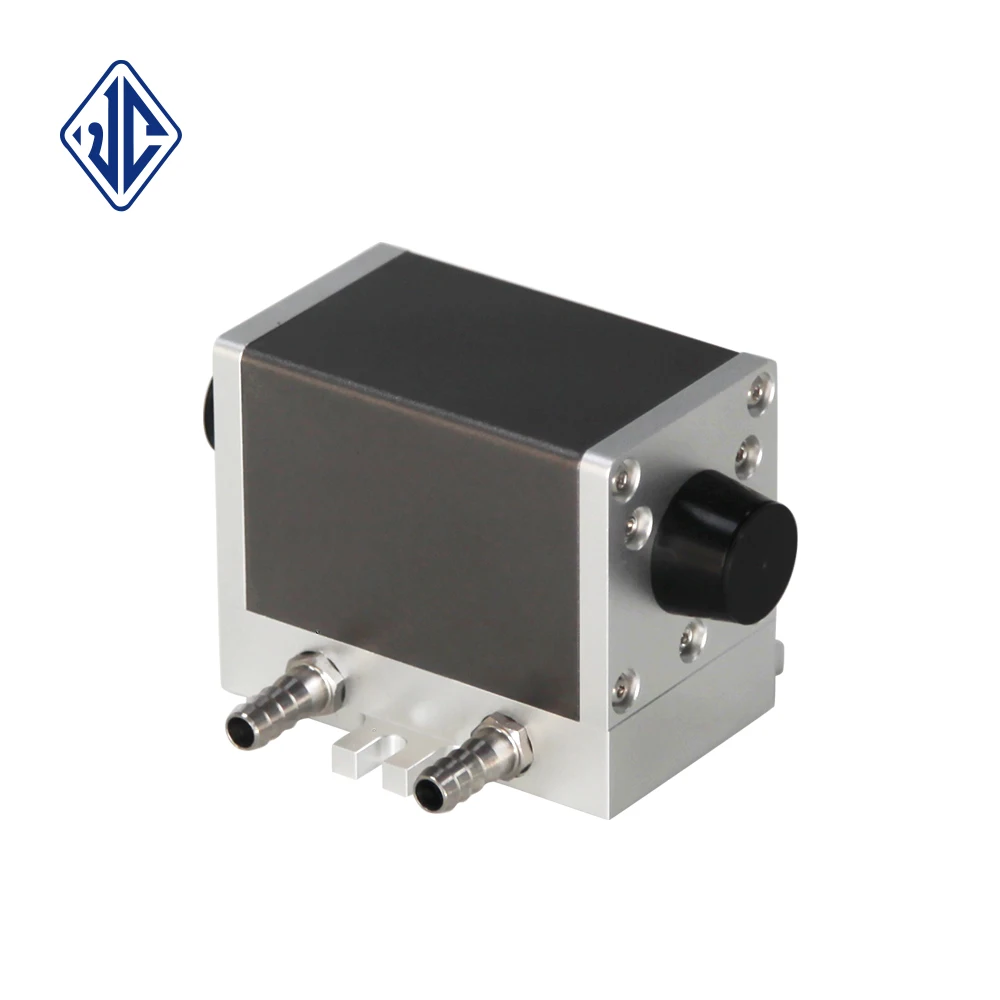

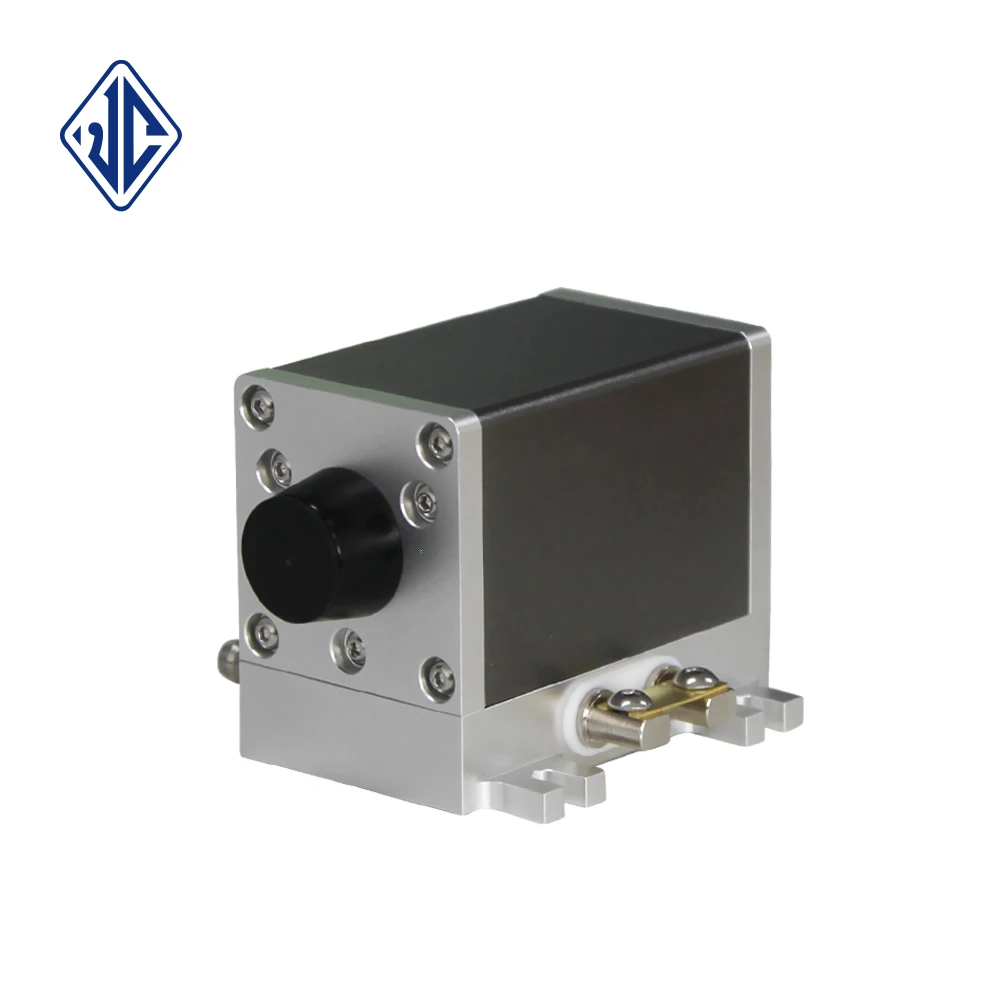

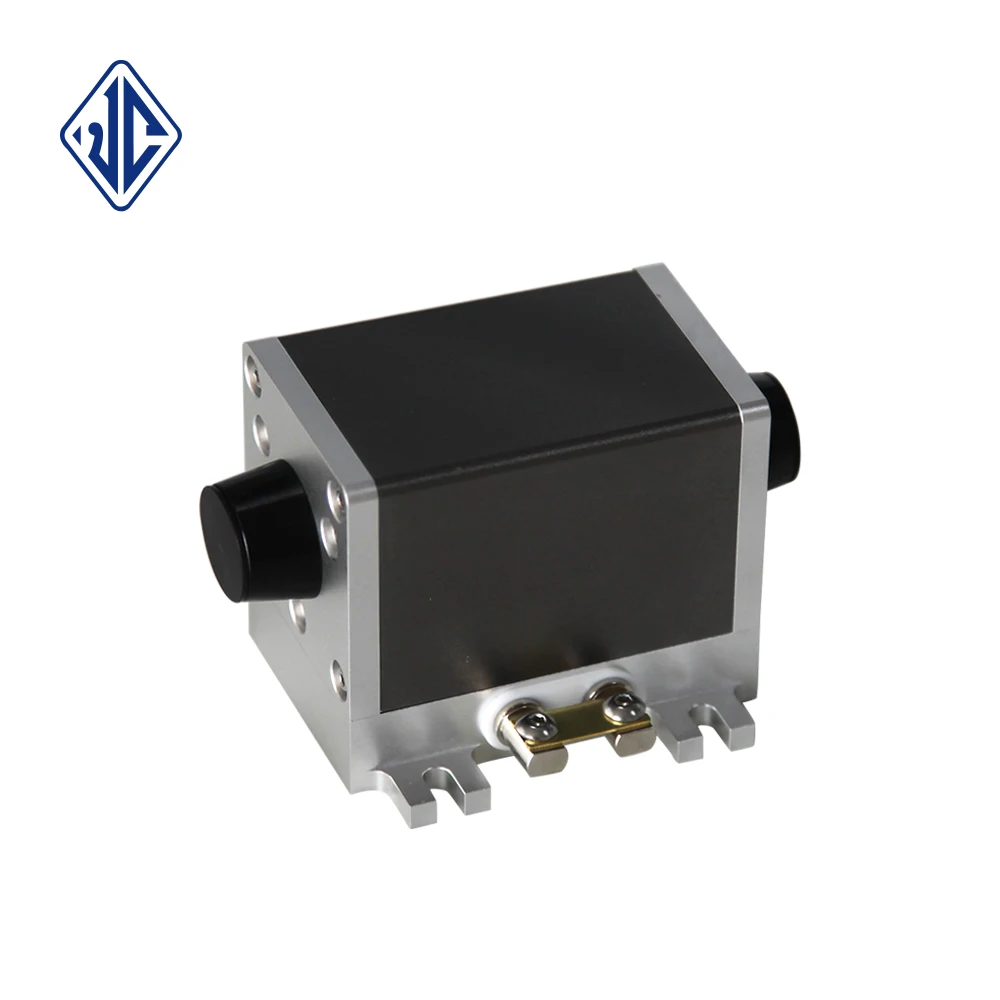

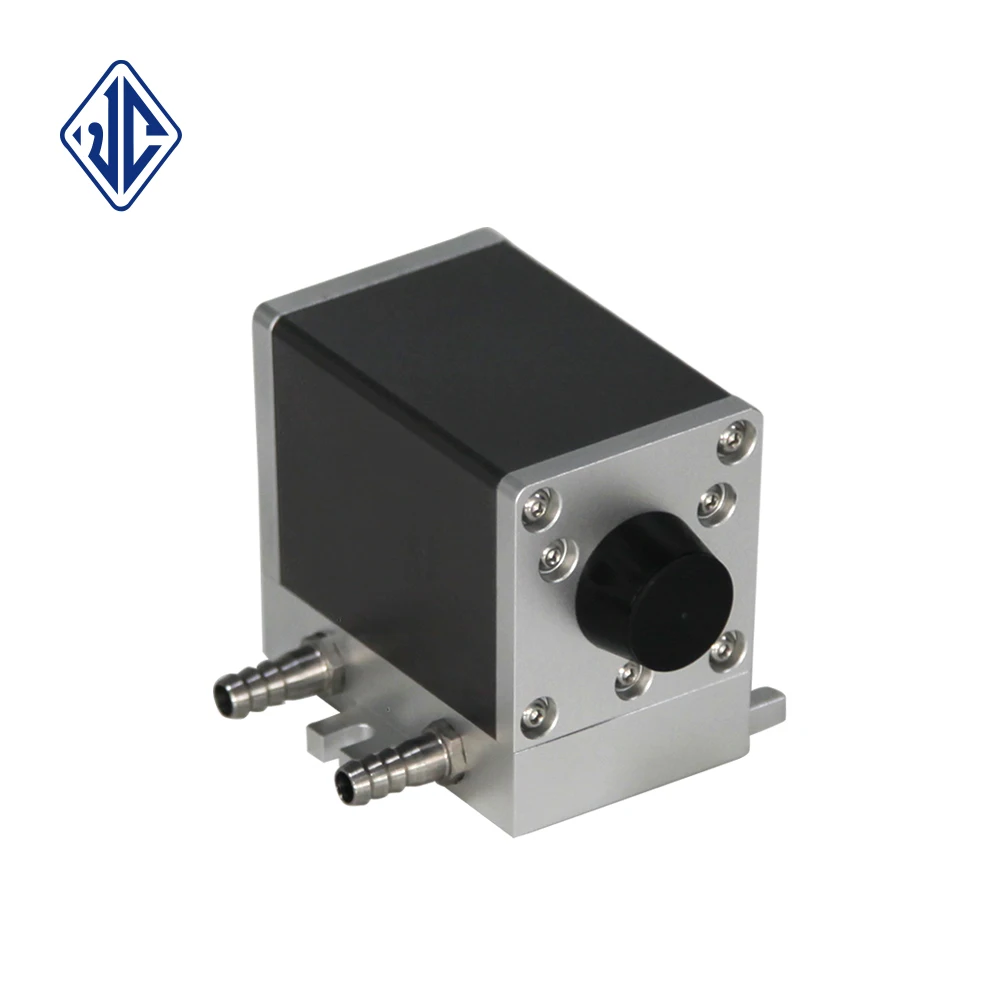

1064nm Laser diode module for metal welding and cutting

Model no.: JC-D10075CS33

(DPSS laser- High Power Diode Pumped Solid-State Laser) Horizontal stack module is built with high-power laser diode Bars to provide a distributed high-intensity line beam. CW Q-switched DPSS laser is for precision material processing such as thin and thick metals and alloys, sapphire, ceramics and glass etc., the most reliable products in the industrial arena. It offers 75W @ 1064nm for the manufacture of electronics, automotive and horology. Good performance and reliability at an unmatched price.

JCLASER horizontal array module is of active water cooling that enables the low thermal resistance package needed to achieve high output power and high reliability in CW operating mode.

Customized configurations or wavelengths are available upon request.

Product Display







Features

-Up to 75W CW output for high brightness

-Wavelength 1064 nm

- AuSn hard-solder package, higher stability

- Higher power conversion efficiency

- Macro channel package, sealed house

- Higher reliability, longer life time





Applications



*Material processing

  (Metal cutting, thin and thick metals and alloys

   Brittle material cutting, glass and ceramics

   High-precision cutting and superior edge quality)

*Illumination

*Marking

*Welding



Specification



Optical Parameters	Min.	Typical Values	Max.	Unit
Output Power		75		W
Wavelength Range		1064		nm
Crystal Rod Center Height		40		mm
Dimension of Crystal Rod	Φ3*67			mm
Doped YAG Crystal	0.6±0.1atm%
Crystal Rod End	plane / antireflection
Electrical Parameters
Operating Current		28	30	A
Threshold Current		6.0	7.0	A
Operating Voltage		16	18	V
Water-Cooled Parameters
Cooling Type	purified water
Water Temperature (not condensation)	22	25	28	℃
Water Pressure		0.4		MPa
Water Flow	4.0	5.0		L/min
Thermal Parameters
Storage Temperature Range	0		55	℃
Operating Temperature Range	10		30	℃



Attentions

1.Avoid eyes or skin exposure to direct or scattered radiation in case of laser working

2.Anti-static measures must be taken when transporting, storing and using

3.Use constant current power supply to avoid surge when working

4.Used under rated current and rated power, otherwise reduce lifetime

5.Maintain good thermal dissipation during laser operation
