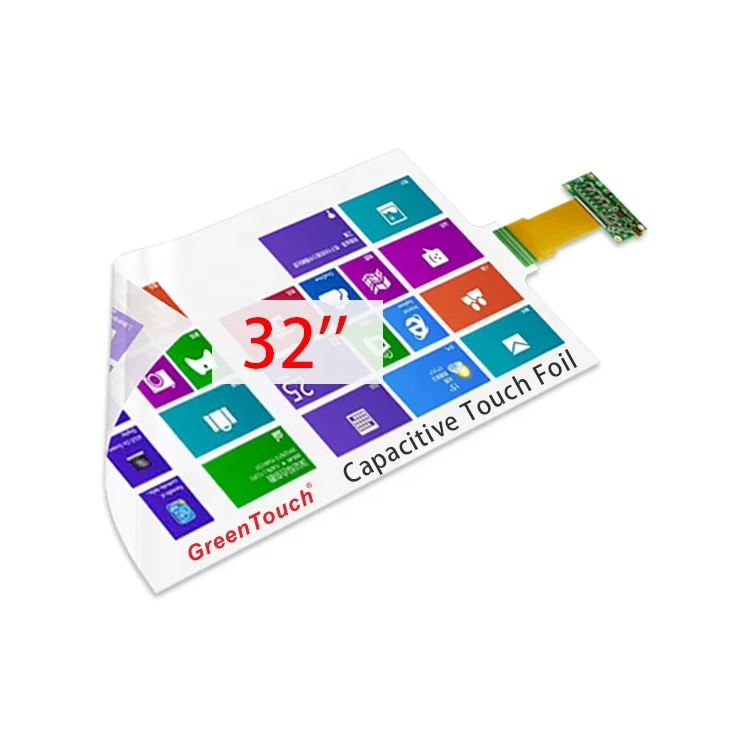

Greentouch factory price 32inch capacitive touch screen film multi touch foil film
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen,Greentouch,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Technical Parameters | ||||||
Product Name: | Capacitive Touch Foil （XTM Series） | Model: | GT-TF-XTM32.0 | |||
Regular Size: | 10.1''-32''（XTM Series） | Other Size: | 33"-300" | |||
Touch Points: | 12 Points | Deviation: | ≤0.5mm | |||
Sensor: | TX : 24(MAX) RX : 48(MAX) | Scanning Speed: | 8ms | |||
FPS: | 130 | Power Consumption: | 1W | |||
Power Supply: | USB（5V+/-5%DC) | Calibration: | Software Calibration | |||
Thickness: | ≤200um | Transmittance: | ＞93% | |||
Voltage: | 5V | Transmission: | USB2.0 | |||
Transmit Distance: | ≤50m（Add USB Signal Amplifier） | Safe Distance: | 2mm | |||
OperatingnTemperature: | -20℃ ～ 70℃ | Storage Temperature: | -20℃ ～ 80℃ | |||
Touch Gesture: | Click、Drag、Zoom、Rotate | Warranty： | 1 Year | |||
Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB Line*1 | |||
Support Systems: | Windows，Android，Linux | Certificates: | CE,FCC,RoHS,ISO | |||
Engineering Drawings：GT-TFXTM32.0

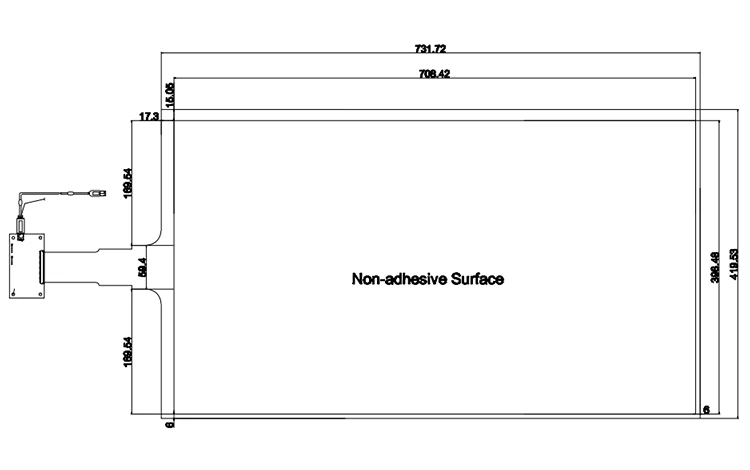

Side Tail
Overall Dimensions: 731.72X419.53 mm Viewing Area:708.42X398.48 mm
Overall Dimensions: 731.72X419.53 mm Viewing Area:708.42X398.48 mm

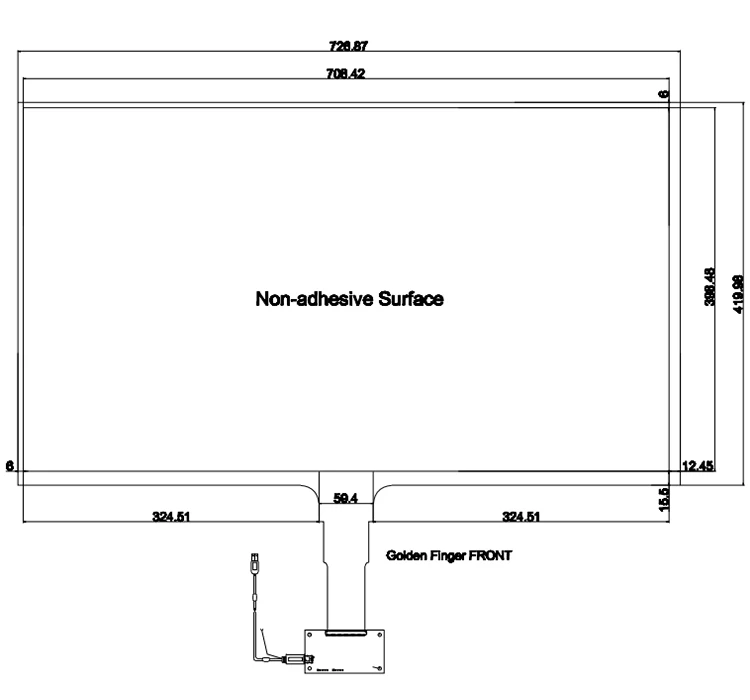

Bottom Tail
Overall Dimensions: 726.87X419.98 mm Viewing Area:708.42X398.43 mm
