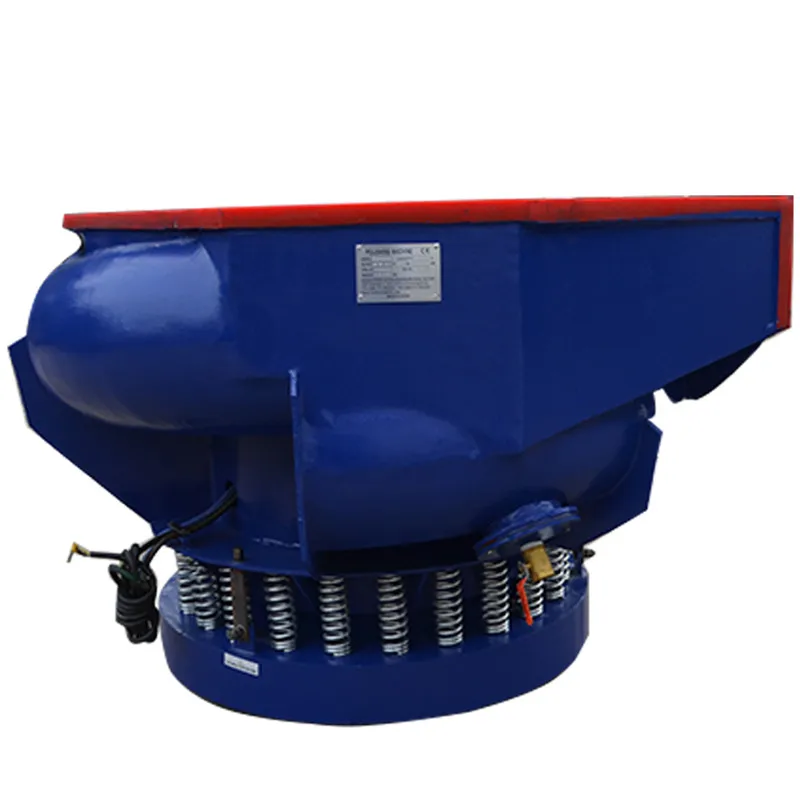

pebble wire drawing die knife mold deburring automatic polishing machine
- Category: >>>
- Supplier: Huzhou Zhenxi Hengda Grinding Material Factory
Share on (62374601090):
Product Overview
Description
Product Description
Applications:
suitable for deburring and metal polishing of aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts.
ZDPC Vibratory Finishing Machine Feature:
• Timing settings
• Drain and unload product functions
• Separation function
• PU lining for longer machine life
• Large capacity, suitable for product deburring and polishing
ZDPC Vibratory Finishing Machine Optional setting:
• Sound Cover (ZDPC-A)
• Compound Dosing Pump
• Pneumatic flap control
• Variable Frequency Drives
• PLC touch screen control panel
Feature:
1. Large loading capacity and wide application range
2. Separator can effectively separate polishing media and products
3. Easy to operate
4.Suitable for large batch processing
5.Compared with ZDPD, it has better tumbling strength.Better polishing effect with high specific gravity media.

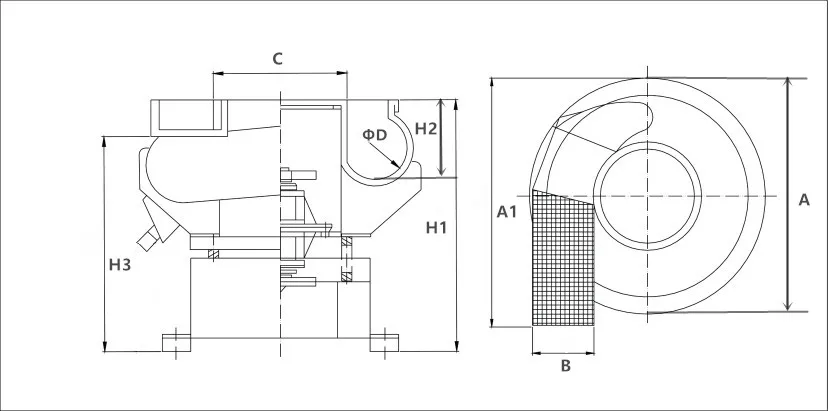

Engineering Drawings
Technical Parameters
| Mode | Total volume (L) | Max overall dimension A1 (mm) | Bowl diameter A (mm) | Motor installation tube C (mm) | Process bowl width D (mm) | Unload width B (mm) | Unload height H3 (mm) | Tunnel depth H2 (mm) | Machine height H1 (mm) | Motor (mm) | Weight (kg) |
| ZDPC150 | 150 | 1100 | 1030 | 450 | 230 | 210 | 650 | 300 | 860 | 1.5/2.2 | 250 |
| ZDPC300 | 300 | 1400 | 1340 | 610 | 290 | 260 | 780 | 360 | 980 | 3.7/5.0 | 600 |
| ZDPC600 | 600 | 1900 | 1850 | 910 | 400 | 360 | 980 | 480 | 1300 | 5.5/7.5 | 1300 |
