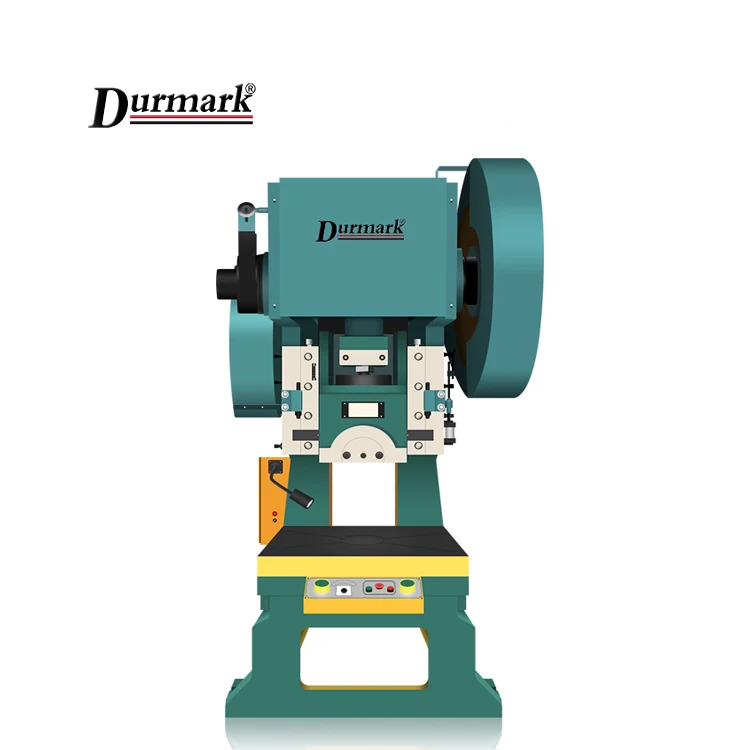

mini power press machine/stamping press manufacturers/hydraulic press guard
J23 series open press is a sheet metal Universal presses for shearing, punching, blanking, bending and shallow drawing work. Usually used for ( communications, computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming).
No
Name
J23-16T
1
Nominal force(KN)
160
2
Nominal force stroke(mm)
3
3
Slider stroke(mm)
60
4
Slider stroke times(time\min)
120
5
Maximum height for die loading
210
6
Adjustment range for die loading height
40
7
Distance between slider center line and the fuselage
160
8
Worktable size
290*460
9
Work table blanking hole size
D110*220*125
10
Slider bottom size
150*170
11
Shank hole size
D35*Depth60
12
Distance between columns(mm)
210
13
Bolster thickness(mm)
35
14
Tilting degree(degree)
25
15
Motor(kw)
1.5
Main Features
1, With foundry structure for better vibration resistance.
2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3, The good rigidity of Casting box structure slider
4, Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage.
5, Four elongated triangular rail, easy for adjustment.
6, Adopts hands and foot switch operation buttons design, it's easy to activate continuous, single and adjustment practices.
7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.
Packing & Delivery
Packaging Details: Plastic film, wooden package, or as requirement. Delivery Detail: 15 days

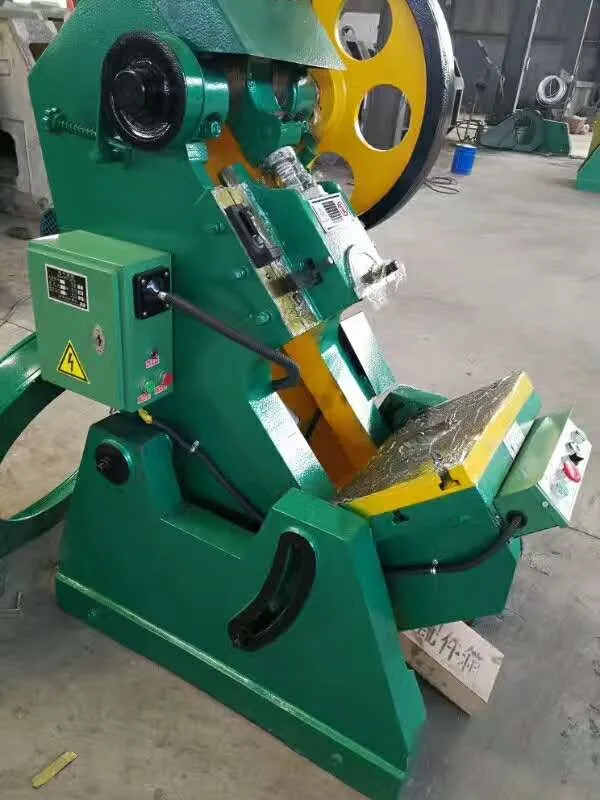

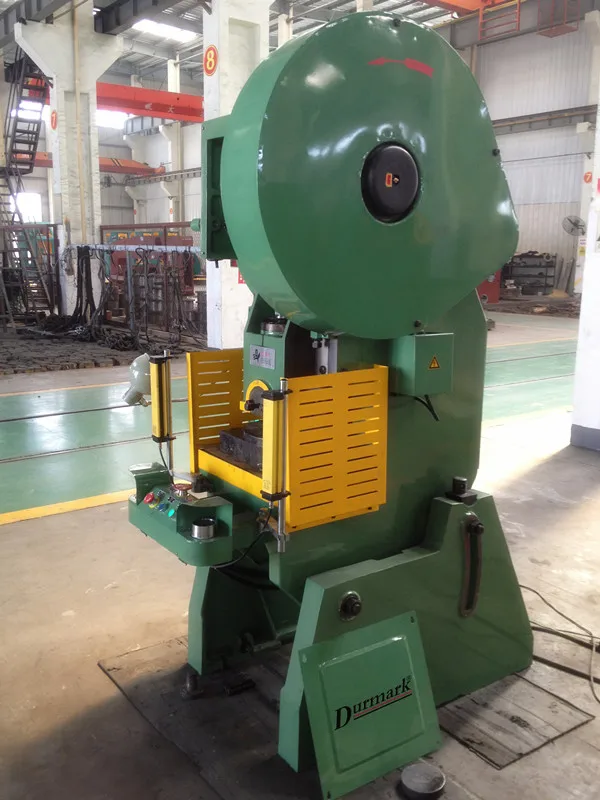

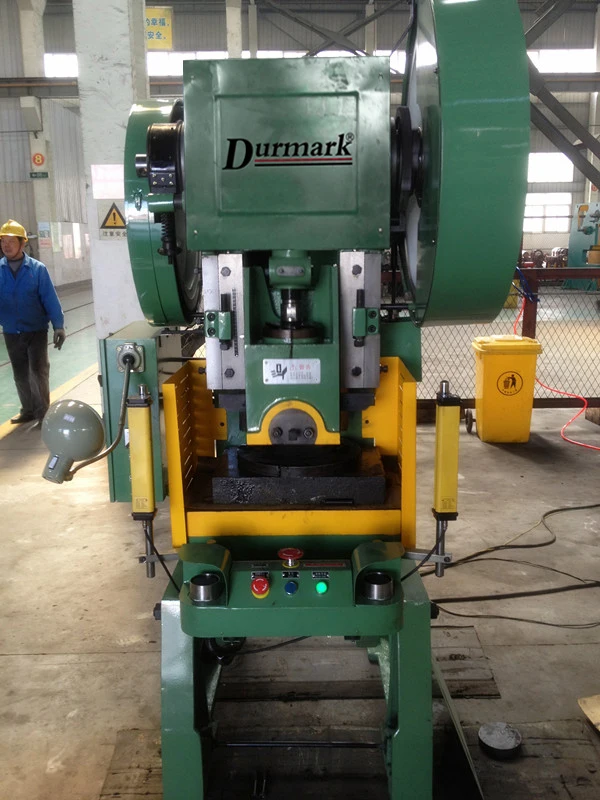

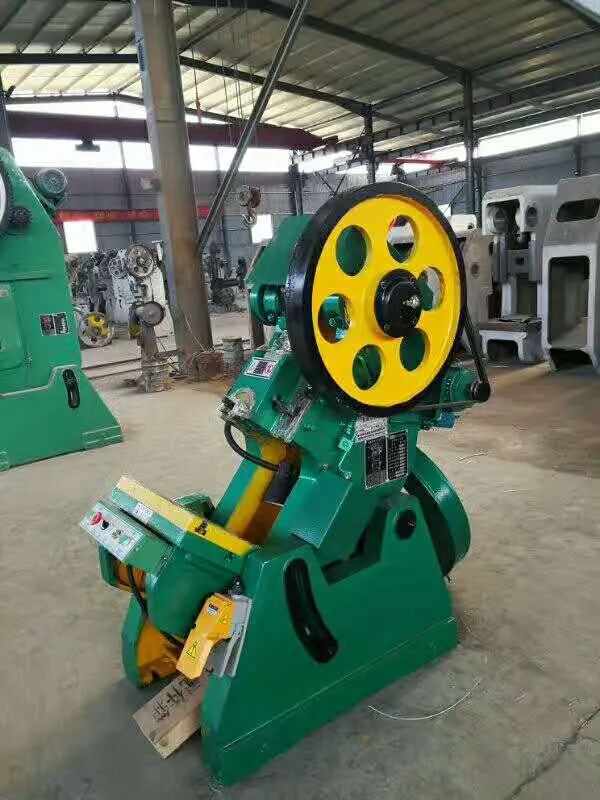

Detailed Images
Our Service
Pre-sales Service
1. Inquiry and consulting support. 2. Sample testing support . 3. Recommend the most suitable machine according to customer's purpose. 4. Factory visiting welcomed.
After-sales Service
1. Training how to install the machine . 2. Training how to use the machine . 3. Warranty 1 year. 4. Engineers available to service machinery oversea .
Packing & Shipping
We use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.
Our Customer

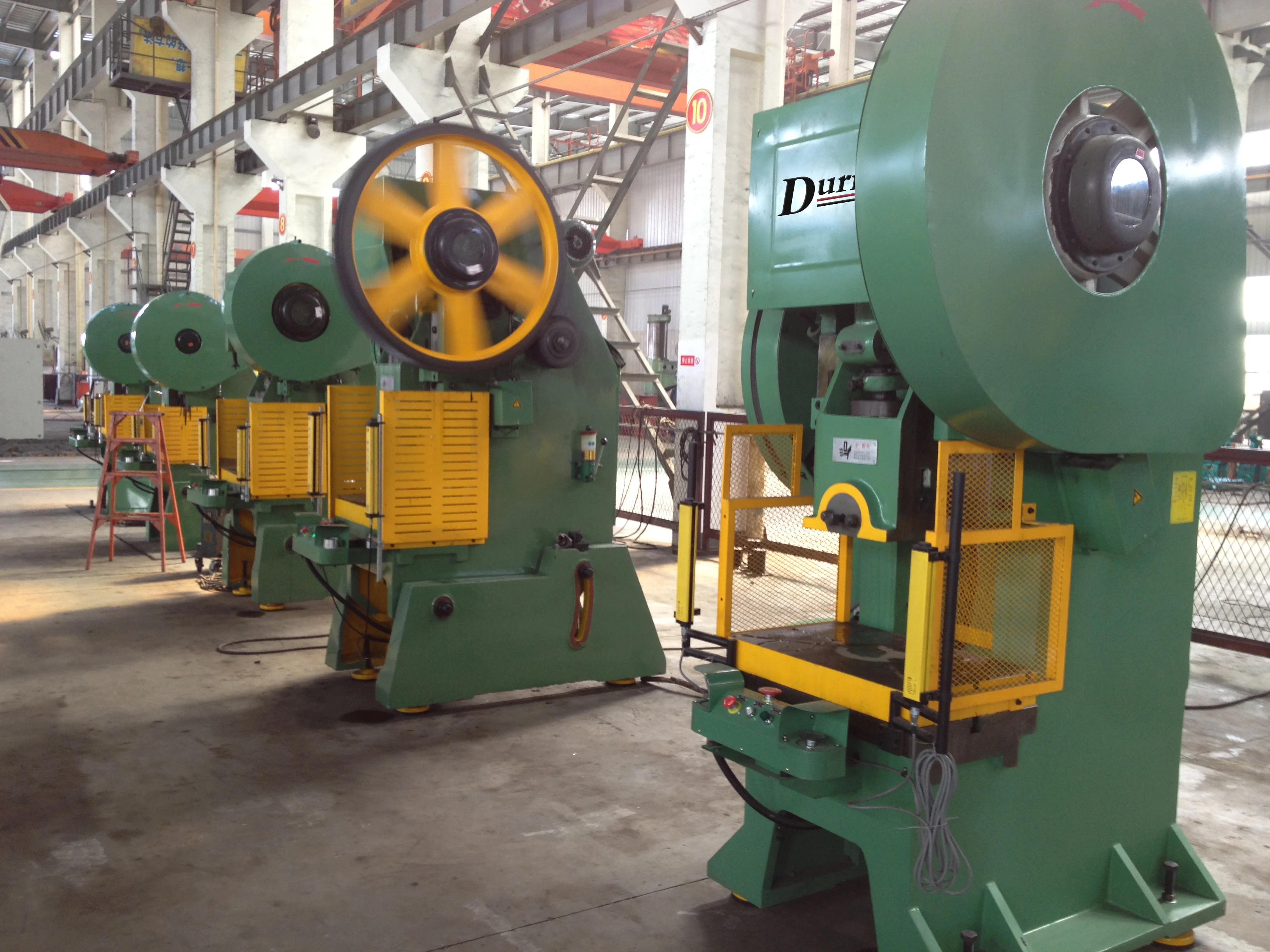

Our Factory
FAQ
How about your machine quality? We are worry about the quality.
RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount?
RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
