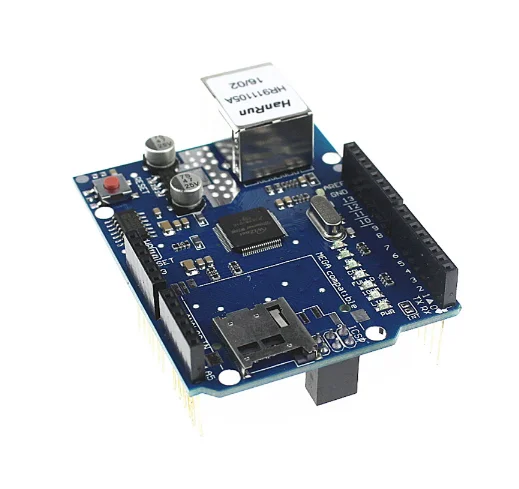

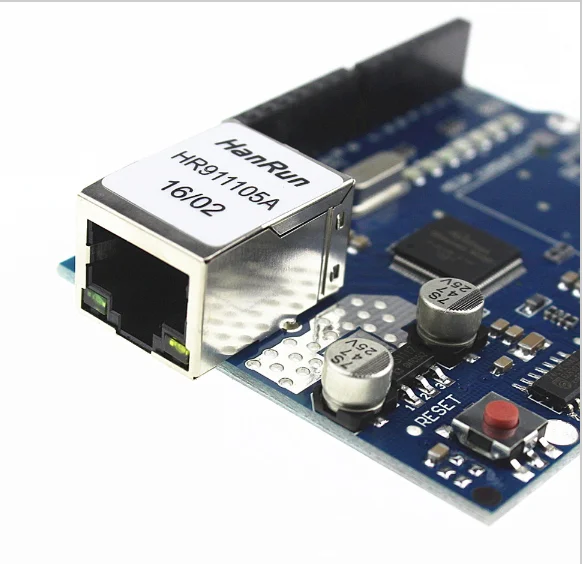

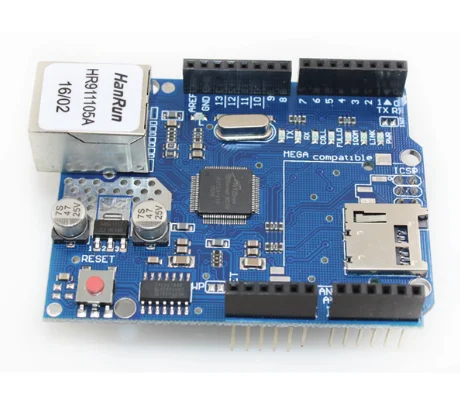

Ethernet W5100 R3 network expansion board supports MEGA module

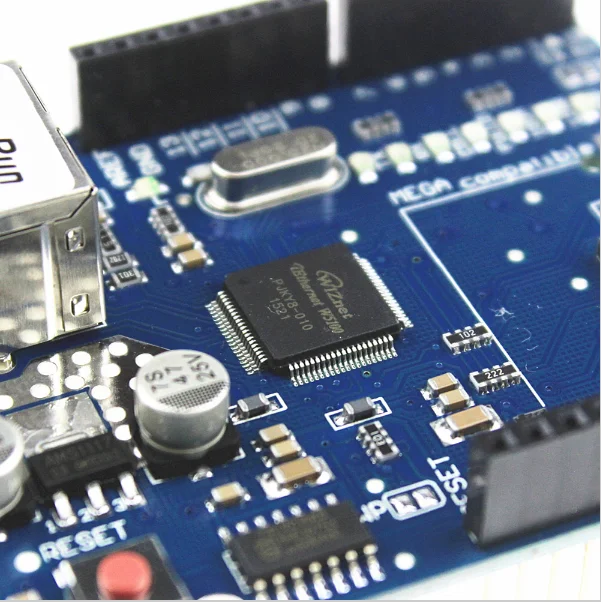

The Ethernet expansion board allows the controller to connect to the network. It is an expansion board with a built-in WizNet W5100 TCP/IP microprocessor.

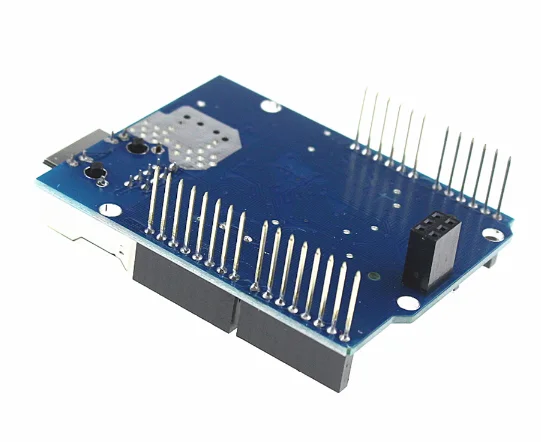

This board is connected to the board by a wire-wrap header. This expansion board can be easily connected to the network using the Ethernet library program in the IDE. This expansion board supports simultaneous connection of 4 sockets.
The R3 version of the expansion board also adds a 1.0 standard output port consisting of 4 additional ports: 2 on the ARFF side and 2 on the RESET side. Two ports on the RESET side, one is IOREF, used to adapt the expansion board to the motherboard.Another empty port is reserved for future expansion.
This version adds a micro- card slot and has network storage. In addition, it is fully compatible with the Duemilanove, Mega series. It also has a separate PoE (power-over-Ethernet) module. The module can be soldered to the motherboard to transfer power over twisted pairs. This is compliant with the IEEE802.3af standard and is compatible with existing PoE modules.
Technical specifications Compatible with Mega2560/Uno rev3 standard output ports. Micro- card connector PoEreset controller with active voltage converter function Compatible with MEGA boards
With USA customer
With Argentine customer
With US customer
With Iraq customer
Related Products
OEM&Standard kit for Arduino or Raspberry pi
3D Printer & CNC
Robot Smart set
Our Company
Imaker Technology (Shenzhen) Co.,Ltd
1.Imaker Technology is a collection of scientific research, design, production and sales of high-tech enterprises. Founded in 2014, which has rich experience in intelligent robots modules, 3D printers, electronic components and educational product.
We have customers from both domestic market and oversea market. Eduobotics Sales managers can speak fluent English for good communication. Our main sales market: Southern Europe 33.00% North America 22.00% Asia 10% South America 27% India 5%

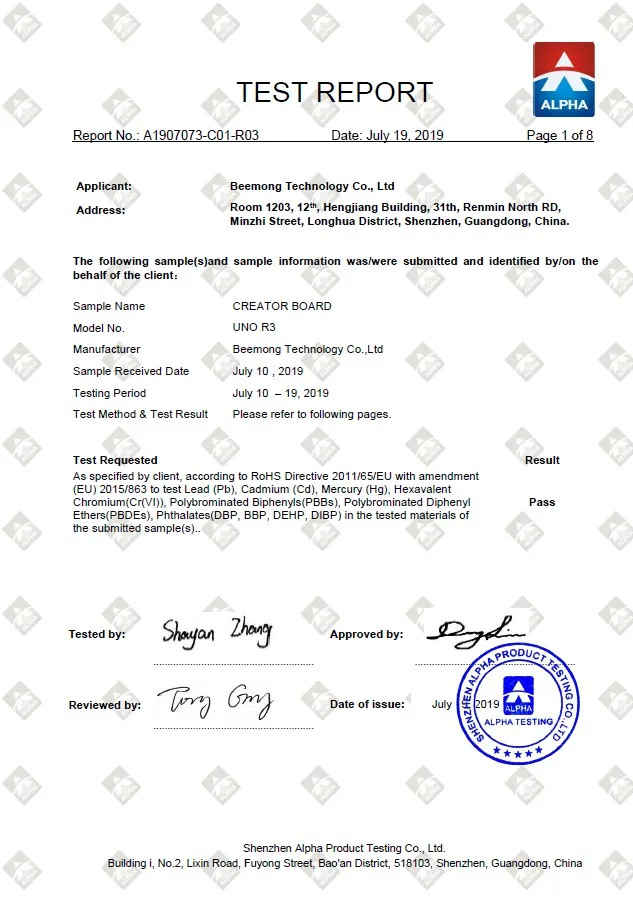

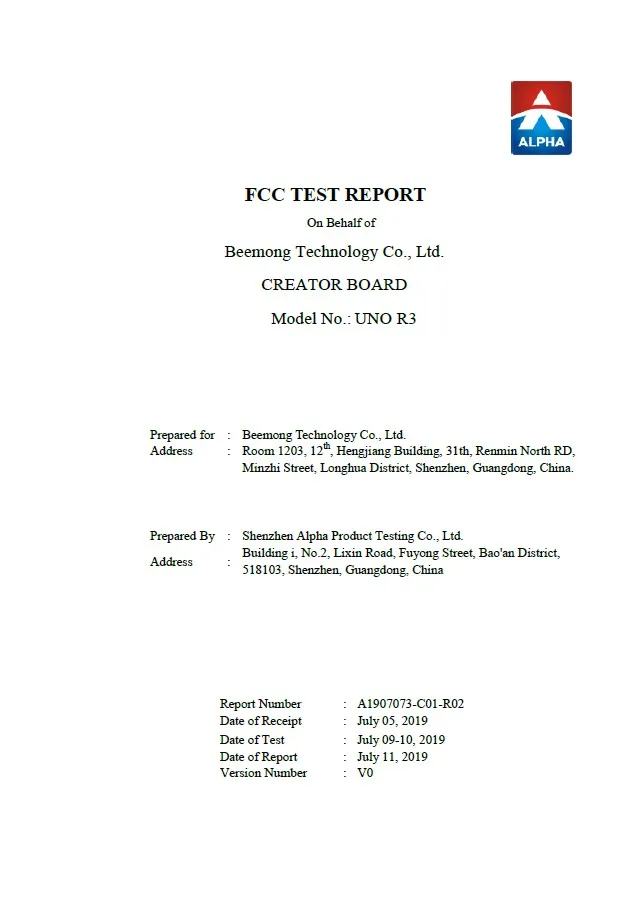

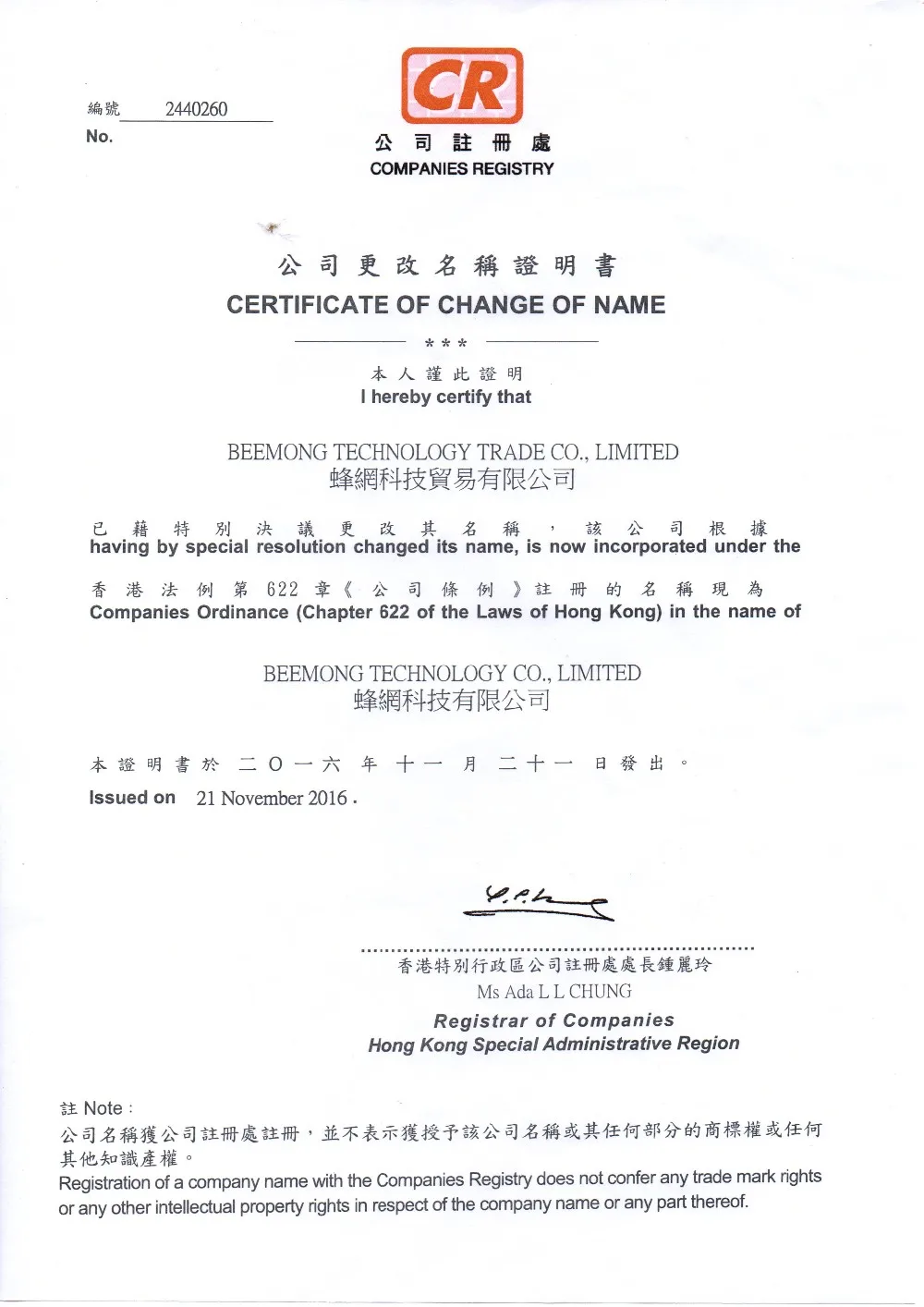

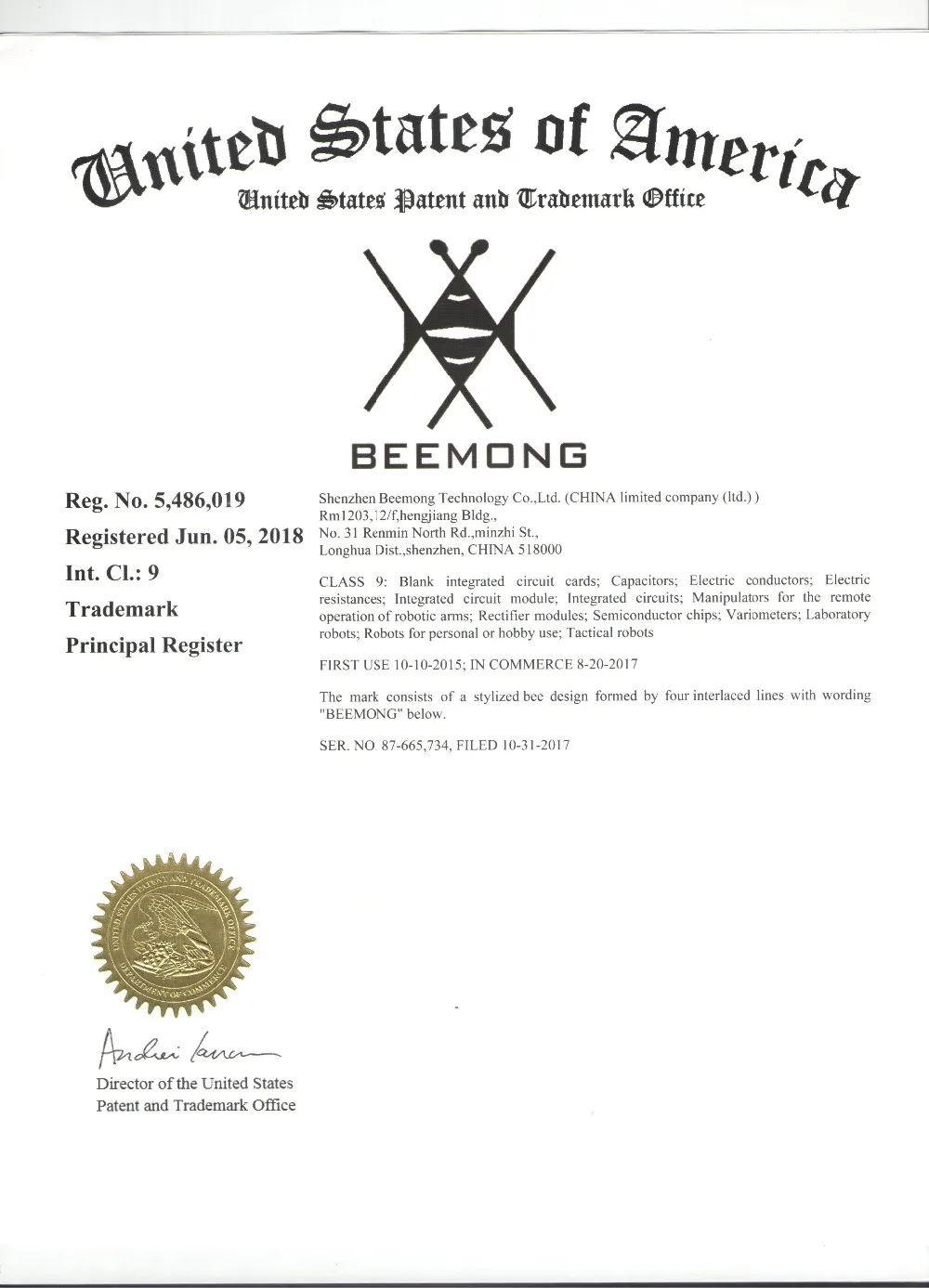

Certifications
