Product Overview
Description
Product Description
Information:

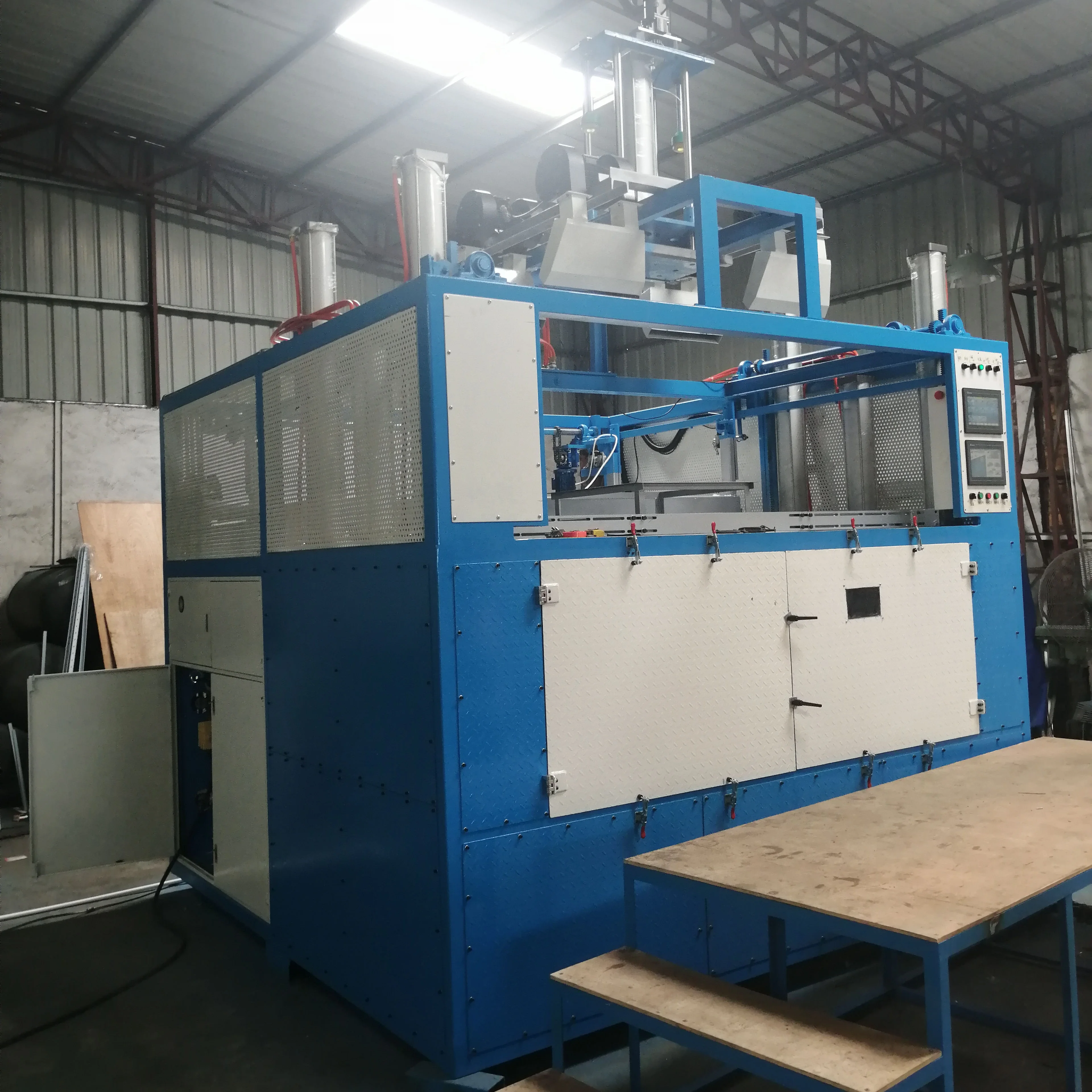

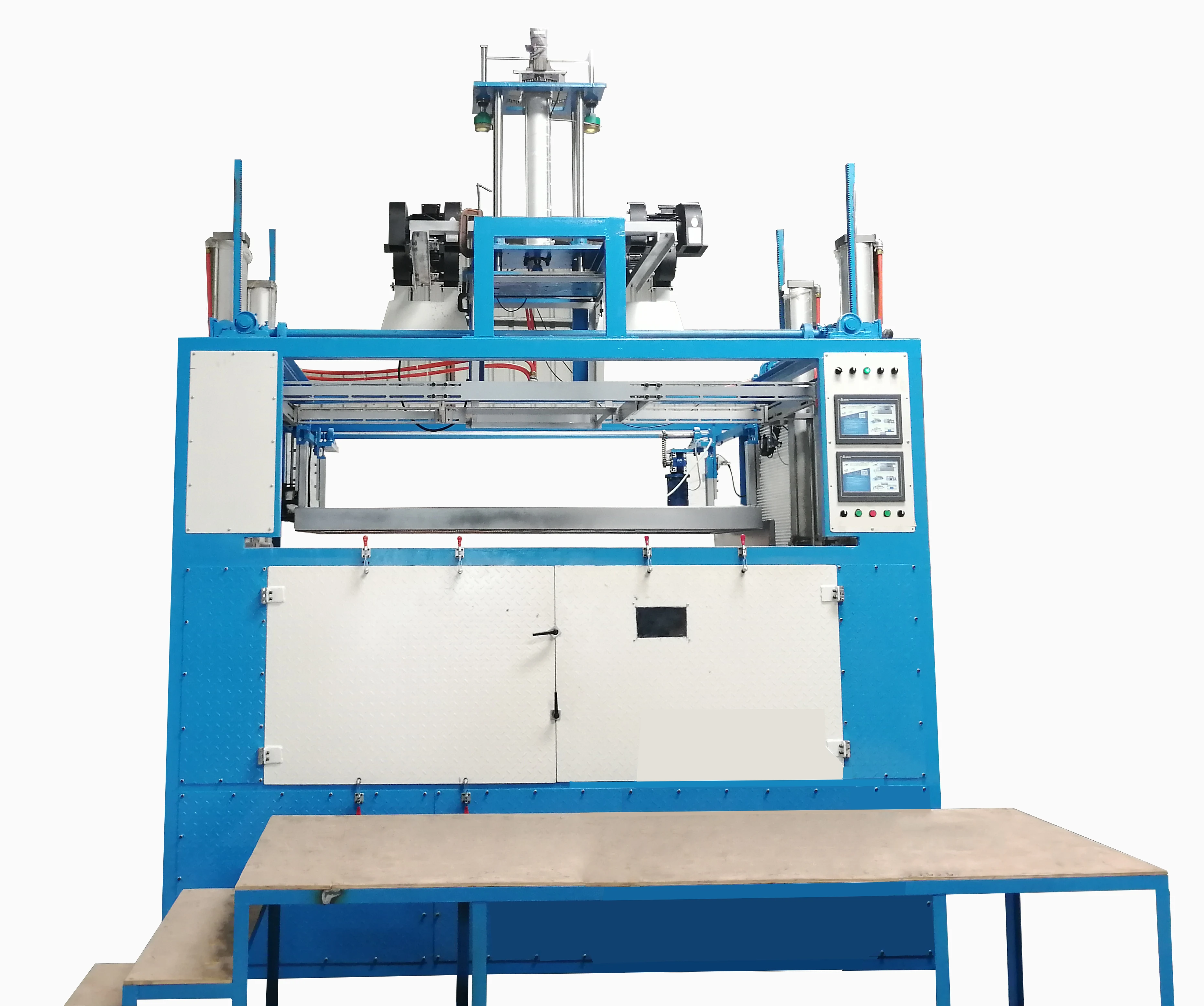

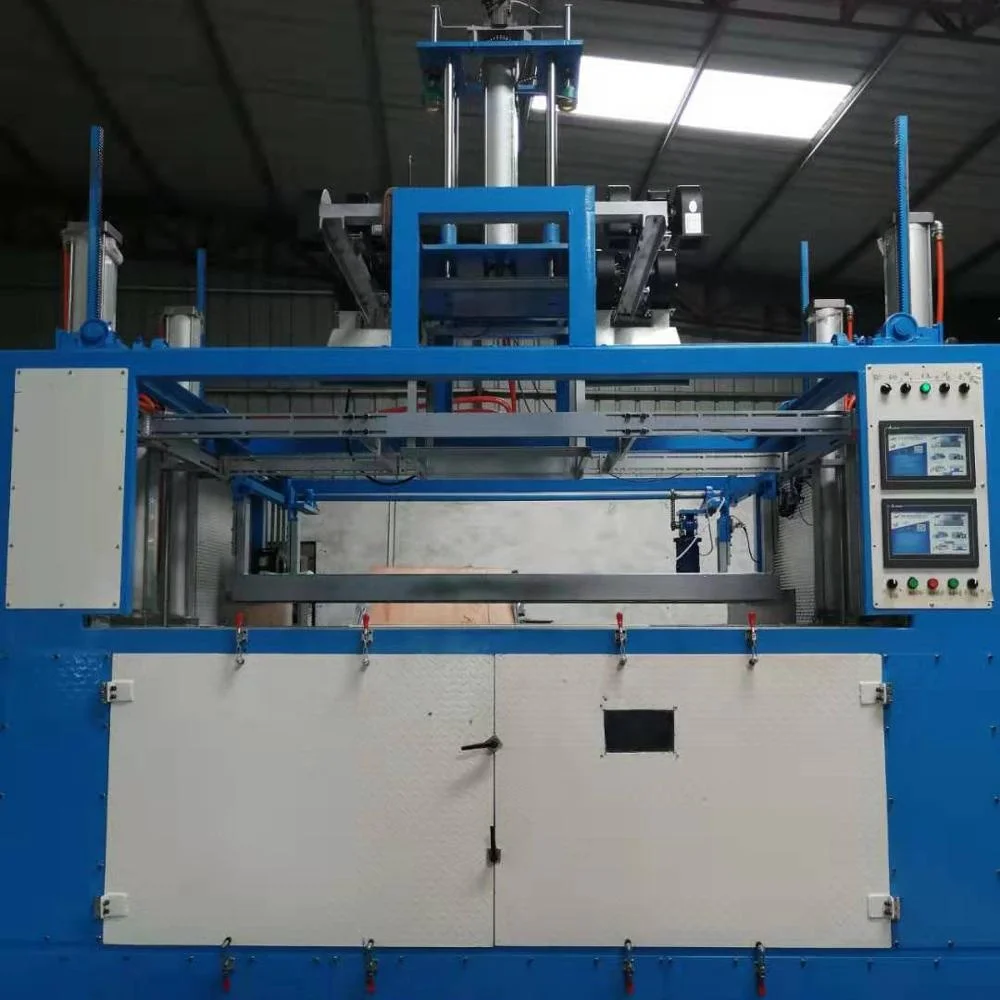

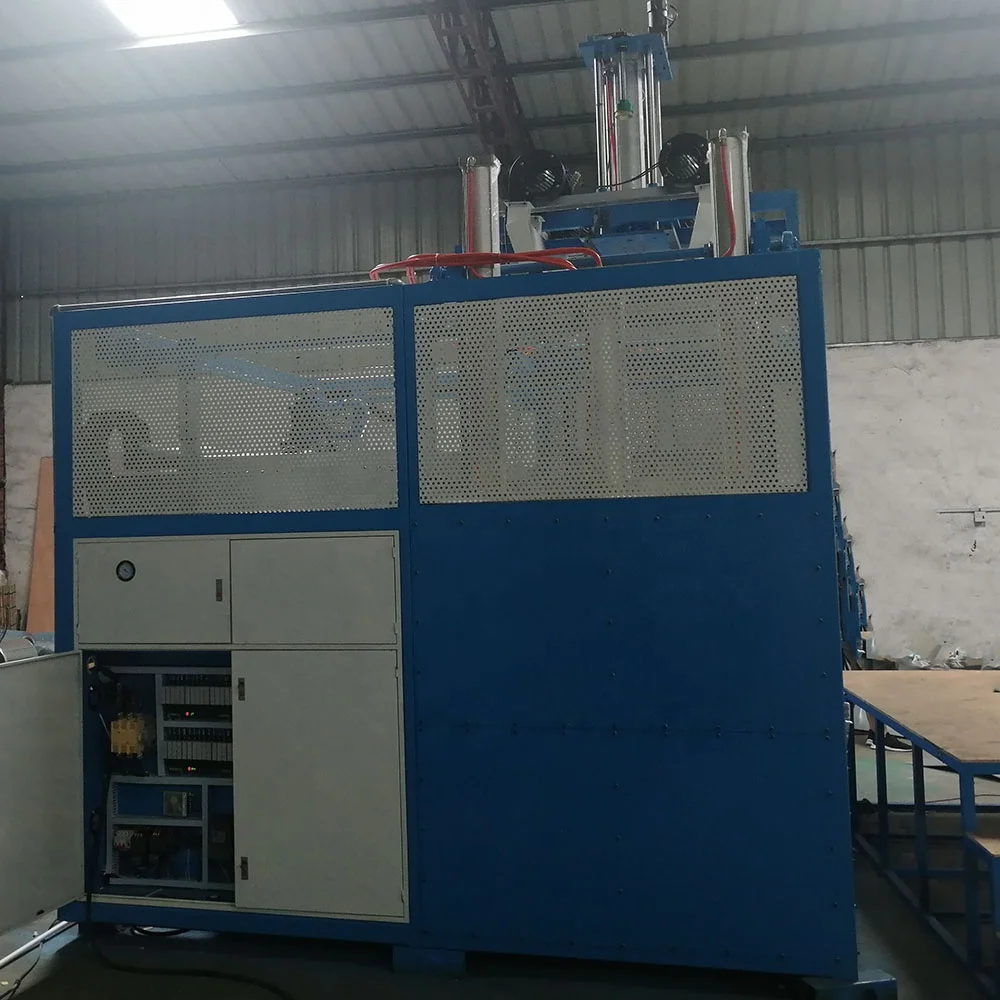

HX-2000 represents a breakthrough in easy to use large format vacuum forming. An extensive range of options including automation, heating, cooling, control. Particularly well suited for Signage, refrigerator inner container,bathtub,luggage box and automobile, the HX-2000 provides response with energy efficient ceramic heaters and accurate heat profiling with 288 zones.
Application:
Suitable for thick sheet(thickness more than 2mm) product, like auto interior decoration, light box advertisement, refrigerator liner, trunk, tray, stationery, hardware, etc.
Feature:
1. Heating system: upper and lower heating oven can be separately controlled, it is convenient to adapt to the requirements of different molds; Each heating brick can be independently controlled to achieve energy saving and high efficiency;
2. Sheet lock System: sheet lock frame is made of hardened ace steel plate processed by the grinder, firm and non-deformed;
3. Vacuum system :Using 200m³ vacuum pump to increase the negative pressure forming suction of the equipment;
4. Cooling system: 4 Sirocco fans are used to blow cold air on each side of the machine to rapidly cool products;
5. Electrical control system: Adopt 10.1 inch computer screen Delta PLC operation, all the equipment molding time and action is intuitive.
Product parameter
Model | HX-2000 customized |
Voltage | 380V 50/60HZ |
Forming area | 2000*1000mm |
Forming height | Max.600mm |
Speed | 4-9times/h |
Dimension | L3000*W3000*H3600mm |
Weight | 4500kg |
Total power consumption | about 150kw |
Material | PP,PC,PET,HIPS,GPPA,ABS,PVC,PS |
Material thickness | 1-10mm |
Heating bricks | 288pcs Upper oven: 144*500w=72kw Lower oven: 144*500w=72kw |
Cooling system | Cooling fan, 4*550w |
Vacuum pump | 200m³, Germany |
Air pressure | 0.4-0.5MP |
Temperature Control Module | Aoyi, China |
Contactor | DELIXI, China |
Power Switch | CHNT, China |
PLC screen | Delta,10.1 inch |
Relay | HEQUAN, Japan |
Solenoid valve | CKD, Japan |
Details Images

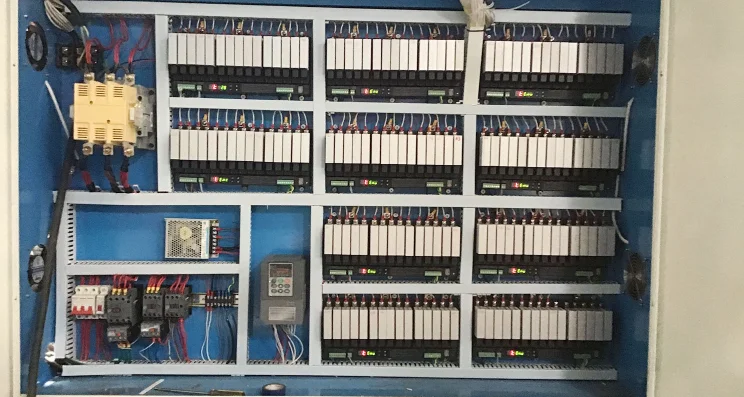

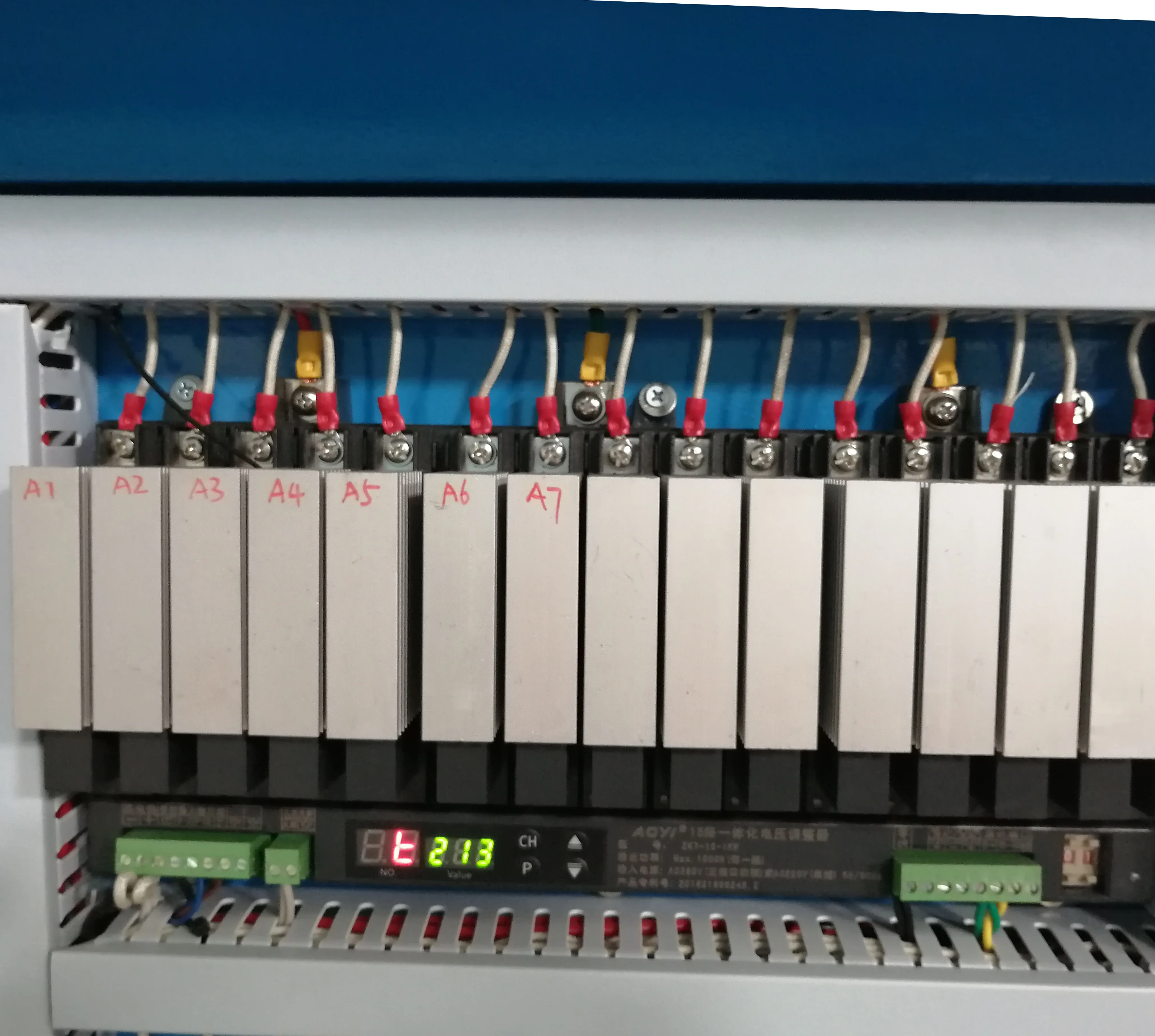

Electricity box
The switch, electricity meter of the meter box are set in separate area;
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese and Germany accessories;

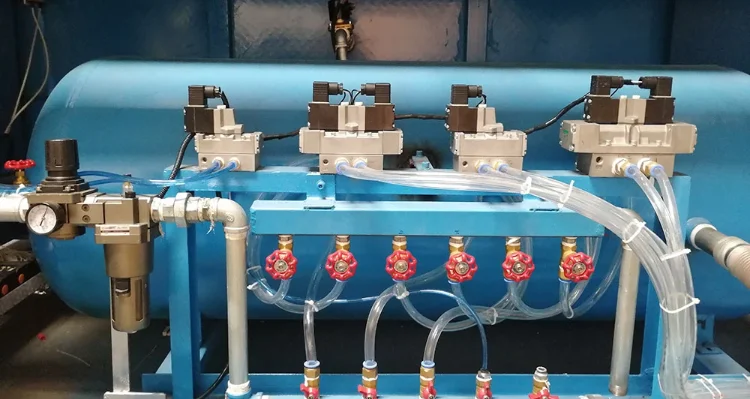

Japanese CKD solenoid valve

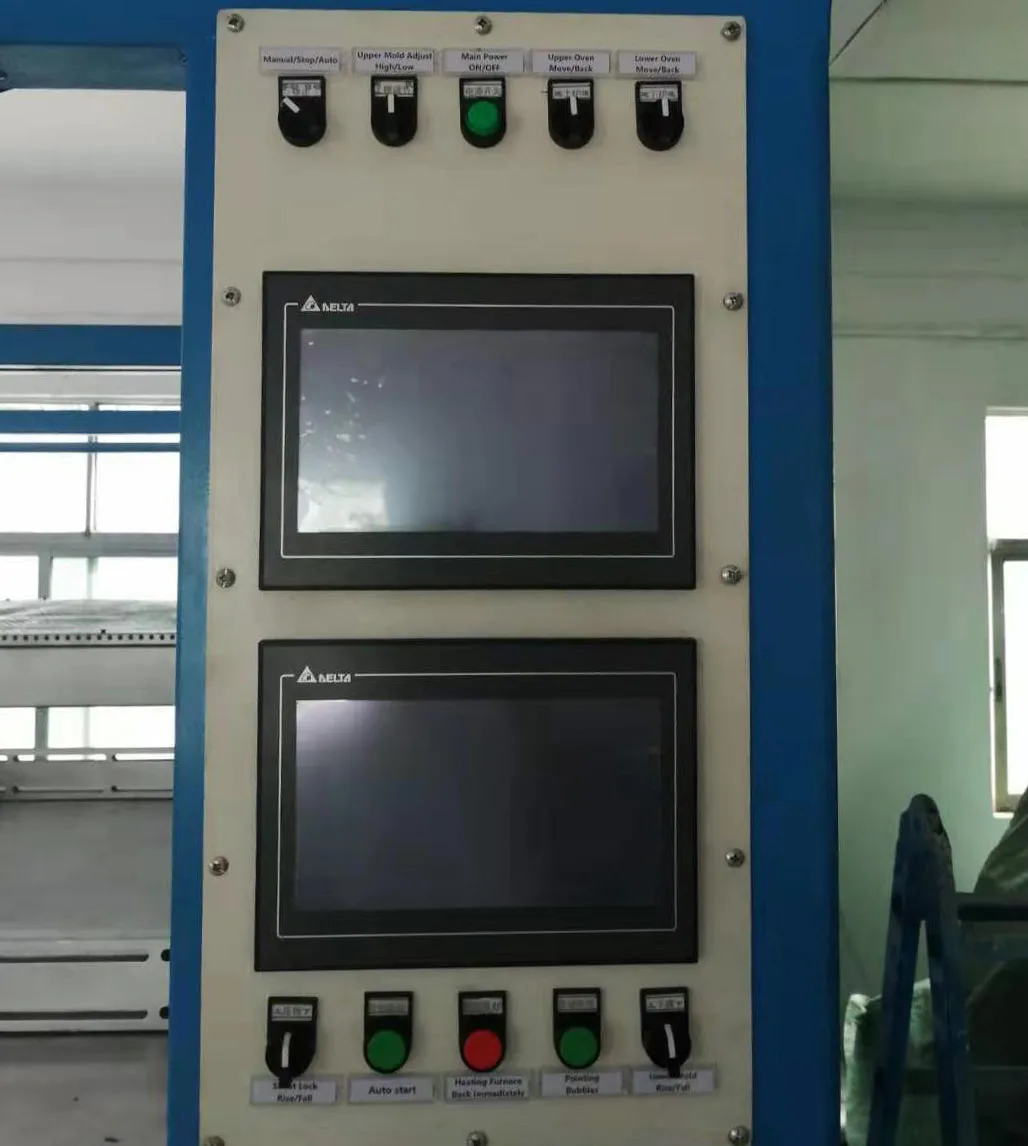

PLC touch screen and manual control button
4 Sirocco fans are used to blow cold air on each side of the machine to rapidly cool products after forming.

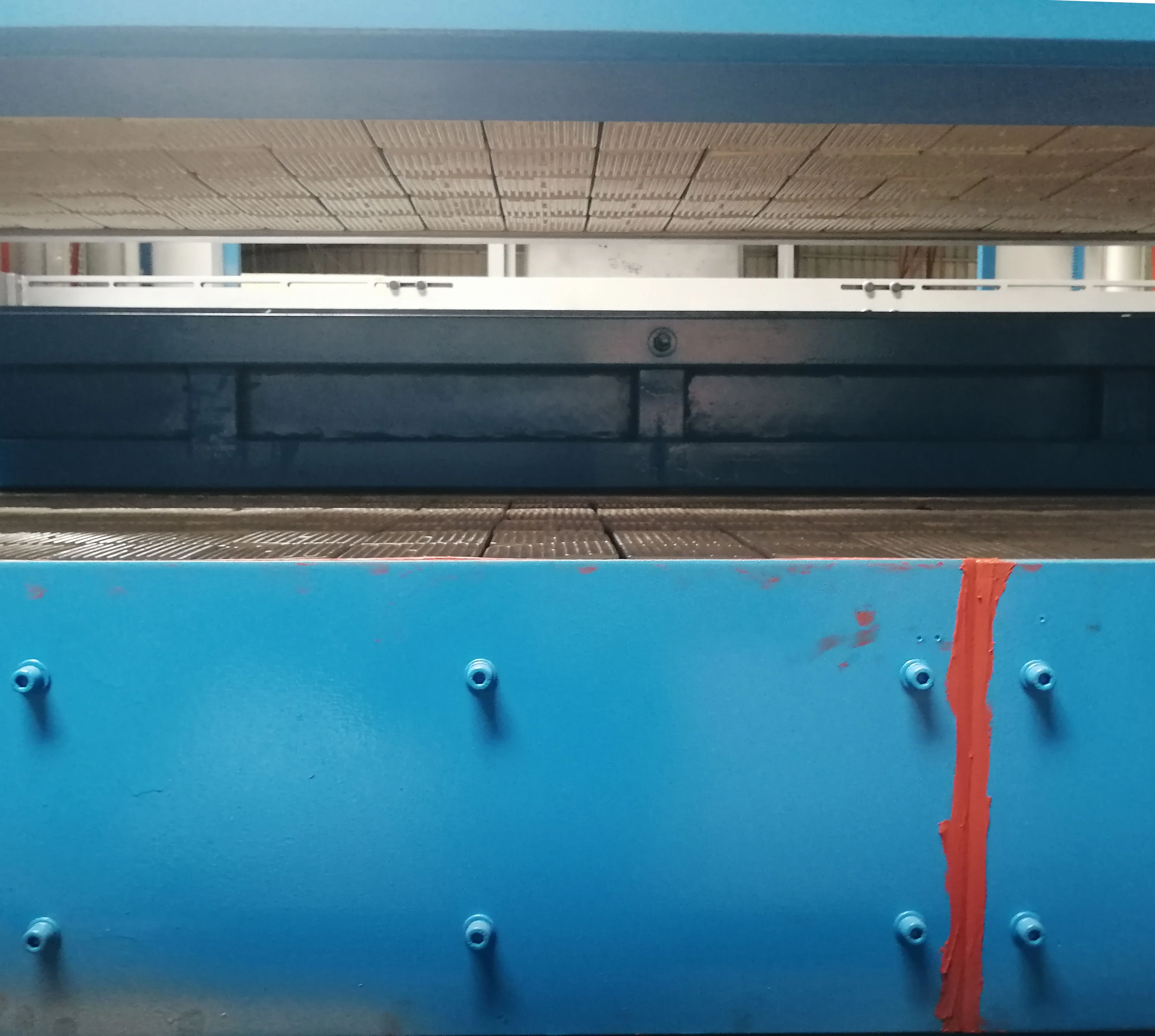

use double heating ovens to heat plastic sheet quickly.
control the heating brick one by one

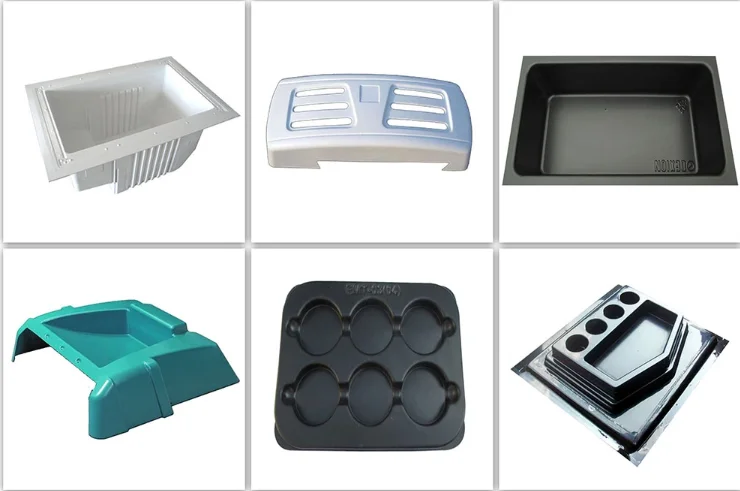

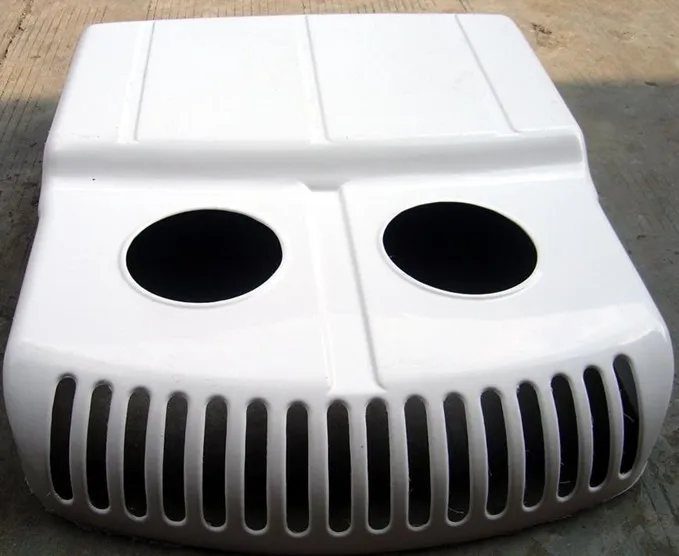

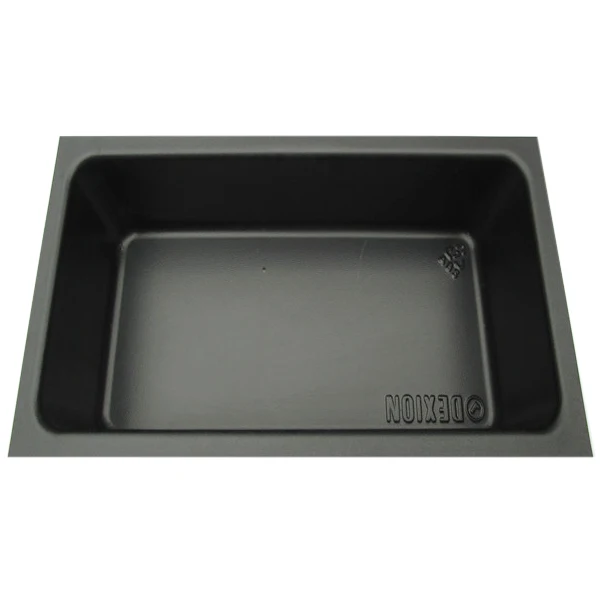

Samples Shows
Process
Typically draping the heated plastic sheet over a mold. Many heavy-gauge forming applications use vacuum only in the form process, although some use two sets of mating form tooling and include air pressure to help form.
heavy-gauge parts are often hand-worked after forming for trimming to final shape or for additional drilling, cutting, or
finishing, depending on the product. Heavy-gauge products typically are of a "permanent" end use nature.
Characteristics of thick sheet products: large area, high and thick materials. The following materials are often used for
processing: ABS, Acrylic (plexiglass), PS, PC, PVC and so on.
heavy-gauge parts are often hand-worked after forming for trimming to final shape or for additional drilling, cutting, or
finishing, depending on the product. Heavy-gauge products typically are of a "permanent" end use nature.
Characteristics of thick sheet products: large area, high and thick materials. The following materials are often used for
processing: ABS, Acrylic (plexiglass), PS, PC, PVC and so on.
Packing&Delivery
Packaging | ||
Size | 3.1 (L) * 3.1(W) * 3.8(H)≈36.5m³ | |
Weight | 4500kg | |
Packing details | 1. The normal package is wooden box. 2. If export to european countries, the wooden box will be fumigated. 3. If container is too tight,we will use PE- film for packing or pack it according to customers special request. Machines will be split to facilitate placement. | |
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Profile
Shenzhen HUAXIANG Mechanical Equipment Co., Ltd. is a diversified export-oriented enterprise integrated with technology, industry and trade, which is established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming, plastic packaging field.
Inquire us
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q1: What about your material?
Q2: The size of your sample: length,width and thickness?
