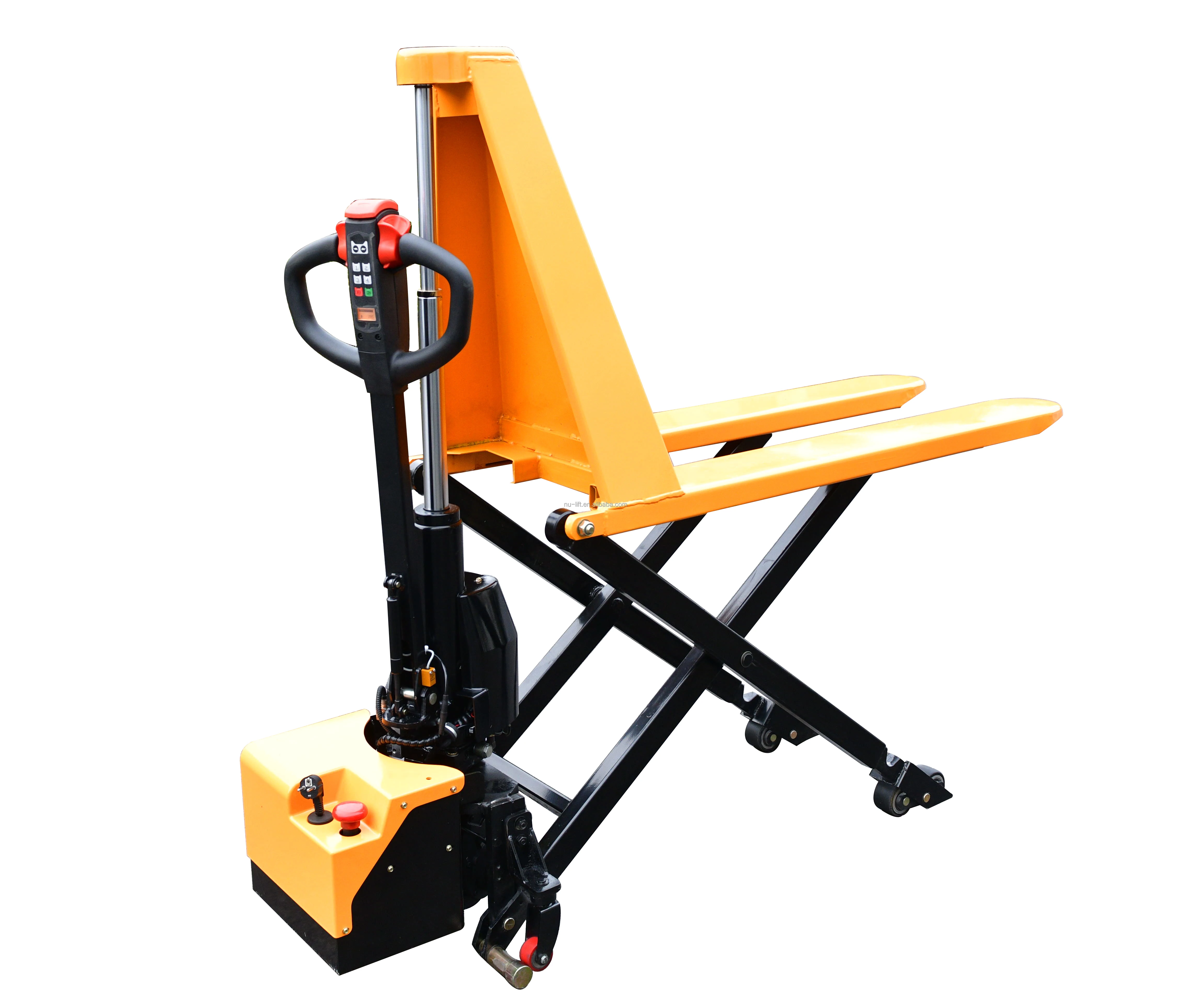

Self propelled High Lift Scissor Truck FHB series

Product Overview

Description

Product Description

•Capacity:1000Kg.
•Lifting Height:800mm.
•Latest innovative design!!   Combination of manual high lift pallet truck and full electric pallet trucks.

•Full electric design, more efficient and labor-saving.

•Moving by drive wheel, more powerful to move heavy load.

•With built-in charger.

•Conforms to EN1757-4 EN1175 norm and ANSI/ASME safety standards.

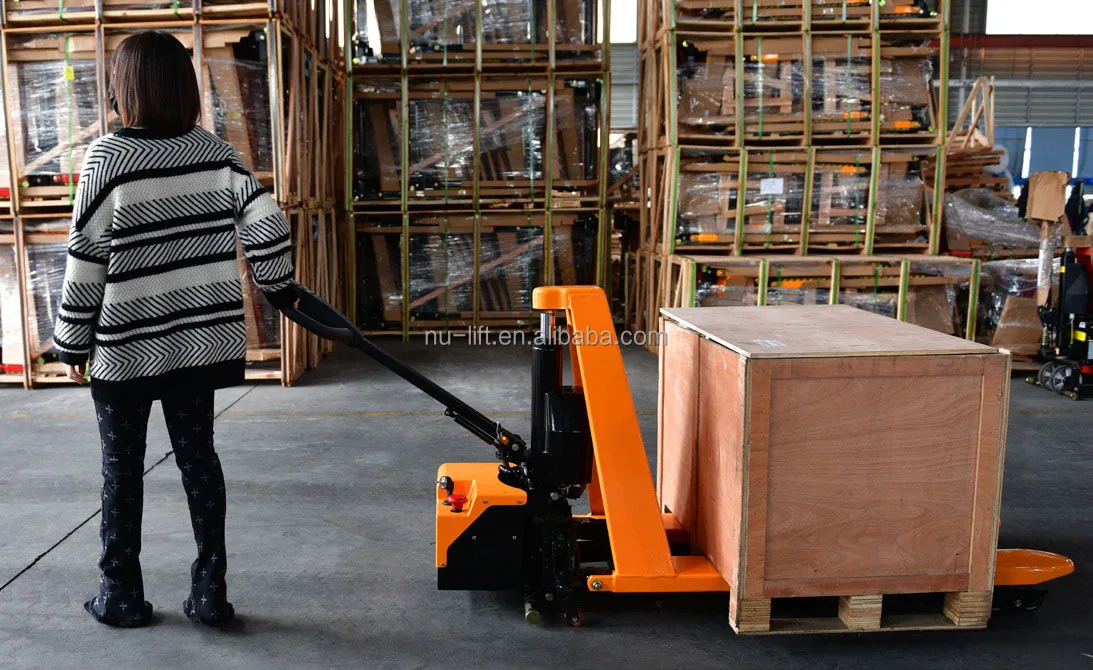

in use









Model		FHB1056EN	FHB1068EN
Capacity	kg	1000
Min. Fork Height	mm	85±2
Max. Fork Height	mm	800
Lifting time(w/o load)	sec	≤15
Lifting time(w/ load)	sec	≤25
Descend speed	m/s	≤0.1
Overall fork width	mm	560	680
Fork width	mm	160
Fork length	mm	1140
Fron wheel size	mm	Ø75x75
Max. Travel speed	km/h	3
Radius of turn       Wa	mm	1610mm
Load center           C	mm	700mm
Overall length        L	mm	1707mm
Overall width         L2	mm	598	718
Overal height         H1	mm	1292
Net weight	kg	220	230
Brake mode		Electromagnetic brake
Battery weight	kg	2x15.2
Battery capacity	V/AH	2x12/65
