Product Overview
Description
Product Description

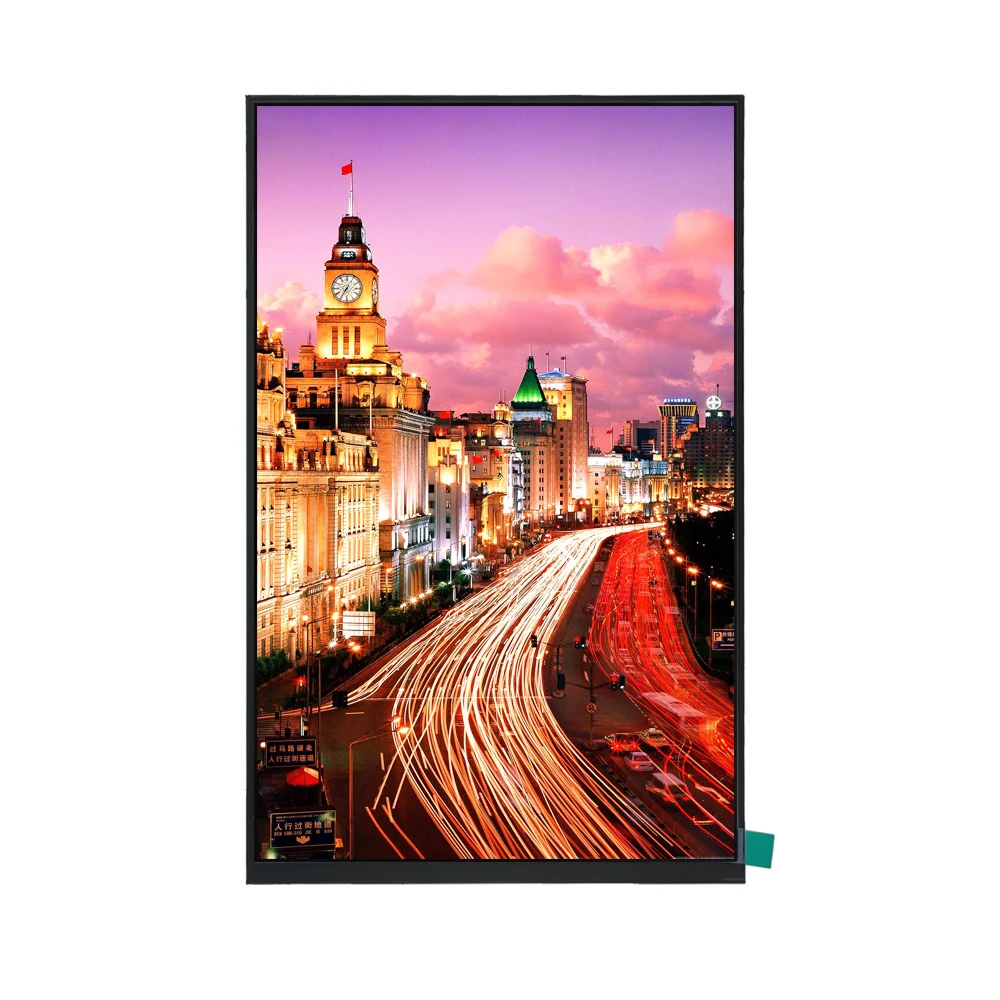

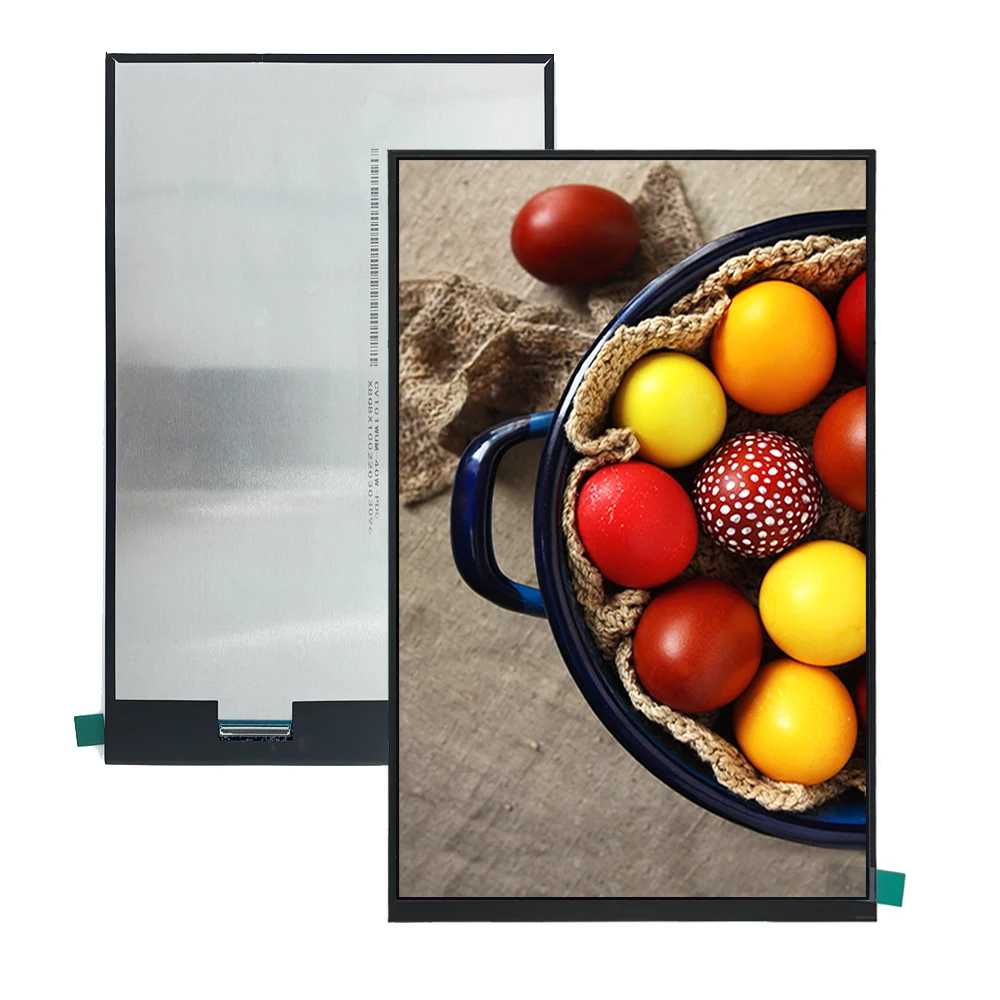

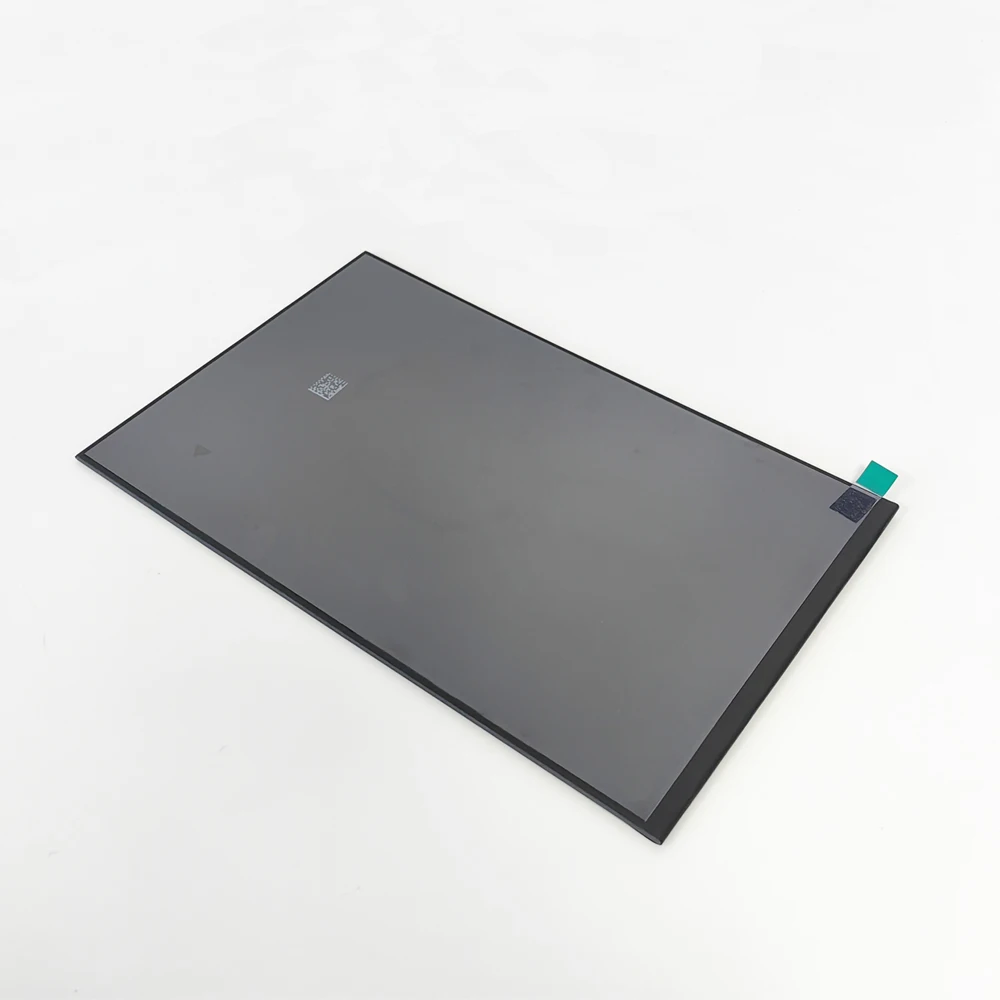

TV101WUM-NW2 is 10.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, Power Drive IC,MIPI driver ICs, control circuit and backlight. By applying 8 bit digital data, 1200×RGB (3) ×1920, 16.7M-color images are displayed on the 8” diagonal screen
LCD name | 10.1 inch Lcd module |
Size | 10.1 inch |
Resolution | 1200*1920 |
Pixel pitch | 37.6*112.8 um |
Display color | 16.7M |
Luminance | 400nit |
Contrast Ratio | 1000:1 |

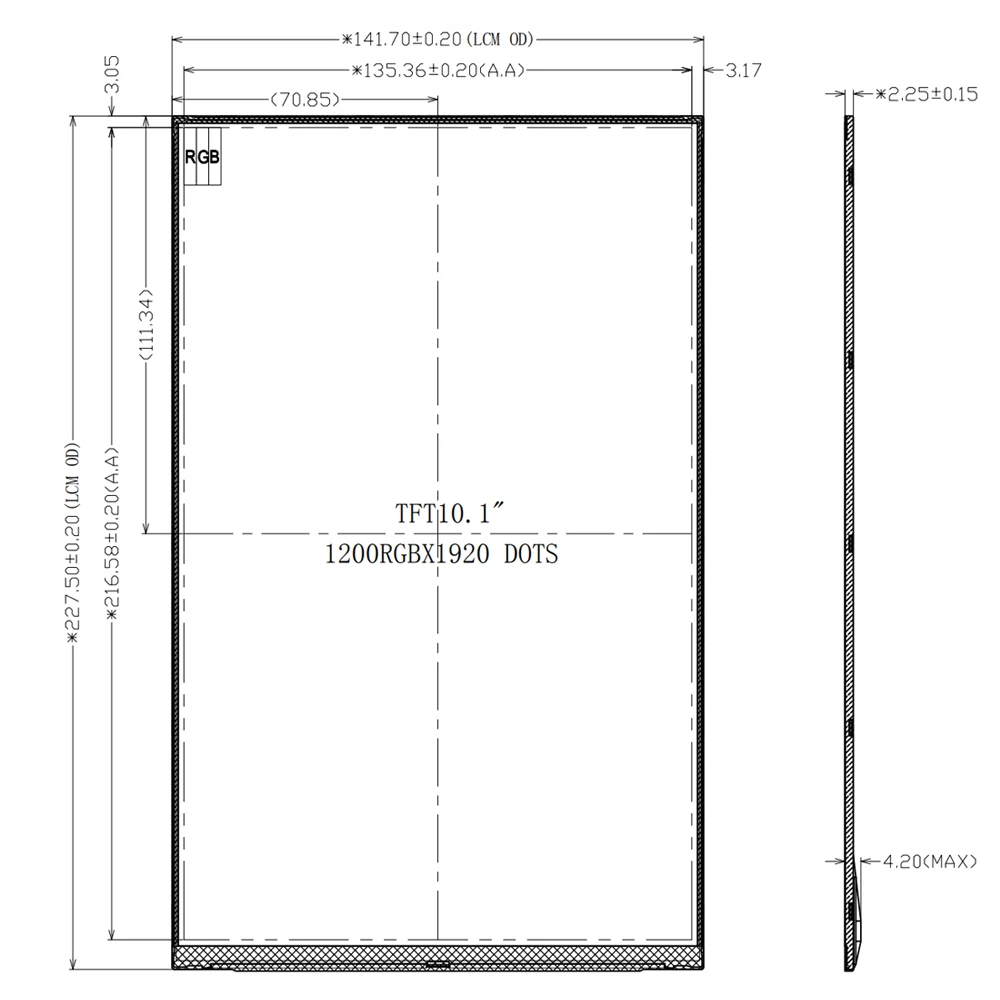

Active Area | 135.36*216.576 |
Outline Dimension | 142.76*228.18 |

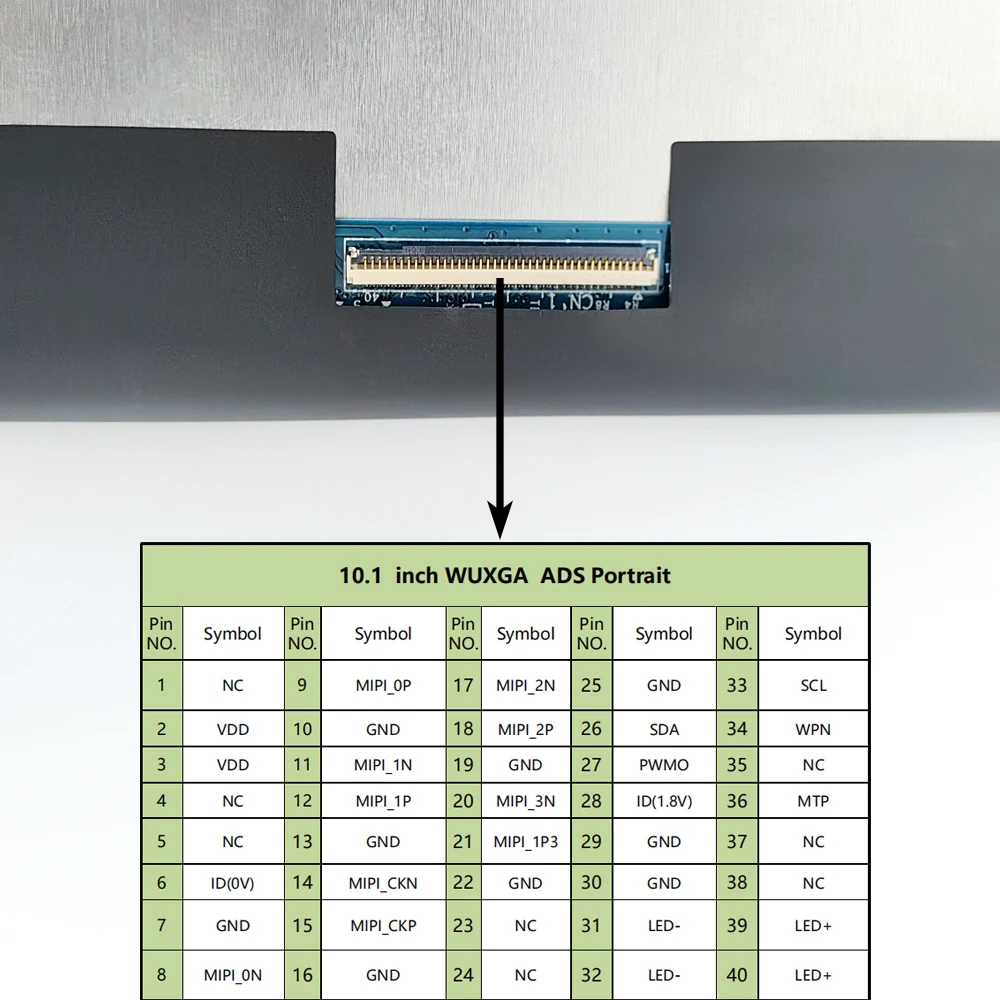

Interface | MIPI,40pins |
The kind of signal | MIPI |
operation Temperature | -20℃ — +60℃ |
Storage Temperature | -30℃ — +70℃ |
Warranty | 1 year |
Customizable
We can provide customized service according to your requirements.
Such as customized the enclosure, backlight brightness, backlight shape, FPC shape and interface definition, silk-printing your Logo and so on.
| Custom Process | |
| process | detail |
| 1> Customer requirements: | Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation. |
| 2> Supplier evaluation and offer solutions | Evaluate and propose solutions according to customer requirements. |
| 3> Communicate and confirm solutions | The customer confirm the solution |
| 4> Provide quotation and confirm payment | Provide reasonable and advantageous tooling cost quotation and confirm product unit price. Customer pays sample fee |
| 5> Confirm the drawing | Confirm the final version drawing according to the customer's request or the drawings provided. and sign back |
| 6> Production samples | Producing samples according to the drawings confirmed by both parties |
| 7> Sample confirmed | Deliver samples to customers for confirmation |
| 8> Sample debugging and modification | If necessary, technical support will be provided for debugging or modification of samples |
| 9> Production | Confirm the final order quantity and unit price of the customer, and then arrange production according to the confirmed samples within the agreed time. |
| 10> Deliver | Product delivery according to customer requirements or industry standards |
