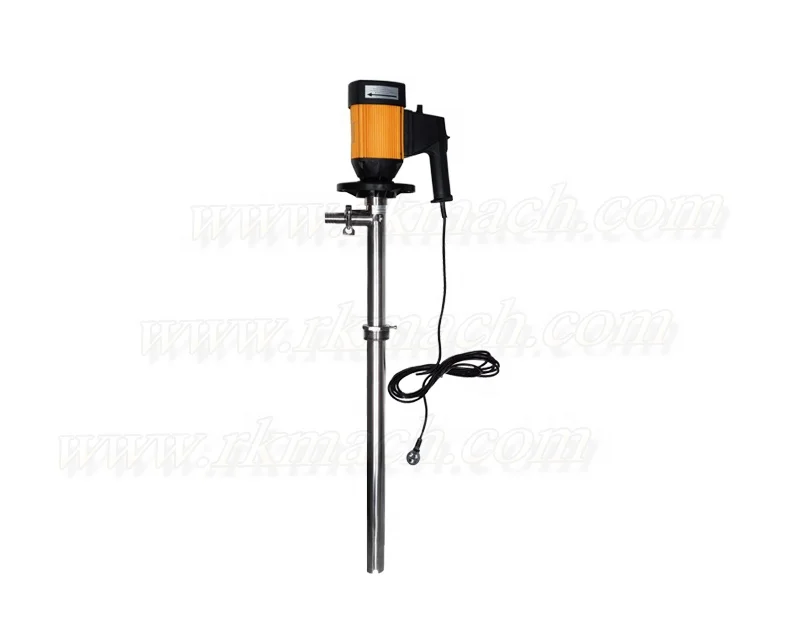

80L/min 130L/min stainless steel portable barrel pump for 0~800cps oil

HP-E2-V for 800cps ~1000cps flamble liquid

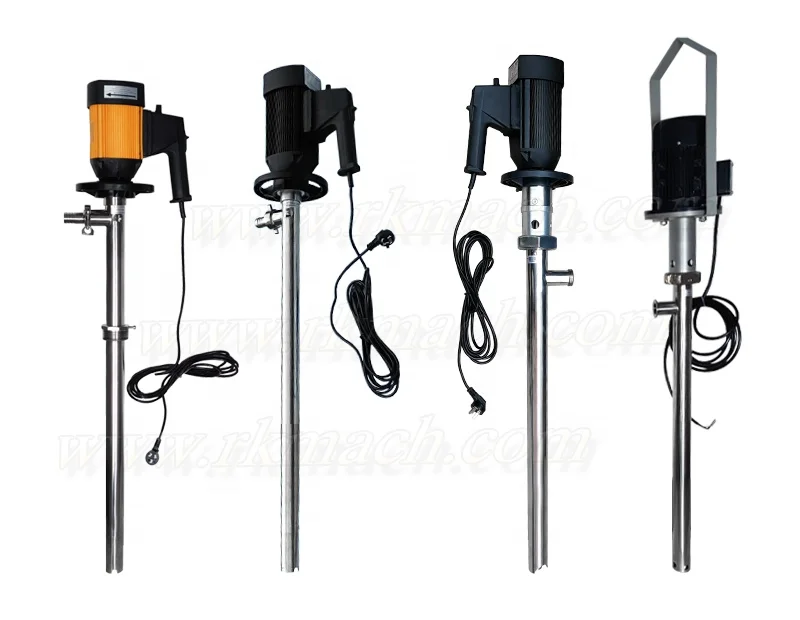

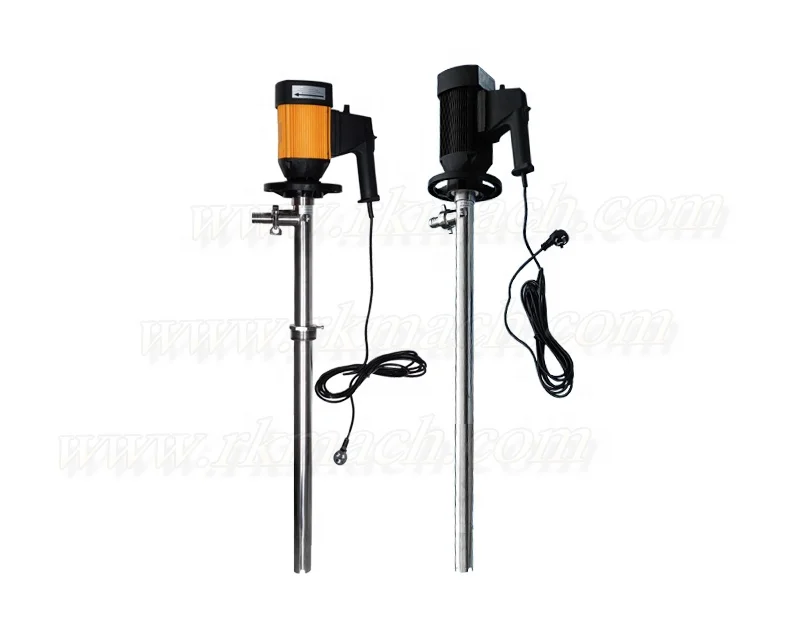

HP-E2-V series barrel pumps are designed to transfer a variety of materials from 55 gallon drums and tanks. The pump tube which is made stainless steel will be placed into the drum or barrel verticallyduring the working process.

HP-E2-V have 80L/min and 130L/min flow rate, for liquid gravity less then 1.8.

HP-E2-V series barrel pump suitable for Strong acid strong base and organic solvent.

Propeller

HP-E2-V series barrel pump is designed for low viscosity liquid. Different like our HP-EX2-V series barrel pumps(for high viscosity liquid), HP-EX2 series barrel pumps are ideal for 800cps and 1000cps liquid. The propellers will vary depending on the pumping tube.

Hose barb

Hose barb for HP-E2-V series pump

the left picture is the standard hose barb and PPHT hose barb.

on PVDF pumping tube, the hose barb will be PVDF material.

No.

Items

Description   & specification

1

Model

HP-E2-V-SS304 / SS316 / PPHT / PVDF

HP-E2-V-SS304 / SS316 / PPHT / PVDF

2

3

Flow rate

80L/min

130L/min

4

Output pressure

10 bar

22 bar

5

Motor type

electric driven

electric driven

6

Power supply

220V 50Hz / 60Hz

220V 50Hz / 60Hz

7

Motor power

825W

825W

8

Potation speed

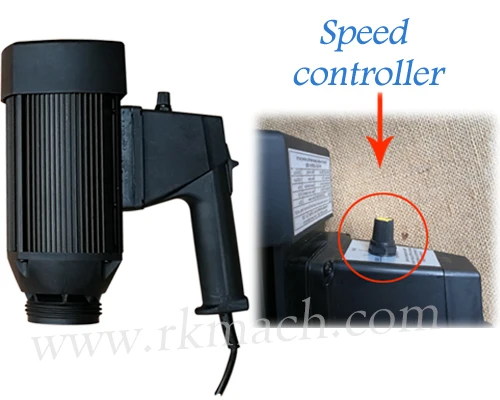

0~10,000 rpm   adjustaboe speed

0~10,000 rpm   adjustaboe speed

9

Pump tube

0.7m / 1m / 1.2m / 1.5m

0.7m / 1m / 1.2m / 1.5m

10

Pump tube size

φ42

φ42

11

Pump tube  material

Stainless steel 316L / SS304 / PPHT / PVDF

Stainless steel 316L / SS304 / PPHT / PVDF

12

Outlet tube

φ25 with hose barb

φ25 with hose barb

13

Propeller Material

Stainless steel 316L / Hastelloy

Stainless steel 316L / Hastelloy
