China 40mm diameters rock bolt anchor used for mine tunnel support

China 40mm diameters rock bolt anchor used for mine tunnel support

Diameter: 33mm,39mm,40mm, 46mm, 47mm

Length: 1.2m,1.5m,1.9m,2.0m,2.4m,3m,4m,6m

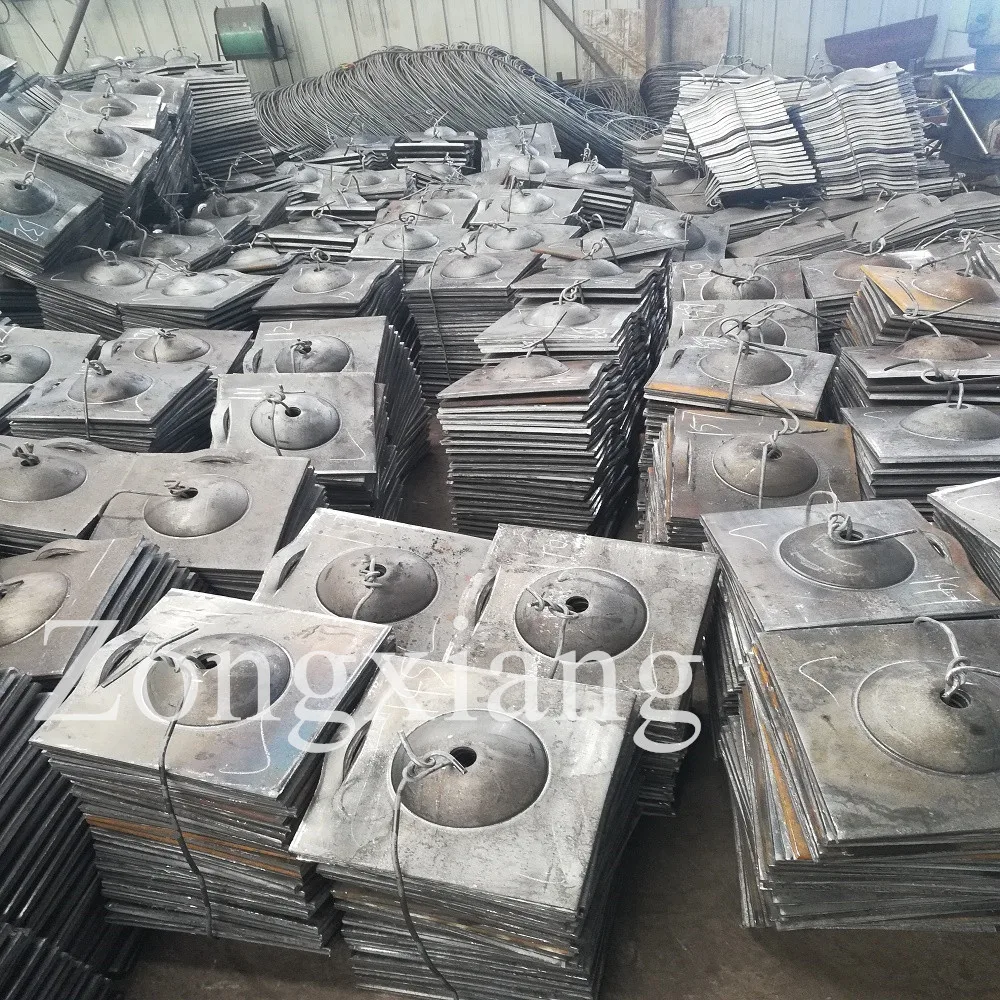

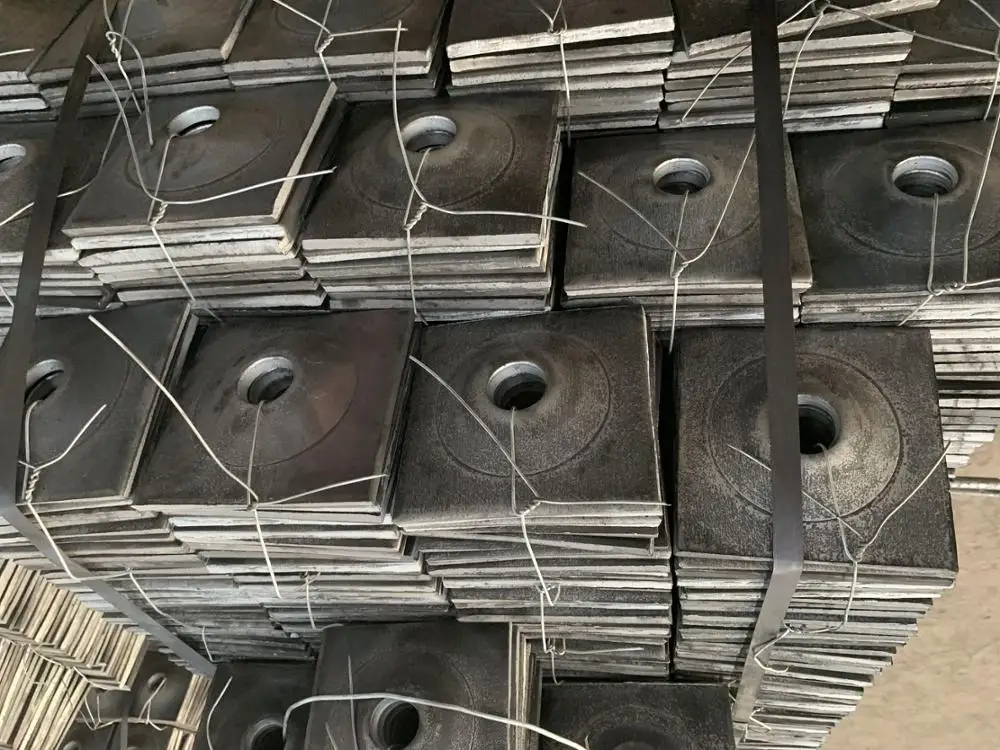

Plate: 140 x 140 x 6mm,150 x 150 x 5mm,200 x 200 x 10mm

Diameter and length can be customized according to customers' requirements.

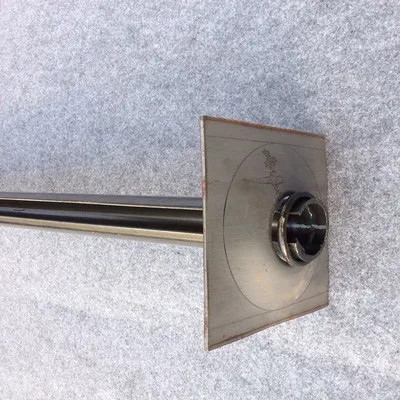

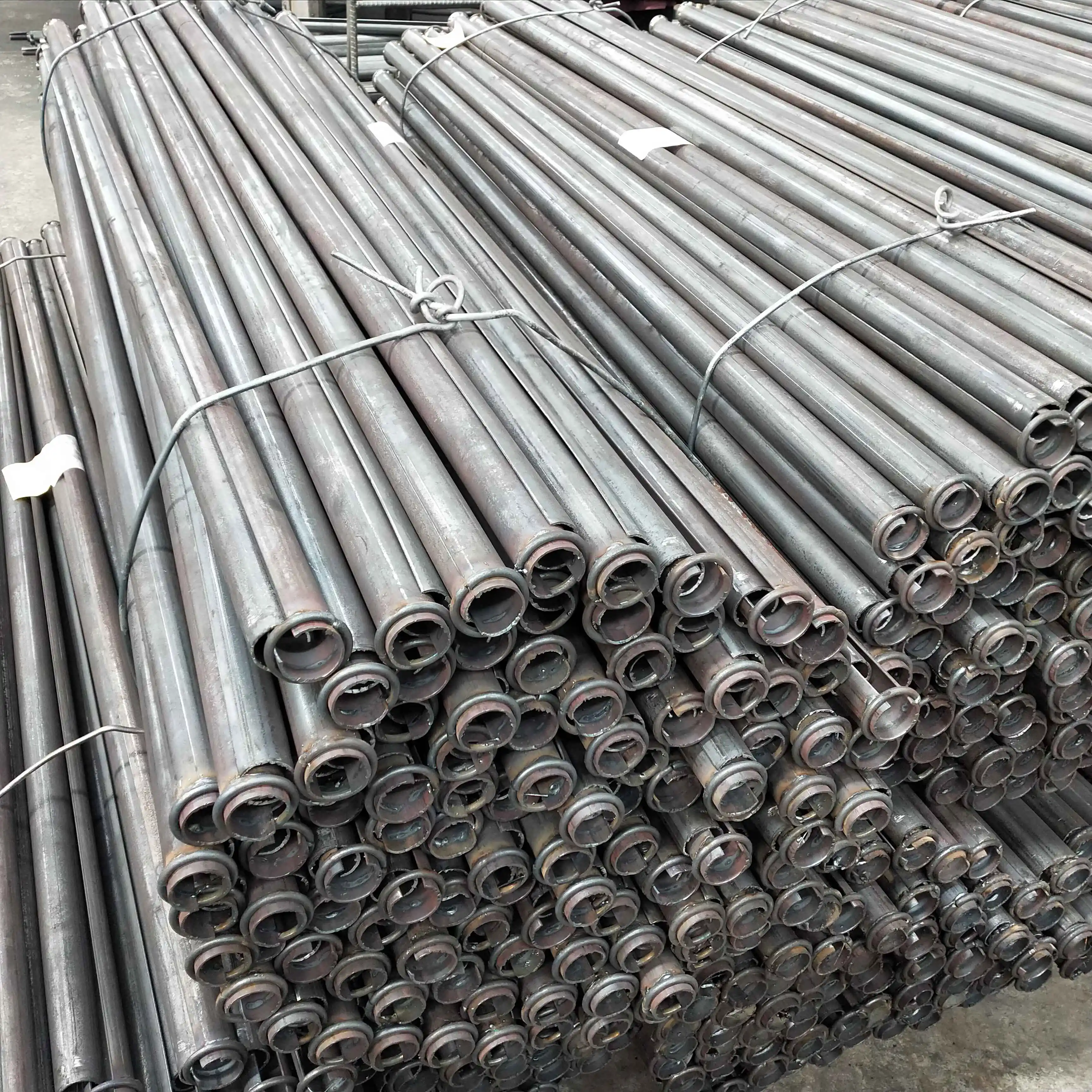

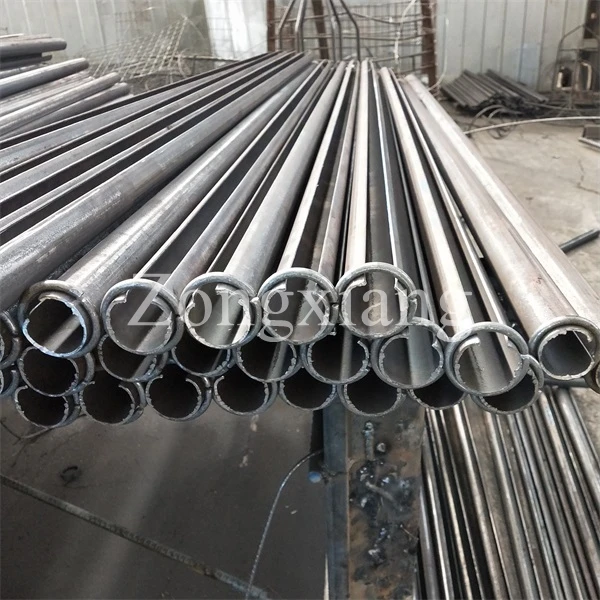

The product other name is split set stabiliser, it has only two parts-a tube and a bearing plate. The high-strength steel tube has a slot along its length; one end is tapered for easy insertion, and the other has a welded ring flange to hold the plate. With the bearing plate in place, the tube is driven into a slightly smaller hole, using the same standard percussion drill which made the hole. As the tube slides into place, its full-length slot narrows; the tube exerts radial pressure against the rock over its full contact length. Plate loading is generated immediately. The result is a tight grip which actually grows stronger with time and ground movement.

1. Quick and easy installation

2. Provides immediate support

3. No grout or resin required

4. Quality manufacture

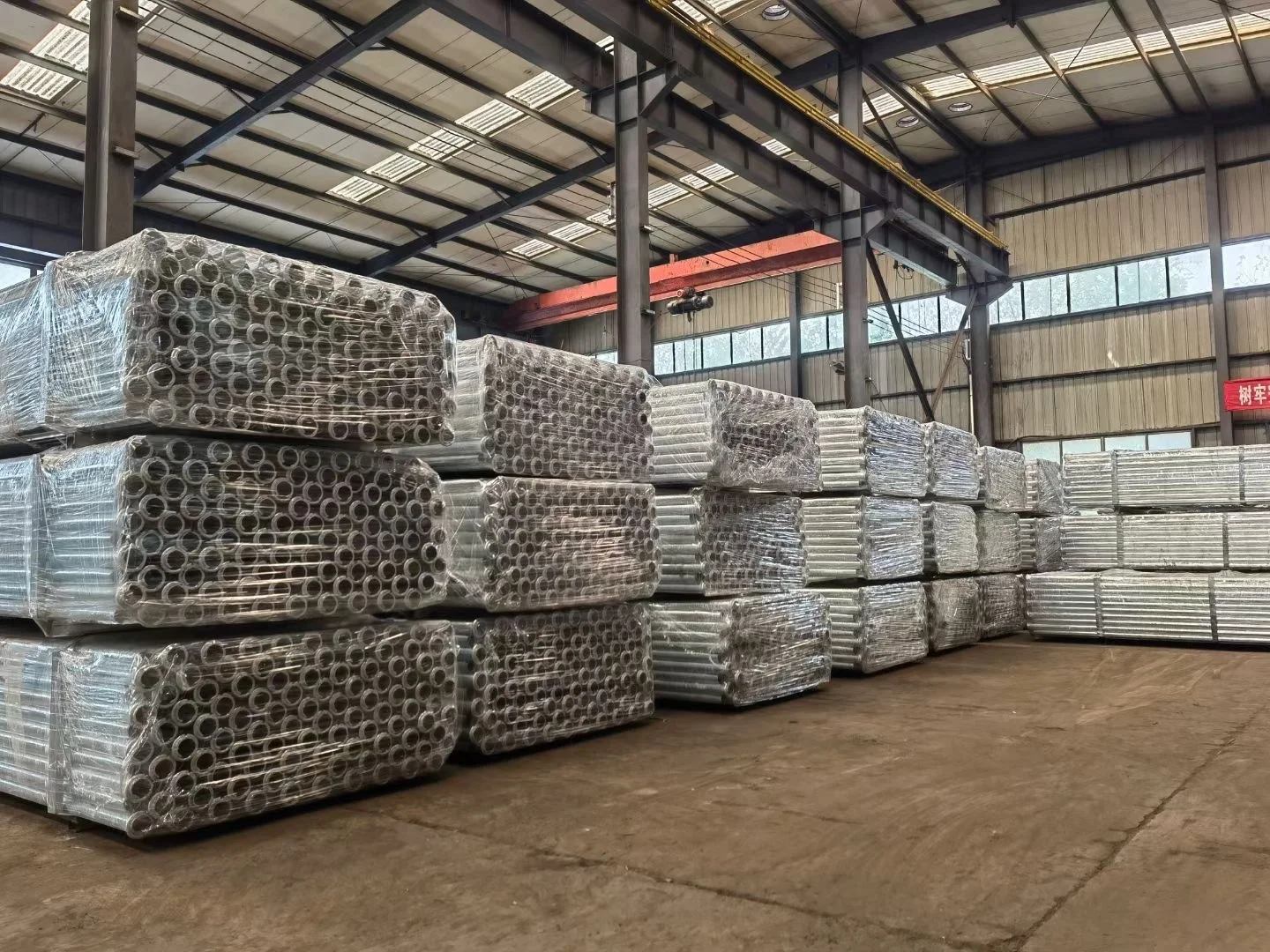

Packaging Details: bundles in pallet

Delivery Detail: 15-25 days

Henan Zongxiang Heavy Industry Import & Export Co., Ltd, established by experienced crew on the rail & track field, is a professional & reliable supplier that provides all kinds of rail & track accessories.

As an international  trade subsidiary of Zhongxiang Steel Group lnc., was founded in 1997. We have more than two decades experience on this field, covering an area of 33000 square meters, with about 300 employees, 4 production lines, 2 R & D department, and 5 quality control staff. With advanced technology, powerful processing capacity and excellent service, our products have been well recognized by our customers from domestic & overseas market.

We have the inventory, resources, and experience to meet your needs. Main products in our whole Group include as below:

Steel rails

GB light rail, heavy rail, crane rail & other standard steel rails.

Railway accessories

Turnout switch, fish plates, rail clip, rail clamp, track spike, rail bolt/nut/washer, rail pad and etc.

Mining support products

Steel arch support, mining anchor bolts, mining plastic composite net, plate washer and etc.

Other steel products

Channnel steel, angle steel, I-beam steel, mining I-beam steel, H-beam steel, steel plate, etc.

Thanks for your browsing!

If you have any questions, pls feel free to contact us
