UKK160A Terminal Block one in Six Out Din Rail distribution Box Universal Electric Wire Connector Power junction box
- Category: >>>
- Supplier: Xiamen Mj Industrial Tech Co. Ltd.
Share on (62374877226):
Product Overview
Description
UKK160A Terminal Block one in Six Out Din Rail distribution Box Universal Electric Wire Connector Power junction box
What is the Special of our Din Rail Distribution Box?
1.Made of flame-retardant shell, it is high temperature resistant and corrosion resistant
2.Good insulation performance and durability for using

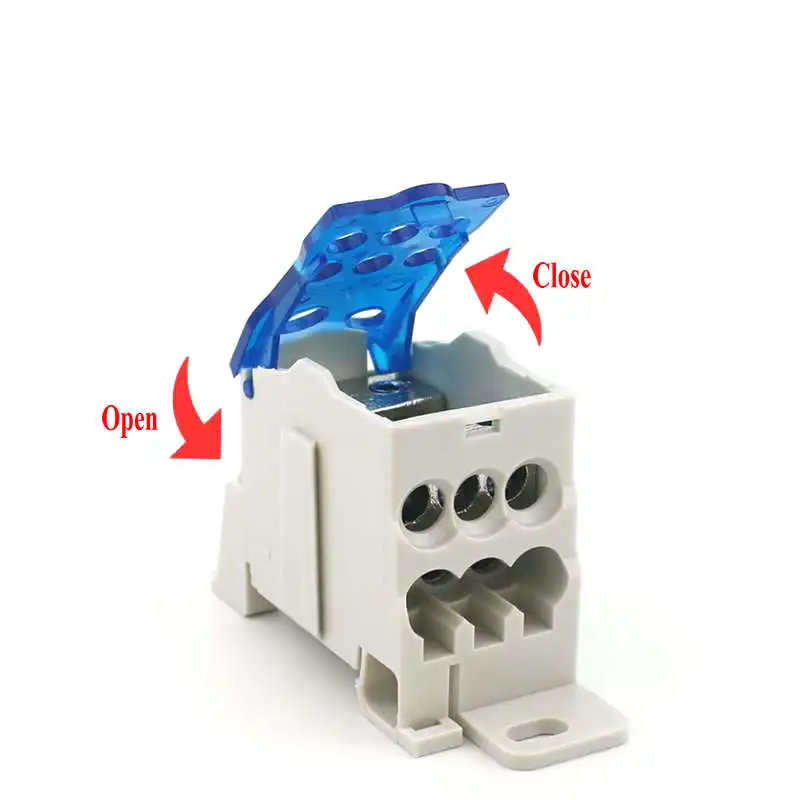

3.The transparent cover can see if the cable is connected reliably.
4.The box is easy quick to install on the rail
5.Generally used in power distribution cabinets, distribution boxes, and various high voltage cabinets
What is the Details of our Din Rail Junction Box?
Product | UKK160A Terminal Block one in Six Out Din Rail distribution Box Universal Electric Wire Connector Power junction box |
Model | UKK160A |
Rated Voltage/Current | 690V/160A |
Outer Material | PA 66 |
Conductor | Brass |
Screw Material | Steel,Zinc Plated |
Working Temperature | -40°C to 110°C |
Standard | IEC 60947-7-1 |
Mounting Type | DIN Rail NS 35 |

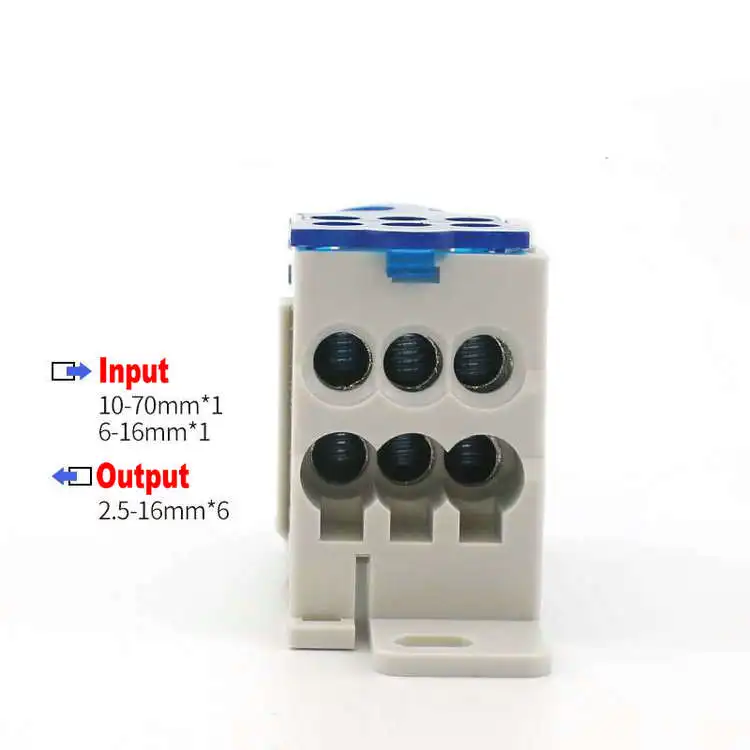

Entry Specification | 1*16mm2 |
| Output Specification | 4*6 mm2,2*16mm2 |
Flame Retardant | Yes |
Flammability Class | 94 V2 |
Standard Color | Blue,Green,Grey |
Certification | CE/RoHS/CQC/ISO 9001 |
| Full Size Sample Lead time: | As usual 7 working days |
| Production Lead time: | 12-15 days |

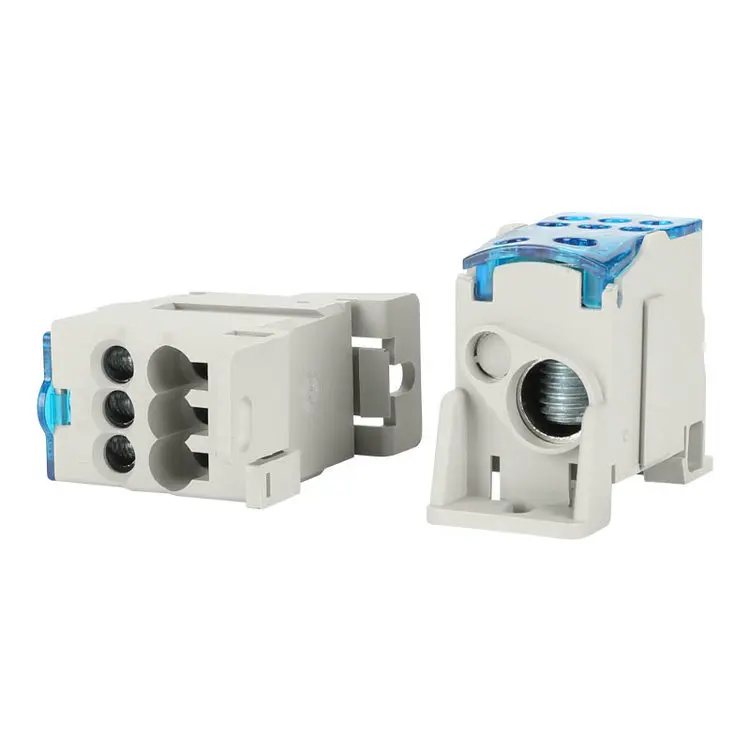

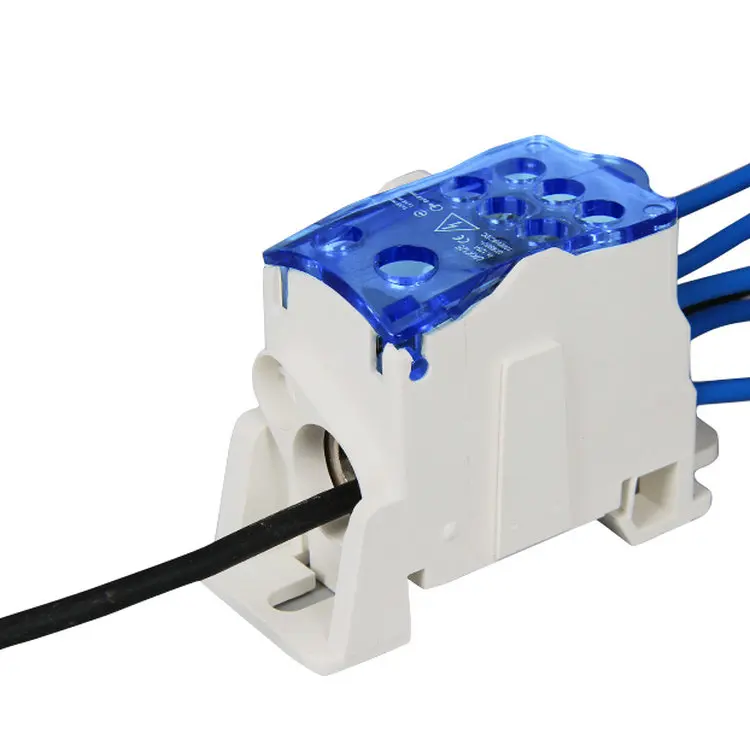

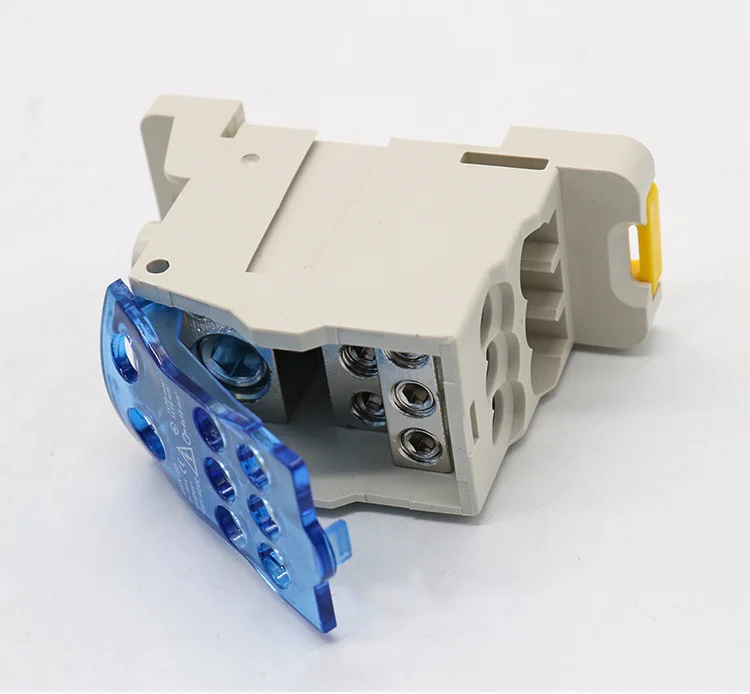

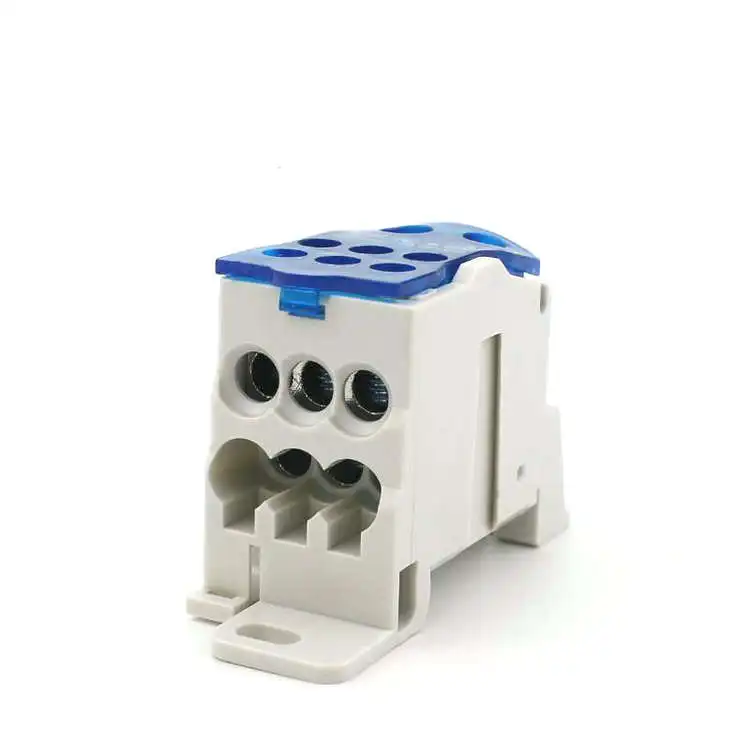

Product Picture
Product Features
Application
Power junction box generally used in power distribution cabinets, distribution boxes, and various high voltage cabinets.
Packing
Factory Show
About MJ
Factory Show
Product Certification
FAQ
FAQ
- QWhat is the MOQ ?
- A100 pcs for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you pp sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormaly 7-10 days receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follows ROHS,Reach standards,We have 15 years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
