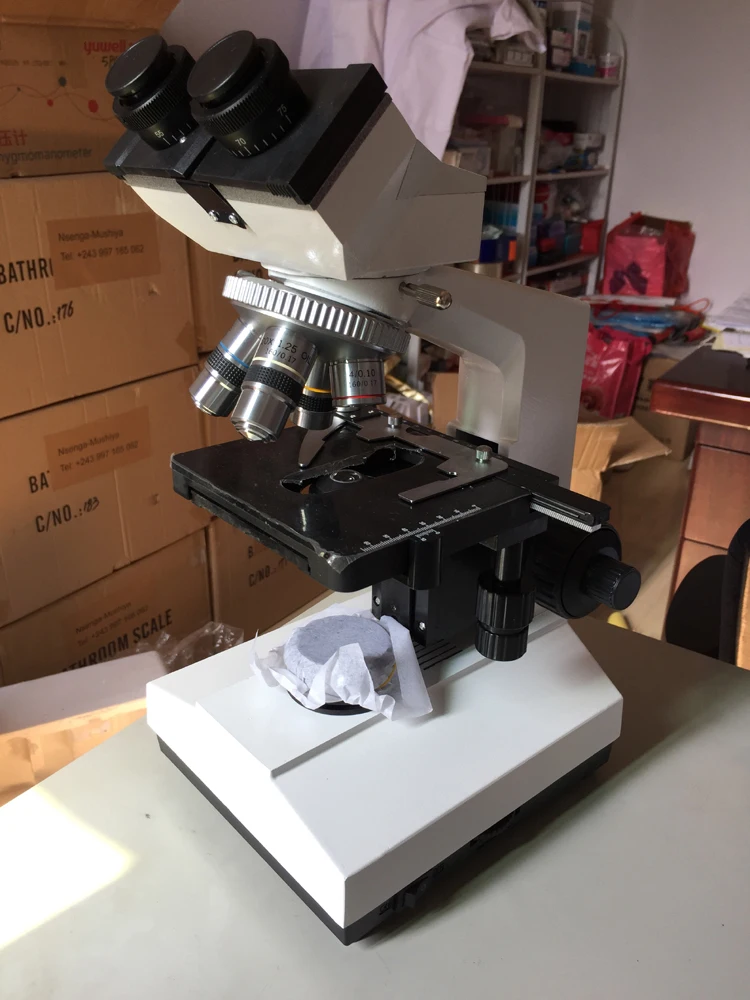

Binocular Microscope 4X, 10X, 40X, 100X

Product Overview

Description

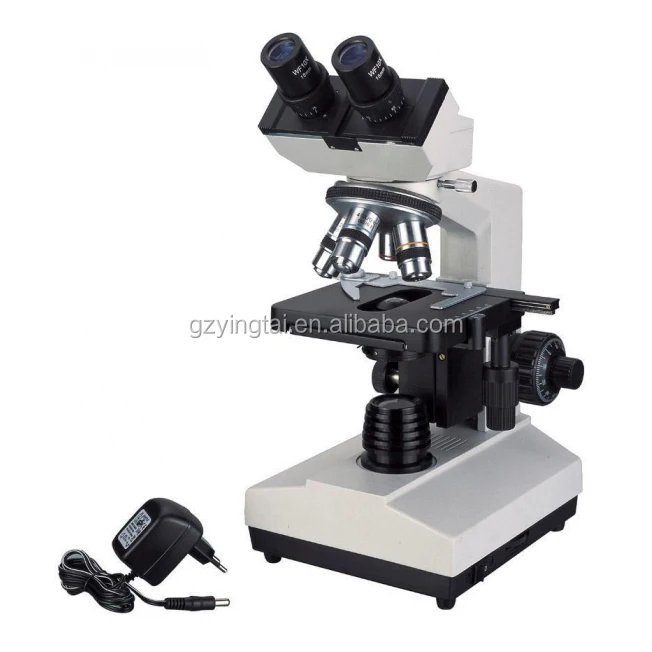

Binocular biological microscope 107BN



This is a good quality microscope suitable for school teaching and laboratory use.



Specifications

Model	XSZ-107BN Binocular microscope

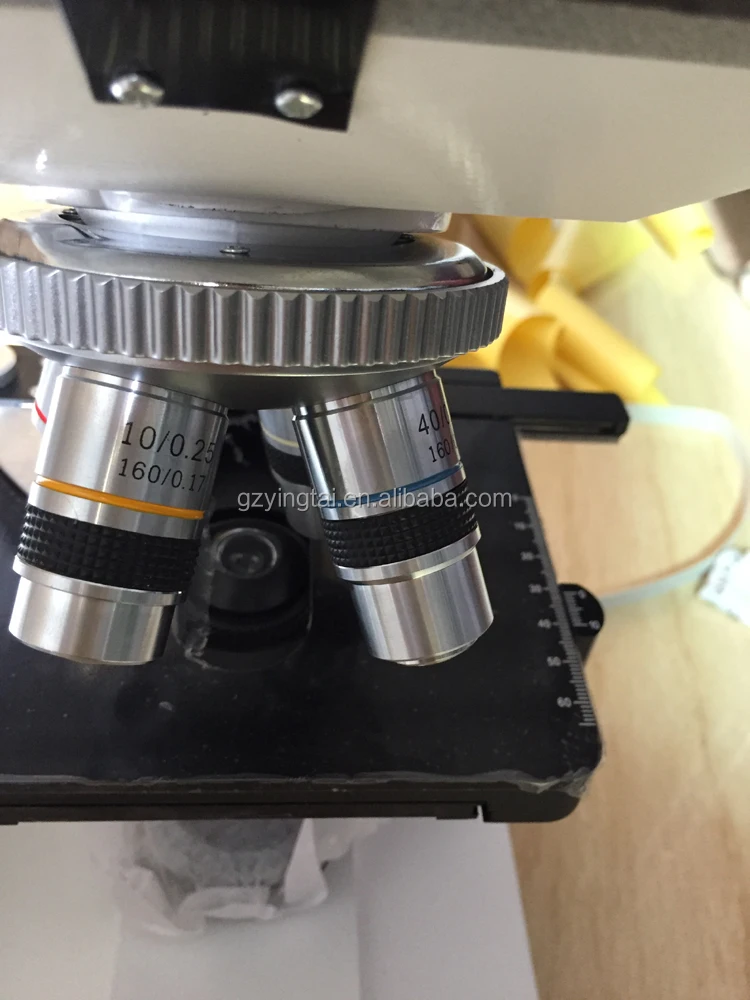

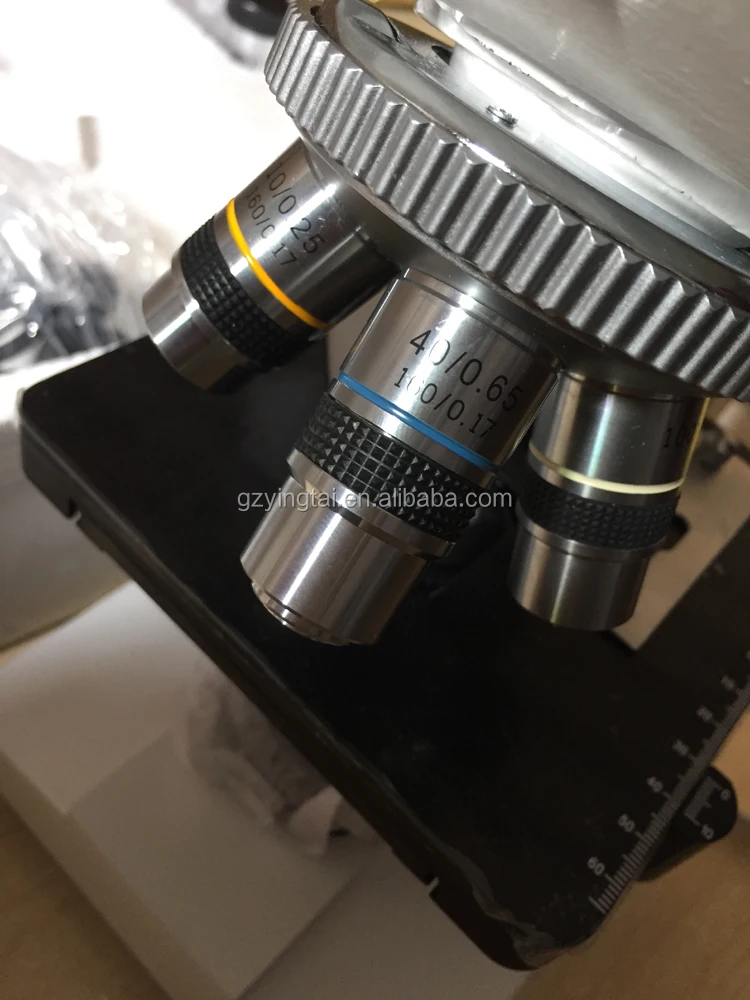

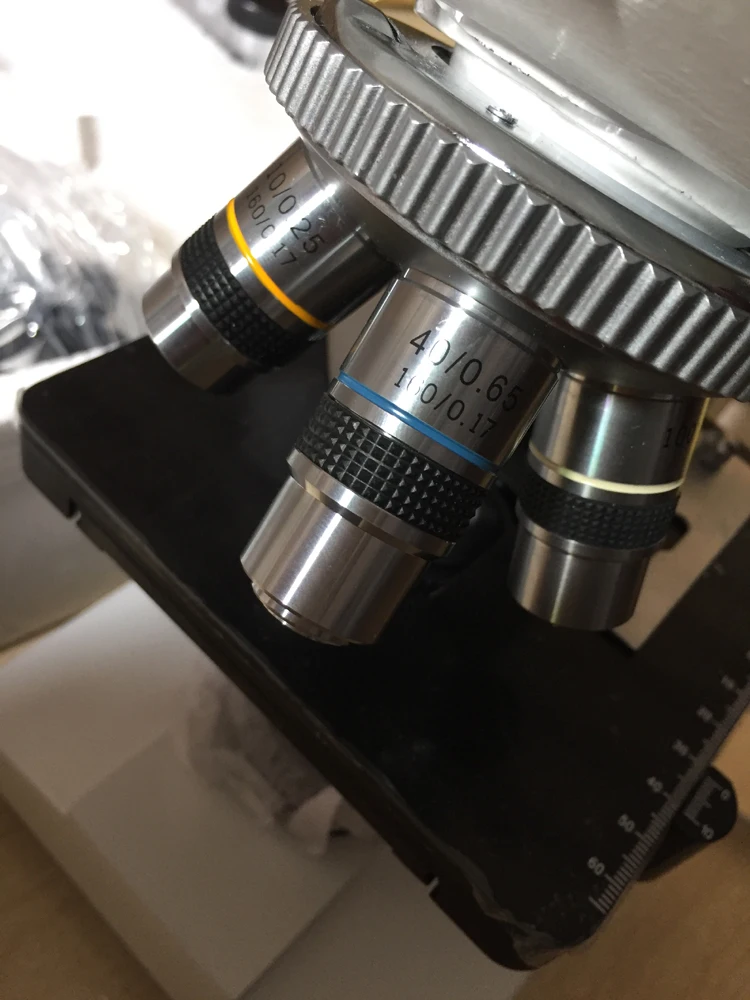

Achromatic Objectives	4X, 10X, 40X (Spring), 100X (Spring, Oil)
Eyepiece	Wide Field Eyepiece: WF10X, (WF16X optional)
Viewing head	Sliding Binocular Head Inclined at 45°
Stage	Double Layer Mechanical Stage Size 132 x140 mm Moving Range 75x45 mm
Focusing	Coaxial Coarse and Fine Adjustment; Focusing Range 30 mm; Focusing Interval 0.002 mm
Condenser	Abbe NA=1.25 with Iris Diaphragm & Filter
Illumination	Halogen Lamp 220V/6V20W or 110V/6V20W (LED lamp optional)
