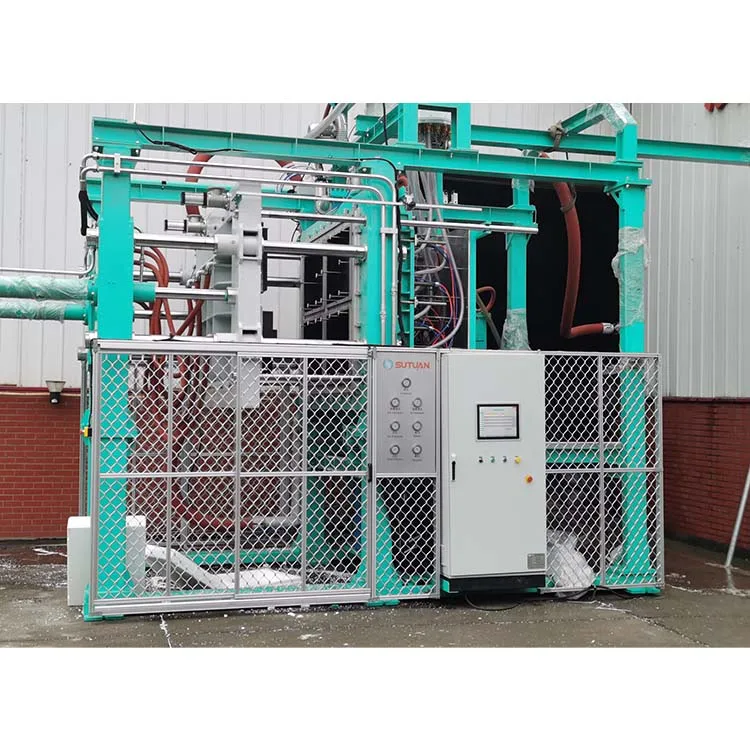

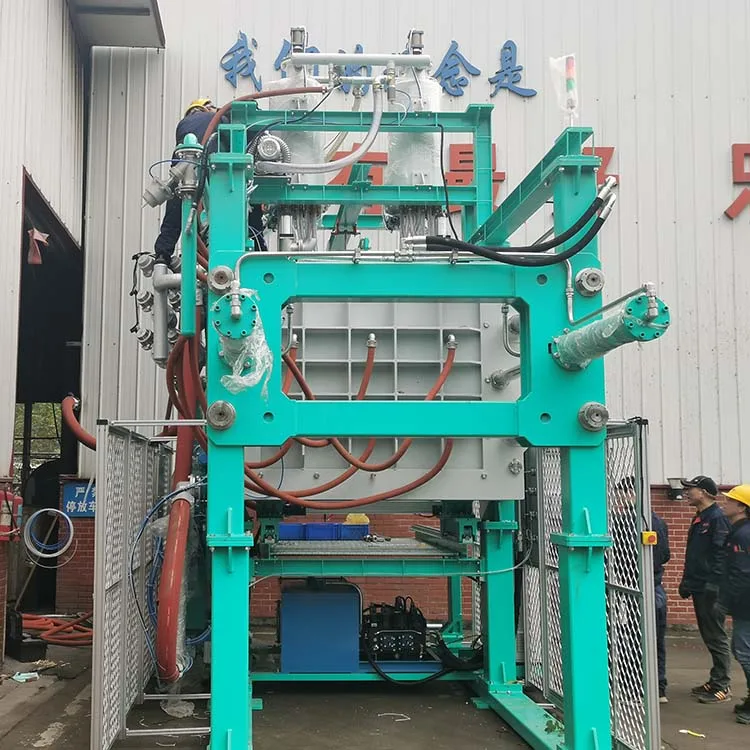

EPS Foam Cases Styrofoam Box Shape Molding Machine

Name: EPS Foam Cases Styrofoam Box Shape Molding Machine
SKU: 62375054968
Price: $19,880.00 USD
Availability: InStock

Price:$19,880.00

Quantity:

Product Information

Machine Type			Fast Mould Change Series EPS Shape Moulding Machine
Model					ST1214SQY	ST1417SQY	ST1618SQY
Data			unit		ST1214SQY	ST1417SQY	ST1618SQY
Overall			mm	536333104852	536336105152	536337105352
Mould size			mm	1200*1400	1400*1700	1600*1800
Product high			mm	350	350	350
Move Distance			mm	1200	1200	1200
Rod	Diameter	mm	80	80	100
Rod		Quantity	pcs	4	4	4
Oil	Diameter	mm	125	150	150
		Distance	mm	1200	1200	1200
		Force	bar	29437	42390	42390
Hopper	Capacity	L	145	145	145
Hopper		Quantity	pcs	2	2	2
Steam	Machine Inlet	DN	100	100	100
		Mould Inlet	DN	50*2	50*2	50*2
		Pressure	bar	6	6	6
		Consumption	Kg	4~5	4~5	4~5
Cooling	Machine Inlet	DN	80	80	80
		Mould Inlet	DN	50	50	50
		Pressure	bar	4	4	4
		Consumption	Kg	0~6.28	0~6.28	0~6.28
Vacuum	Connector		100	100	100
Vacuum		Drainage	L/h	100	100	100
Air	Low	DN	65	65	65
	Low			bar	4	4	4
		High	DN	50	50	50
		High		bar	6	6	6
		Consumption	m³	0.3~0.6	0.3~0.6	0.3~0.6
Hydraulic	Motor	Kw	7.5	11	11
Hydraulic		Capacity	L	400	400	400
