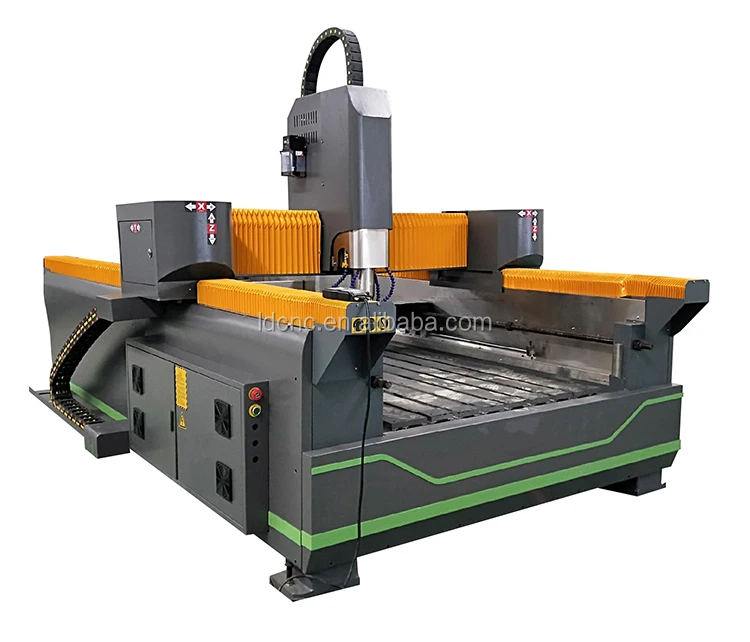

Marble Machine 1325 Stone CNC Router Granite Stone Engraving Machine
LD Marble CNC Router Application:
Stone cnc router LD-2030 is widely used in the stone industry to Engrave and process tombstone and stone furnitures which can be also used in the advertising to process models with various picture.
It's widely used in marble engraving , marble cutting ,wood engraving, wood cutting ,bamboo engraving, bamboo cutting, acrylic engraving, acrylic cutting, plastic engraving, plastic cutting
and metals such as copper engraving, cooper cutting and aluminum engraving , aluminum cutting. It can be also used for lettering,
embossment,and characters cut in relief, etc.
LD Stone Engraving CNC Router-Features:

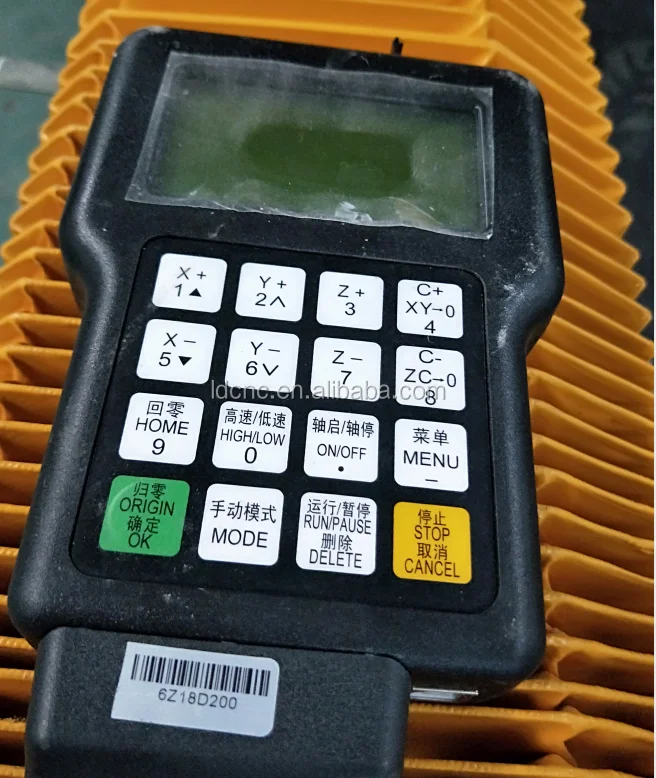

1. NC-studio /DSP control,the strongest steel made new dargon gate,strong enough
2. X,Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. All in one separately control box,can put computer
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.

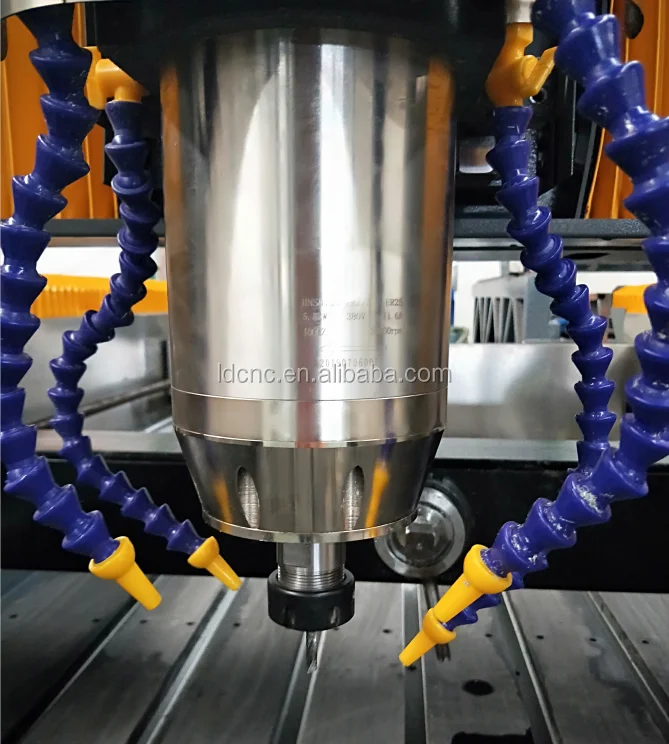

5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. The Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.Strongest body structure,thicked wall never broken or damage
8.With water tank suitable for all kinds of materails work
LD-Stone Engraving CNC Router Parameter:
| Model No. | LD-1325 |
| Table Size | 1300mm*2500mm |
| X, Y, Z Traveling Area | 1300mm*2500mm*500mm |
| Table Structure | Aluminum T-slot |
| X Y Transmission | Rack Gear |
| Z Transmission | Germany NEFF Ball Screw |
| X Y Z Guide rail | Round Rail |
| Spindle Power | 3KW Water Cooling Spindle |
| Max.Spindle Speed | 24000 rpm/min |
| Max. Traveling Speed | 25m/s |
| Max. Working Speed | 18m/s |
| Processing Accuracy | ±0.025mm |
| Reposition Accuracy | ≤0.025mm |
| Driving System | Stepper Motor |
| Command Language | HPGL, G Code |
| Control System | DSP |
| Working Voltage | AC380V, 50HZ |
| Net Weight/Gross Weight | 1100KGS /1200KGS |
| Package Dimension | 4200mm*2300mm*1800 mm |

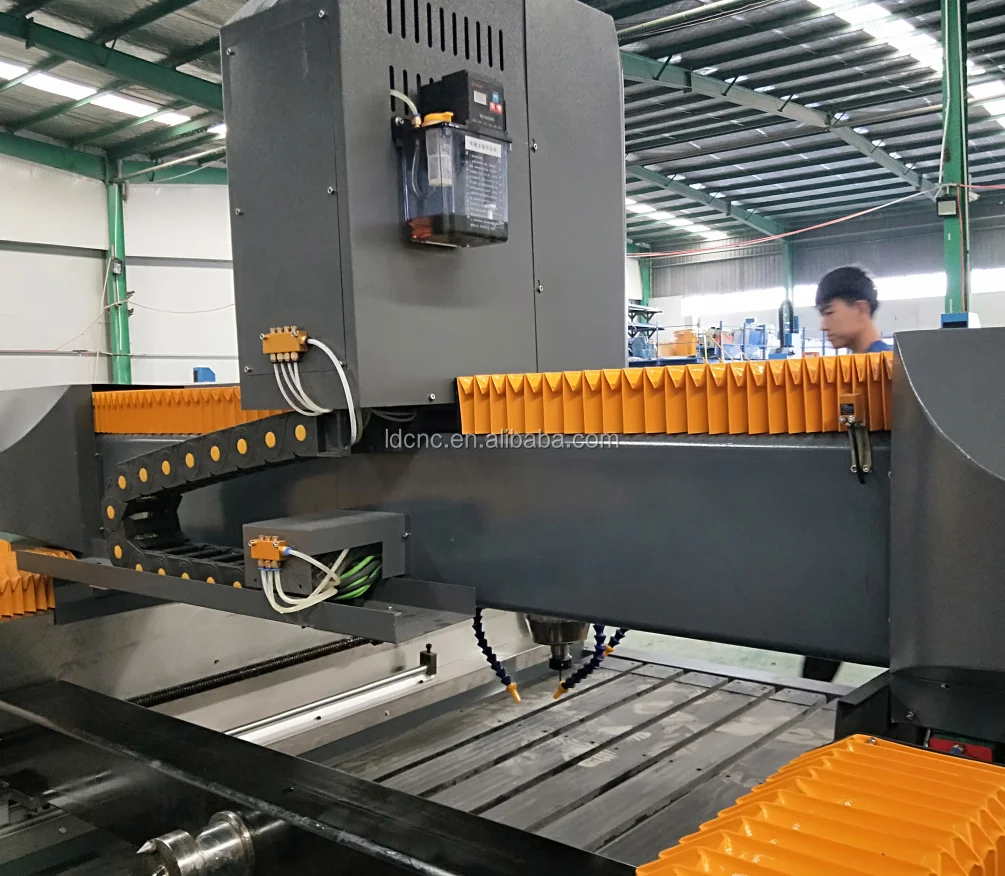

Machine Spare Parts:
The Sample
