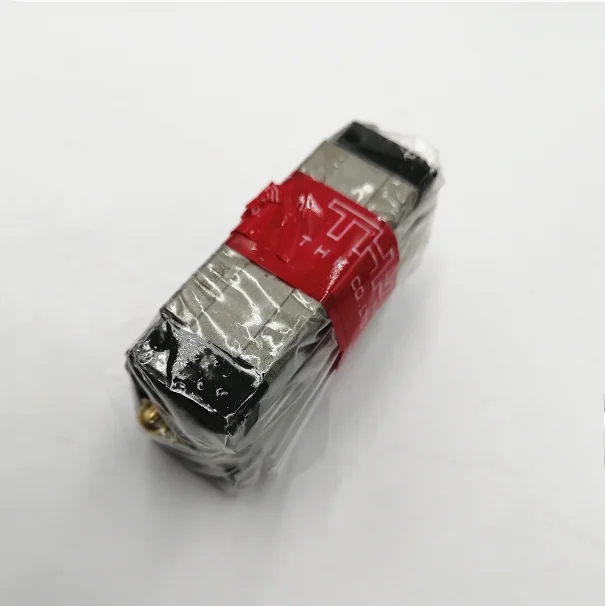

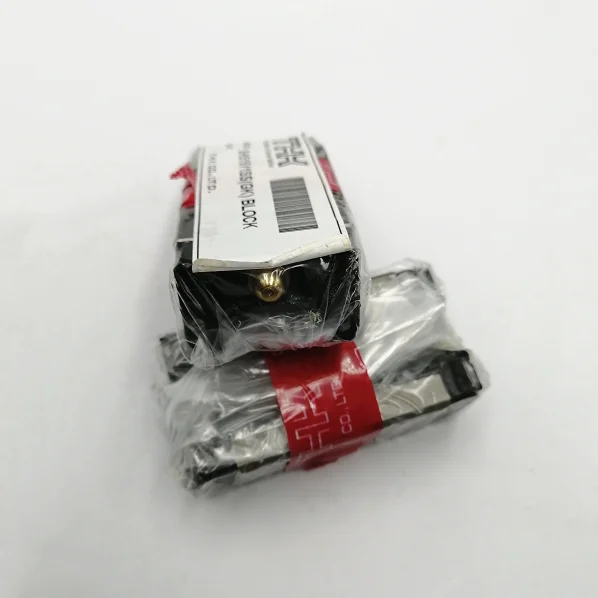

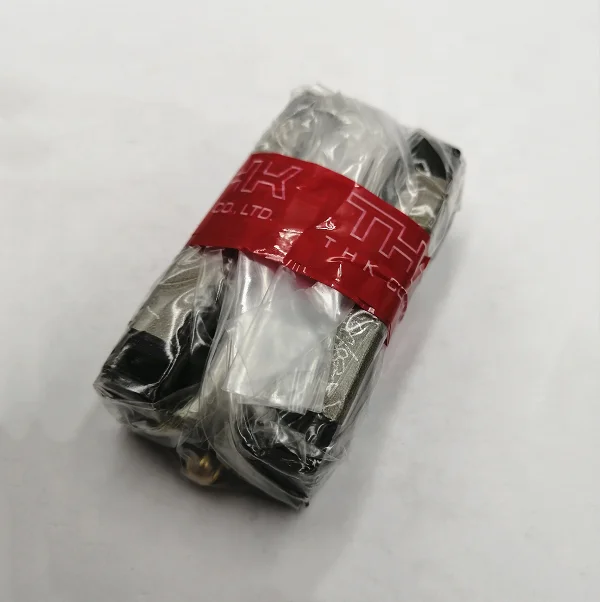

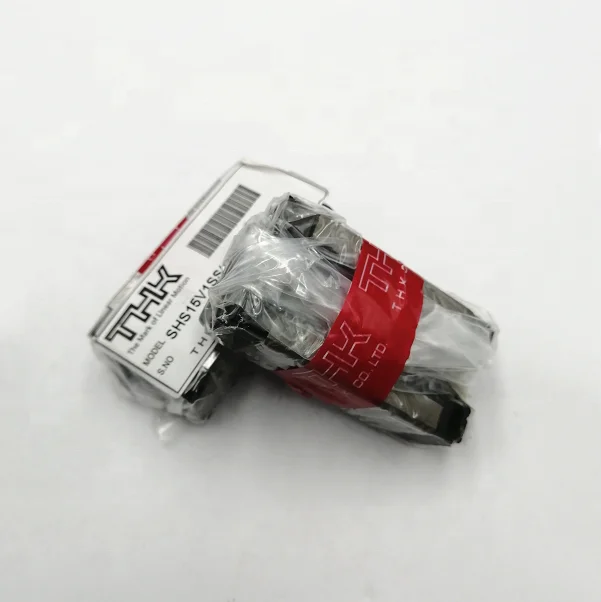

Original THK SHS15V SHS15V1SS Linear Bearing Guide Rail Slide Block
- Category: Linear Motion >>>
- Supplier: Changsha Terry Machinery Co. Ltd.
Share on (62375422116):
Product Overview
Description
Product's name | Original THK SHS15V SHS15V1SS Linear Bearing Guide Slide Block |
Model | SHS15V1SS |
Type | Square slide block |
Brand | Original THK |
Weight | 0.19kg |
Application | CNC, Grinding, Milling, Drilling machine, Lathe |
SHS-C type:
The flange of the LM block of SHS-C type has tapped holes. Can be mounted from the top or the bottom.Used in places where the table cannot have through holes for mounting bolts.
SHS-LC type:
The LM block SHS-LC types has the same cross-sectional shape as model SHS-C, but has a longer overall LM block length (L) and a greater rated load.
SHS-V type:
The LM block of SHS-V, has a smaller width (W) and tapped holes. Used in places where the space for table width is limited.
SHS-LV type:
The LM block of SHS-LV type has the same cross-sectional shape as model SHS-V, but has a longer overall LM block length (L) and a greater rated load.
SHS-R type:
The LM block of SHS-R type has a smaller width (W) and the mounting holes are tapped. It succeeds the height dimension of full-ball type LM Guide HSR-R.
SHS-LR type:
The LM block of SHS25LR type has the same cross-sectional shape as model SHS-R, but has a longer overall LM block length (L) and a greater rated load.
Block types
THK SHS types offers two types of linear guideways of square type and flange type.
The flange of the LM block of SHS-C type has tapped holes. Can be mounted from the top or the bottom.Used in places where the table cannot have through holes for mounting bolts.
SHS-LC type:
The LM block SHS-LC types has the same cross-sectional shape as model SHS-C, but has a longer overall LM block length (L) and a greater rated load.
SHS-V type:
The LM block of SHS-V, has a smaller width (W) and tapped holes. Used in places where the space for table width is limited.
SHS-LV type:
The LM block of SHS-LV type has the same cross-sectional shape as model SHS-V, but has a longer overall LM block length (L) and a greater rated load.
SHS-R type:
The LM block of SHS-R type has a smaller width (W) and the mounting holes are tapped. It succeeds the height dimension of full-ball type LM Guide HSR-R.
SHS-LR type:
The LM block of SHS25LR type has the same cross-sectional shape as model SHS-R, but has a longer overall LM block length (L) and a greater rated load.
Block types
THK SHS types offers two types of linear guideways of square type and flange type.

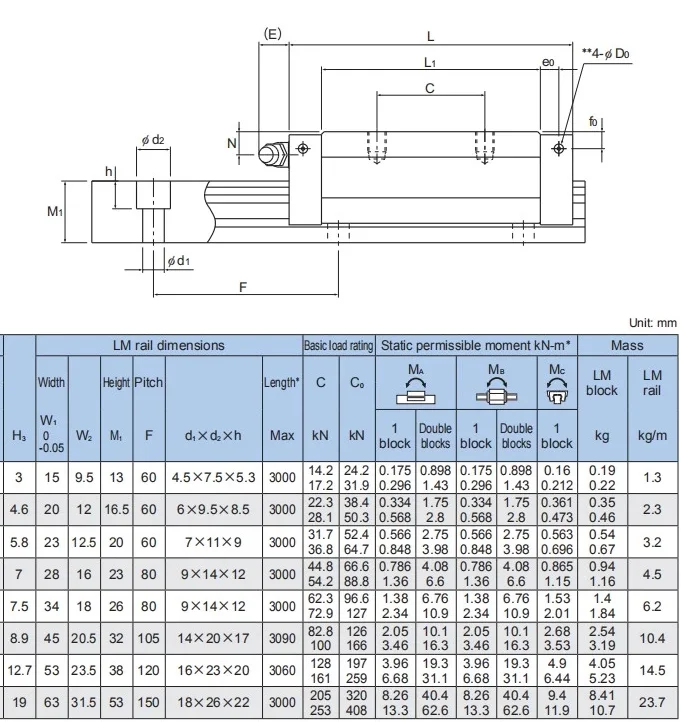

Product overall
15mm | 20mm | 25mm | 30mm |
SHS15-3000L (GK) RAIL | SHS20-3000L (GK) RAIL | SHS25-3000 (GK) RAIL | SHS30-3000 (GK) RAIL |
SHS15C1SS (GK) BLOCK | SHS20C1SS (GK) BLOCK | SHS25C1SS (GK) BLOCK | SHS30C1SS (GK) BLOCK |
SHS15C1UU (GK) BLOCK | SHS20C1UU (GK) BLOCK | SHS25C1UU (GK) BLOCK | SHS30C1UU (GK) BLOCK |
SHS15C1QZSS | SHS20C1QZSS | SHS25C1QZSS | SHS30C1QZSS |
SHS15V1SS | SHS20V1SS | SHS25V1SS | SHS30V1SS |
SHS15V1UU | SHS20V1UU | SHS25V1UU | SHS30V1UU |
SHS15V1QZSS | SHS20V1QZSS | SHS25V1QZSS | SHS30V1QZSS |
35mm | 45mm | 55mm | 65mm |
SHS35-3000L (GK) RAIL | SHS45-3090L (GK) RAIL | SHS55-3060L (GK) RAIL | SHS65-3000L (GK) RAIL |
SHS35C1SS (GK) BLOCK | SHS45C1SS (GK) BLOCK | SHS55C1SS (GK) BLOCK | SHS65C1SS (GK) BLOCK |
SHS35C1UU (GK) BLOCK | SHS45C1UU (GK) BLOCK | SHS55C1UU (GK) BLOCK | SHS65C1UU (GK) BLOCK |
SHS35C1QZSS | SHS45C1QZSS | SHS55C1QZSS | SHS65C1QZSS |
SHS35V1SS | SHS45V1SS | SHS55V1SS | SHS65V1UU |
SHS35V1UU | SHS45V1UU | SHS55V1UU | SHS65V1SS |
SHS35V1QZSS | SHS45V1QZSS | SHS45V1QZSS | SHS65V1QZSS |
Click here for more information>>>>>>
Related Products

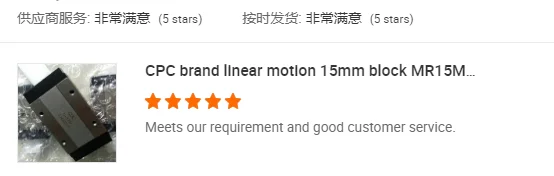

Customer Praise
