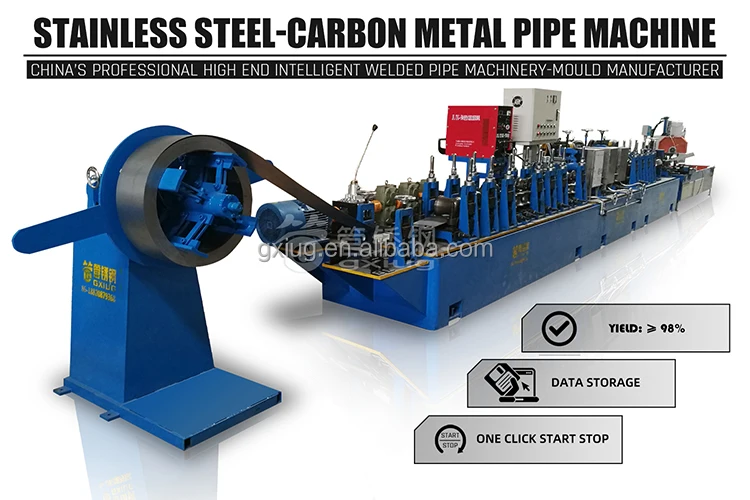

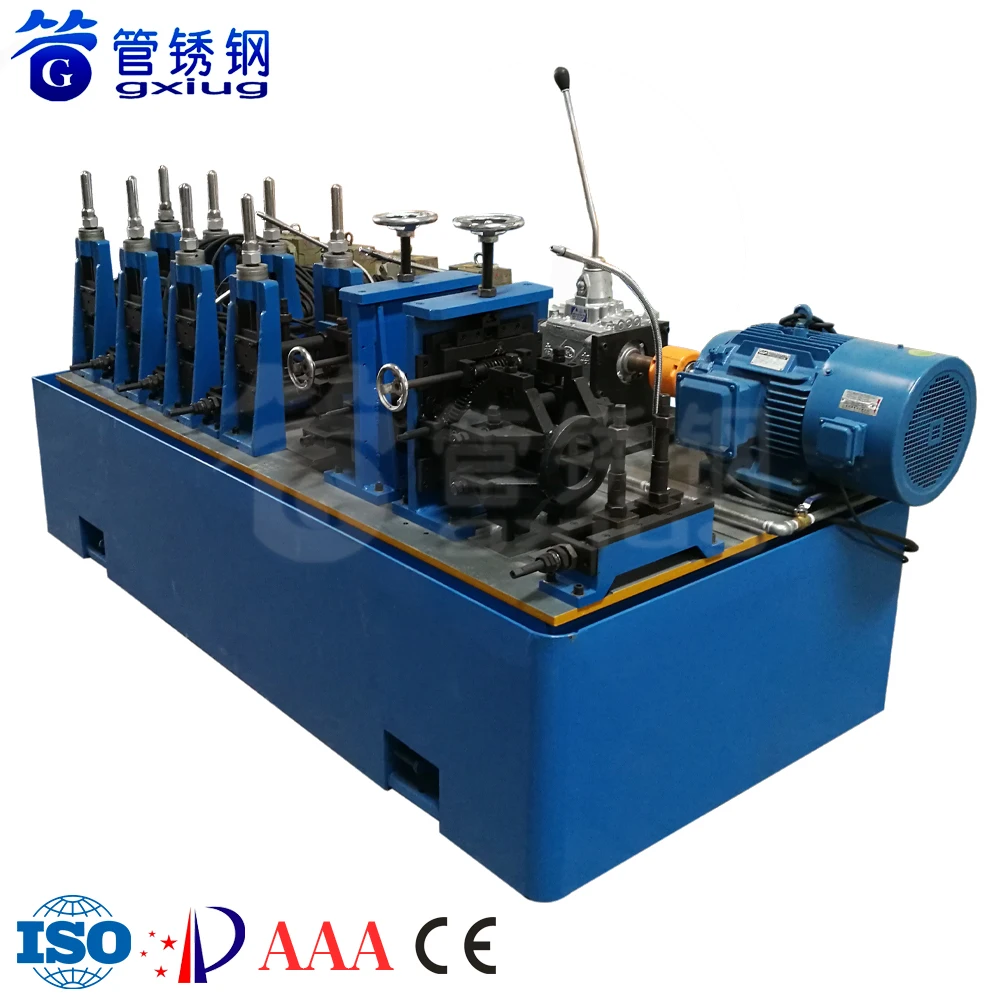

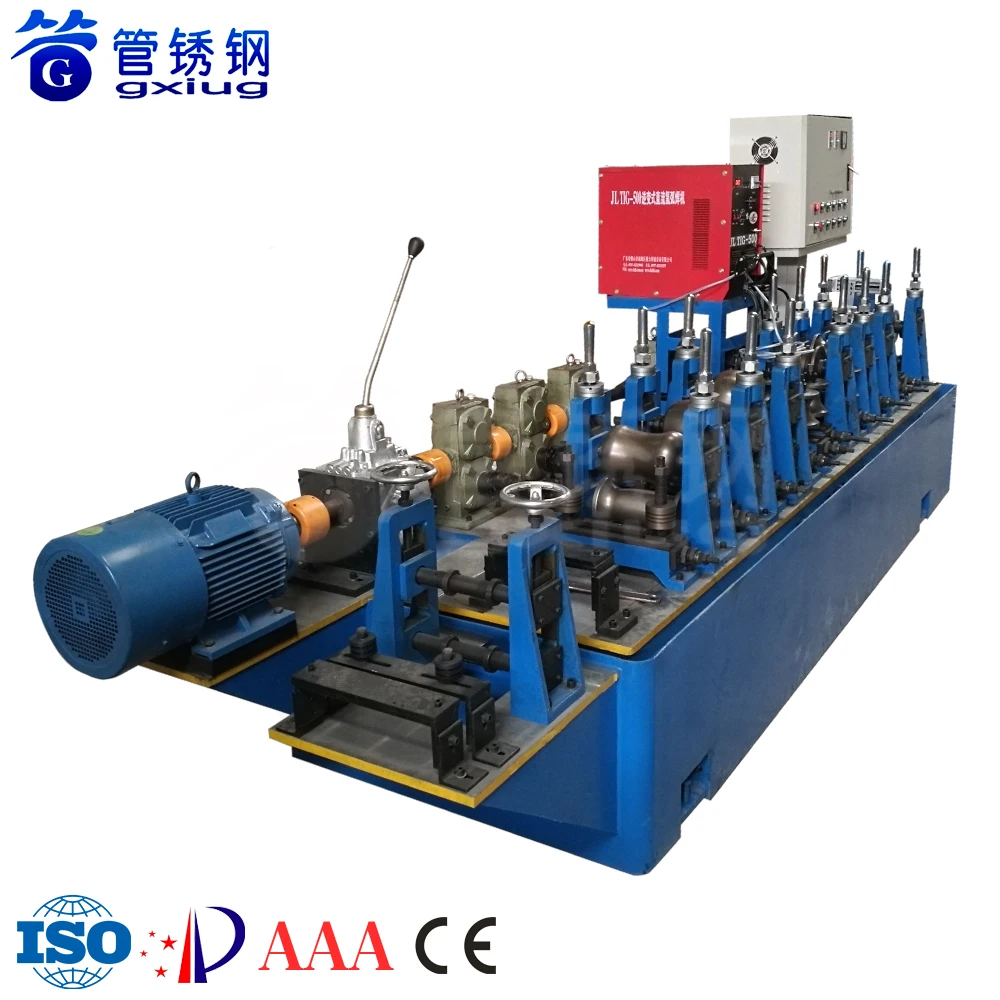

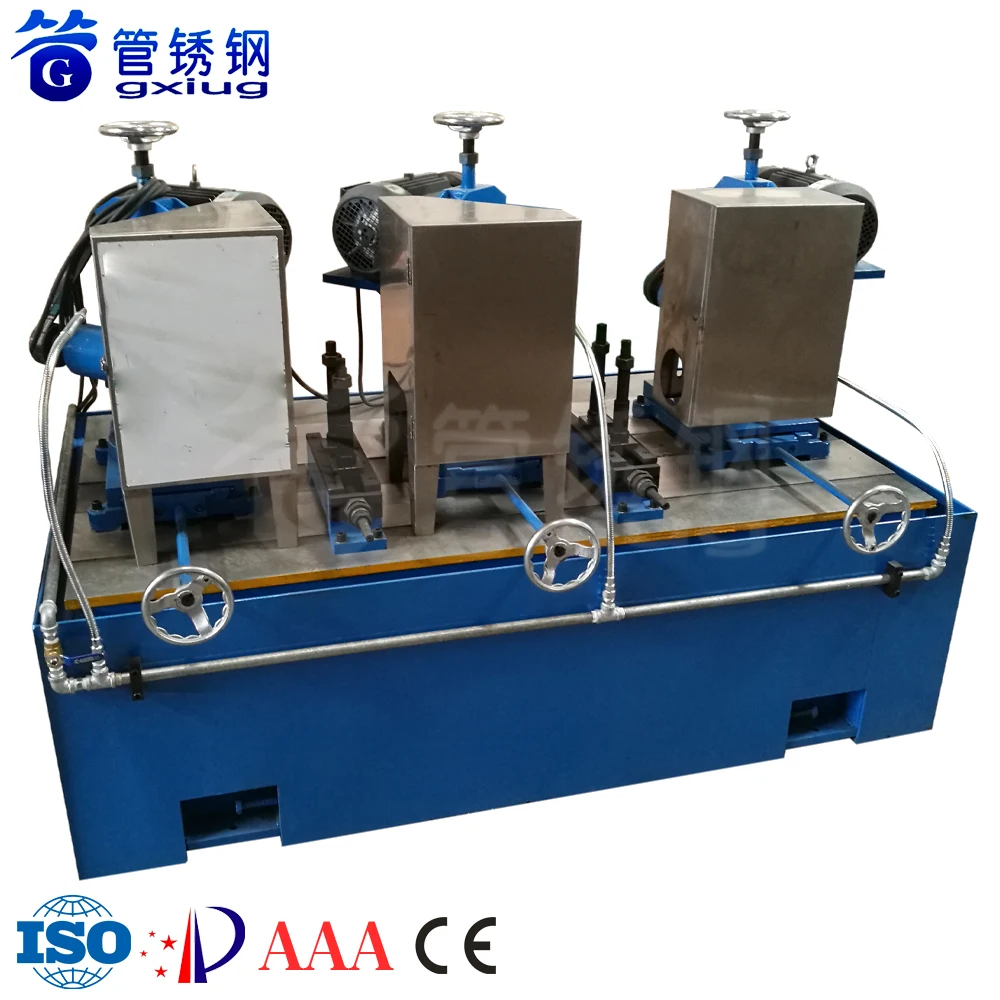

GXG Technology Round Stainless Steel Welding Pipe Making Machine Square Tube Mill

Product Overview

Description



TUBE MATERIAL:Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc

PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc

USAGE:Pipes for Furniture, Construction, Municipal Facilities etc Fields



MODEL	GXG-S40	GXG-40	GXG-L40	GXG-50	GXG-60
Round Tube Range (mm)	Ø5—31.8 1/5”—1-1/4”	Ø9.5—50.8 3/8”—2”	Ø15.9—63.5 5/8”—2-1/2”	Ø19.1—76.2 3/4”—3”	Ø31.8—114.0 1-1/4”—4-1/2”
Square Tube Range (mm)	5*5—25*25	8*8—40*40	13*13—50*50	20*20—60*60	30*30—90*90
Wall Thickness Range (mm)	0.15—0.8 / 0.5	0.23—1.5 /1.2	0.30—1.8 / 1.3	0.35—2.5 / 1.5	0.55—3.0 / 2.0
Horizontal Shaft Diameter(mm)	Ø40	Ø40	Ø45	Ø50	Ø60
Vertical Shaft Diameter(mm)	Ø20	Ø25	Ø25	Ø30	Ø35
Main Motor Power(kw)	5.5	7.5	7.5	11	15
Installation Dimension(L*W  m)	21*1	22*1.2	23*1.2	25*1.3	28*1.5
Rated Voltage(v)	220 / 380 / 415 / 440
