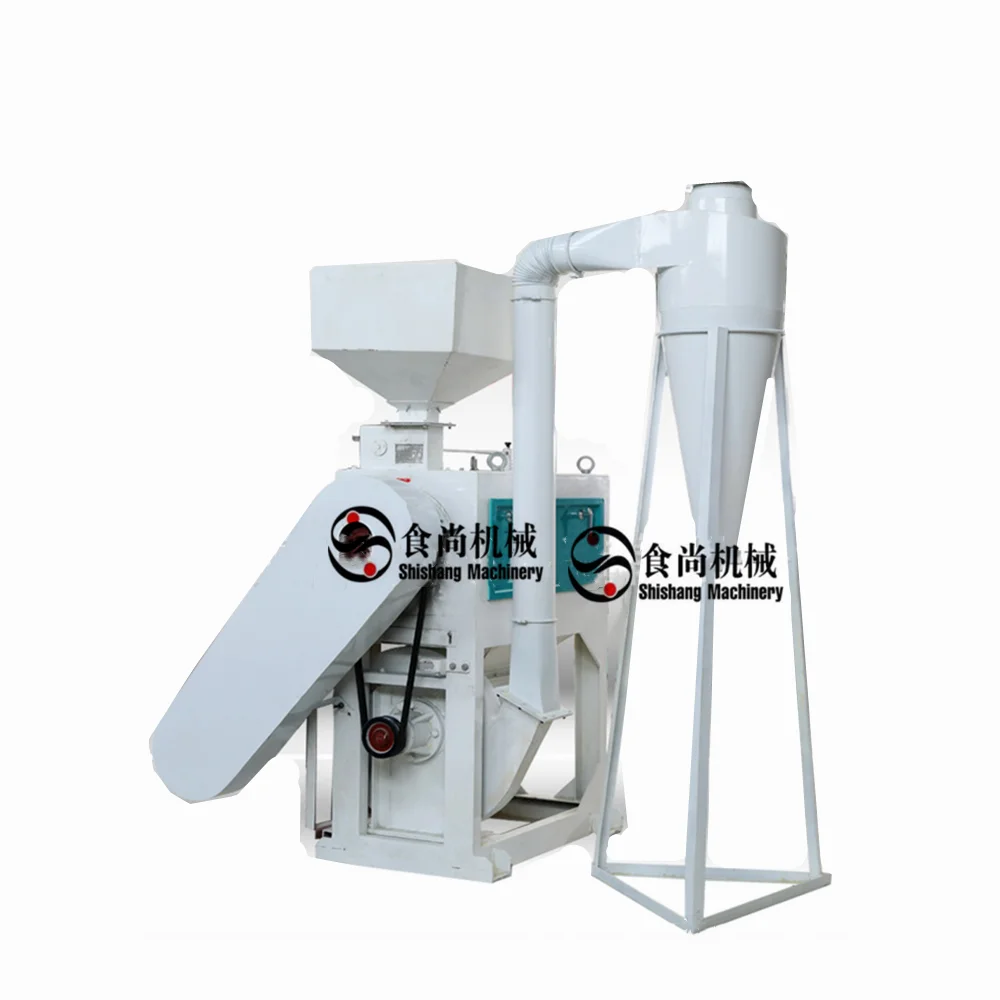

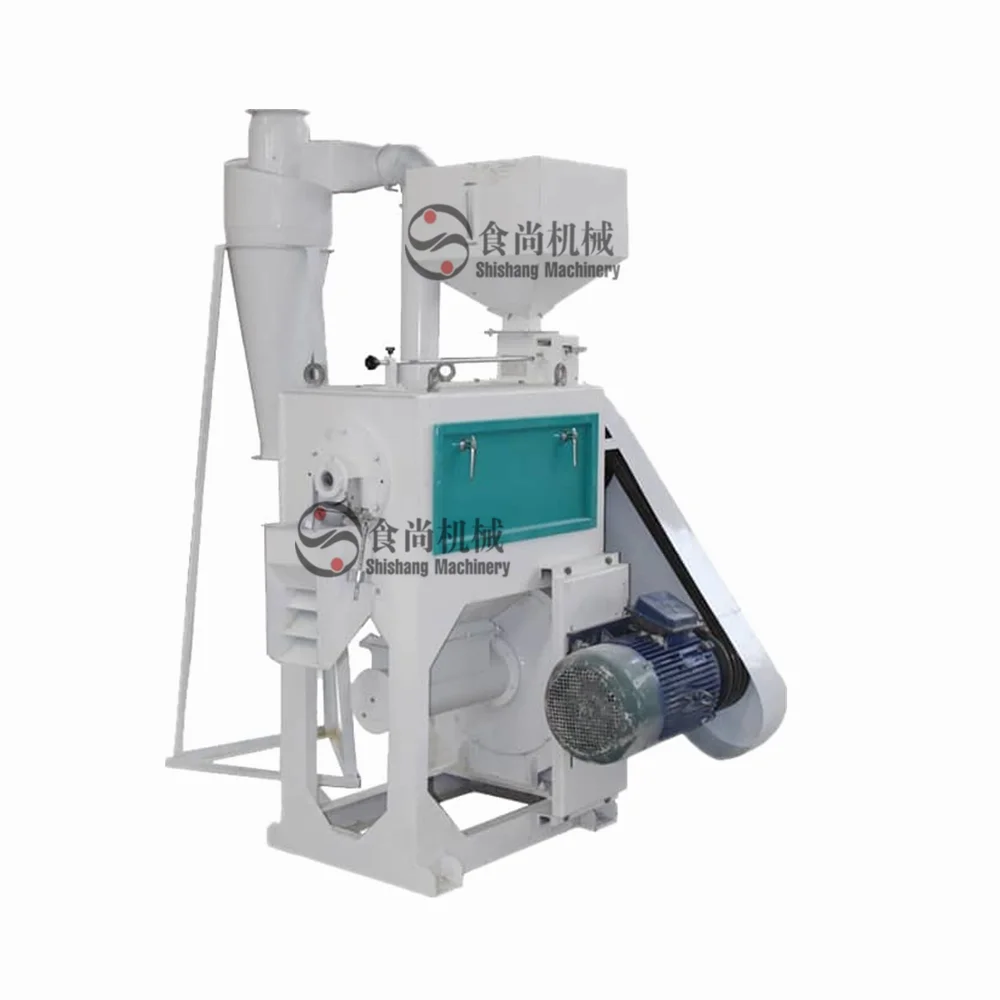

Garbanzo peeling machine mung bean peeler black soya bean skin remover
Product Description
Introduction:

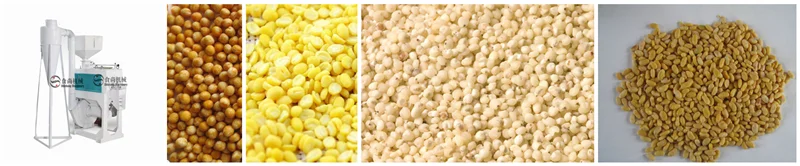

The peeling machine has the remarkable characteristics of high output and low crushing rate. Suitable for a variety of materials such as soybeans, mung beans, black beans, red beans, chickpeas, corn.
Working principle:
After the corn is fed into the whitening chamber by the feed hopper through the flow regulating mechanism, it is sent to the sanding roller by the screw head and spirally advanced along the surface of the sanding roller. The sharp sand grains on the surface of the corundum sanding roller rotated at a certain line speed are used to grind the glutinous rice cortex. The rice grains are rubbed with the rice grains, the rice grains and the rice sieves to make them rough and white. At the same time, the two-way air inlet of the main shaft is supplemented by a strong suction air net, forcing the powder to be separated from the bean kernels and the rice milling chamber, and discharging the sieve holes. The clean rice device is arranged at the discharge port to further reduce the temperature of the rice and perform secondary cleaning on the finished material.
Main feature:
1. Adopt axial air inlet design and configure strong wind extraction system. The bean kernel has low temperature and good drainage effect.
2. The feeding port is controlled by a gear drive mechanism, and the feeding operation is convenient and accurate.
3. The outlet is equipped with a cleaned rice meter to further reduce the temperature of the rice and clean the material of the product.
4. Unique motor frame, compact structure, small footprint, simple adjustment and convenient maintenance.
Technical parameters of soybean peeler:
Model:TPD-500
Capacity:500kg per hour
Voltage:380v
Power:15kw
Weight:600kg
Size:2150*1800*1200mm
Packaging & Shipping
Payment Terms
T/T, L/C, D/P, D/A, Escrow, Western Union,MoneyGram
Package
1.first check the machine,make sure everything is ok,then wrap the machine in plastic film ,and packed in wooden package.
We will reinforce the package to avoid damage during transport.
2.we will send you the picture before and after packing.
Delivery time
Within 10 working days after receiving the deposit.
Quality Guarantee Terms
Quality guarantee term is for 12 months. Malfunctions which are caused by machine itself and quality will be responsible for our company. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Our Services
1.Reply all your questions within one hour on workdays.
2.We have our own factory,can customize the product according to your needs.
3.We have 10 years export experience,can supply the service of production,inspection of goods and transport .
4.we test each machine before delivery ,make sure customer get the good quality machine they ordered.
5.warranty time is for one year,professional timely advice and spare parts will be offered all the time.
Company Information
Weifang shishang Machinery co.,ltd ,which is a set design,development,production,sales ,into an integrated enterprise,specialized in the production of packing machine,
vegetable processing ,meat processing equipment,nuts processing line and so on. We have more than 10 year export experience ,so we can provide you professional advice and supply you the suitable machine. Welcome all customers to contact with us,and looking forward to cooperating with you.
