Moko Newest Bluetooth Beacon Eddystone W4 Ultra Small iBeacon with push button
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (62375508414):
Product Overview
Description
Moko Newest Bluetooth Beacon Eddystone W4 Ultra Small iBeacon with push button
Product Description
Item | Value | Remarks | ||||
Case Color | White | Other colors can be customized | ||||
Battery Model | CR2032 | Coin battery, 1pc, 150mAh | ||||
Operation Voltage | 1.8-3.6V | DC | ||||
Waterproof level | IP67 | |||||
Transmission Current | 2.5mA | Tested at -4dBm transmission power and 900ms broadcasting Interval | ||||
Average Current | 18uA | Tested at -4dBm transmission power and 900ms broadcasting Interval | ||||
Transmission Range | 80m(+4dBm) | The range depends on the physical environment | ||||
Antenna | 50ohm | On board/PCB Antenna/Ceramic Antenna | ||||

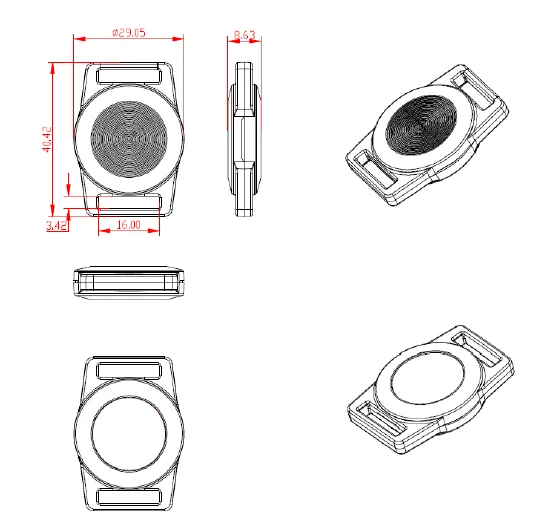

Size | 32.5 x 32.5 x 6.22mm | Null | ||||
Net Weight | 7.8g | With battery | ||||
Customization | Color/Logo/Label | |||||
Product Usage
How to use it
Load the URL onto beacon
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
TURN ON/OFF W4
Turn on
1.1Press the BUTTON and keep holding 5 seconds, the Red LED will Light on 5 seconds and then off;
Turn off
2.Press the BUTTON and keep holding 5 seconds, the Red LED will flash 5 times and then off;
1.1Press the BUTTON and keep holding 5 seconds, the Red LED will Light on 5 seconds and then off;
Turn off
2.Press the BUTTON and keep holding 5 seconds, the Red LED will flash 5 times and then off;
Certifications
Company Introduction
Packing&Shipping
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Configuration APP 4. Instructions
Q3: Is the Beacons Certified ?
A3: Yes, our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the parameters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Configuration APP 4. Instructions
Q3: Is the Beacons Certified ?
A3: Yes, our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the parameters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
