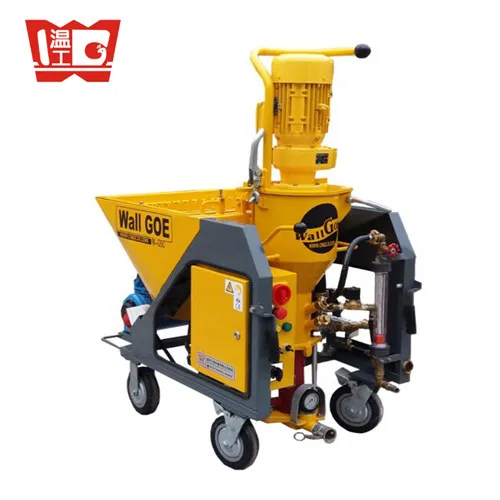

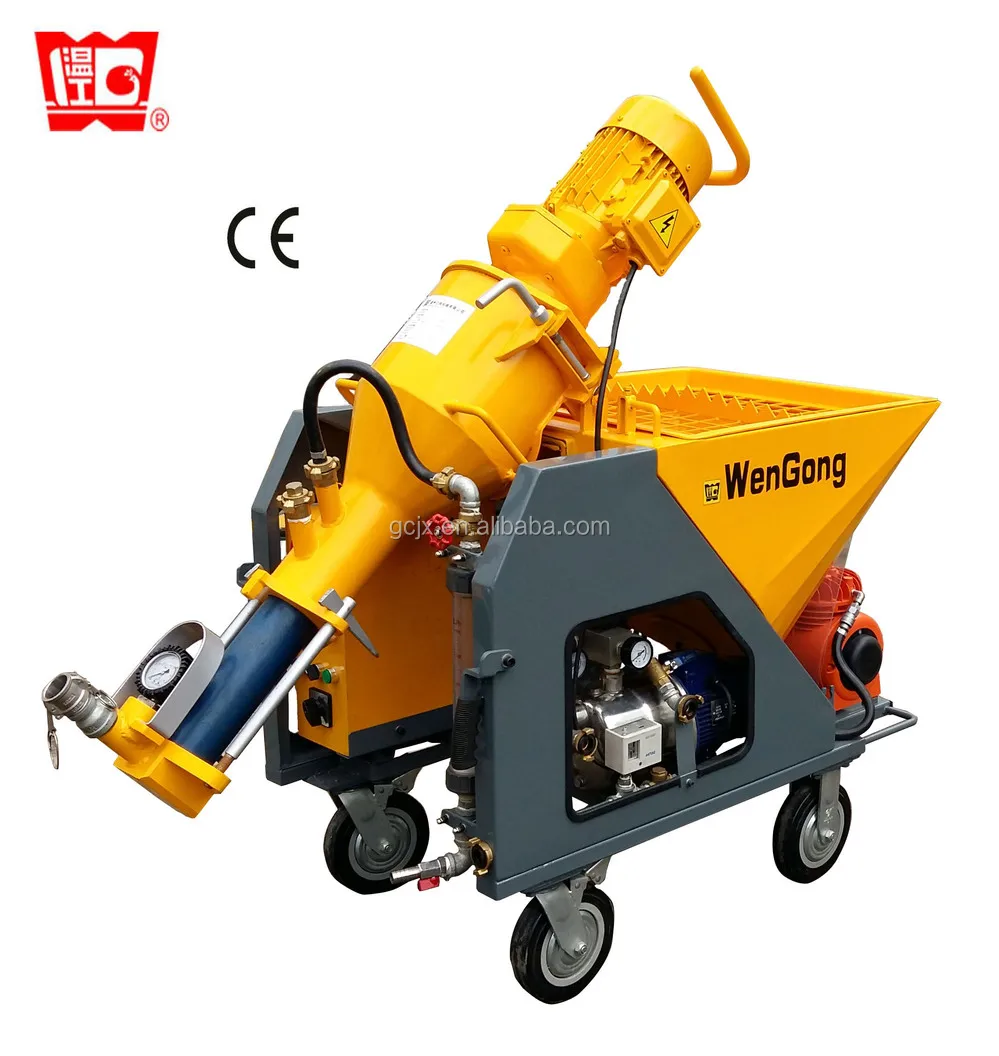

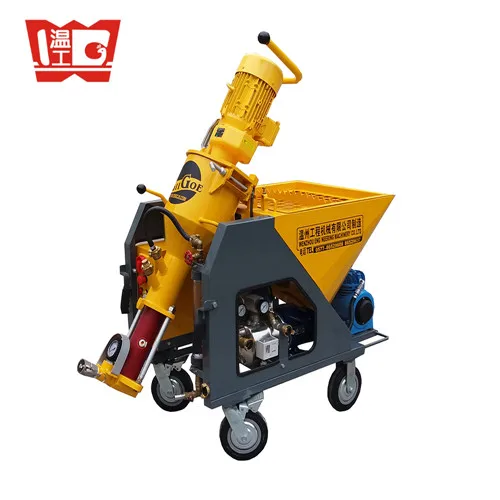

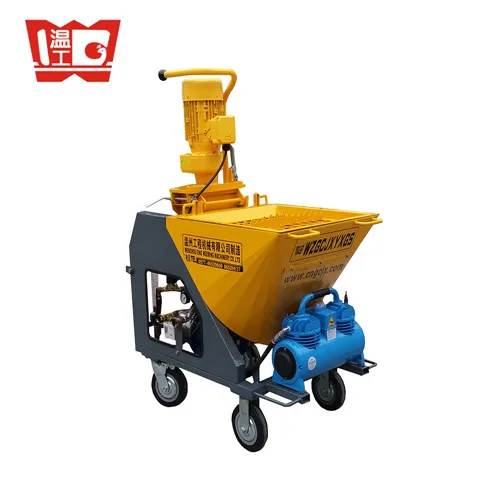

G5C is same design as PFT G5C and Turbosol GIOTTO.
Automatically add water mixing, pumping, spraying gypsum-based or cement-based ready-mixed mortar, insulation mortar and self-leveling mortar, G5C is fully automatic plastering machine type, it's so compact and suitable for small spaces.
Why you choose it?
1. Simple operation, strong applicability. 2. Configuring efficient motor reducer. 3. Special bending steel, strong pressure. 4. Universal and interchangeable wear parts. 5. Cost-effective, long service life.
Technical parameters
Power Supply
Three phase
Output capacity
30l/min
Plaster motor
5.5 kW
Dosing hopper motor
0.75 kW
Air compressor
250l/min 0.9kW
Water pump
90l/min 0.75kW
Loading height
990mm
Hopper volume
110L
Working pressure
30bar
Horizontal delivery distance
50m
Vertical delivery distance
20m
Dimensions
1150×650×1470mm
Net Weight
250kg

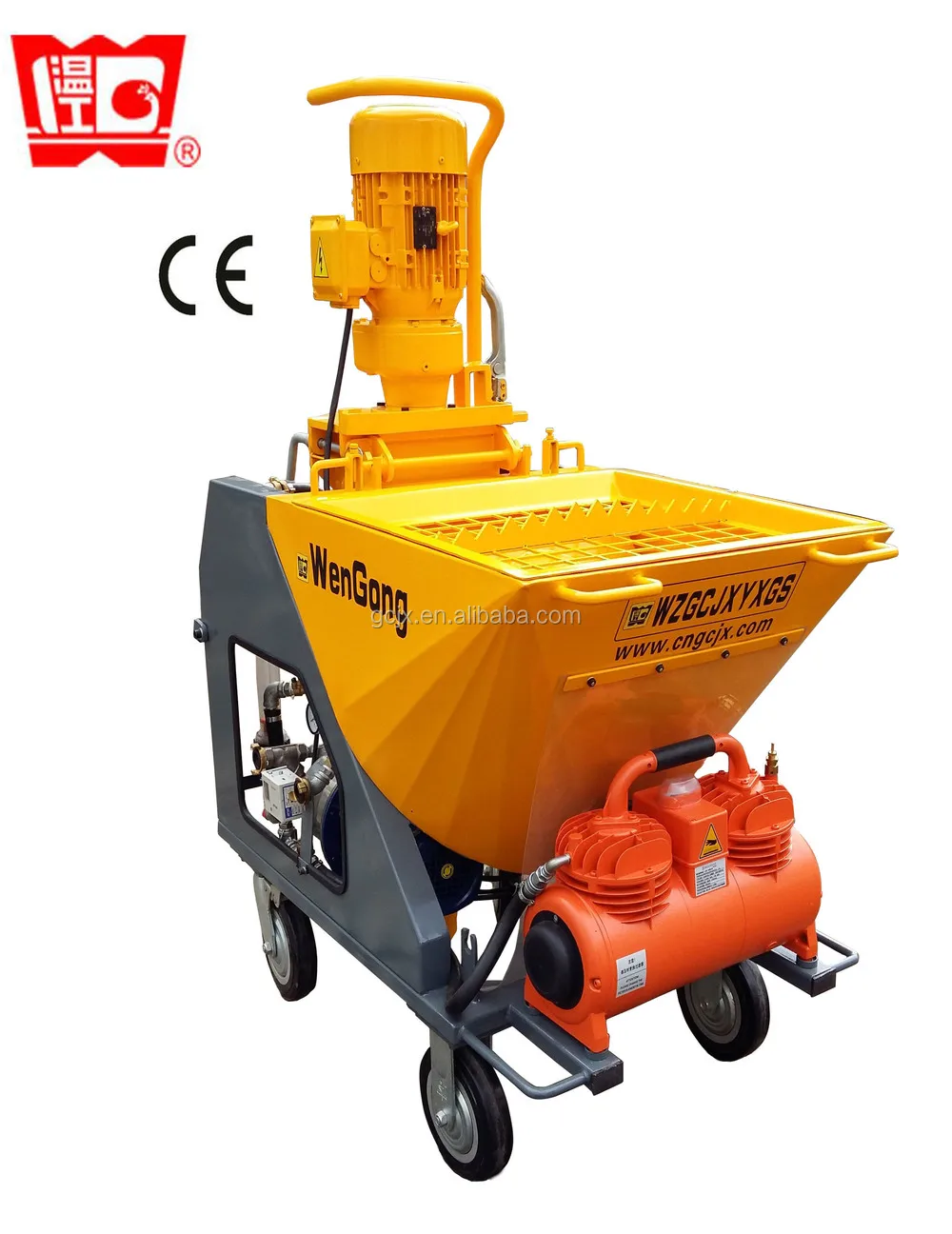

1. G5C cement spray plaster machine is adopted same design as PFT G5C and Turbosol GIOTTO

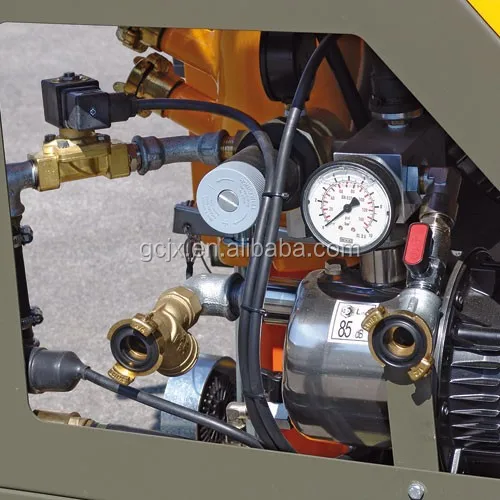

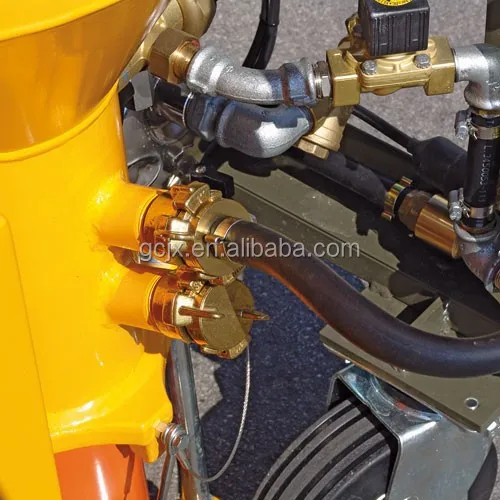

a. Electric water circuit pump

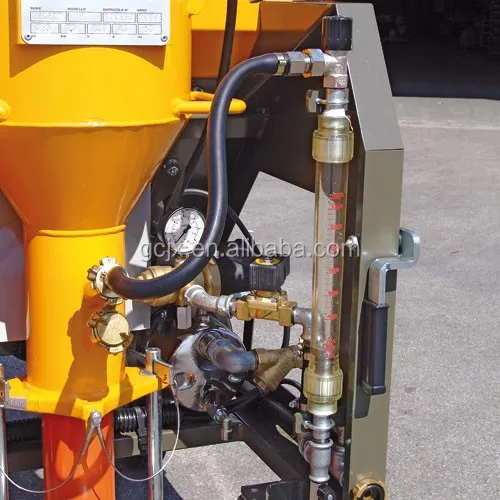

b. Micrometric valve and flowmeter
c. Mixing chamber

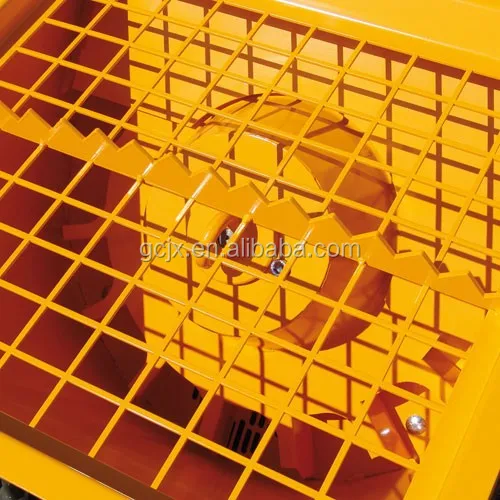

d. Inside inclined hopper can feed pre-mixed mortar, gypsum-based mortar uniformly.
2. The main components of G5C are both imported from Germany, the air compressor and mixing motor are same suppliers as Pft German suppliers.

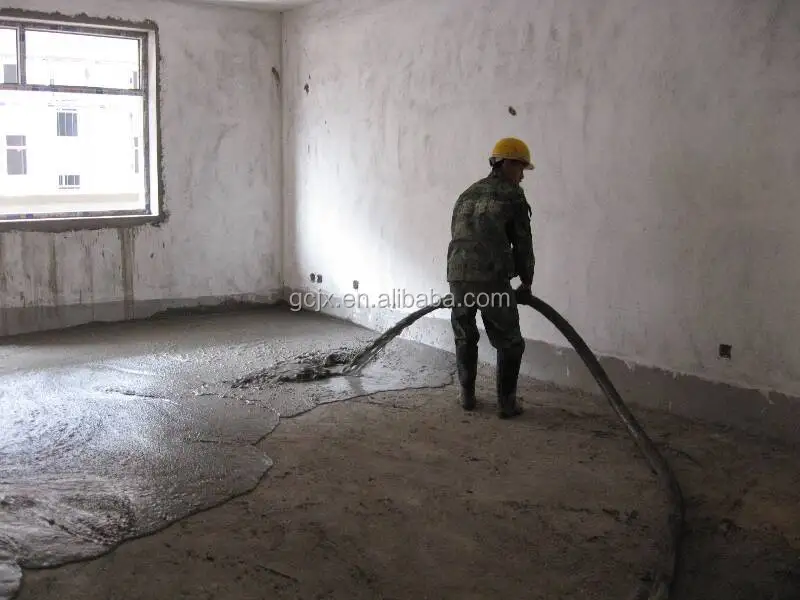

3. G5C is used for spraying, pumping and grouting mortar and gypsum. Can also do self-leveling for floor.

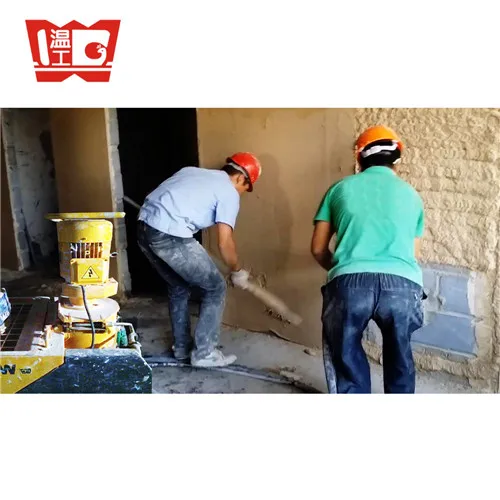

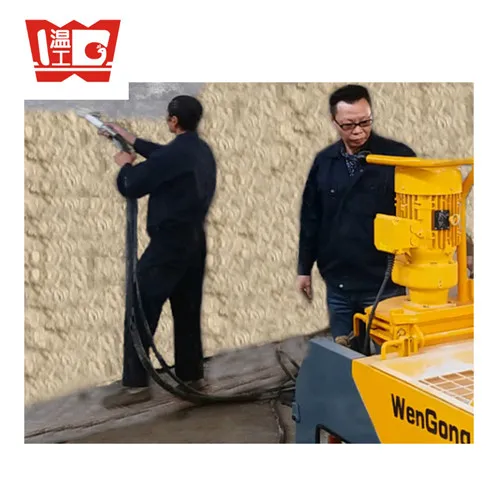

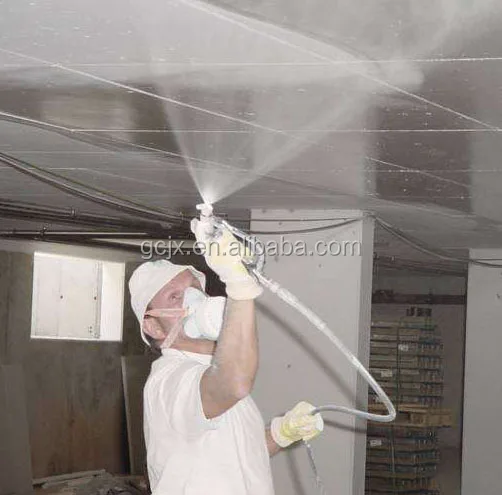

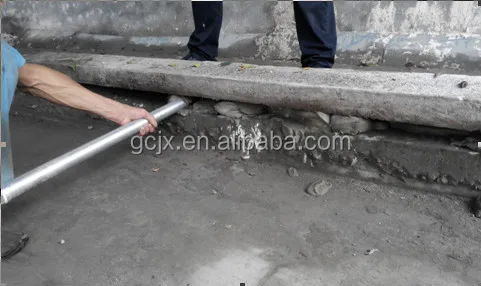

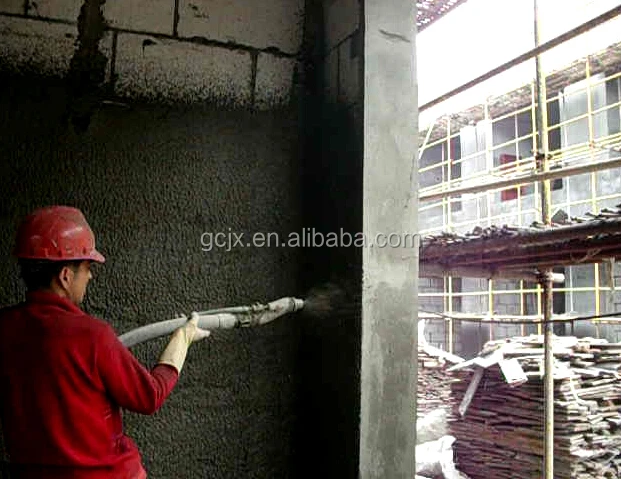

Construction Case
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
