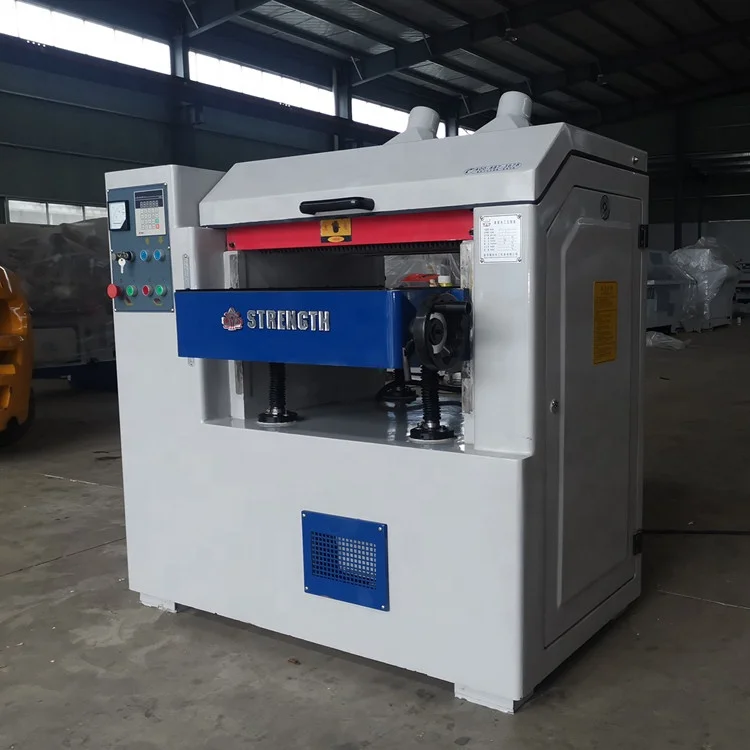

Woodworking cnc Machinery Press Wood Planer Thickness Machines For Sale
- Category: >>>
- Supplier: Jinhua Lima Machinery Co. Ltd.
Share on (62375604317):
Product Overview
Description
Product Description
Planers
Each wood planer is manufactured according to our specifications and tough quality control standards. We build our
planers with steel frames and cast iron tables for rigidity and accuracy.
*20” /25” width
* 10” maximum cutting height
* Segmented infeed rolls
* 10/15 hp motor spins at 5,000rpm
planers with steel frames and cast iron tables for rigidity and accuracy.
*20” /25” width
* 10” maximum cutting height
* Segmented infeed rolls
* 10/15 hp motor spins at 5,000rpm
SIZE: 20" /25"
20'' Model MBZ105A(Equipped with straight cutter head) ; MBZ105AL(Equipped with spiral helical cutter head)
25'' Model MBZ106A(Equipped with straight cutter head) ; MBZ106AL(Equipped with spiral helical cutter head)
Main technical parameter | MBZ105A/MBZ105AL | MBZ106A/MBZ106AL |
Max. wood width | 500mm | 630mm |
Max. wood thickness | 255mm | 255mm |
Min. wood thickness | 5mm | 5mm |
Min. working length | 220mm | 220mm |
Max. cutting & planing depth | 5mm | 5mm |
Cutter head speed | 5000r/min | 5000r/min |
Feeding speed | 3-18m/min | 3-18m/min |
Main motor | 7.5kw | 11kw |
Machine weight | 900kg | 1000kg |
THICKNESS PLANER MAIN FEATURES:
Automatic adjusting thickness up & down, 4 poles make the machine more stable and durable.

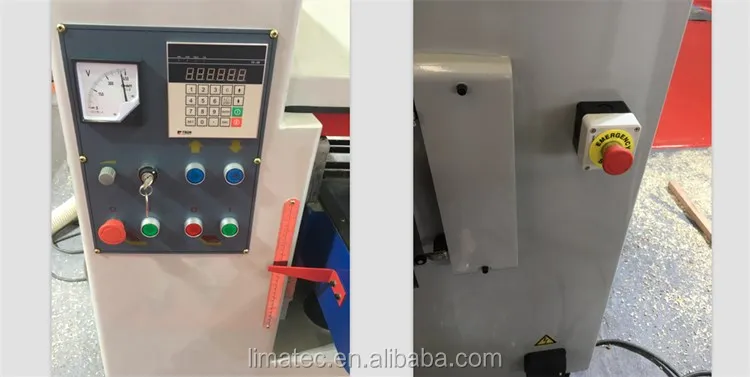

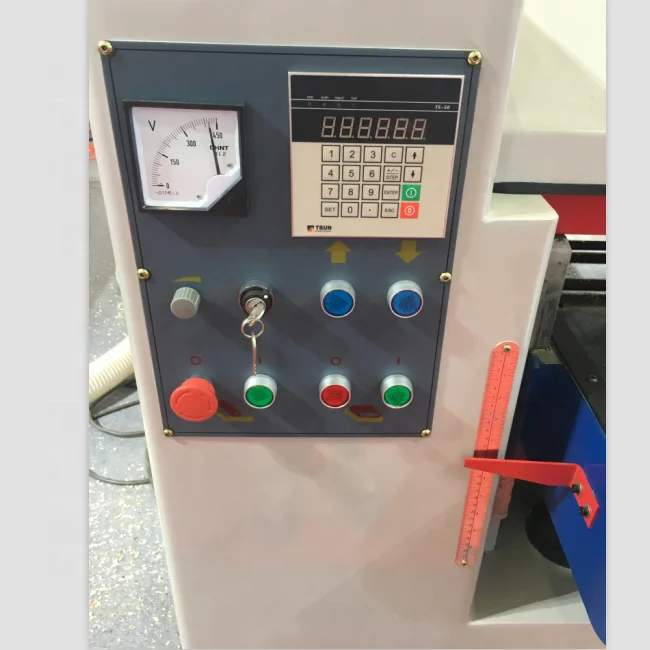

Set thickness as you want on display to ensure planning accurate

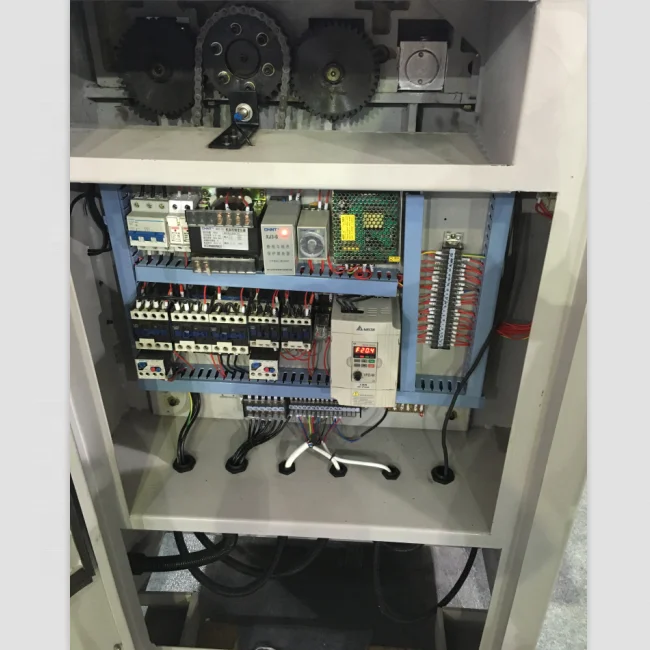

Frequency motor: can adjust the feeding speed according to wood thickness, wood hard or soft, ec
Double new feeding roller, easy operate, more stronger and smooth.
Heavy cast iron one-piece frame and base.
Easy and accurate assembly of the knives.
High quality for long period of use.
Top rollers for returning stock
Table raises and lowers easily.
Gear driven feed rollers for trouble free feeding.
Sealed long-life ball bearings.
Heavy-duty precision ground cast iron stable.
Fast for mass production performance.
Industrial motor for durability usage.
Anti-kickback fingers for safety protection.
Automatic adjusting thickness up & down, 4 poles make the machine more stable and durable.
Set thickness as you want on display to ensure planning accurate
Frequency motor: can adjust the feeding speed according to wood thickness, wood hard or soft, ec
Double new feeding roller, easy operate, more stronger and smooth.
Heavy cast iron one-piece frame and base.
Easy and accurate assembly of the knives.
High quality for long period of use.
Top rollers for returning stock
Table raises and lowers easily.
Gear driven feed rollers for trouble free feeding.
Sealed long-life ball bearings.
Heavy-duty precision ground cast iron stable.
Fast for mass production performance.
Industrial motor for durability usage.
Anti-kickback fingers for safety protection.

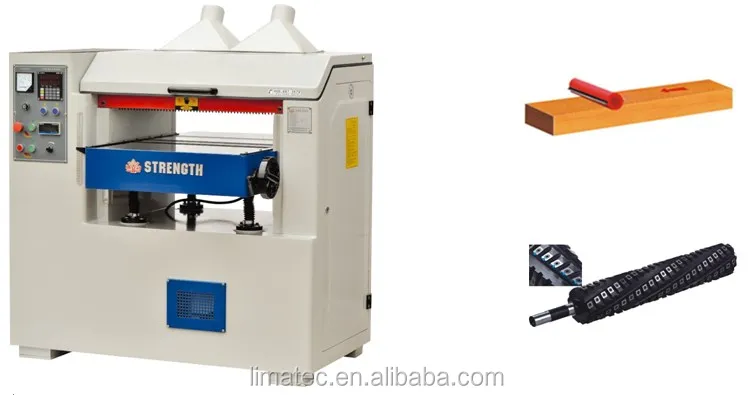

Wood planer can be equipped with straight cutter head or Spiral Helical Cutter head.Spiral cutter head is much better and easy to change the blades.

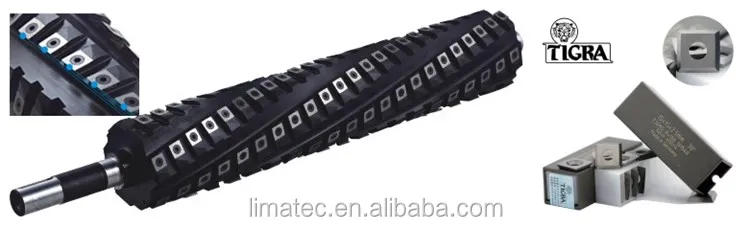

Optional Spiral Helical cutter head
Low Noisy.Easy to change the tips.
Save your time and value your wood
Save your time and value your wood
TIGRA Carbide Tips made in Germany
4 Faces TipsMade in Germany
Using longer time
Using longer time
DESCRIPTION of SPIRAL HELICAL CUTTER HEAD
Spiral cutter head will last longer than standard straight knife cutters. You can rotate the cutting teeth so the planer
stays sharp.
* Carbide cutting teeth are more durable than straight steel blades.
* Each square tooth has 4 cutting edges. If you wear out an edge, you can rotate the cutting square 90° for a new edge.
* Spiral head offers a smoother cut if correctly set up.
* No need to worry about leaving streaks on boards if a cutting tooth gets chipped. Just rotate it and continue to produce
quality results.
* Small cutting teeth produce narrower chips than straight-knife cutters, so your dust collector won’t get clogged.
* Faster and easier to set up: the cutter head comes with each square indexed in its place. (With a straight 3-knife cutter, you
have to adjust the height.)
* Much quieter than a 3-knife head. The tiny blade squares are staggered and don’t hit the material at the same time.
* Covered by a 1-year warranty.
Spiral cutter head will last longer than standard straight knife cutters. You can rotate the cutting teeth so the planer
stays sharp.
* Carbide cutting teeth are more durable than straight steel blades.
* Each square tooth has 4 cutting edges. If you wear out an edge, you can rotate the cutting square 90° for a new edge.
* Spiral head offers a smoother cut if correctly set up.
* No need to worry about leaving streaks on boards if a cutting tooth gets chipped. Just rotate it and continue to produce
quality results.
* Small cutting teeth produce narrower chips than straight-knife cutters, so your dust collector won’t get clogged.
* Faster and easier to set up: the cutter head comes with each square indexed in its place. (With a straight 3-knife cutter, you
have to adjust the height.)
* Much quieter than a 3-knife head. The tiny blade squares are staggered and don’t hit the material at the same time.
* Covered by a 1-year warranty.

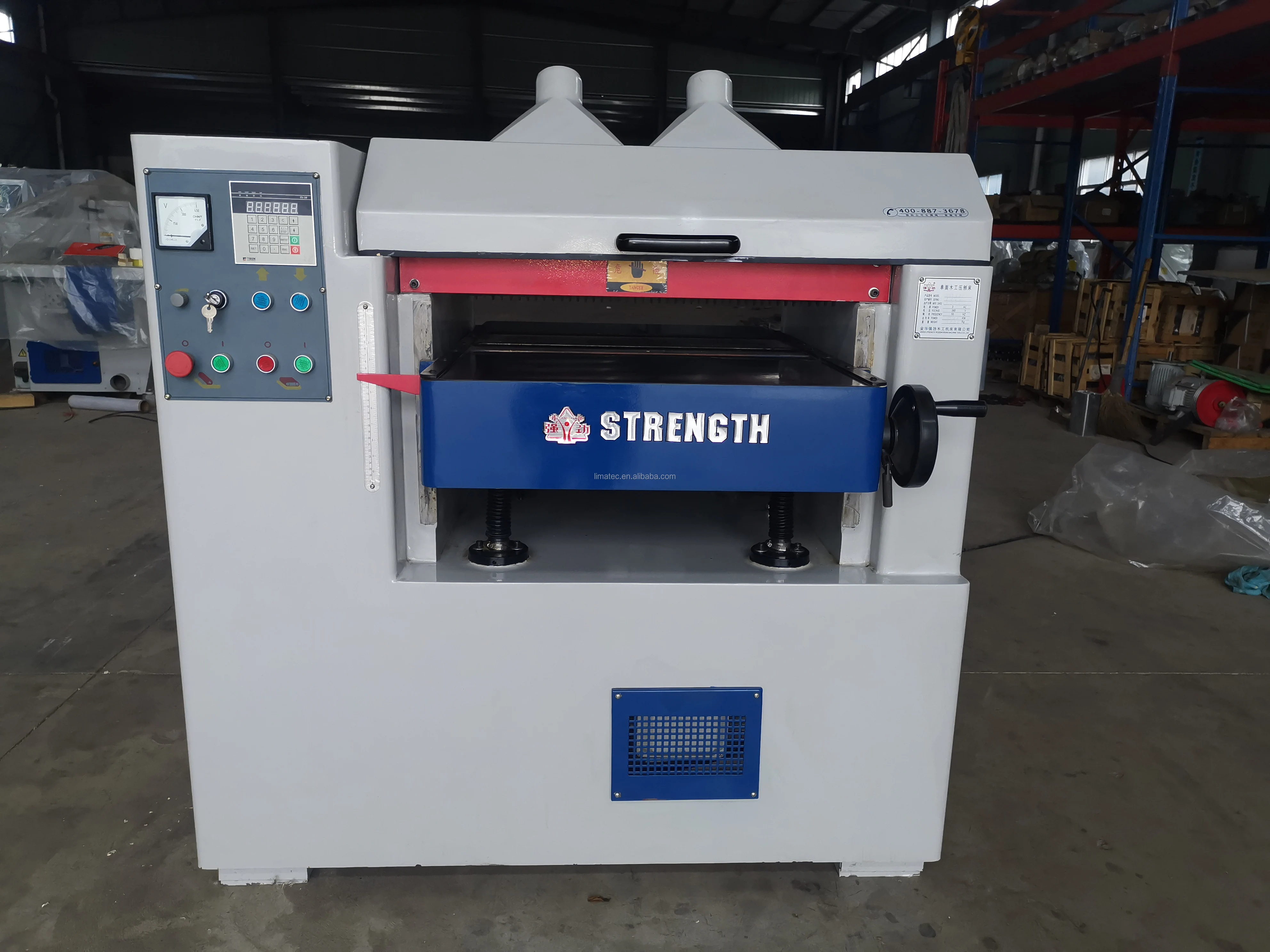

Detailed Images
Related Products
Packing&Shipping
After Sales Service
Company Introduction

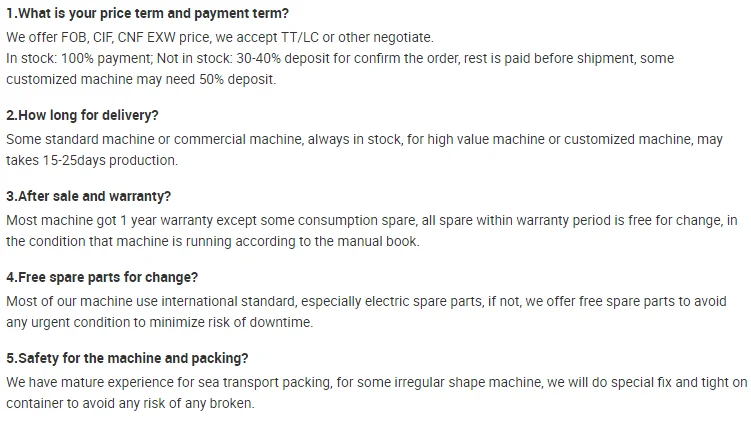

FAQ
