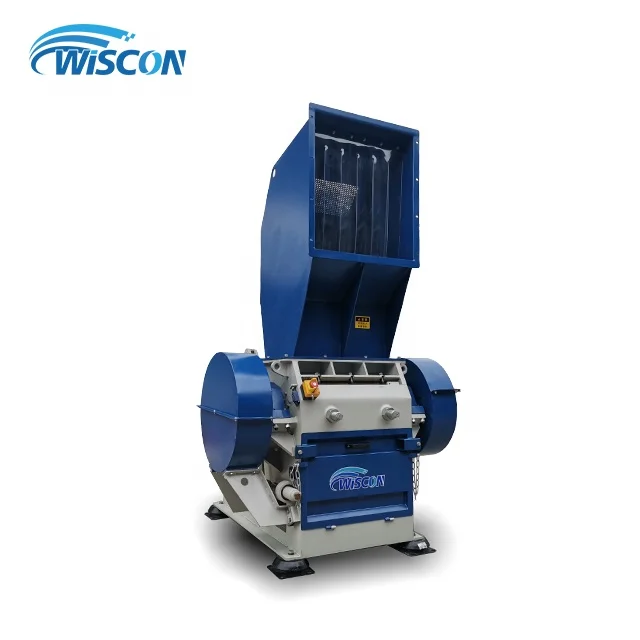

Plastic Pipe Crusher Machine PPR HDPEP PVC PE UPVC pipe tubing hose tube Crushing Machine pipe grinder tube granulator (62375700692)

Share on (62375700692):


Price:$6,350.00 - $6,450.00
Price in USD:Details

Quantity:


Product Overview

Description



Watch it Shreds




Product Description


Crusher/Granulator ensures smooth size reduction of plastic and rubbery products, such as PP, PE, PET, PVC in all sizes. The crusher is usually used as secondary shredding due to its high rotational speed and sharp blades.

Featuring robust welded steel construction and stable operation, but during crushing, metal and similar hard foreign objects are not allowed to be disposed of into crushing chamber. 4 rotors are tailored for versatile applications and producing uniform regrind, whose size is determined by screen opening.

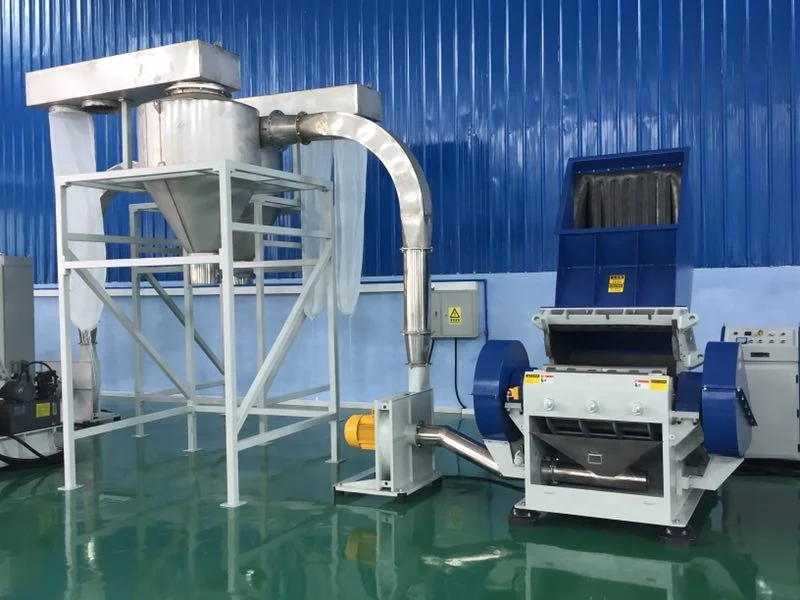

The resulting regrind can be pneumatically conveyed and collected, forming a simple recycling system with no dust and reduced labour cost.


Features
Rotor blades and counter blades adopt D2 steel.
Main electrical components are trusted brands such as Siemens and Schneider.
Hopper & cradle are hydraulically actuated for easy blade & screen replacement.
Rotary and counter blades can be re-sharpened, greatly reducing operating cost.
Screen is easily interchangeable.


Applications


Plastic lumps, sheets, films, pipes, bottles, sprues, runners, rejects, etc.
Leather, wood branch, paper and cardboard.






Details & Specs




Spare Parts
Counter blades can be used both sides.
Rotary blades and Counter blades are 30% higher wear resistance.
Screen opening is customizable from 12mm to 40mm.
V and C rotor are tailored to handling different materials.


Item/Model
CS260
CS360
CS480
Rotor Diameter (mm)
260
320
420
Rotor Working Width (mm)
600
600
800
Rotor Speed (RPM)
520
520
520
Rotor Knife qty(pcs)
3*2
3*2
3*2
Counter Knife qty(pcs)
2*1
2*1
2*1
Screen opening(mm)
Dia. 4-20
Dia. 4-20
Dia. 4-20
Motor Power(KW)
15
22
37
Hopper Opening A*B (mm)
1580*600
1600*600
1670*800
L*W*H Dimension(mm)
1320*1250*2070
1410*1400*2300
1630*1670*2390
Weight(kg)
1260
1435
3000




Company Profile


Wiscon, the Leader of Recycling Industry
Since 2000, Wiscon offers a spectrum of recycling machines and solutions for waste processing. The Wiscon product portfolio ranges from shredder machine and crusher to complete recycling systems for plastics, woods and metals. We also design and execute large projects on request.

In the past 2 decades, with the aim of always finding the best possible solution for each customer,
Wiscon has always been building partnerships with our customers based on our ability to create value, transmit reliability, and to offer cost-effective solutions for success.


Cutting-edge Machine Tools
Accurate manufacturing processes ensures consistent quality to our customers. We utilize first-class machine tools, such as,
CNC machine from Spain.
Lathe machine from Taiwan.
Flame cutting machine from Japan.
Laser cutting machine from Japan and Germany.
Gantry machining center and Boring machine from Korea.

From carefully selected materials to scrupulous care of all production phases, we gain the highest level of satisfaction by producing and delivering the best machines to every customer.


Exhibition & Customer




Certifications




FAQ


Feel free to ask. Always.
Q: Do you provide installation and after-sales service?
A: There are our distributors and agents who can provide local service in some regions. Our technicians are available to be dispatched to assist installation of recycling systems.

Q: How long is your delivery time?
A: Most models are in stock unless customized-made. The lead time for shredder and crusher are 25 days. Recycling system is around 45-60 days depending on project scale.

Q: How long is the warranty?
A: Equipment or parts (excluding consumable parts ) manufactured by Seller which fail to function properly because of defects in material or workmanship, within one year from date of delivery date will be repaired or replaced by Seller.

Q: What is your payment term ?
A: 1. TT 30% advance and pay remaining balance before shipment.
2. LC at sign.
3. Western Union or Trade Assurance.

Q: How many years has Wiscon been established?
A: Wiscon was established in 2000, and we have a dynamic sales team and most of engineers have been working in this industry for over 14 years.
