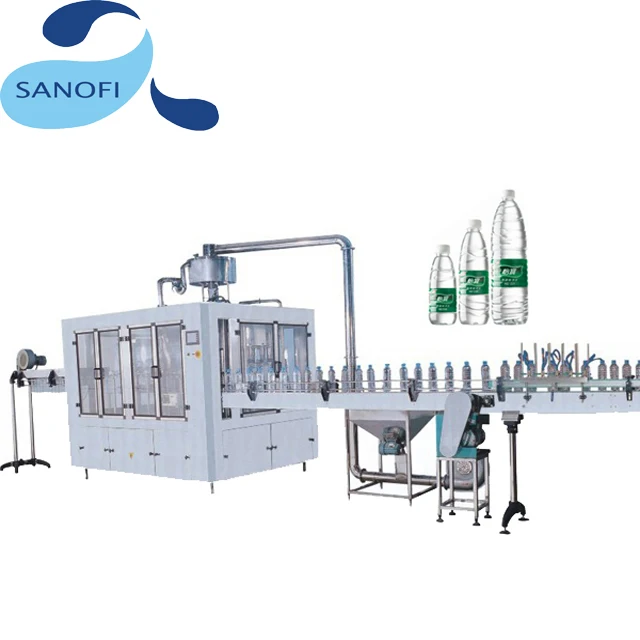

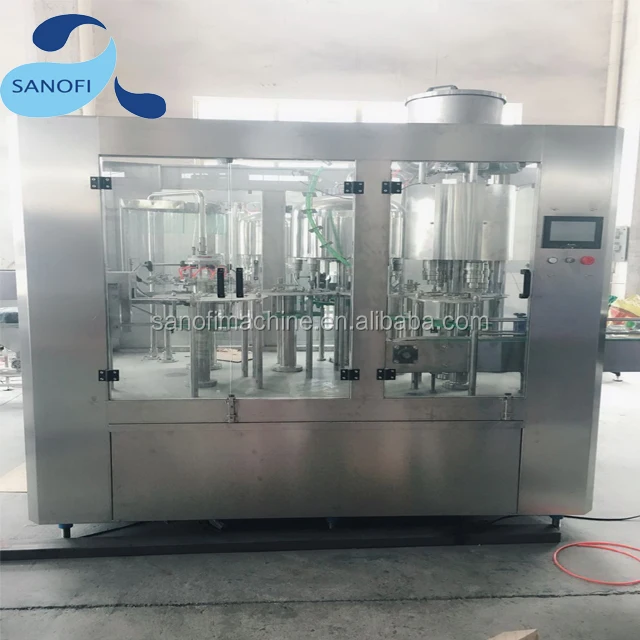

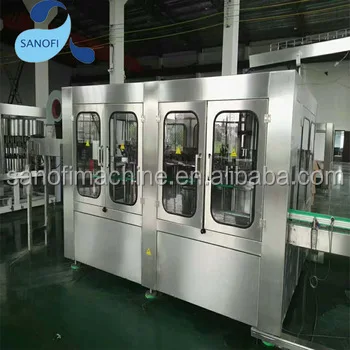

drink Water Filling bottling machine/3in1 bottling machine
- Category: >>>
- Supplier: Zhangjiagang Sanofi Machinery Co. Ltd.
Share on (62375748780):
Product Overview
Description
Product Description
Washing, filling and sealing devices equipped on the same machine. The design of the machine is scientific and reasonable. The
appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high. The
advanced technology from Italy and Germany are employed. The speed of filling is fast and the liquid amount is controlled
accurately. The filling can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing
technology is used in system. Pneumatic valve and damped gears are used for bottle conveying, the noise is low and the whole
machine runs smoothly. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps.
The power of screw capping can also be fixed, and the caps will not be damaged, the capping is shortage of caps in the caps
storage tank, an alarm signal will be generated and the caps will be fed automatically. The whole machine is controlled by PLC
with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled
automatically. The filling and capping will be stopped automatically when there is no bottle. When are cramped wrongly or when
caps are not available, the machine can be stopped automatically.
appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high. The
advanced technology from Italy and Germany are employed. The speed of filling is fast and the liquid amount is controlled
accurately. The filling can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing
technology is used in system. Pneumatic valve and damped gears are used for bottle conveying, the noise is low and the whole
machine runs smoothly. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps.
The power of screw capping can also be fixed, and the caps will not be damaged, the capping is shortage of caps in the caps
storage tank, an alarm signal will be generated and the caps will be fed automatically. The whole machine is controlled by PLC
with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled
automatically. The filling and capping will be stopped automatically when there is no bottle. When are cramped wrongly or when
caps are not available, the machine can be stopped automatically.
Model | Filling Heads | Capacity @ 500ml | Bottle Size | Power | Dimension(mm) | Weight(KG) |
CGF8-8-3 | 8 | 2000BPH | 200-2000ml | 2.2KW | 2200×1580×1950 | 1500 |
CGF14-12-5 | 12 | 4000BPH | 200-2000ml | 4.78KW | 2300×1560×1950 | 2000 |
CGF18-18-6 | 18 | 6000BPH | 200-2000ml | 5.03KW | 2750×2000×2300 | 3000 |
CGF24-24-8 | 24 | 9000BPH | 200-2000ml | 6.57KW | 2900×2250×2300 | 4000 |
CGF32-32-10 | 32 | 13000BPH | 200-2000ml | 8.63KW | 3430×2630×2750 | 6500 |
CGF40-40-10 | 40 | 16000BPH | 200-2000ml | 9KW | 4300×2930×2750 | 7800 |
CGF50-50-12 | 50 | 20000BPH | 200-2000ml | 11KW | 5004×3826×2750 | 8200 |
CGF60-60-15 | 60 | 22000BPH | 200-2000ml | 13KW | 5300×3950×2750 | 8500 |
Detailed Images

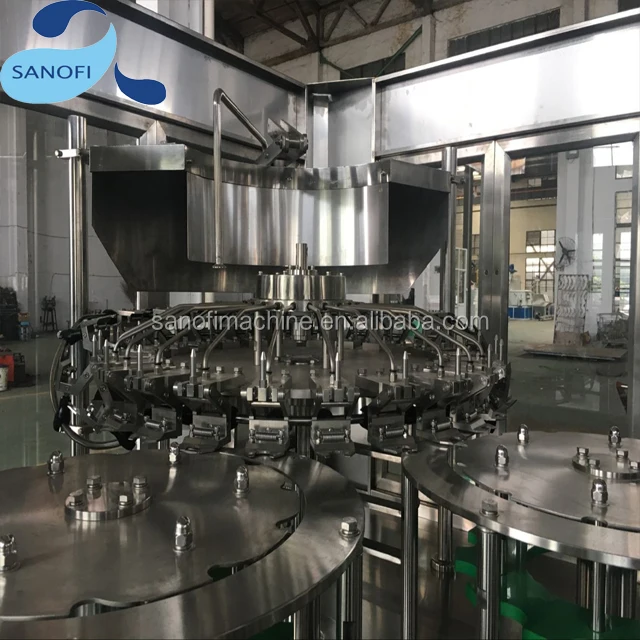

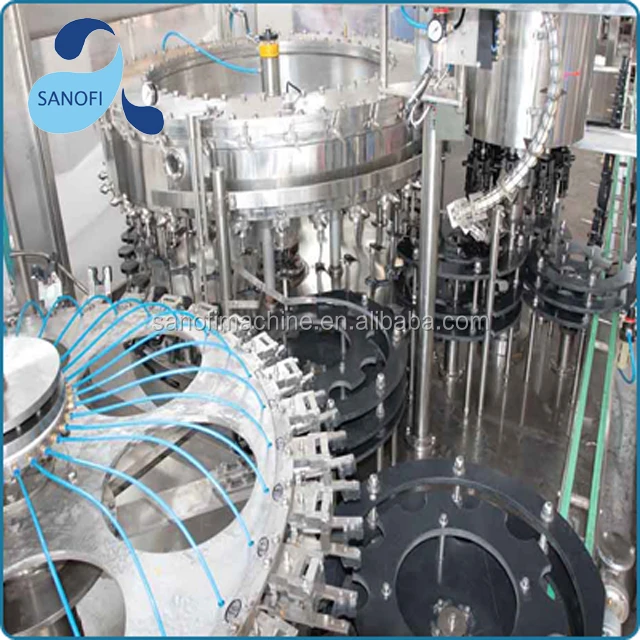

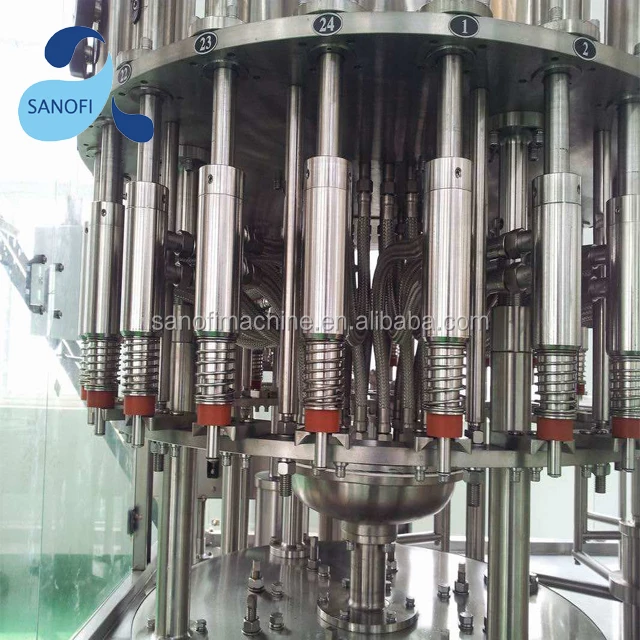

1.stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
2.Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3.stainless steel washing pump
Related Products
Packing&Shipping
After Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and
accommodation of our engineer, and the salary.
* Engineers available to service machinery overseas.After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and
accommodation of our engineer, and the salary.
