Custom 3kw 600rpm AC 3 Phase Low rpm PMG PMA Magnetic Energy Alternative Energy Generator Alternator




Features

Our disc coreless PMG have advantage in lowRated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure, High efficiency etc.
1. Coreless, anhysteresis, slotless, have low starting torque.
2. No iron loss, have high efficiency.
3. Adopt unique coreless precision winding technology design precision coil.
4. Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.
5. Low speed direct driving, no torque fluctuations.
6. Compact structure, high ratio of power to volume.
7. No iron loss, low calorific value, small temperature rise.
8. Simple structure, easy to install.
9. The brushless structure, free maintenance.

10.Any power can be customized according to your requirements.

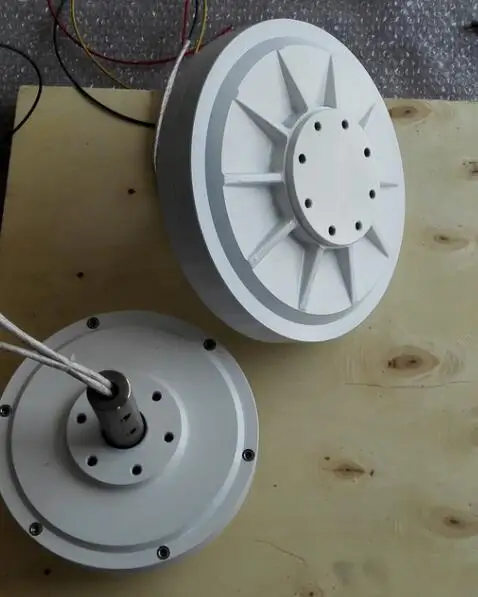

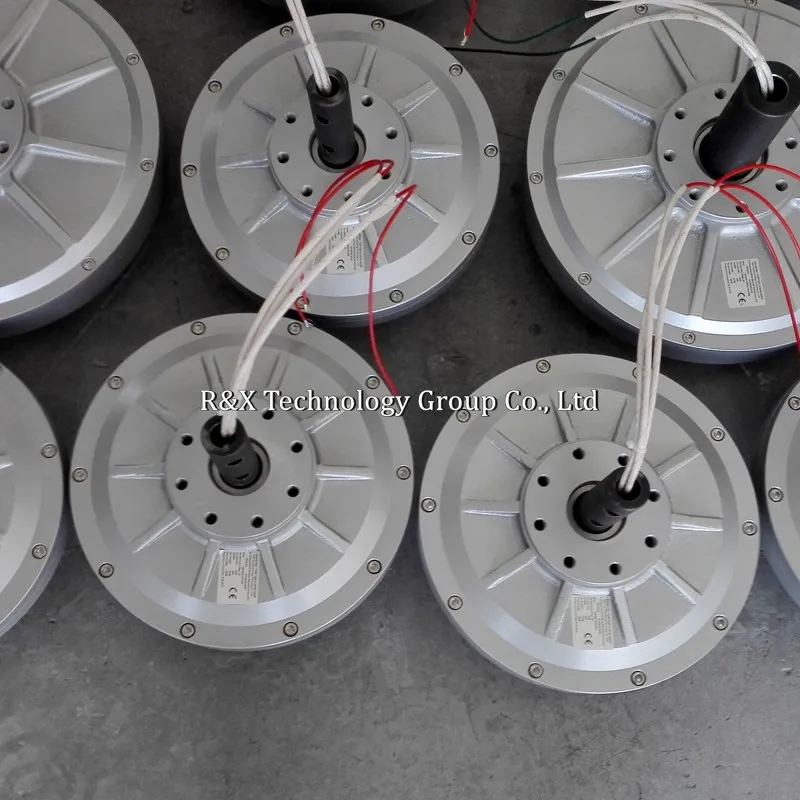

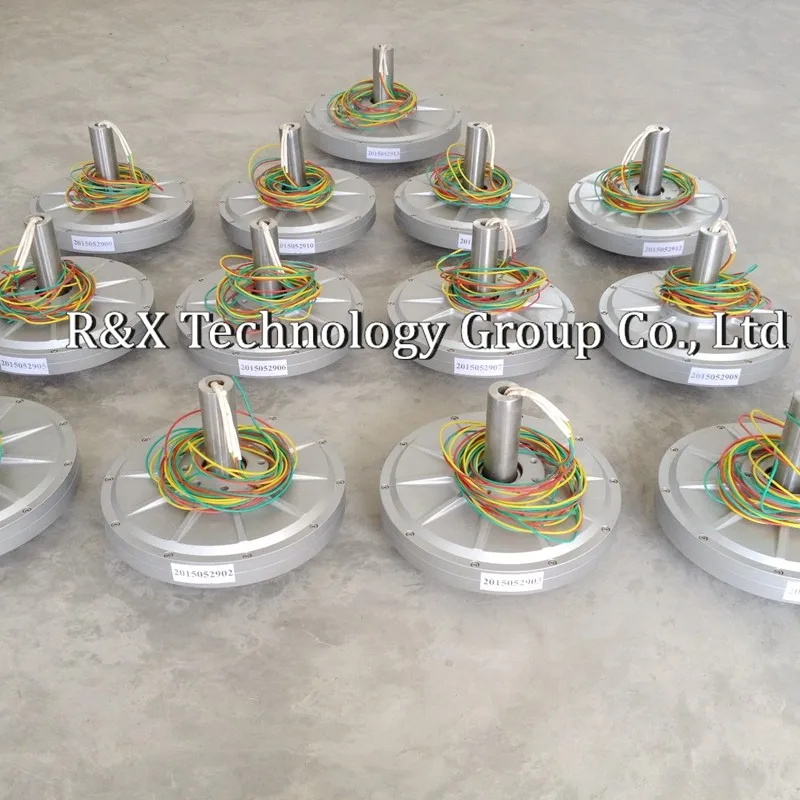

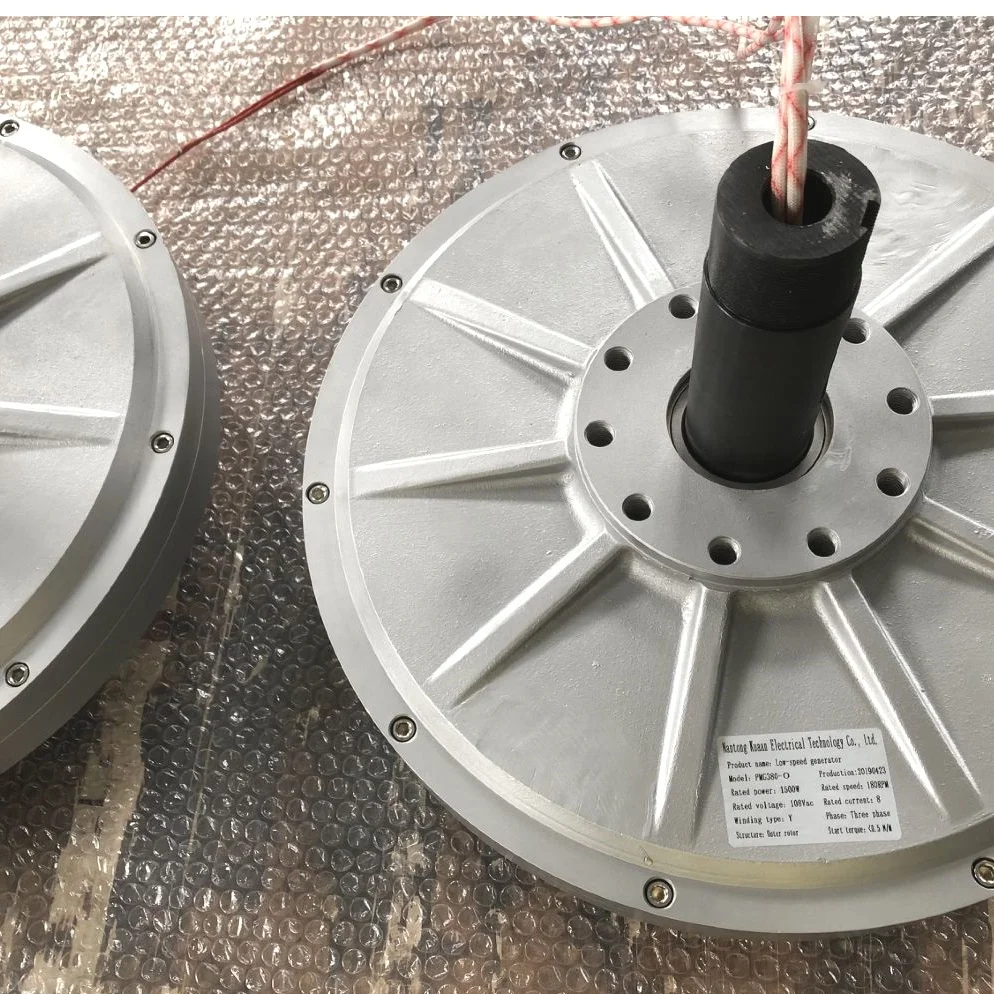

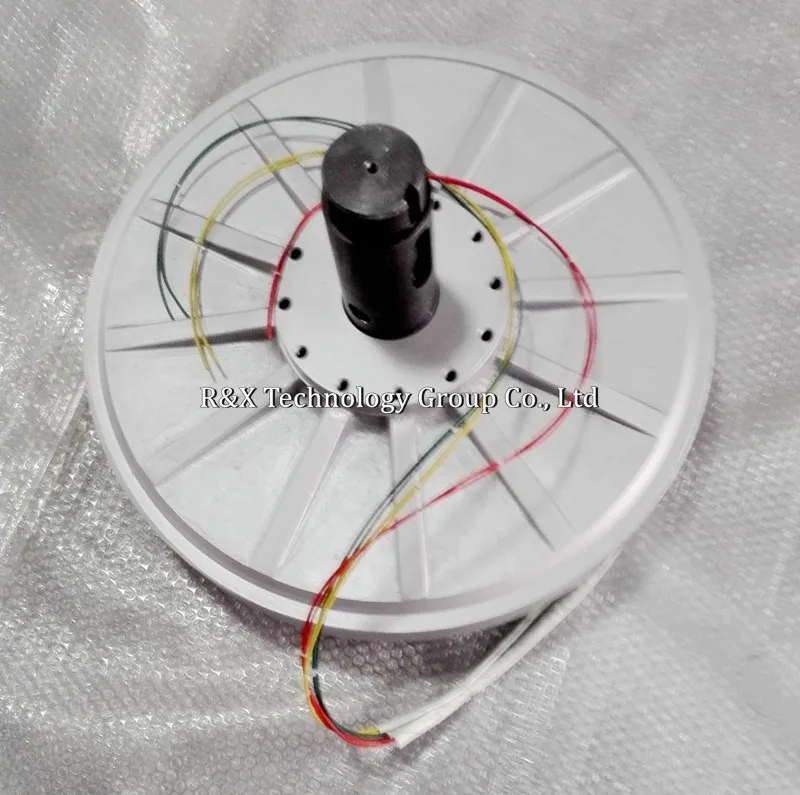

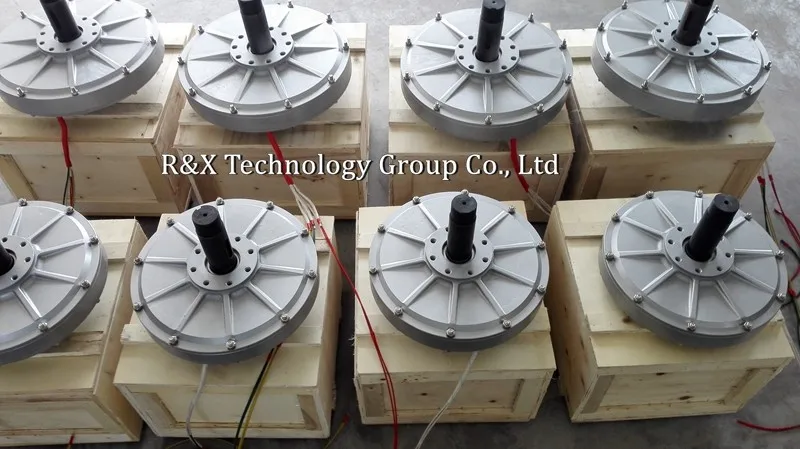

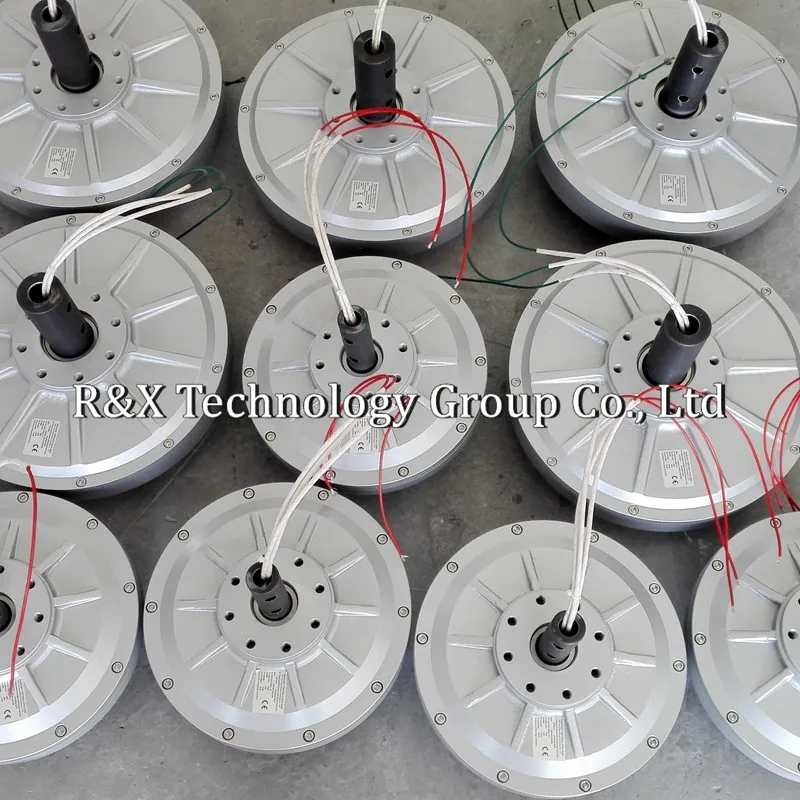

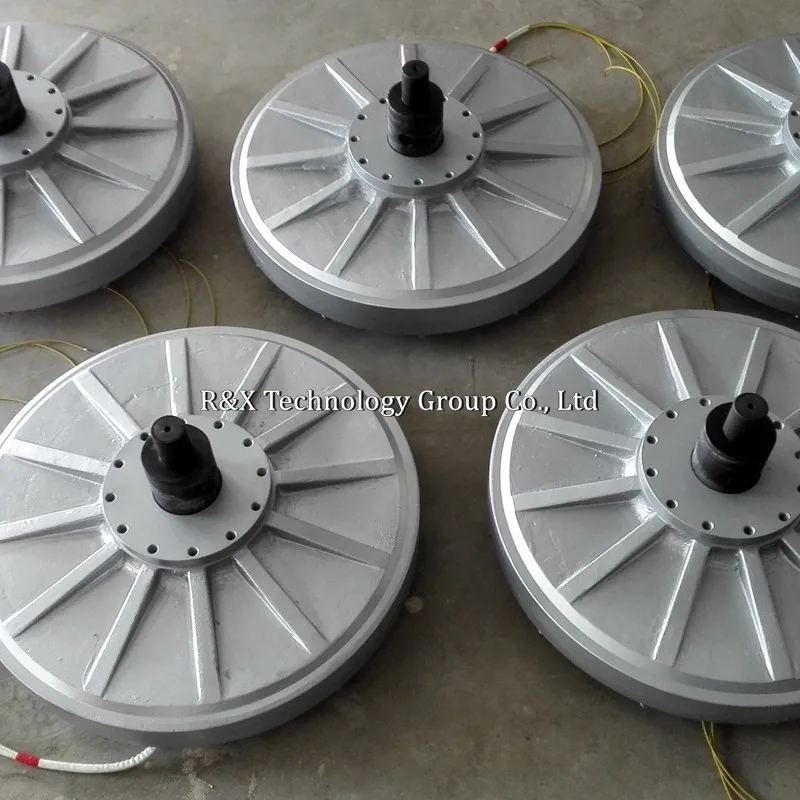

Pictures Shows

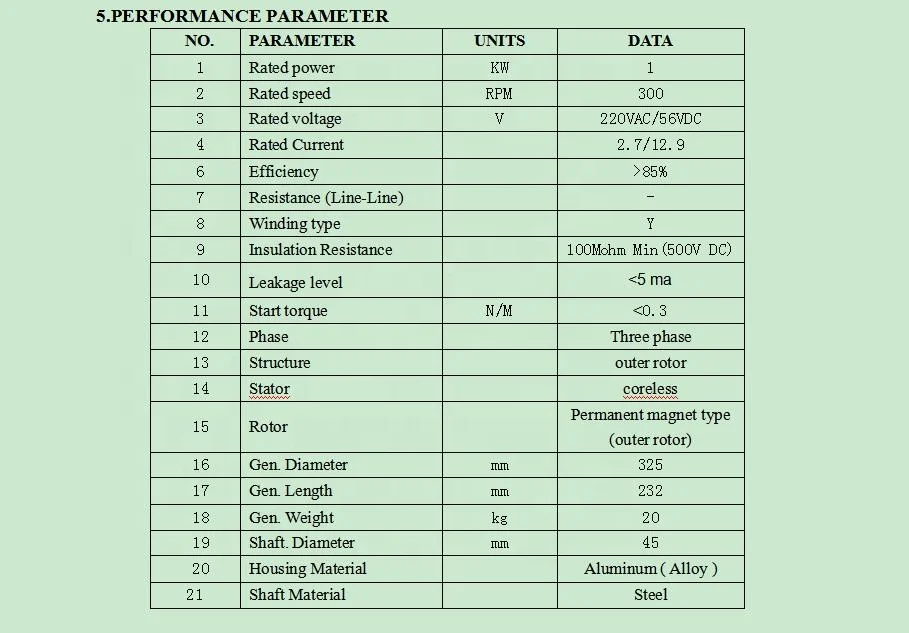

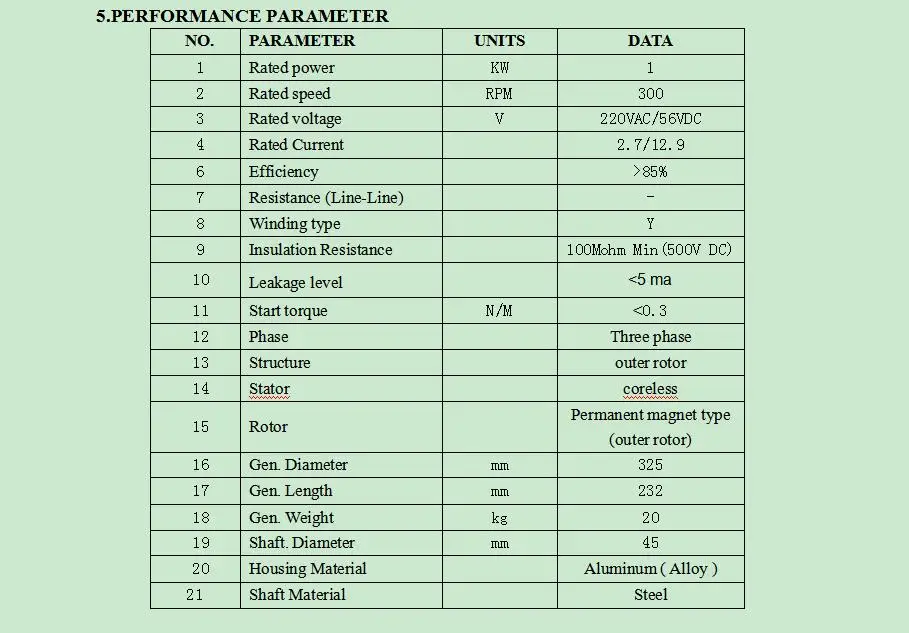

Technical Data


Rated power
500w or 1kw or 3kw or 5kw or custom
Rated speed
200 or 300 or 600 or 1000 rpm custom
Rated voltage
custom
Rated Line Current
custom
Efficiency
>95%
Resistance
(Line-line)
Wind Type
Y
Insulation Resistance
100Mohm Min(500v DC)
Leakage Level
<5 ma
Start Torque
N/M <0.3
Phase
Three phase
Structure
outer rotor or inner rotor
Stator
coreless
Rotor
Permanent magnet type (outer rotor or inner rotor )

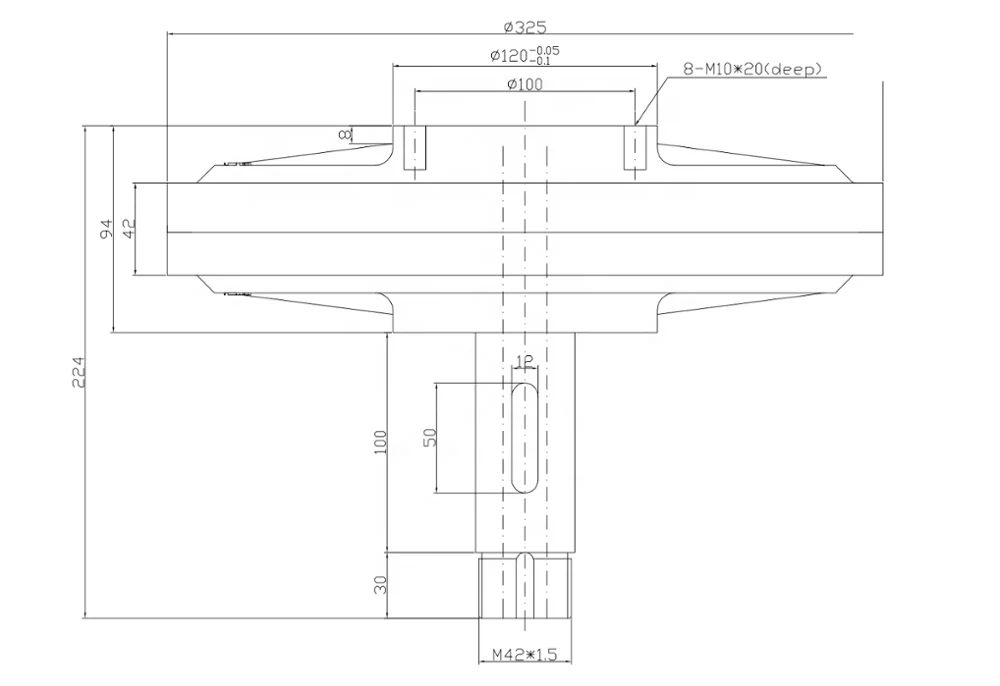

Gen,Diameter
325mm
Gen.length
232mm
Gen.weight
20kg
Shaft.Diameter
45mm
Housing Material
Aluminum (Alloy)
Shaft Material
steel
Gross Weight
27kg

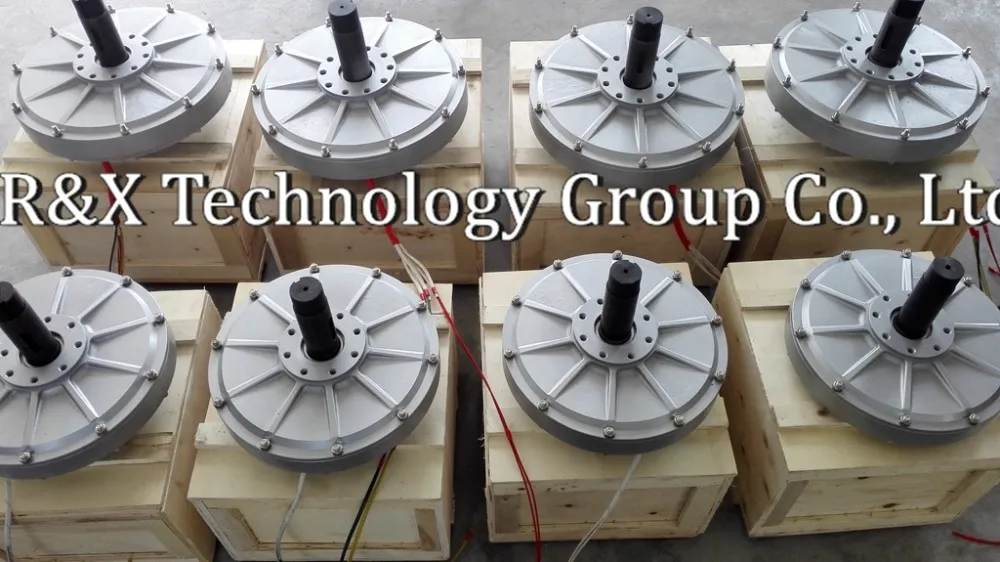

Packing & Delivery
