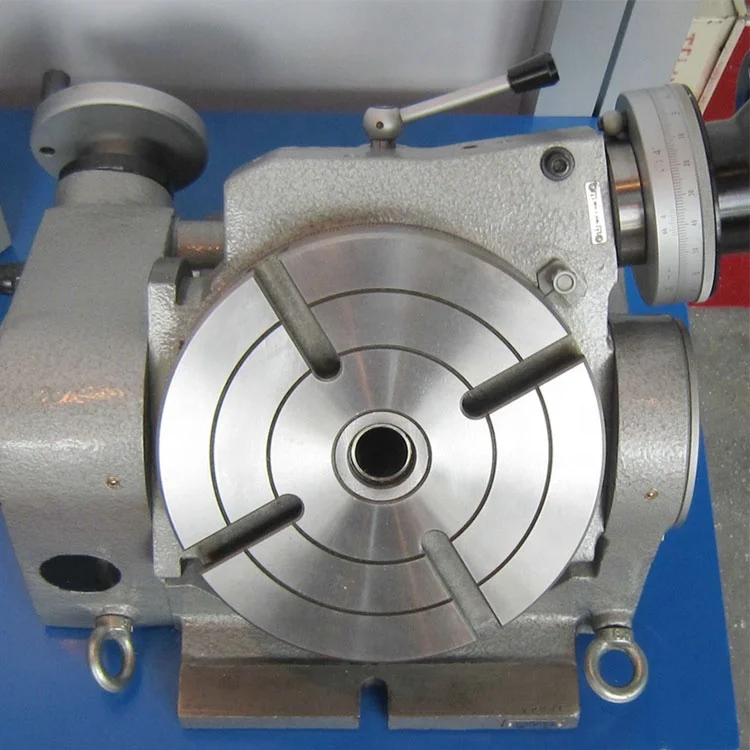

High quality CNC tilting rotary table for milling machine
A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360 degree rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
The table can be tilted to any position from 0°to 90°and locked.
Optional accessories:hole plate,flange
|Specifications||TSK SERIES TILTING ROTARY TABLE TSK250|
|Diameter of table (mm)||Φ250|
|Mose taper of the center hole||MS3|
|Diameter of the center hole(mm)||Φ30*6|
|Width of t-slot (mm)||12|
|Adjacent angle of table t-slot||60°|
|Width of the locating key(mm)||14|
|Modules of worm and worm gear||2|
|Transmission ratio of the worm gear||1:90|
|Graduation of the table||360°|
|Readout of the handwheel||1′|
|Minimum value of vemier||10"|
|Minimum reading of the tilting vemier||2’|
|TSK Table Indexing accuracy||60"|
|TSK Table Max bearing(with table hor)kg||200|
|TSK Table Max bearing(with table vert)kg||100|
|TSK Table Net weight kg||80|
|TSK Table Gross weight kg||93|
|TSK Table Case dimensions mm||550*430*330|
TSK SERIES TITING ROTARY TABLE
The TSK series titing rotary tables are for main accessories for milling ,boring and drilling machines,They can be used for machining,the oblique hole or surface and hole of compound angle at one set-up,Besides this,it is so designed as to be used in a vertical position to carry cut center work with a tailstock.
TSK Universal Tilting Manual Rotary Table Package is wooden box.
