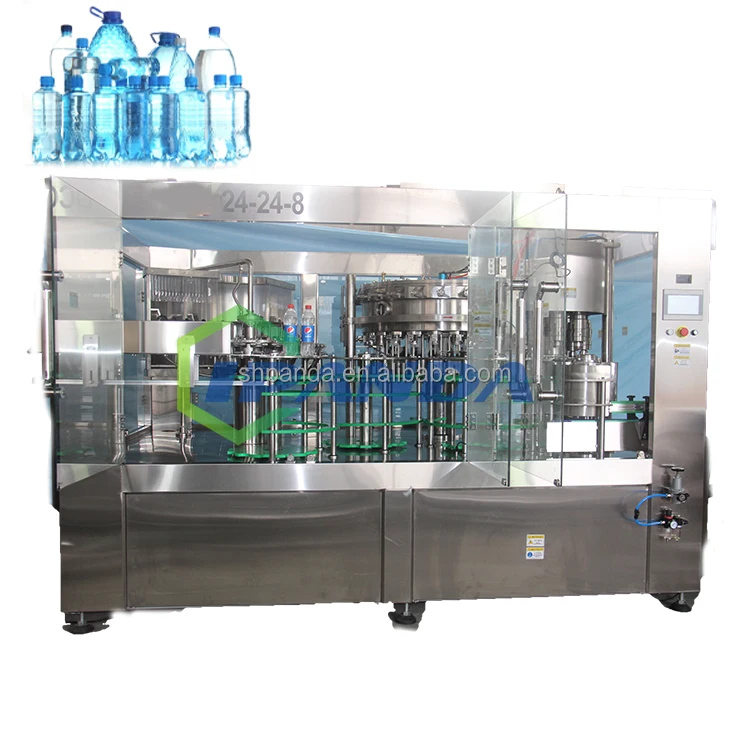

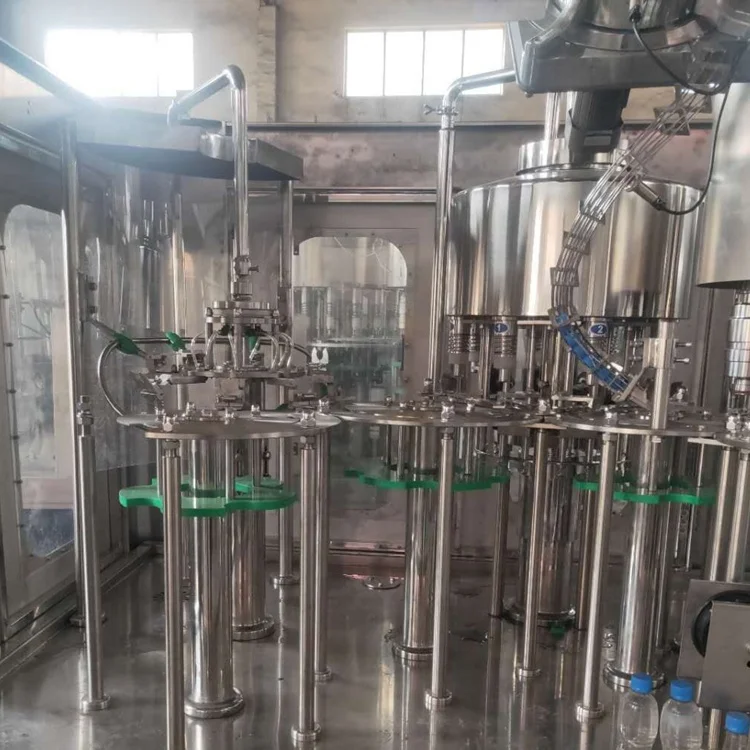

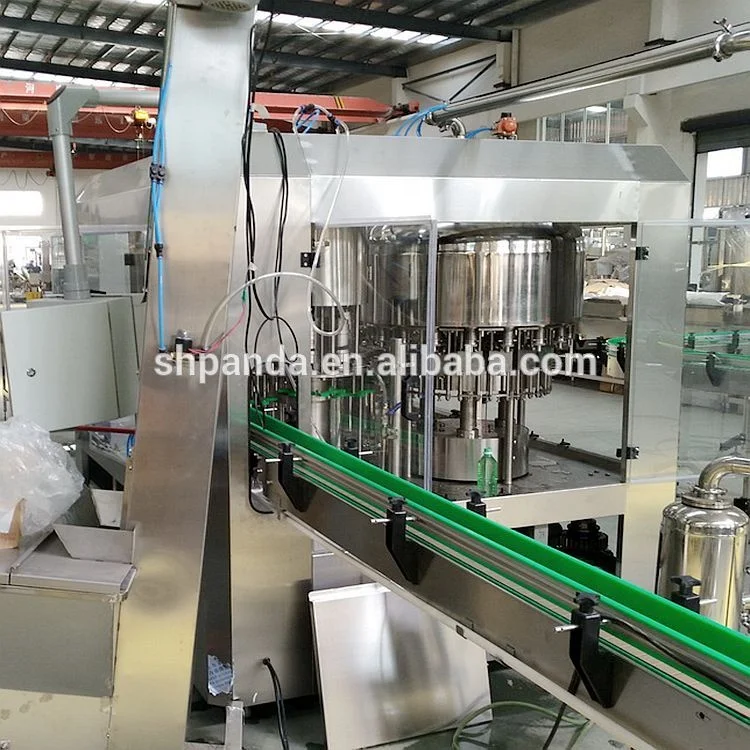

Wholesale water bottle washing filling capping labeling machine line drinking water filling machine
- Category: >>>
- Supplier: Shanghai Ipanda Intelligent Machinery Co. Ltd.
Share on (62375952193):
Product Overview
Description
Product Description
Introduction

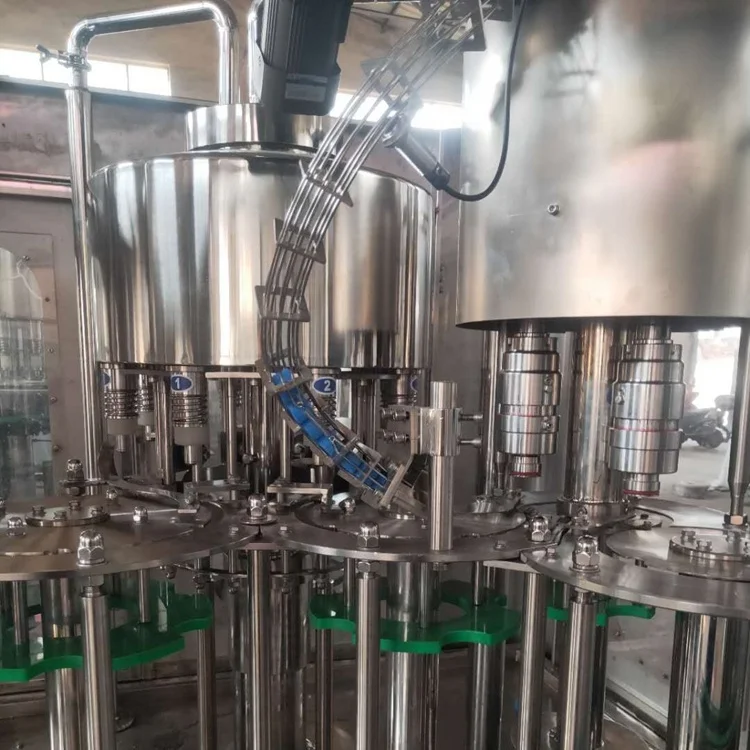

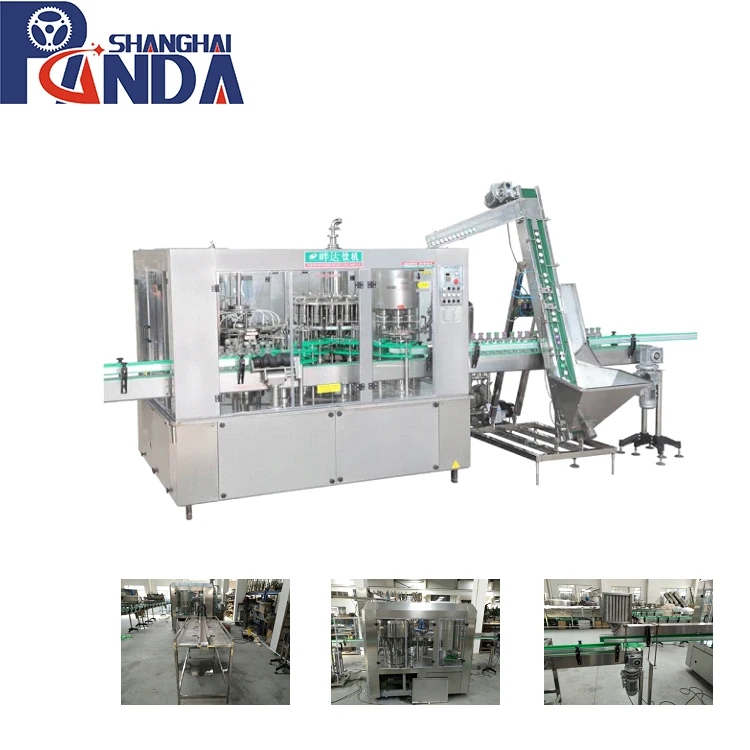

This filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.
Features:

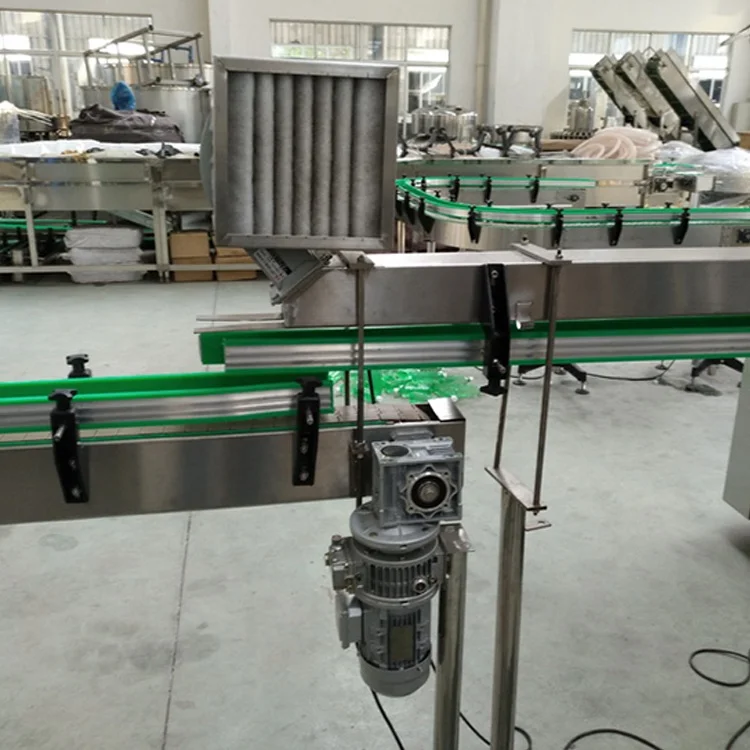

1. Datong Machinery can provide whole producing and packaging solutions for water,pure water,mineral water,spring water,drinking water etc.2. It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor.it is easier and more simple to change over bottle size. Adopt neck handling technology to convey bottles.there is no need to adjust the height of equipment and only need to change some spare parts.

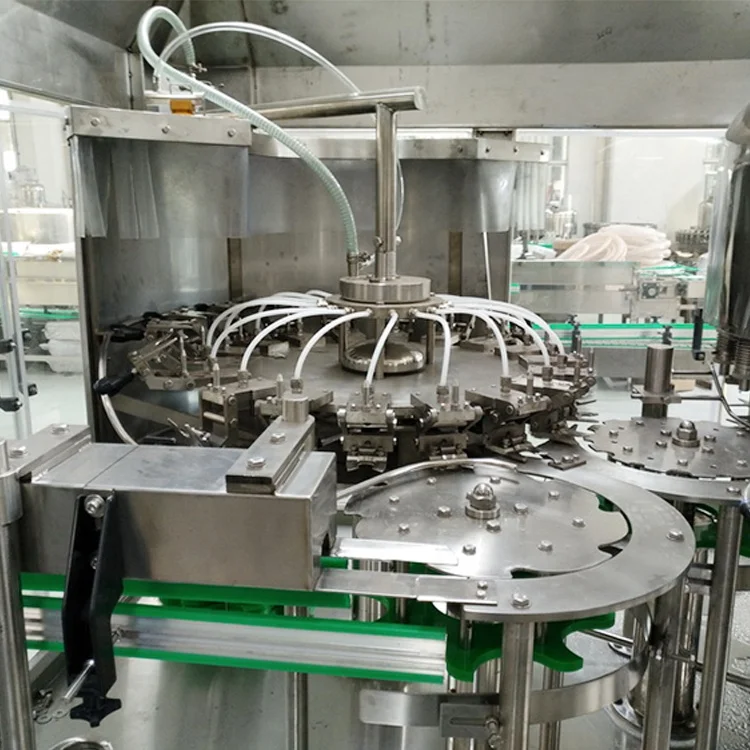

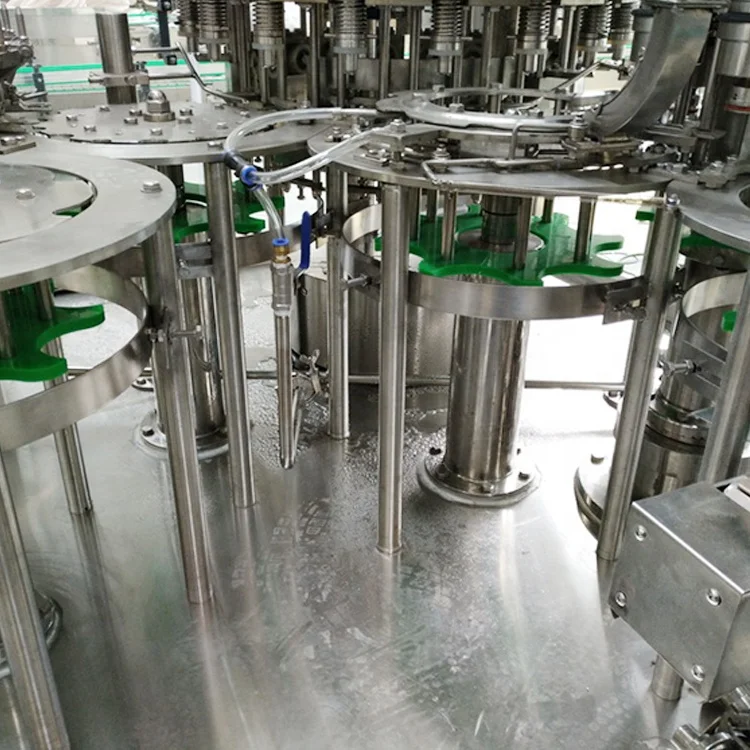

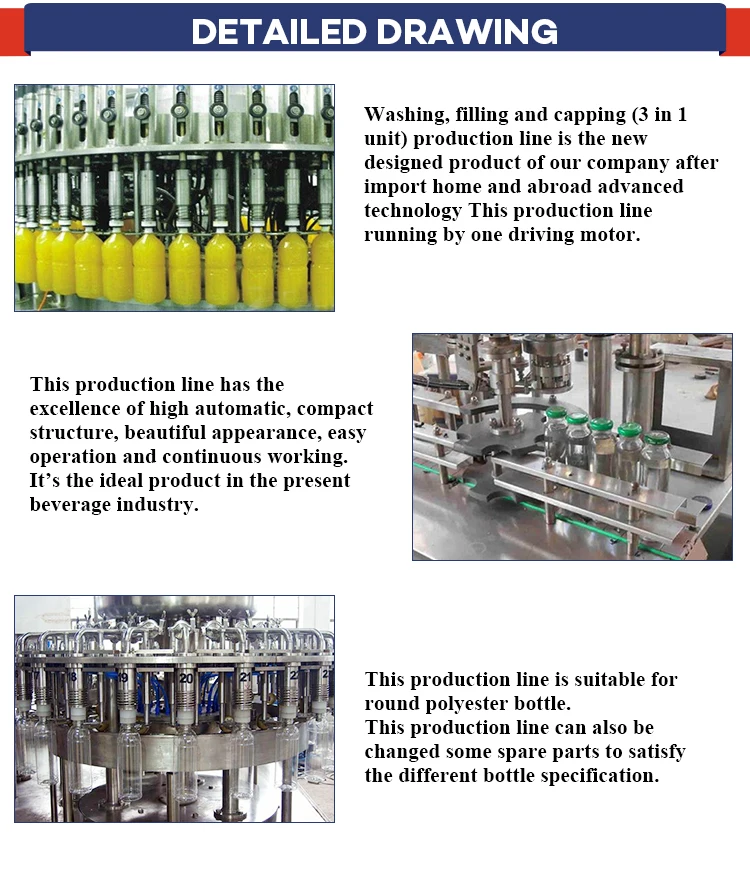

3. By 3-in-1 monoblock ,the bottle goes through washing,filling and capping with little abrasion,and the transferring is
stable,bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the
bottle neck,avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.the bottle-out starwheel is helical structure.while changing over bottle size. It is no need to adjust bottle-out conveyor height.
Main technical parameters
No. | Items | Value | ||
1 | Production capacity(500ml)(b/h) | 3000-20000 | ||
2 | Filling precision | ≤±5mm Liquid Level | ||
3 | Feedback consumption | ≤ 10 | ||
4 | Polyester bottle standard(mm) | Bottle Diameter:φ50-φ92; Height:150-310 | ||
5 | Suitable cap shape | Plastic Screw Cap | ||
6 | Water pressure of washing bottle (MPa) | 0.18 | ||
7 | Wash bottle consumption water(kg/h) | 800/1600/2500/3500 | ||
8 | Gas source pressure(MPa) | 0.6 | ||
9 | Gas consumption(m³/min) | 0.3/0.4/0.5/0.5 | ||
10 | Total power(Kw) | 5.88/6.68/7.68/9.18/9.18 | ||
11 | Total weight(Kg) | 2500/3000/4000/5000 | ||
12 | Dimensions(L*W*H)(mm) | 2100*1500*2200/2450*1800*2200/2750*2180*2200/3600*2800*3150 | ||
