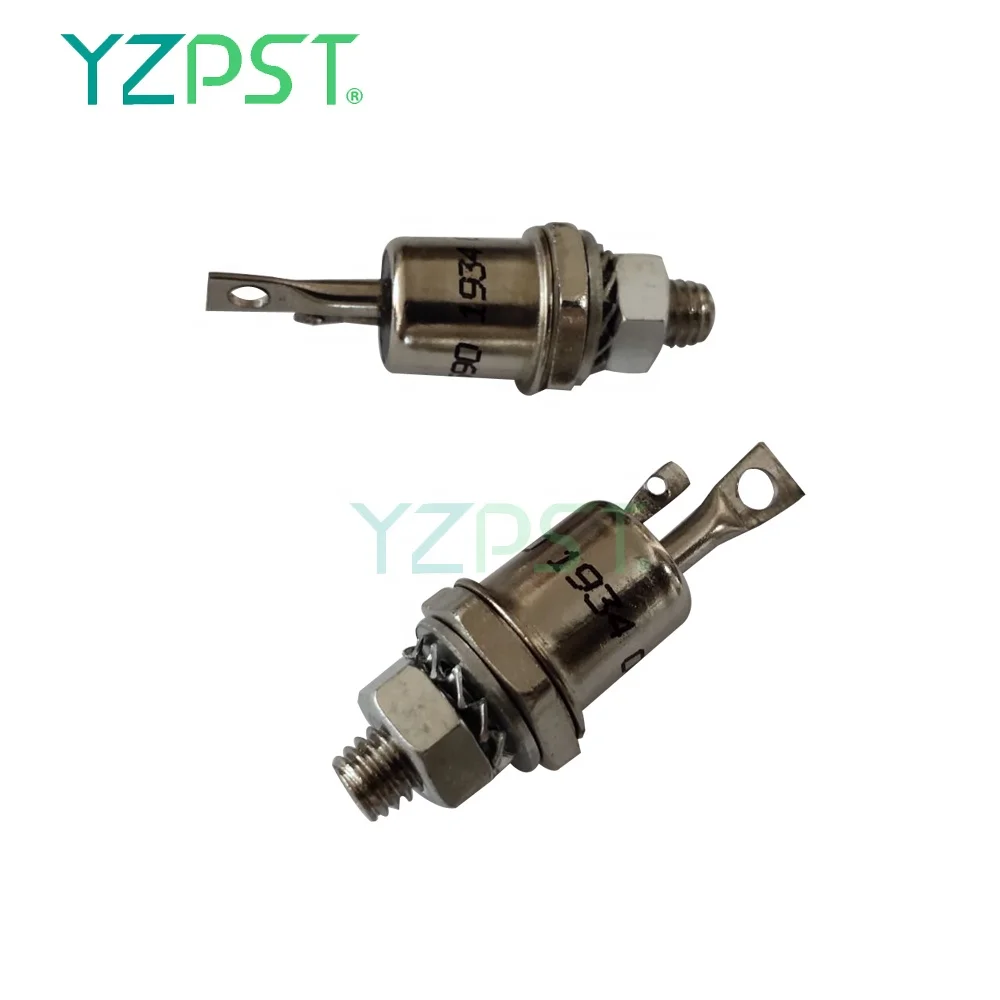

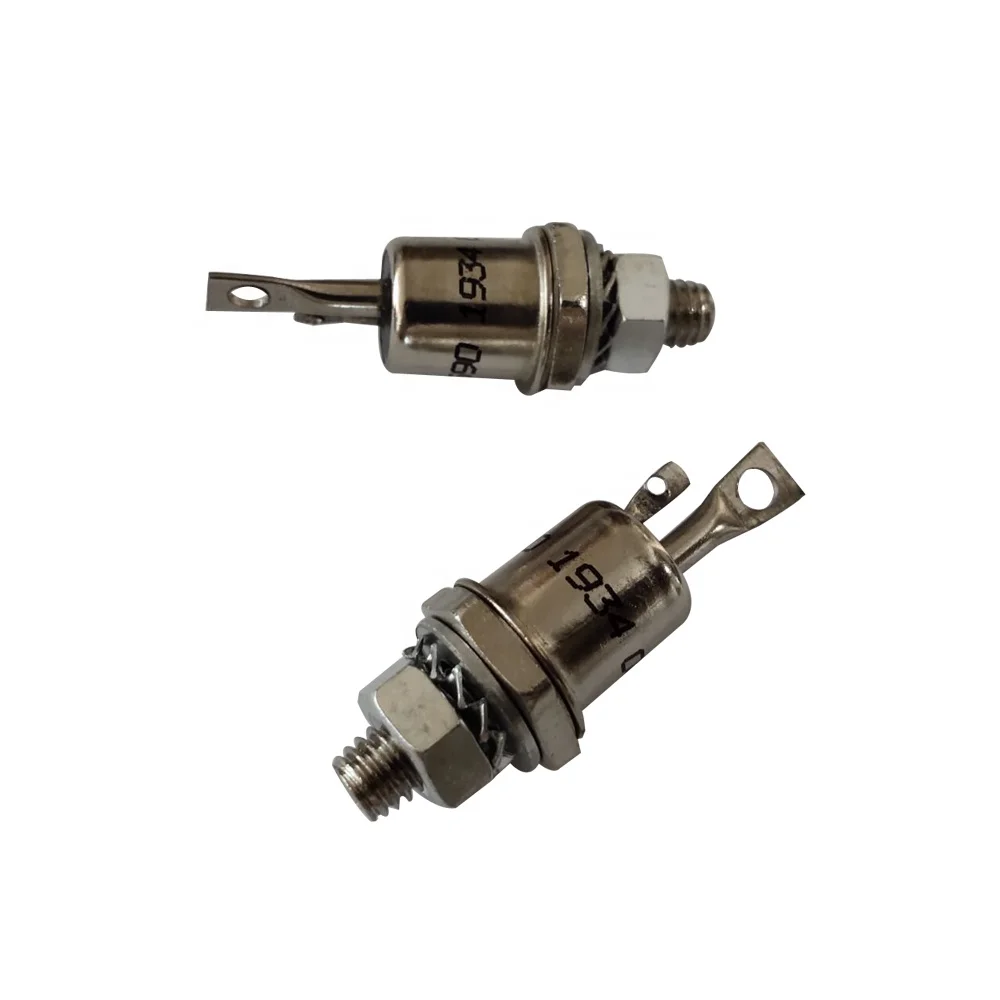

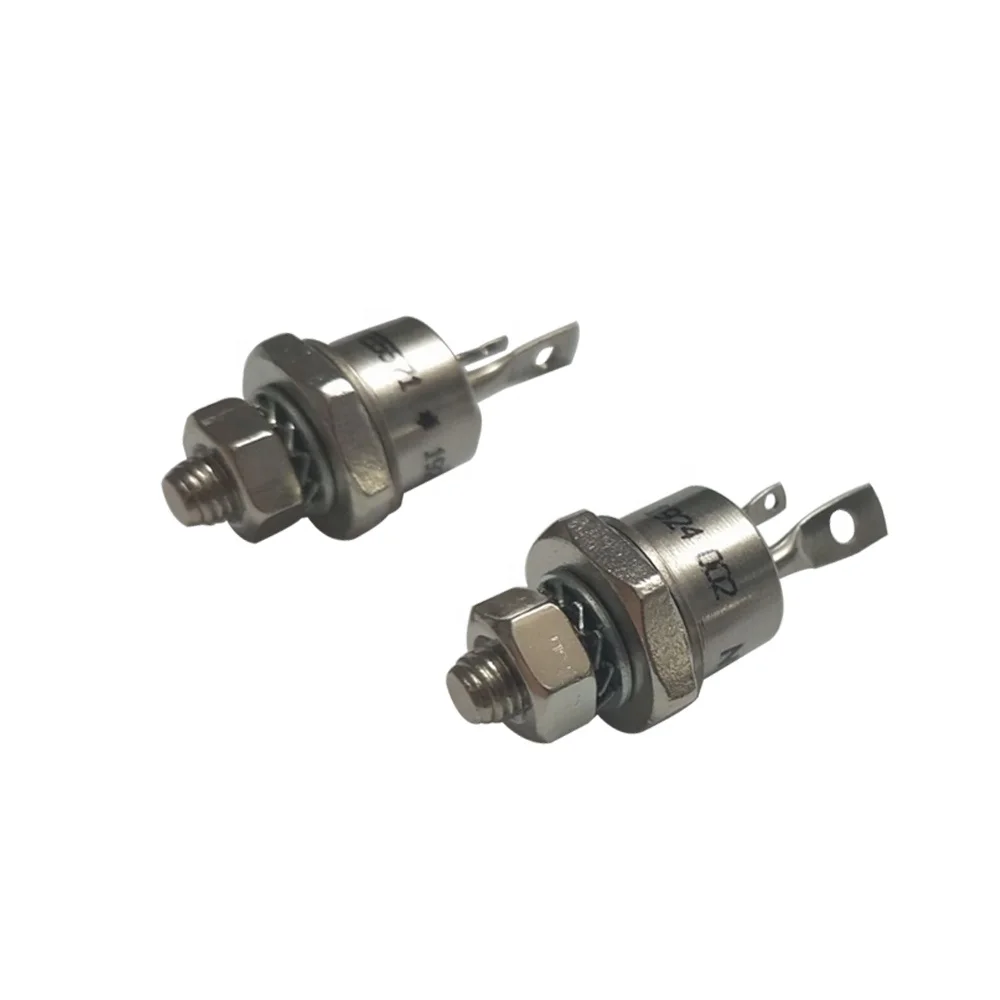

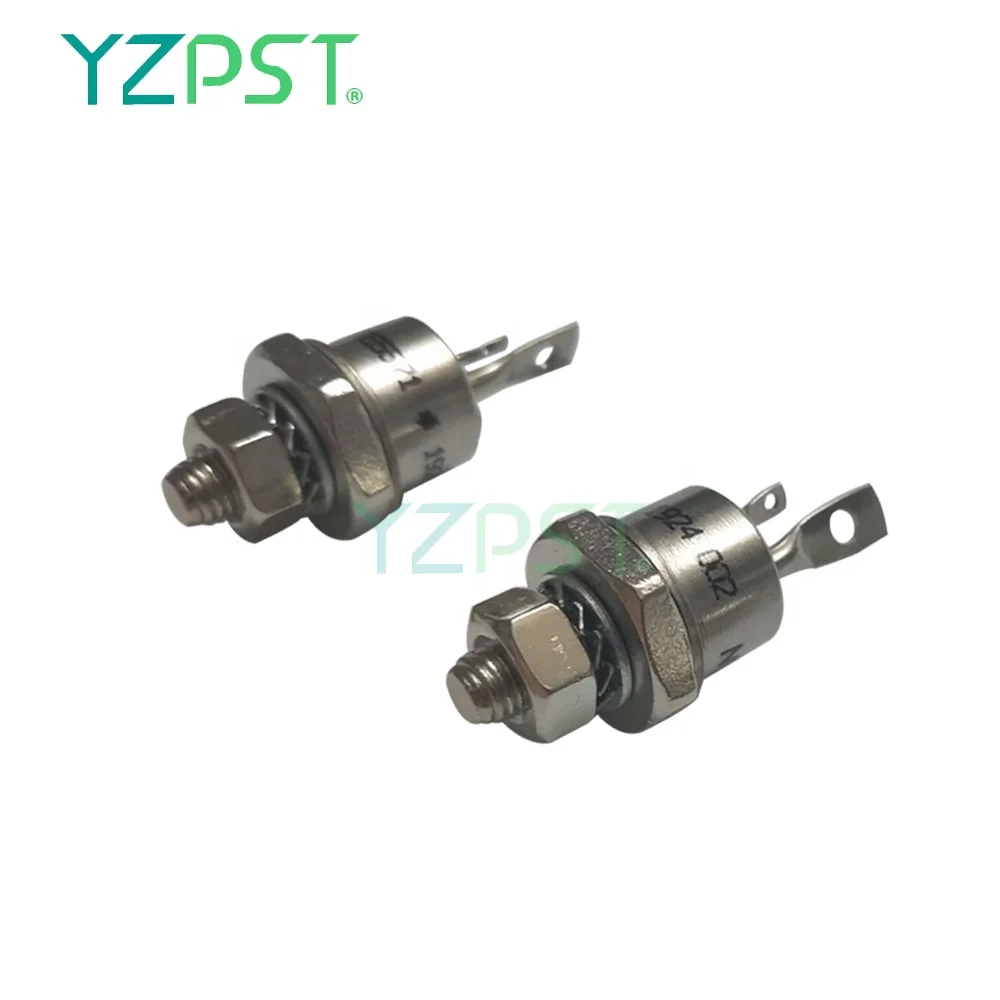

High surge capability YZPST 2N3899 phase control stud thyristor
- Category: >>>
- Supplier: Yangzhou Positioning Tech. Co. Ltd.
Share on (62375981428):
Product Overview
Description
High surge capability YZPST-2N3899 phase control stud thyristor
Product Description
Phase Control Thyristors
YZPST-2N3899
Features
Hermetic ceramic -metal seal
high dv/dt
tested according to IEC standards
High surge capability
Compression Bonded Encapsulation for heavy duty operations such as severe thermal cycling
Typical Applications
DC motor controls
Controlled DC power supplies
AC controllers
Major Ratings and Characteristics
Parameters |
| Ratings | Units |
IT(AV) | @ TC:25°C | 22 | A |
| @ TC:85°C | 11 | A |
IT(RMS) |
| 40 | A |
ITSM | @ 50Hz |
| A |
| @ 60Hz | 350 | A |
I2t | @ 50Hz |
| A 2 s |
| @ 60Hz | 510 | A 2 s |
VDRM/VRRM |
| 600 | V |
Tq | typical | 35 | µs |
TJ | range | -40~+100 | °C |
Voltage Ratings
Type number | Voltage Code | VRRM /VDRM , maximum repetitive peak reverse voltage V | VRSM/ VDSM, maximum non- repetitive peak rev. voltage V | IRRM/IDRM max. @ TJ = TJ max. mA |
2N3899 | - | 600 | 700 | 4 |
- | - | - | - | - |
