Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System
Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System
Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System
Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System
Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System
Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System
Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System

Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System

Share on (62375988481):


Price:RUB 4,088.00

Quantity:


Product Overview

Description

Fixed Wireless Terminals 4G for Telephone/PBX/Alarm/Billing System from 14-Year Manufacturer Etross
Fixed Wireless Terminals 4G/GSM 3G 4G Fixed Wireless Terminal/4G FCT Fixed Cellular Terminals
2G GSM 3G WCDMA 4G LTE to Phone Line Converter
2G/3G/4G to Landline Converter

Bands available(could be customized): 2G Band:B2,B3,B5,B8 3G Band:B1,B2,B5,B8 4G Band FDD:B1,B2,B3,B5,B8 4G Band TDD:B38,B39,B40,B41

4G FWT-8848 is a 4G to Analog converter(single port, insert 1 SIM card only),
the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network.
This device can both receive and make calls.

The main application is connecting the RJ-11 FXS line:
to connect ordinary telephone set for voice call;
to connect PBX for call extensions;
to connect billing systems for public phone use;
to connect VoIP FXO gateway to realize VoIP call termination;
to connect alarm system for security purpose, etc.
Features
1) It is a 1 channel GSM fixed wireless terminal which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module to make;
5) Can adjust dial interval from 0.5 sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) SIM card supported (1.8V, 3V);
8) Caller ID display, hide subscriber caller ID(been sent out);
9) DTMF dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket(SMA);
14) IP presetting;
15) Working Status and Signal Strength by LED indicator;
16) IMEI Change(optional), GPRS function(optional), lock pin/network(optional).
17) Back up Li-ion battery 7.2V 1300mAh(optional), standby time: 24hrs, talking time: 2.5hrs.
Technique Specifications
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU,US,AU,British optional
Module Information
Note: 4G Frequency(Band) could be customized

1)For Europe/Middle East/Africa/Korea/Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8
GSM: B3/B8

2)For North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13

3)For Australia/New Zealand/Thailand/Brazil
EC25-AU:
LTE FDD: B1/B21/B3/B4/B5/B7/B8/B28 LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28 WCDMA: B1/B5 EC25-AUTL:
LTE FDD: B3/B7/B28

4)For Japan
EC25-J:
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41
WCDMA: B1/B6/B8/B19

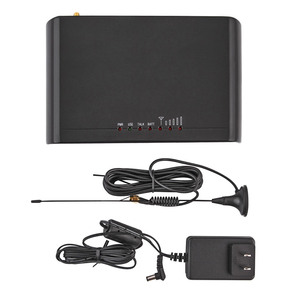

Details Images

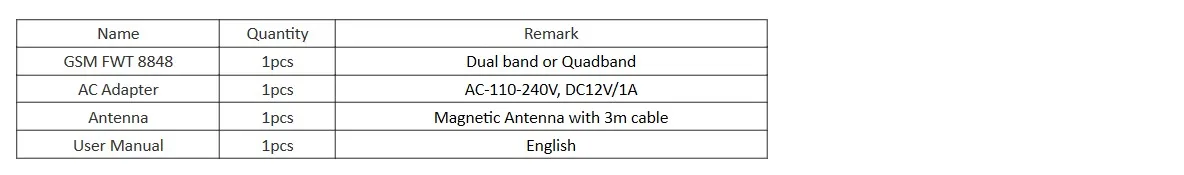

Product Packaging
Company Information
Etross founded in 2006, we have been committed to wireless terminal products and offer one-stop solution.
(GSM/CDMA/WCDMA/LTE fixed wireless terminal, 2G/3G/4G fixed wireless phone, cordless telephone, GSM gateway, SMS modem pool, telemarketing fixed wireless terminal/phone, 4G CPE router etc.)
At present, we have a complete set of communication and electronic assembly line and outbound service.
Processing and collaboration factory.
There are R & D centers, first-class engineers, and continuous promotion of new and high technology products.
More than 13 years experience in selling and exporting to
South Asia, Europe, Africa and South America, North America and other more than 60 countries and regions.
