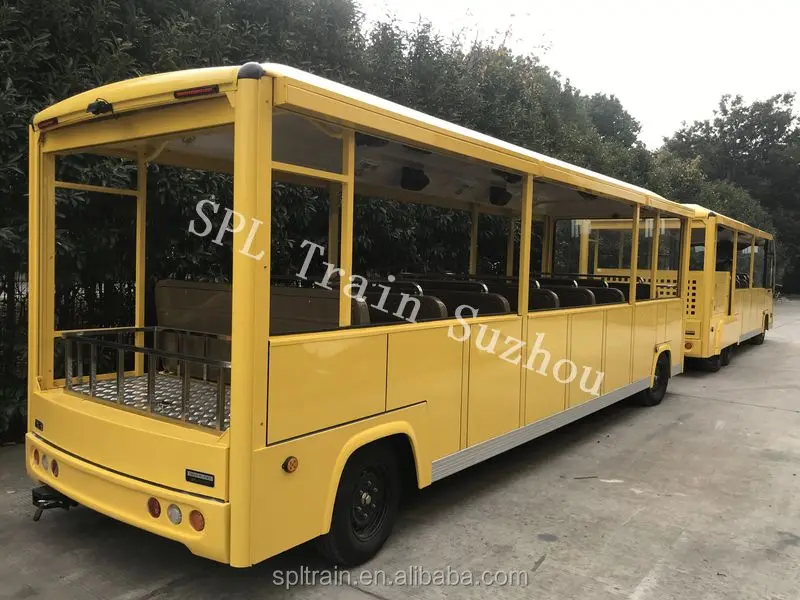

Street Trolley with 100 seats capacity
- Category: >>>
- Supplier: Suzhou Player Machinery & Equipment Manufacturing Co. Ltd.
Share on (62376010143):
Product Overview
Description
Product Description

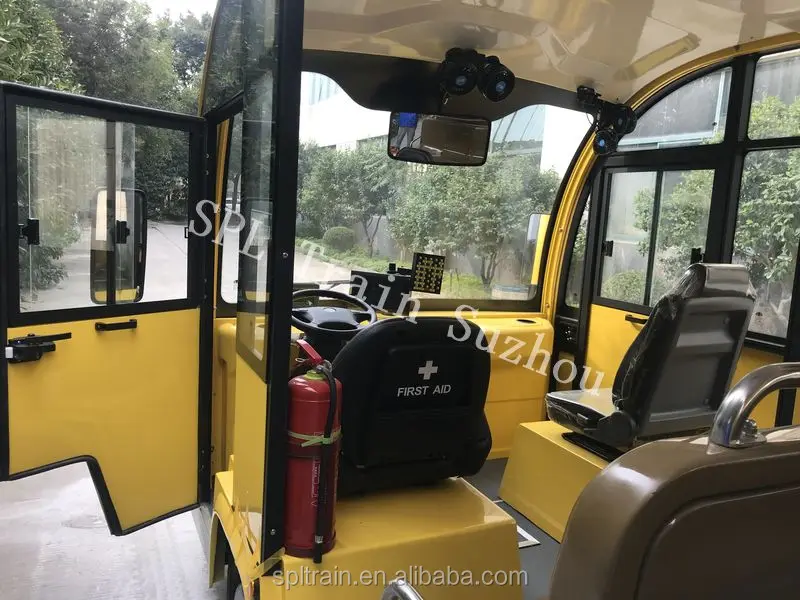

Locomotive
| Dimension (L*W*H) | 3995*1620*2330mm |
| Weight | 2360kg |
| Motor | IVECO Sofim 8140.43S3 Diesel Engine |
| Chassis | Supporting structure in steel section with parabolic suspension. Steering wheel provided with hydraulic power. Professional steering colum assembly. 4 direction adjustable. |
| Brakes | Hydraulic drum brakes on wheels, parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking. |
| Transmission | IVECO transmission,Clutch, 3F+1R gear box, transmission shaft |
| Body | FRP plastic, with ROHS approval |

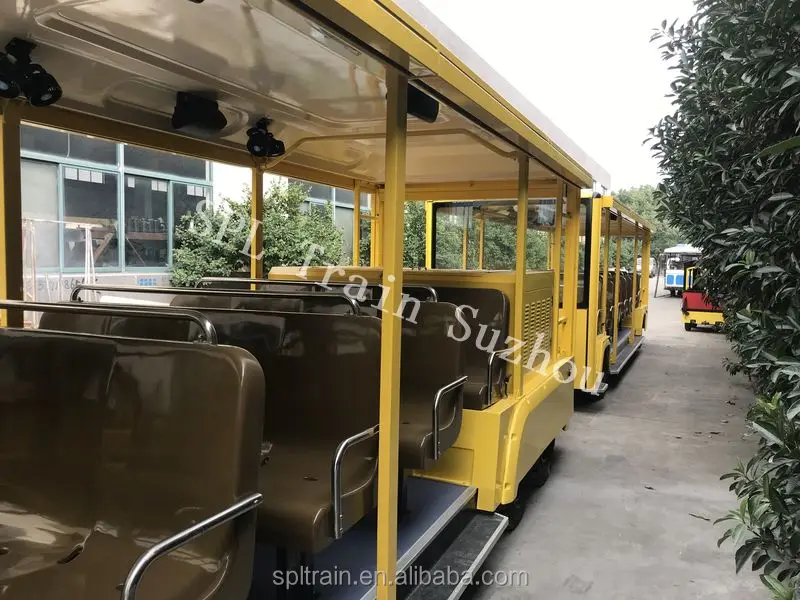

wagon
| Dimension (not including Tow Bar) | 3940*1810*2410mm (L*W*H) |
| Weight | 1180kg |
| Capacity | 20 passengers |
| Chassis | In reinforced power-coated steel, parabolic suspension, 4-wheel steering systerm, which insures all the coached follow the exact path taken by the locomotive. Floor in aluminum tread plate, leather seats and backrests padded with sponge. |
| Brakes | Hydraulic drum brakes on wheels, parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking. The wagon can brake itself when not connecting with the locomotive. |
| Body | Made of FRP plastic, with ROHS approval |
