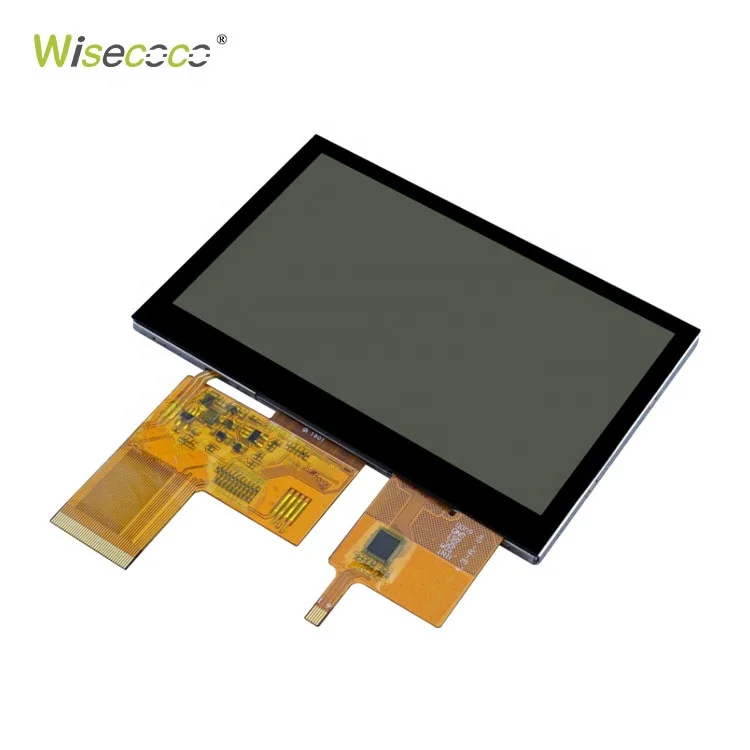

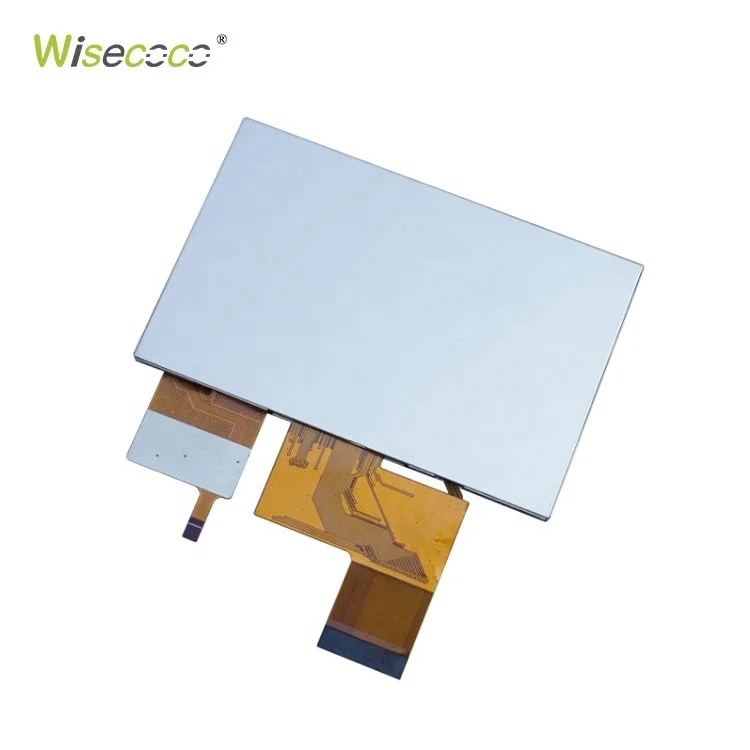

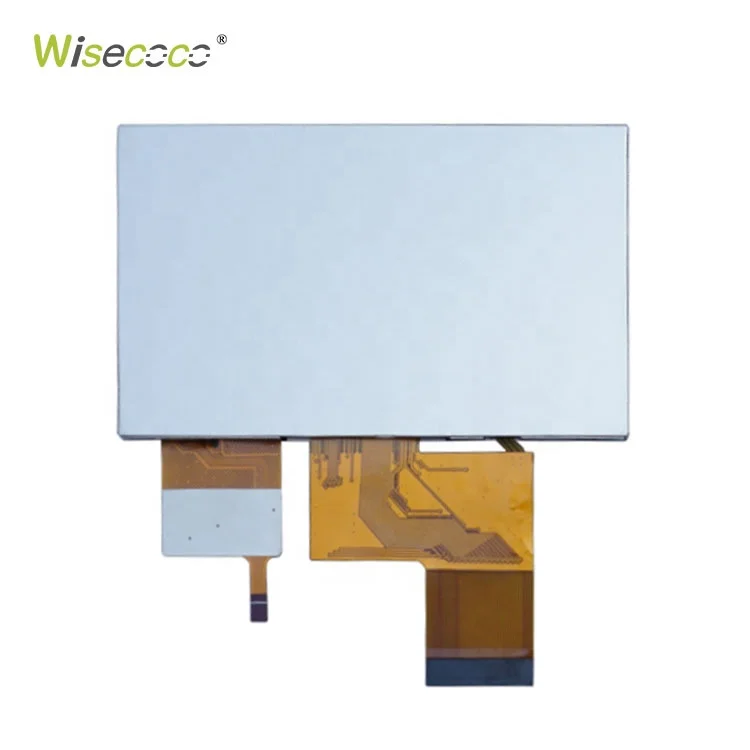

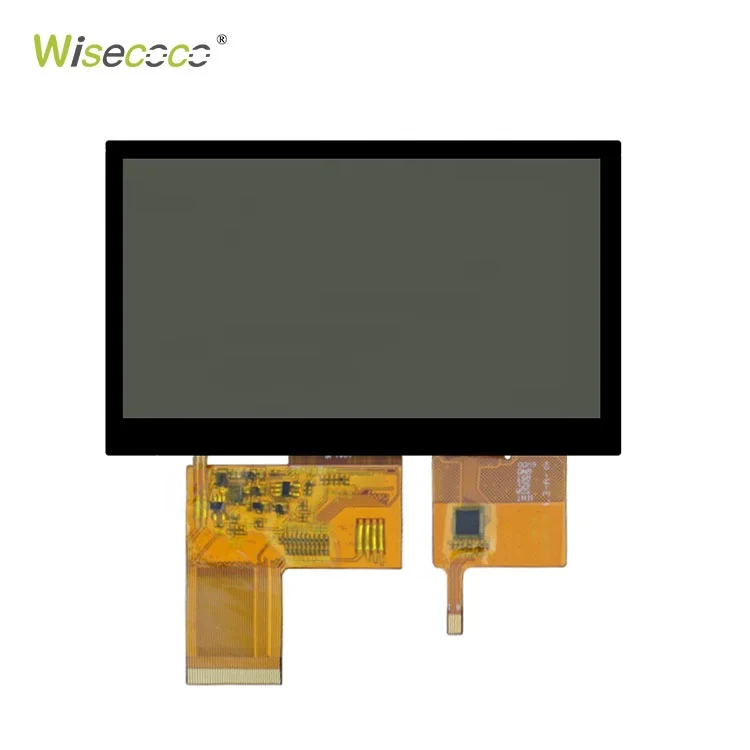

I2c CTP сенсорный экран 5 дюймов 800x480 промышленный ручной 24 бит RGB интерфейс TFT ЖК сенсорный экран модуль панели дисплея

General Features

Screen Size

5 inch

Type

TFT-LCD , LCM

Resolution

800(RGB)x480

Configuration

RGB Vertical Stripe

Active Area(mm)

-

Outline(mm)

-

Bezel Area(mm)

-

Treatment

-

Luminance

300 cd/m2 (Typ.)

Contrast Ratio

300:1

View Direction

6 o'clock

Response Time

-

Viewing Angle

-

Operating Mode

Transmissive Type, Normally White Mode

Support Color

16.7M   50% NTSC

Backlight

Voltage 22.4V(Typ.), Current 20mA(Typ.)

Panel Weight

-

Used for

handheld

Refresh Rate

-

Touchscreen

optional

Voltage Supply

-

Signal Type

24-bit RGB interface (LCD), I2C interface (CTP)

Environment

Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
