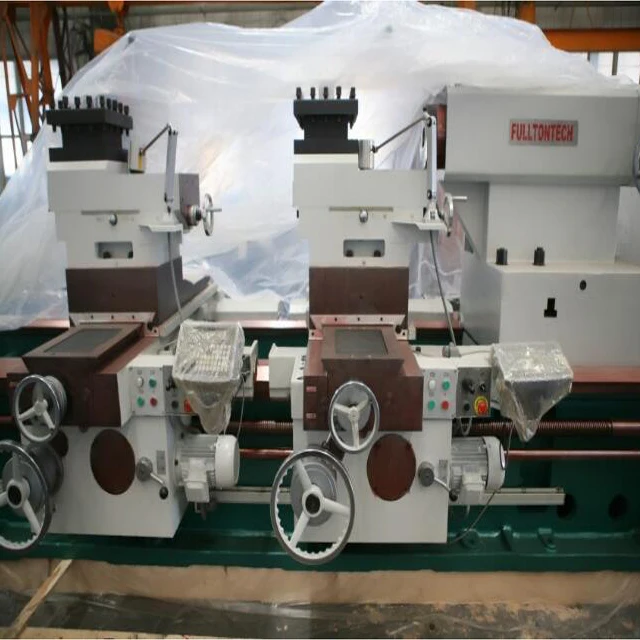

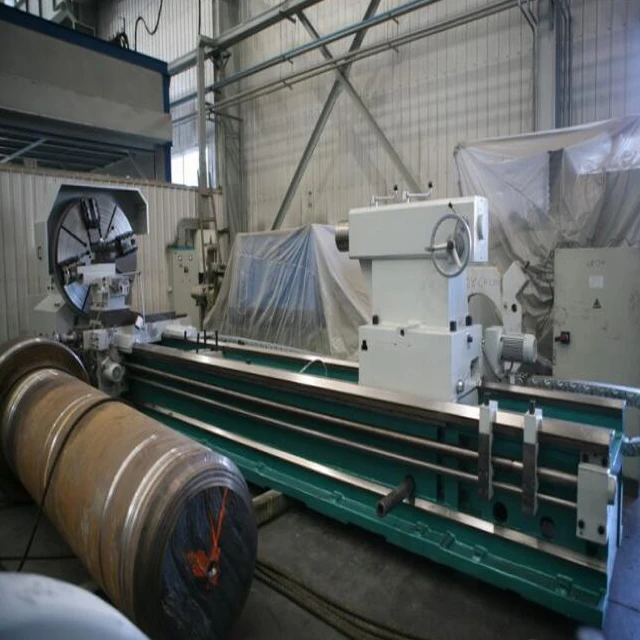

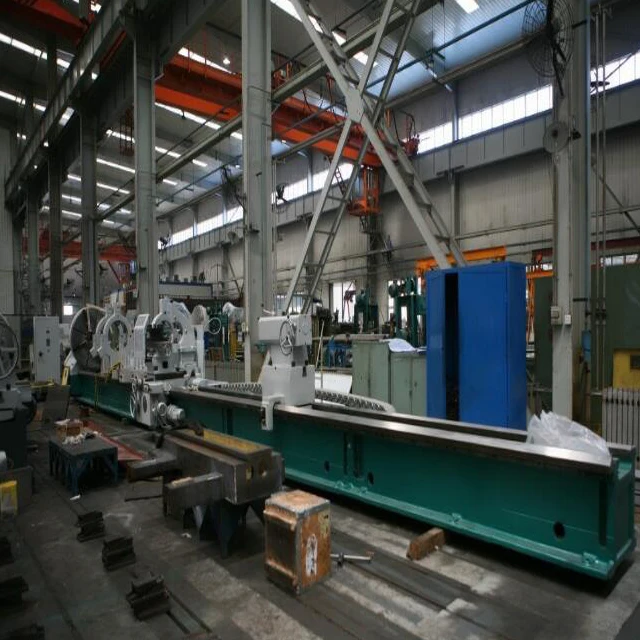

CNC Horizontal Lathe CF61125A Chinese Economic Torno
- Category: >>>
- Supplier: Dalian Fullton Machinery Co. Ltd
Share on (62376101495):
Product Overview
Description
PRODUCT SPECIFICATIONS
SPECIFICATIONS | CF61100A | CF61125A | CF61140A | CF61160A | |||
Max.Swing diameter over bed | 1000mm | 1400mm | 1400mm | 1600mm | |||
Max.Swing diameter over carriage | 630mm | 880mm | 1050mm | 1250mm | |||
Max.Weight of workpiece between two centers | 6-8 ton | ||||||
Width of guideways on bed | 755mm | ||||||
Distance between centers | 1000 to 16000mm | ||||||
Spindle bore diameter | 100 mm | ||||||
Taper of spindle nose | 1:20 | ||||||
Spindle speed steps | Forward 12 | ||||||
Spindle speed steps | Reverse 12 | ||||||
Range of spindle speeds | 6-272 rpm | 4.25-192 rpm | |||||
Range of metric threads | 46 kinds 1-224mm | ||||||
Range of whit worth threads | 46 kinds 28-1 t.p.i | ||||||
Range of module threads | 37 kinds 0.25-56 mm | 37.5KW | |||||
Steady rest | Φ50~Φ470mm | 2.8 M3 | |||||
Section of tool shank | 45*45mm | 125Ton | |||||
Max.Traverse of top slide | 350mm | 96kN | |||||
Rapid moving speed of tool post | Longitudinal 3.8m/min | 96kN | |||||
6 | Cross 1.9m/min | 60kN | |||||
Diameter of center sleeve | 140mm | 6750ml | |||||
Traverse of center sleeve | 300mm | 500N.m | |||||
Tailstock taper (Morse) | Morse NO.6 | ||||||
Main motor power | 22 Kw | ||||||
