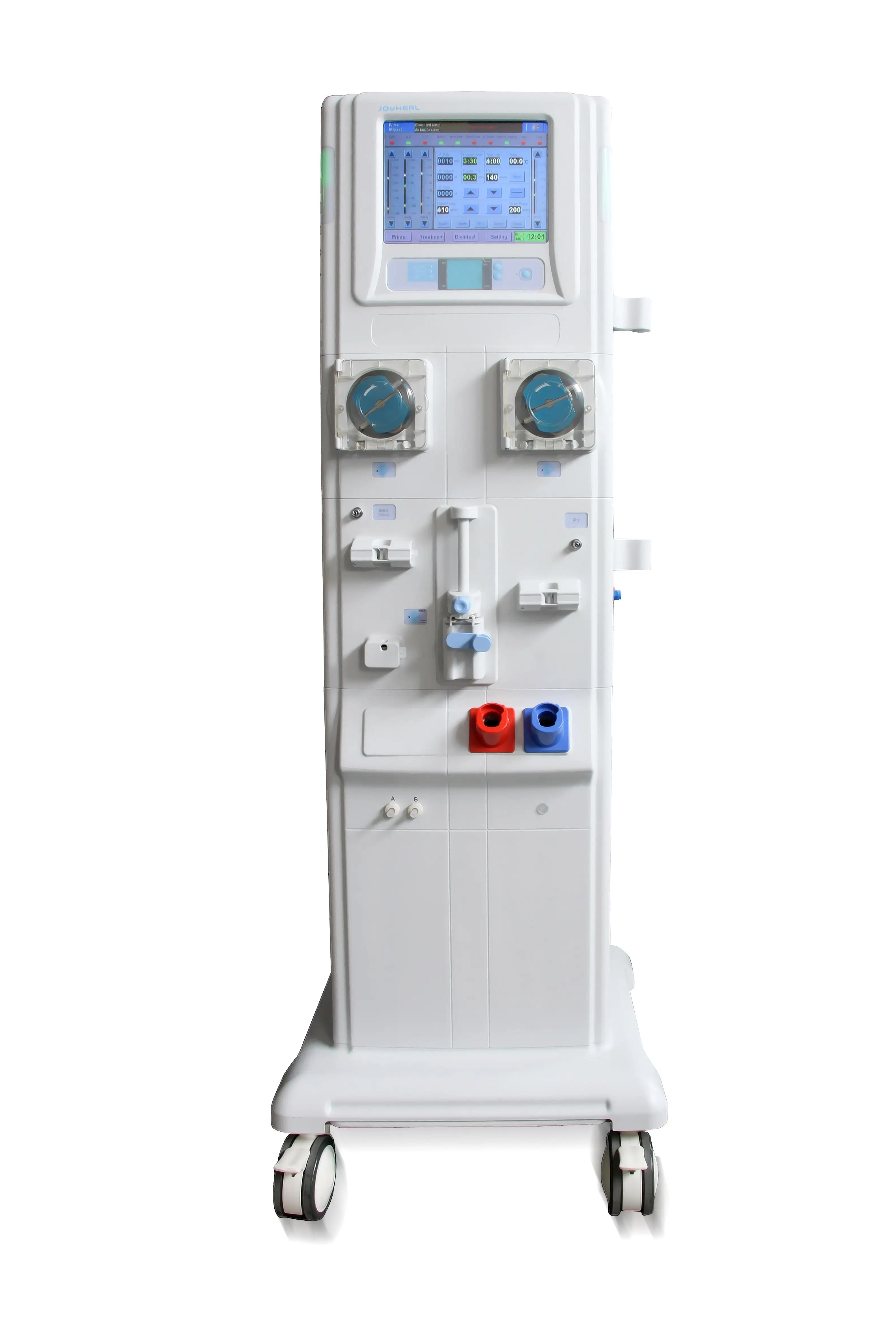

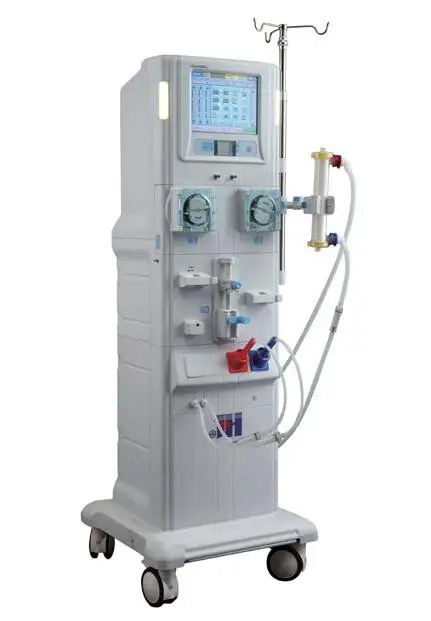

Automatic double bump waterway hemodialysis machine adjustable dialysate flow linearly with LCD touch screen

Product Overview

Description

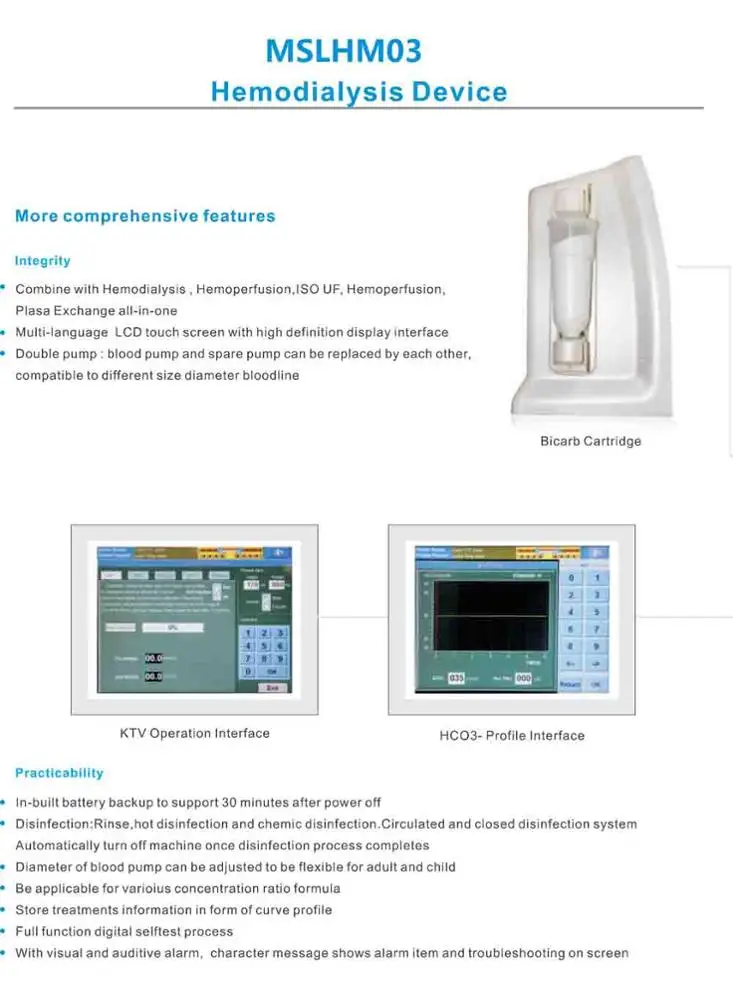

Comprehensive Features:

Integrity

1. Combine with Hemodialysis, Hemoperfusion, ISO UF, Hemoperfusion, Plasa Exchange all-in one

2. Multi-language LCD touch Screen with high definition disply interface

3. Double pump: blood pump and share pump can be replaced by each other, compatible to different size diameter bloodline



Practicability

1. In-built battery backup to support 30 minutes after power off

2. Disinfection: Rinse, hot disinfection and chemic disinfection. Circulated and closed disinfection system Automatically turn off machine once disinfection process completes

3. Diameter of blood pump can be adjusted to be flexible for adult and child

4. Be applicable for various concentration ratio formula

5. Store treatments information in form of curve profile Full function digital selftest process

6. With visual and auditive alarm, character message shows alarm item and troubleshooting on screen



Safety

1. Air bubble monitor:optical and ultrasonic double control, can monitor blood level and accumulate air bubble

2. With safe and sensitive blood leakage monitor device

3. Complete water-way and electric way apart design. Individual waterway control system to ensure the security

4. Dialysate temperature with high precision, safety control at 35-39℃

5. Protection from inter cross infection, fluid supply loop and return loop is completely divided during disinfection to avoid polution of whole machine in the case of mis-sucking disinfection liquid

6. Conductivity control and protection: conductivity A, mix. Conductivity, water outlet conductivity. Insure patient’s security

7. Adjustable Na+ curve profile, with multiplication optional auto-adjust program, can realize individual dialysis and ensure patient’s safety

8. Out-built UF test port, can test precision of UF pump and running status

Advantage:

User friendly operation

 10” LCD touch screen

 Automatically activates treatment program when blood is detected flowing through

 Auto self-test, prime, rinse, disinfection, hot disinfection, treatment and power off, etc.

 Records in table and graphs

All-around security system

 Conductivity

 Temperature

 Air bubble & Blood level

 Blood leakage

 Blood pressure

 Arterial, Venous & TM Pressure

 Anti-coagulation

 Backup battery

Precise UF system

 Classic waterway system controls the UF precisely

 Double circulation waterway system to prevent cross-infection

Powerful functions

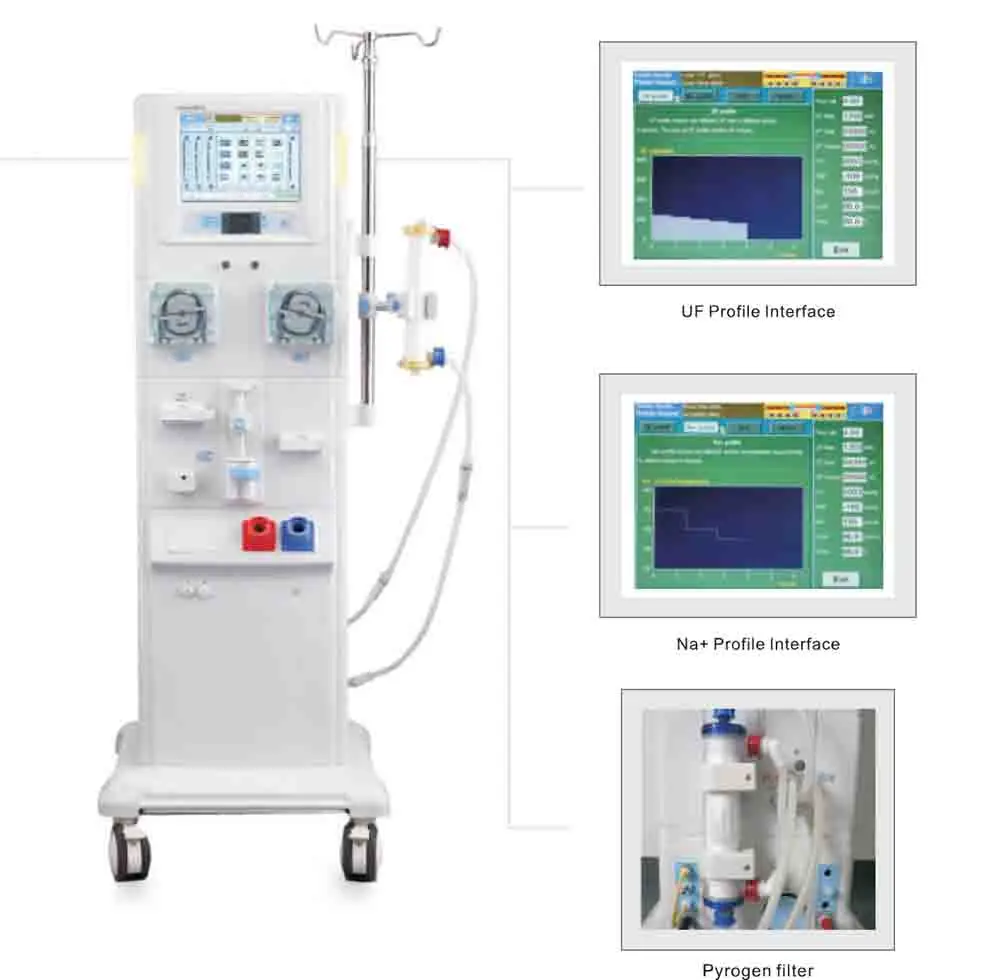

 Na+, UF & HCO3- Profiles

 Suitable for any dialysate formula

 Dialysate flow linearly adjustable

 Kt/V

 Optional: Bicarb-cartridge holder, Pyrogen filter port, Network connection, etc.





Main technical parameter

- Volume (length× width ×height):
    ·370mm×340mm ×1420mm
-Weight: about 90kg
 - Power supply voltage: AC220V±10%
    ·Frequency: 50HZ ~ 60 HZ
    ·Power: 1700W
 -Blood pump:
    ·Flux: 10 ~ 460 ml/min (  6.4mm)
    ·Flux: 20 ~ 620 ml/min ( 8mm)
 - Functional pump:
     ·Flux: 10 ~ 460 ml/min ( 6.4mm)
    ·Flux: 20 ~ 620 ml/min (8mm)
- Heparin pump:
    ·Flux: 0.1ml/h~10ml/h(±5%)
    ·Precision: 0.1ml/h
    ·Injector size:   10ml/20ml/30ml(selectable)
- Arterial pressure:
   ·display scope:-300mmHg~+400mmHg
                           (±10mmHg)
-Venous pressure:
   ·display scope:-200mmHg~+500mmHg
                           (±10mmHg)
- Dialysate flow:
    ·300ml/min~800ml/min linearly adjustable
                     (+10%)
   ·Temperature:35.0℃~39.0℃
   ·Resolving rate:0.1℃
   ·Conductivity:12.3mS/cm~15.8mS/cm
                       (±0.1 mS/cm)

 - UF flow scope: 0~4000ml/h
- ISO UF flow scope:0~4000ml/h(±30ml/h)
- TMP
   ·Scope:-100mmHg~+600mmHg
                   (±20mmHg)
- Blood leakage monitor:
     over 1ml blood per liter dialysate
             (flow:500ml/min)
- Blood level monitor: ultrasonic sensor
- Air bubble monitor:
     Infrared and response threshold value:
     Single air bubble of 200uL exists when blood flux is 200ml/min
- Inflow pressure:0.12MPa~0.6MPa
                        0MPa~0.6MPa (Optional)
- Inflow temperature: 5℃~30℃
- Non-invasive Blood pressure monitor
- Environment temperature: 10℃~38℃,
    · Relative humidity≤80%
- Rinse/disinfection: chemical disinfection
    (citric acid, peracetic acid)
- Hot rinse:≥80℃
- Back-up power supply: last for 15-30min after electric-cut.
