cheap price retail displays high quality Wholesale slotted mdf ,pvc MDF board ,slat wall MDF
- Category: >>>
- Supplier: Shuyang Good Idea Wooden Co. Ltd.
Share on (62376115234):
Product Overview
Description

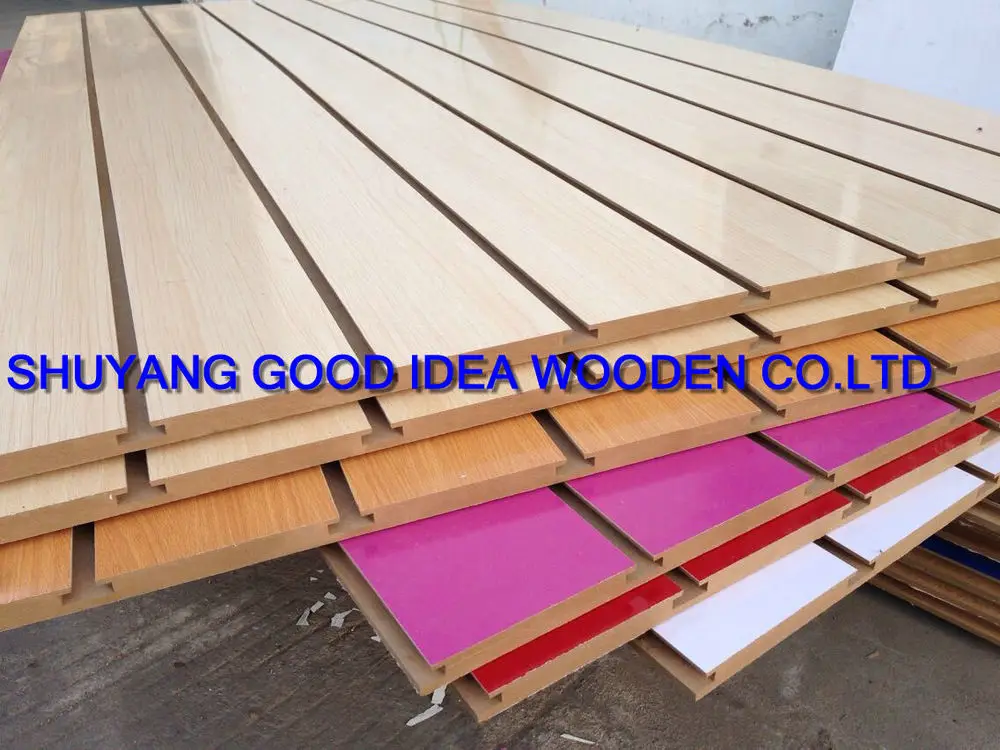

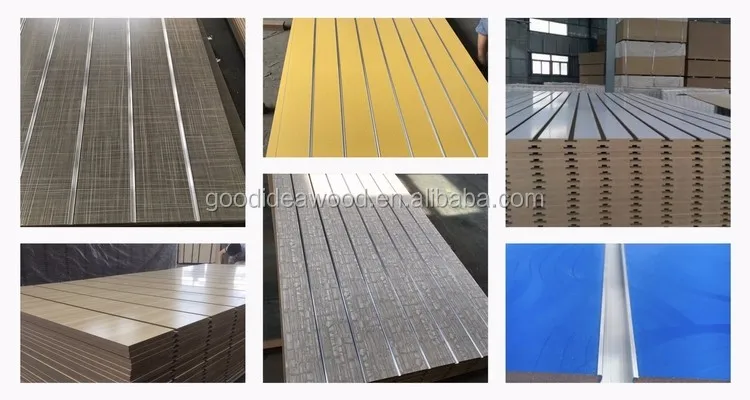

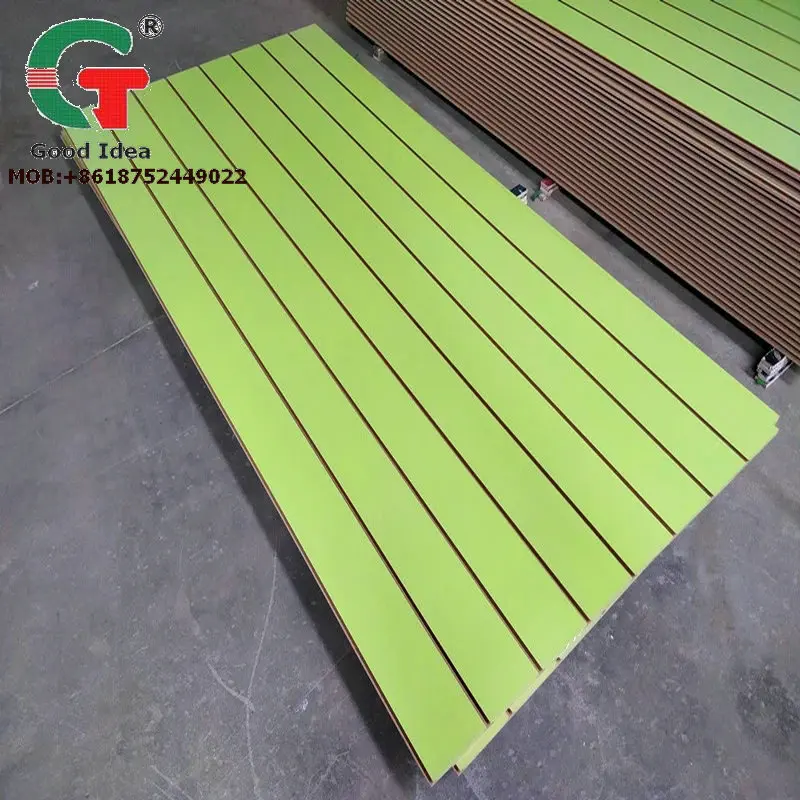

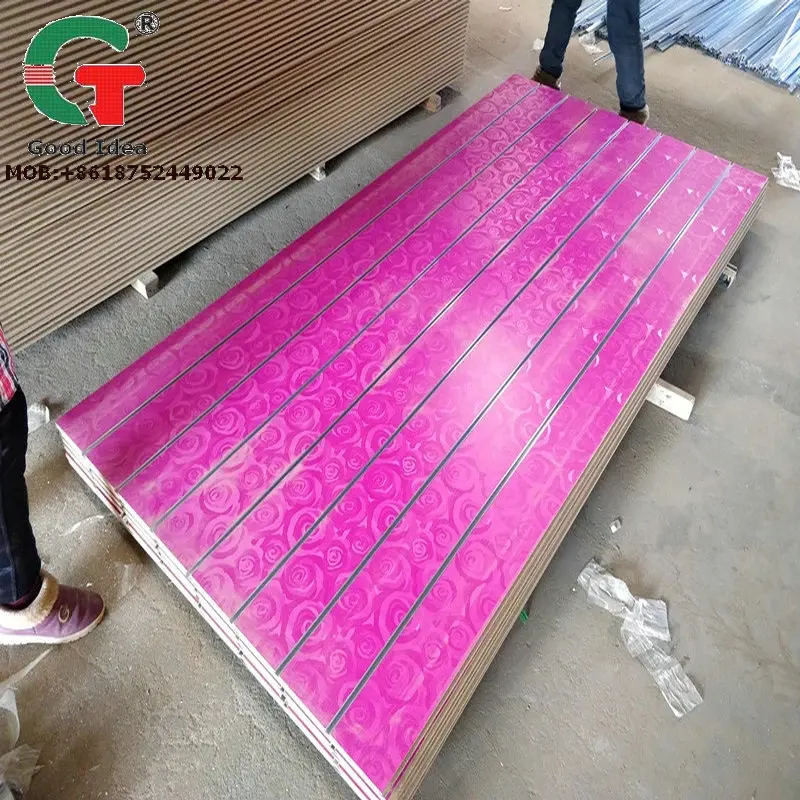

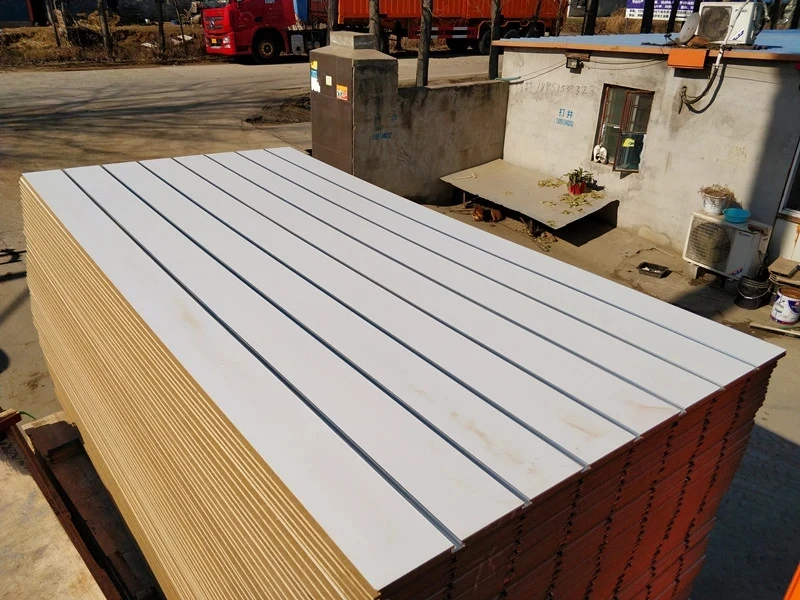

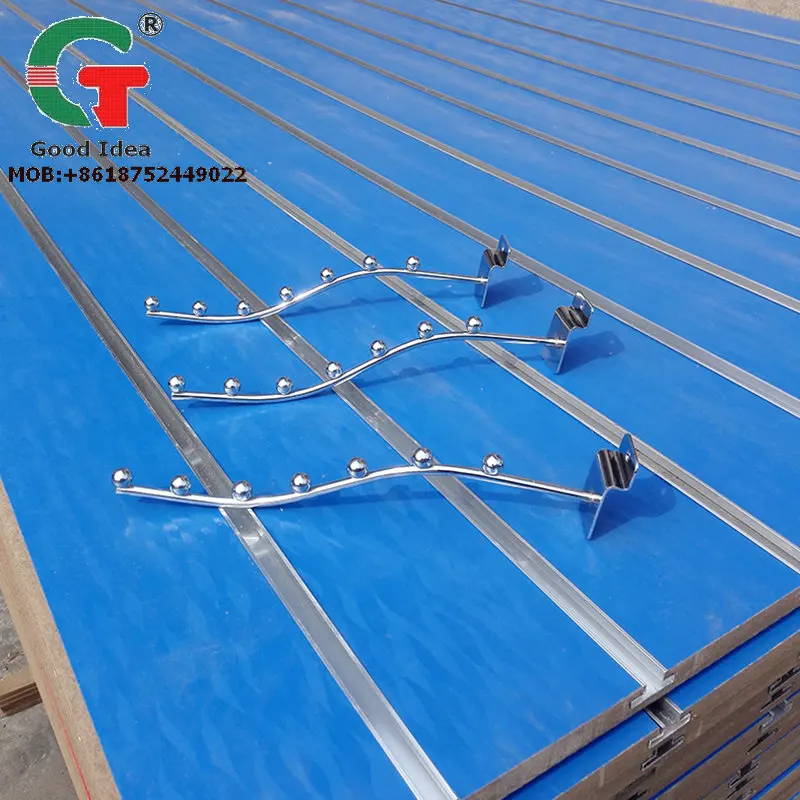

retail displays Wholesale high quality slotted mdf ,pvc MDF, wall panel
The grooves are made by CNC machine, which is controlled by computer, makes the space between grooves more accurate, the grooves more straight, and the edge more perfect.
1. Size: 1220*2440mm
2. Thickness: 15mm, 17mm, 18mm, 25mm etc. As your request
3. Base board: MDF board, density>750kg/m3
4. Surface of MDF: Raw, melamine,
5. Surface style: smooth, rough, embossed,magic wave texture,.....
6. End side half groove: Edge of display panel has a ½ Groove at the top and bottom to allow the panels to be installed one and another without a seam.
7. Groove type: Ellipse, rectangle, trapezoid, or as request
8. Feature: Moisture-proof, abrasion resistant, healthiness&environment protection

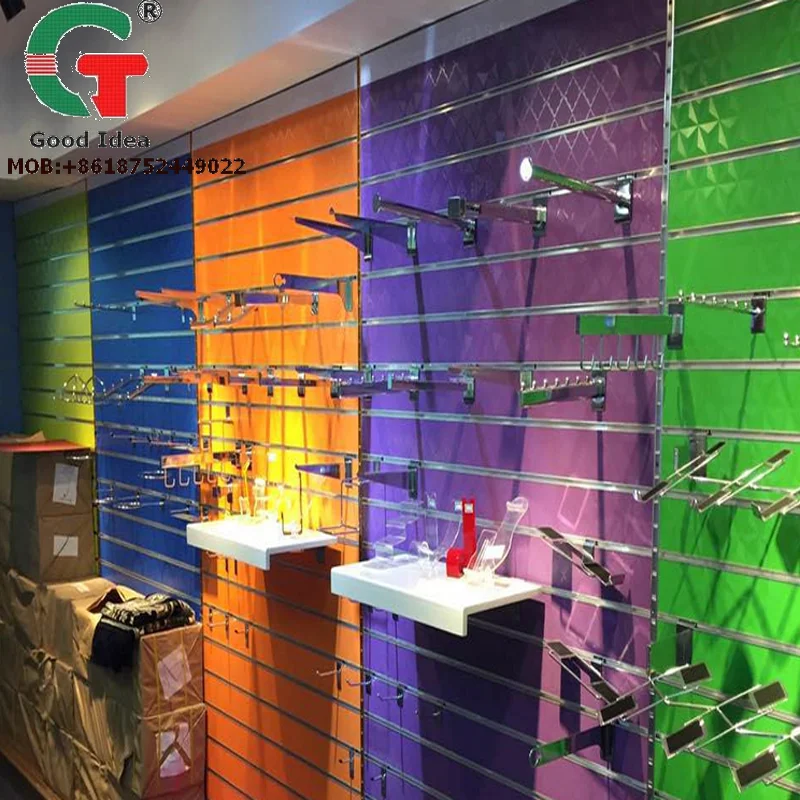

9. Application: MDF display board is widely used in retail stores to display products and merchandise. Suppermarkets, shopfitting, gondola shelving, display rack, storage cabinet, garage cabinet, garage storage system, hard ware chain store, exclusive agent, market place, gallery etc
| Specifications of MDF(raw &Melamined) | |
| size | 1220*2440mm |
| thickness | 2.5/2.7/3/3.7/4/4.5/4.75/5/5.5/6/8/9/11/12/15/16/17/18/25mm |
| Core material | Poplar/pine/hardwood/combined |
| Surface: | sanding or pressing &melamine mdf: matt ,glossy,texture,bump |
| grade | E0/E1/E2 |
| Density | 730~850kgs/M3 |
| melamine paper | solid color(white, red, blue, green etc) |
| wood grain color( cherry, oak, ash,walnut, maple, birch etc) | |
| Weight of Melamine paper | 85-110g/m2 |
| internal bond | ≥0.55MPA |
| Elastic Modulus | ≥2300Mpa |
| Screw holding: | surface:≥1200N, edge:≥900N |
| Moisture contents | 9-10% |
| Bending strength | >20Mpa |
| Water absorption | <8% |
| Surface bond strength | >1.2Mpa |
| Formaldehyde emission | E1 <9mg/100g |
| E2< 30mg/100g | |
| Performance: | 1. Density even, surface smooth, easy for machining and shaping |
| 2. Made of meticulous fiber, no sharp wood grain | |
| 3. Easy for oilpainting | |
| 4. Sidebroad of MDF is smooth and neat, not rough after sawing | |
| 5. Hard to be out of shape | |
| 6. Toxic gas emission is tightly controlled well | |
| Packing : | package method:pallet 1).weight :1600-1800kg/pallet size: 0.9m*1.22*2.44 PALLET(MDF thickness:8mm- 25mm);0.8m*1.22*2.44PALLET(MDF 2.5-6mm thickness )for container, 0.6m*1.22*2.44PALLET for bulk load 2). 8 pallets for 20GP container, 16 pallets for 40ft/HQ container |
| Minimum Order | 2*20ft |
MDF specification
1)size: 1220*2440MM(4'*8')
2)thickness: 2.5/3/3.7/4/4.5/4.75/5/5.5/6/8/9/12/15/17/18/25mm
3)material: Hardwood (2.5mm-6mm)
Poplar (8---25mm)
4)density: About 720-750kg/cbm(8-25mm)
About850kg/cbm(2.5-6mm)
5)glue: E1/E2
MELAMINE PAPER COLOR
1)white, red, green, yellor, black and so on
2)wood grain: Beech, walunt, maple, cherry, oak and so on
3)some special color for your choose or by your requirements
TEXTURE FINISH:
SMOOTH,MATT(ROUGH),EMBOSSED, MAGIC WAVE AND AS YOUR NEED.
PACKAGE:PALLET PACKING FOR LOADING 20GP,40GP OR BREAK BULK,
LOOSE PACKING IN 20GP,it can be loaded more and save ocean freight.
TERM OF PAYMENT: TT OR LC
LOADING OF PORT:LIANYUNGANG PORT, CHINA.
DELIVERY TIME: WITHIN 10 DAYS AFTER DEPOSITE
FAQ
Question 1:Are you manufacturer?
Answer :Yes,we are professional manufacturer with more than 10 years experience.
Question 2:How large of your company?
Answer:We have factory 18000 suquar meter,with 8 hot press machines and one production line for plywood.
Qestion 3:Do you make mdf and melamine boards by your self?
Answer:we made mdf before,but now we are specialized in melamine boards.And We buy raw mdf from our brouther's company.No profit on raw material from any third-party.Which just like you buy from us directly.
Question 4:What's the advantage if we by from your company?
Answer:High quality products and low price! Why? Cuz we are good master of producing process,and from raw mdf to melamine boards we are all the direct producer.besides,we are closed to the sea port.
Here i am very glad to introduce our main products as below:
1. MDF(1220*2440*2MM-25MM)
2. MELAMINE MDF, MELAMINE PARTICLE BOARD
3. VENEER BOARD(MDF, PLYWOOD)
4. BLOCK BOARD (FALCATE CORE)
5. SLOT MDF
6. UV COATED MDF
7. HPL
8. PVC EDGE BANDING
9. FILM FACED PLYWOOD
Tiffany
Add: Shuyang, Jiangsu Pro., China
Tel:+86 527 83352345 Fax:+86 527 83355010
Mob :+86 18752449022
Wechat:mdftiffany
Skype:tiffanymao2011
Web:www.jinfeng-wood.com
