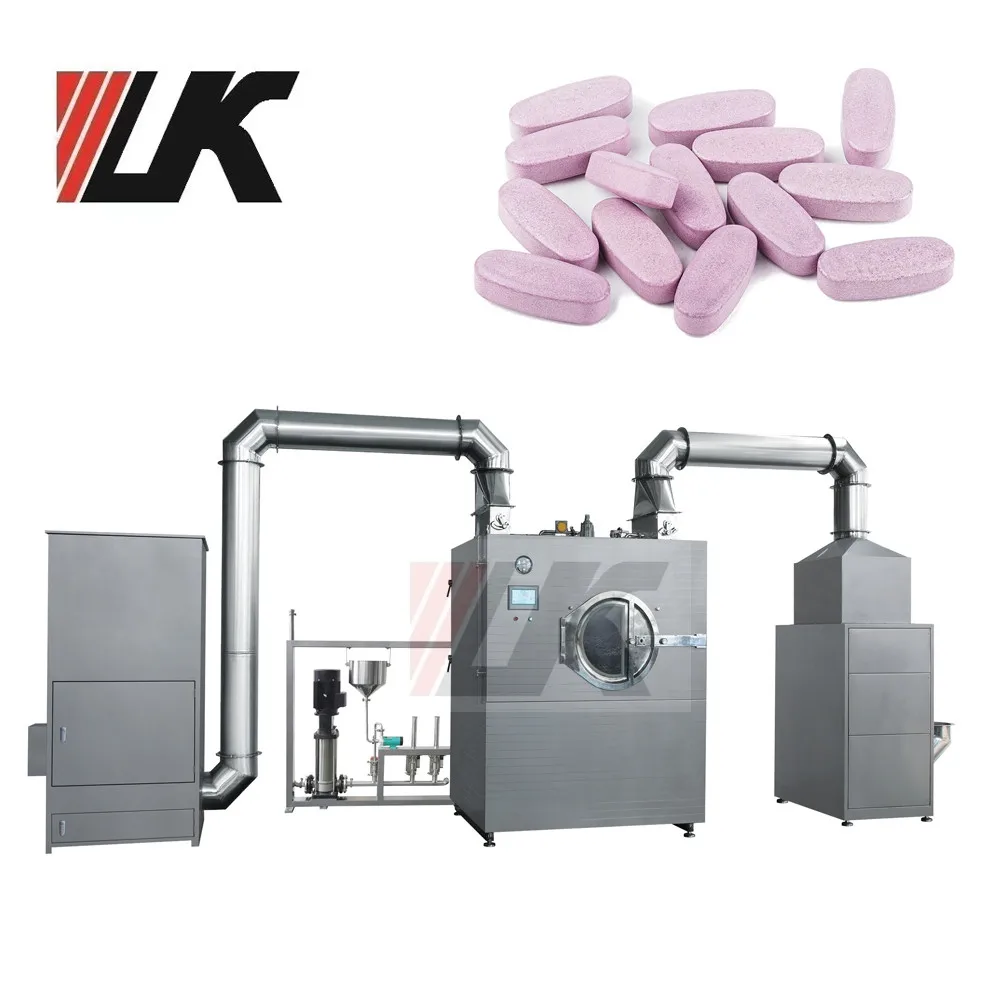

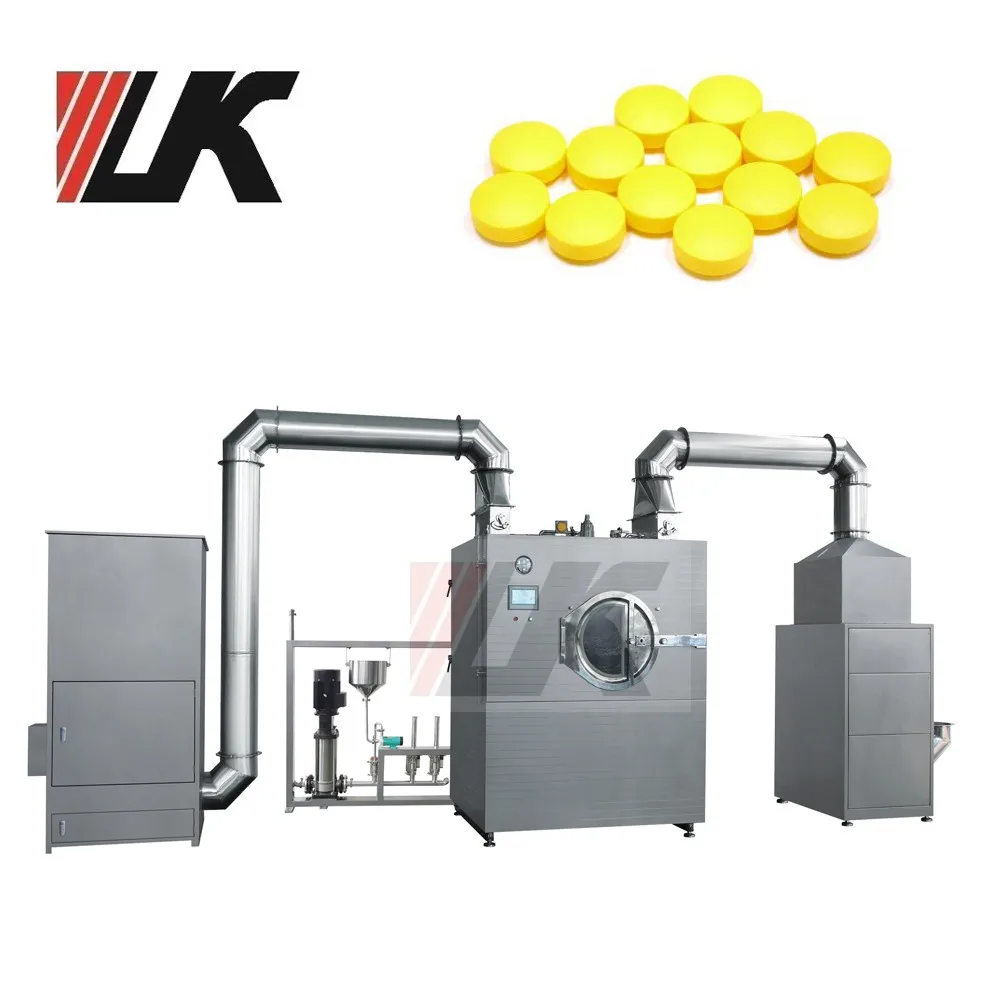

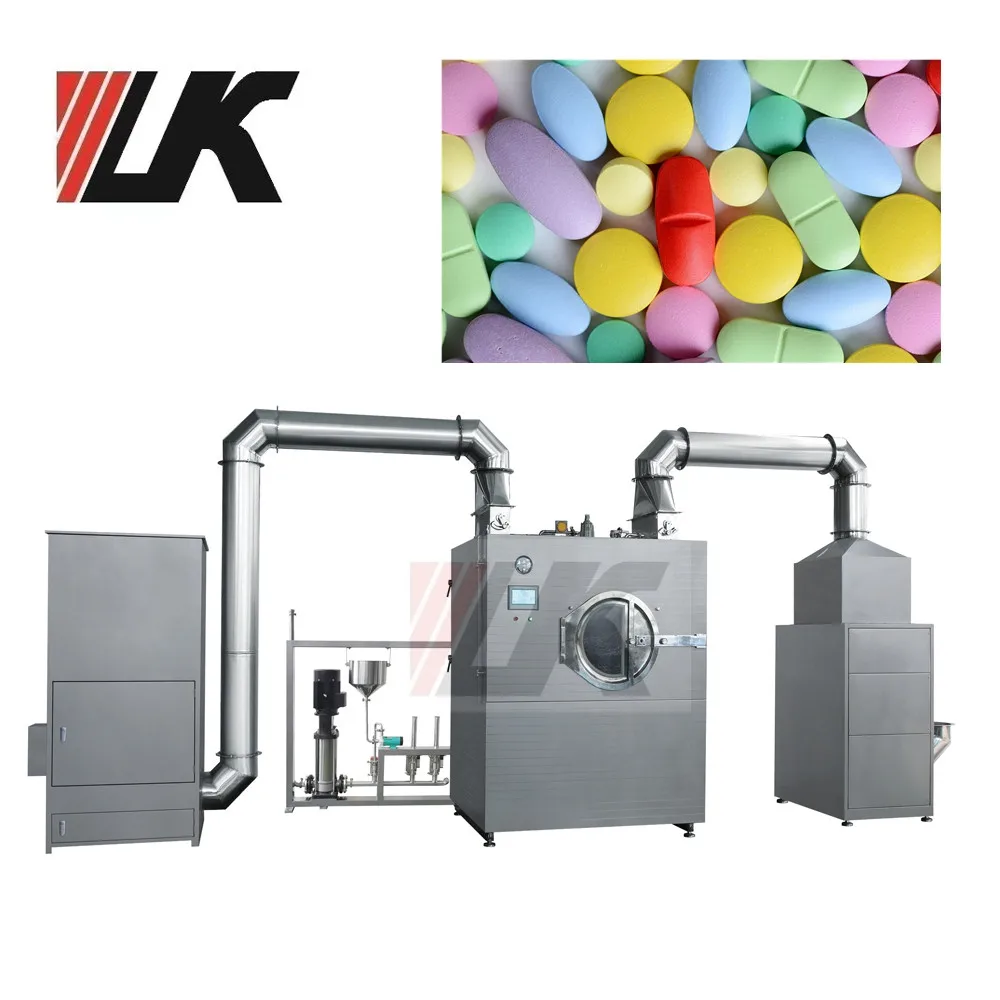

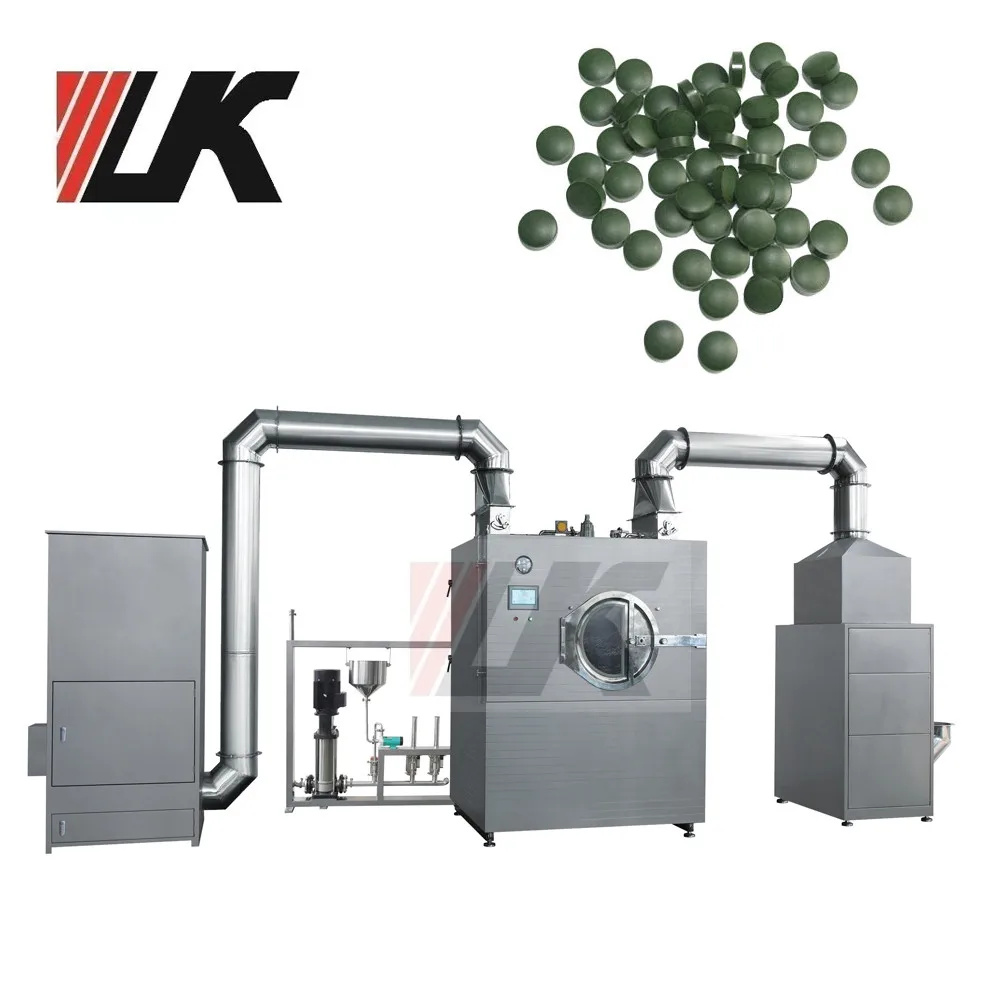

The product is an ideal film coating machine in current pharmaceutical industry at home. It can be applied in many fields like pharmacy, food, biological products, etc.. The machine is particularly applied to coat tablets, pills, and candies with all kinds of organic or water-soluble film. As a film coating machine, it is widely applied in pharmacy and food industry.
Compared with its similar products, this machine acquires distinct advantages: 1.PLC and temperature module controlling system with the touch screen produced by Siemens Germany are applied to provide picture displaying, convenient operation, energy-efficiency, cleanliness and safety, and convenient cleaning, which meets the standard of GMP. 2.Components, which drugs are exposed to, such as high efficiency film coating mainframe, high efficiency hot air filter, dust removal fan and spray device, are all made of imported stainless steel of good quality. 3.The procedures are all controlled by PLC touch screen, automatically or manually. 4.Coating is processed in totally closed environment to prevent dust and slurry from spilling. The surface of box is polished and its light pollution is eliminated. 5.The driver system applies explosion-proof decelerating motor and chain-wheel transmission device, which can make frequency conversion continuously variable. 6.High efficiency hot air filter can directly capture air from outside, heat the air after primary, intermediated and high efficiency filter, and then provide the air for the mainframe. The air can meet the standard of 100,000 class cleanliness. Dust removal fan can exhaust air to the outside to avoid the influence on central air-conditioning and to save energy. 7.Spray gun is the WA-101 spray gun imported from Japan of good atomization, non-clogging nozzle, adjustable spray volume and angle, and simple structure which is convenient to clean. Currently, the machine has relatively large market and good prospect at home. It has been applied by lots of factories for many times and passed the inspection of GMP successfully.
Technical Parameters
Items
Parameters
Production quantity
150kg every time
Speed range of film coating roller
2-20 r/min
Diameter of material inlet
480mm
Diameter of film coating roller
1200mm
Diameter of roller mesh
3mm
Motor power of mainframe
2.2KW (The mainframe is totally closed)
Air source
Supplied by the user
Dimensions
1700×1300×2100mm (L×W×H)
PLC
It can make the frequency conversion continuously variable and set, adjust, display and memorize the technical parameters, operation speed, air inlet speed, spray force and flow during the operation of the complete machine.
Hot air cabinet
Motor power of hot air filter
1.5KW (explosion-proof)
Filter precision
0.5μm
Filter cleanliness
100,000 class
Air inlet speed
3517m³/h
Hot air temperature
40~80℃ (adjustable)
Dimensions
780×1050×2100 mm (L×W×H)
Weight
400Kg
Dust removal cabinet
Motor power dust removal fan
5.5KW (explosion-proof)
Air outlet speed
7419 m3/h
Surface material
Matt stainless steel
Dimensions
930×930×2000mm (L×W×H)
Weight
500Kg
Spray gun
Imported spray gun with uniform atomization, adjustable spray shape, position and angle
Motor power of peristaltic pump
0.25KW
Peristaltic pump speed
100-700 r/min
Mainframe weight
900Kg
Working Process
Optional Devices
dedust removal exhaust cabinet fil tration hot air cabinet heat-preservation mixing barrel
Sample Display

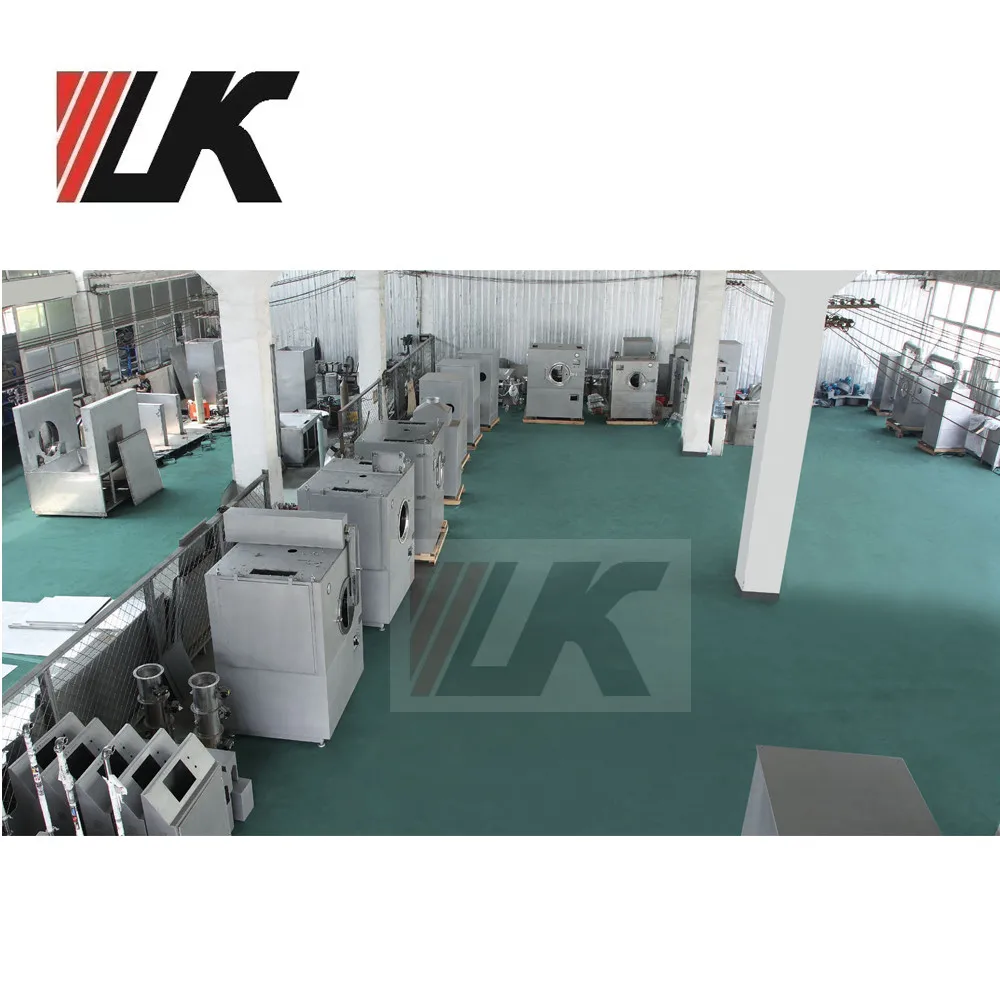

Company Information
Packaging & Shipping
FAQ
Q1:Are you manufacturer or trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What does your factory manufacture?
A2: We are mainly engaged in pharmaceutical machines, including wet granulator, roll compactor, fluid bed dryier, mixer, tablet press, film coating machine, capsule filling machine etc.
Q3: What’s the lead time of your machine?
A3: Normally it’s about 30~45 working days.
Q4: What’s the payment terms?
A4: 30% deposit TT, 70% paid before shipment; or L/C, Western Union.
Q5: Can we check machine before order?
A5: Yes, welcome to visit our factory and check machine anytime.
Q6: What you can do for us if machine has problem at our factory after order?
A6: At first, please send us the report and video showing the problem, we will help solve it through the information you provide, and if need any spare parts, we will send to you by international express. If can’t solve it well, then we will dispatch our engineer to your site and check & solve the problem.
